VJ1206Y333MLBAJ2L datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> VJ1206Y333MLBAJ2L

VJ1206Y333MLBAJ2L: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 100 V, X7R, 0.033 uF, SURFACE MOUNT, 1206, CHIP; CategoryPassive components capacitor; File Size130KB，15 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

VJ1206Y333MLBAJ2L Overview

CAPACITOR, CERAMIC, MULTILAYER, 100 V, X7R, 0.033 uF, SURFACE MOUNT, 1206, CHIP

VJ1206Y333MLBAJ2L Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	, 1206
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	0.033 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.7 mm
JESD-609 code	e0
length	3.2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 7 Inch
positive tolerance	20%
Rated (DC) voltage (URdc)	100 V
size code	1206
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	1.6 mm

Preview

Download Datasheet

View All

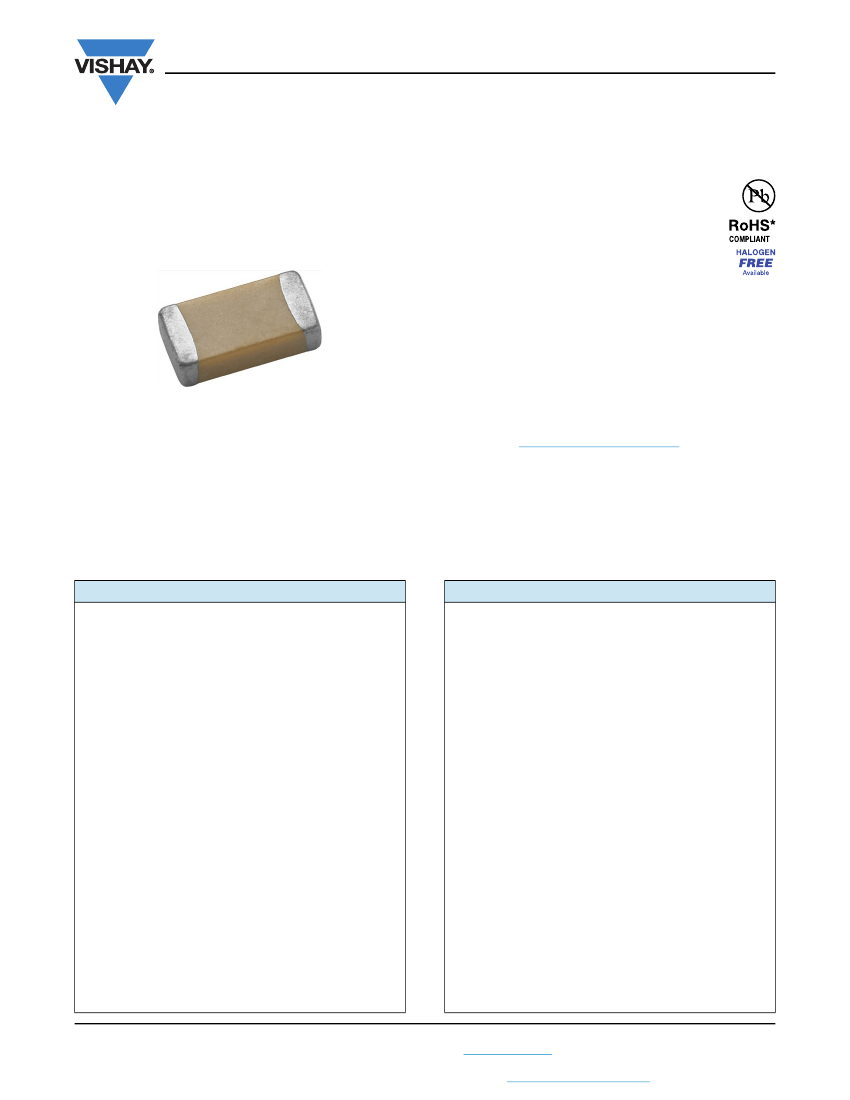

VJ Hi-Rel Series

www.vishay.com

Vishay Vitramon

Surface Mount Multilayer Ceramic Chip Capacitors

for High Reliability Applications

FEATURES

• Manufactured with a combination of design,

materials and tight process control to

achieve very high field reliability

• C0G (NP0) and X7R/X5R dielectrics offered

• MIL-PRF-55681 qualified production line

• Reliability maintenance testing to verify

consistent quality

(X5R max. test temperature: + 85 °C)

• Available with group A and C screening

• Available with only group A screening

• Available with only voltage conditioning

• Customized certification available on request to meet your

quality requirements

• Available with tin-lead barrier terminations order code “L”

• Wet build process

• Reliable Noble Metal Electrode (NME) system

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

Note

Lead (Pb)-containing terminations are not RoHS-compliant.

Exemptions may apply.

APPLICATIONS

• System critical medical applications

• Mission critical military and aerospace applications

ELECTRICAL SPECIFICATIONS

C0G (NP0)

GENERAL SPECIFICATION

Note

Electrical characteristics at + 25 °C unless otherwise specified

X7R/X5R

GENERAL SPECIFICATION

Note

Electrical characteristics at + 25 °C unless otherwise specified

Operating Temperature:

- 55 °C to + 125 °C

Capacitance Range:

0.5 pF to 56 nF

Voltage Range:

10 V

to 600 V

Temperature Coefficient of Capacitance (TCC)

0 ppm/°C ± 30 ppm/°C from - 55 °C to + 125 °C

Dissipation Factor (DF)

0.1 % maximum at 1.0 V

RMS

and

1 MHz for values



1000 pF

0.1 % maximum at 1.0 V

RMS

and

1 kHz for values > 1000 pF

Insulating Resistance

At + 25 °C 100 000 M min. or 1000

F

whichever is less

At + 125 °C 10 000 M min. or 100

F

whichever is less

Aging Rate:

0 % maximum per decade

Dielectric Strength Test

Performed per method 103 of EIA 198-2-E.

Applied test voltages

250 % of rated voltage



200 V

-rated:

200 % of rated voltage

500 V

-rated:

630 V

-rated:

150 % of rated voltage

Operating Temperature:

- 55 °C to + 125 °C

Capacitance Range:

100 pF to 6.8 μF

Voltage Range:

6.3 V

to 500 V

Temperature Coefficient of Capacitance (TCC)

X5R: ± 15 % from - 55 °C to + 85 °C, with 0 V

applied

X7R: ± 15 % from - 55 °C to + 125 °C, with 0 V

applied

Dissipation Factor (DF)



6.3 V, 10 V ratings: 5 % maximum at 1.0 V

RMS

and 1 kHz

16 V, 25 V ratings: 3.5 % maximum at 1.0 V

RMS

and 1 kHz



50 V ratings: 2.5 % maximum at 1.0 V

RMS

and 1 kHz

Insulating Resistance

At + 25 °C 100 000 M min. or 1000

F

whichever is less

At + 125 °C 10 000 M min. or 100

F

whichever is less

Aging Rate:

1 % maximum per decade

Dielectric Strength Test

Performed per method 103 of EIA 198-2-E.

Applied test voltages

250 % of rated voltage



250 V

-rated:

min. 150 % of rated voltage

500 V

-rated:

630 V

DC,

1000 V

-rated:

150 % of rated voltage

1500 V

, 3000 V

-rated:

120 % of rated voltage

Revision: 15-May-12

Document Number: 45200

For technical questions, contact:

mlcc@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
