521-060-0040H datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 521-060-0040H

Preview

521-060-0040H: DescriptionRF Connector, Male, Board Mount, Jack; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerWinchester Interconnect; Websitehttps://www.winconn.com/

Download Datasheet Parametric View All

521-060-0040H Overview

RF Connector, Male, Board Mount, Jack

521-060-0040H Parametric

Parameter Name	Attribute value
Maker	Winchester Interconnect
Reach Compliance Code	unknow
ECCN code	EAR99
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	SLIDE ON
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	TEFLON
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	52
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO

Preview

Download Datasheet

View All

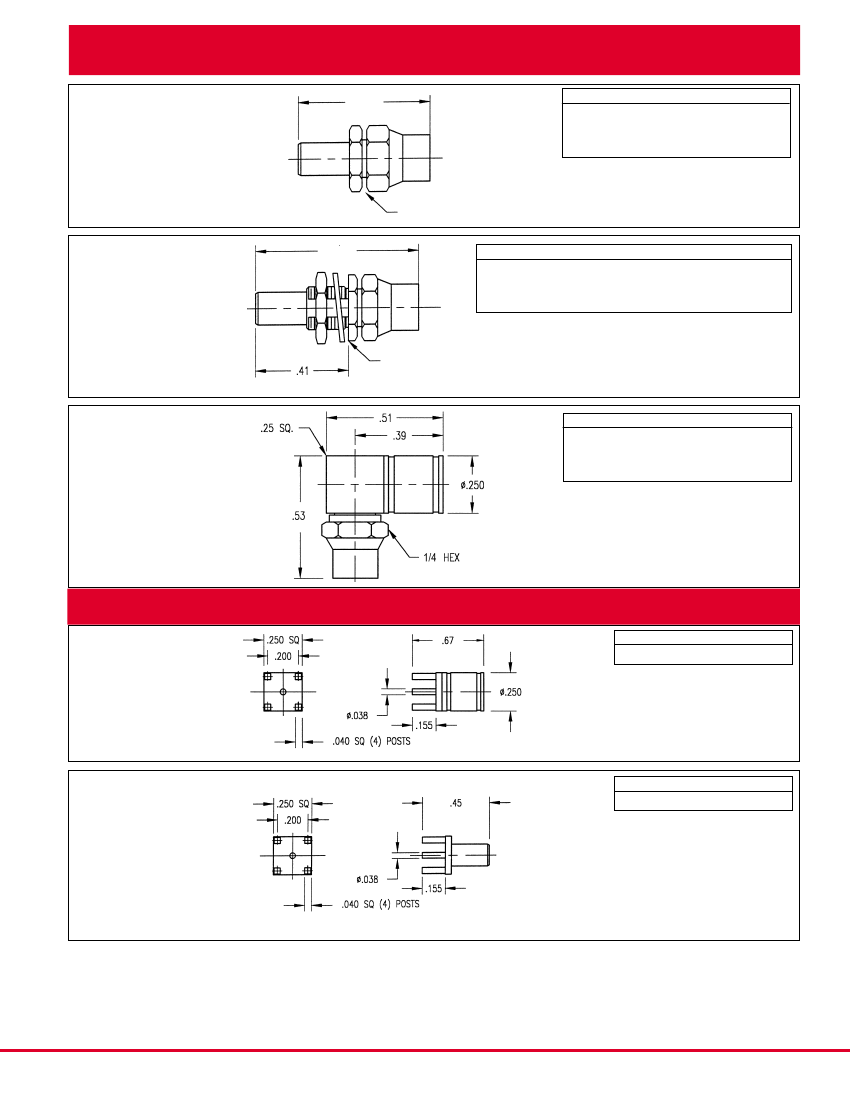

SLIDE - ON:

Straight Jack

Captive Contact

Clamp Flexible Cable

.59

Part Number

521-700-0360H

521-700-0630H

521-700-0631H

Cable

RG-178

RG-316

RG-316 double shielded

1/4 HEX TYP

• See page 99 for cable assembly procedures: 7-03

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Straight

Bulkhead

Jack

Captive

Contact

.72

Part Number

521-780-0360H

521-780-0630H

521-780-0631H

Cable

Mounting Hole

RG-178

No. 080

RG-316

No. 080

RG-316 double shielded

No. 080

1/4 HEX TYP

• See page 99 for cable assembly procedures: 7-03

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Part Number

522-700-0360H

522-700-0630H

522-700-0631H

Cable

RG-178

RG-316

RG-316 double shielded

Right Angle Plug

• See page 100 for cable assembly procedures: 7-04

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

SLIDE - ON:

Straight Plug

Printed Circuit & Bulkhead Receptacles

Part Number

Mounting Hole

520-060-0040H

No. 060 A

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Straight Jack

Part Number

Mounting Hole

521-060-0040H

No. 060 B

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Note: Dimensions shown in inches.

Winchester/Retconn

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com

RF/43
