583-024-6741Y datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 583-024-6741Y

Preview

583-024-6741Y: DescriptionRF BNC Connector, Female, Panel Mount, Board Mount, Receptacle; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerWinchester Interconnect; Websitehttps://www.winconn.com/

Download Datasheet Parametric Compare View All

583-024-6741Y Overview

RF BNC Connector, Female, Panel Mount, Board Mount, Receptacle

583-024-6741Y Parametric

Parameter Name	Attribute value
Maker	Winchester Interconnect
Reach Compliance Code	unknow
Other features	INSERTION LOSS MAX AT 3GHZ
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	TEFLON
MIL compliance	NO
Manufacturer's serial number	58
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

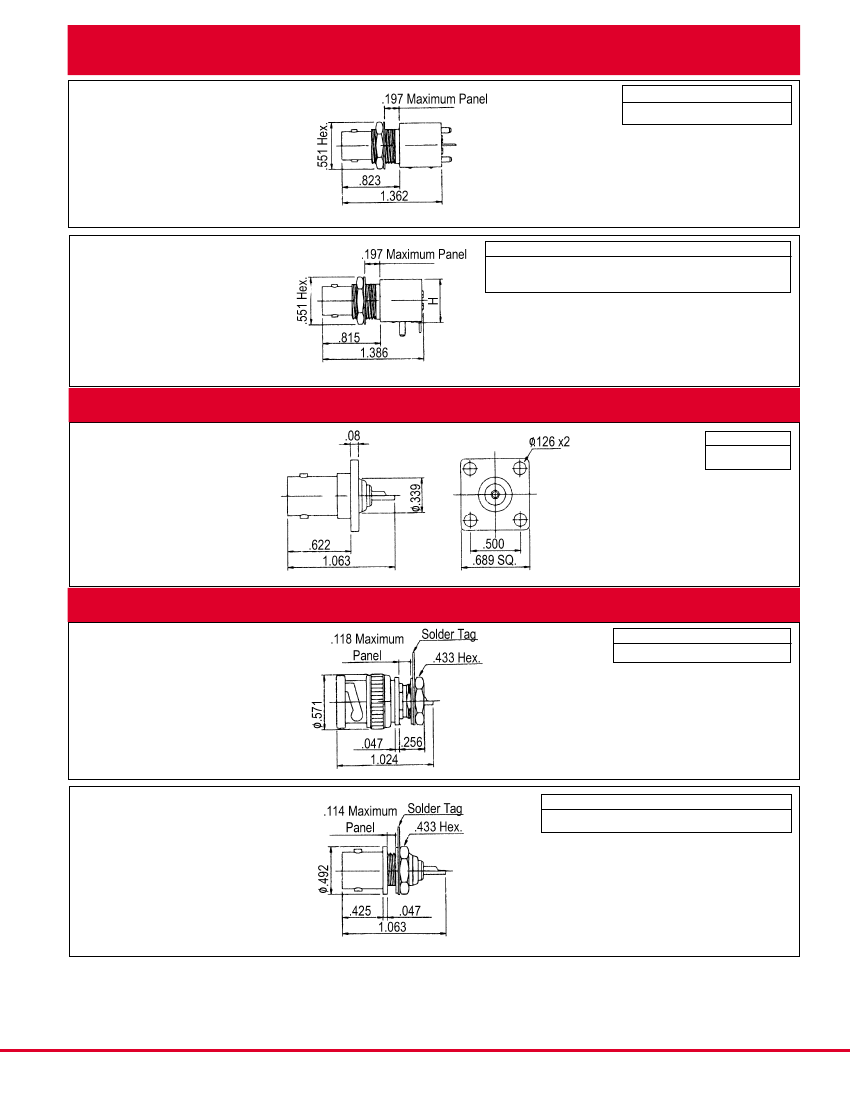

BNC:

Printed Circuit Board Receptacles

Part Number Mounting Hole

581-024-9141Y

No. 024 A

• See page 83 for mounting hole layout.

Straight

PCB Mount

Jack

Receptacle

(Valox

Housing)

Right Angle

PCB Mount

Jack

Receptacle

(Valox

Housing)

Part Number

Mounting Hole

583-024-6741Y (standard H=.614)

No. 024 A

583-024-6742Y (low profile H=.516)

No. 024 A

• See page 83 for mounting hole layout.

BNC:

Panel Mount Receptacle (Solder Pot Contact)

Square

Flange

Jack

Receptacle

Part Number

581-050-0000Y

BNC:

Bulkhead Mount Receptacles (Solder Pot Contact)

Part Number

Mounting Hole

580-029-0000Y

No. 029

• See page 83 for mounting hole layout.

Straight

Bulkhead

Mount

Receptacle

Straight

Bulkhead

Jack

Receptacle

Part Number

Mounting Hole

581-029-0000Y diecast body

No. 029

• See page 83 for mounting hole layout.

Note: Dimensions shown in inches.

Winchester/Retconn

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950• Internet: http://www.litton-wed.com

RF/57

583-024-6741Y Related Products

	583-024-6741Y	583-024-6742Y
Description	RF BNC Connector, Female, Panel Mount, Board Mount, Receptacle	RF BNC Connector, Female, Panel Mount, Board Mount, Receptacle
Maker	Winchester Interconnect	Winchester Interconnect
Reach Compliance Code	unknow	unknow
Other features	INSERTION LOSS MAX AT 3GHZ	INSERTION LOSS MAX AT 3GHZ
Body/casing type	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insertion loss	0.2 dB	0.2 dB
insulator material	TEFLON	TEFLON
MIL compliance	NO	NO
Manufacturer's serial number	58	58
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Maximum operating frequency	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES
voltage standing wave ratio	1.3	1.3
