5.0SMCJ28C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 5.0SMCJ28C

5.0SMCJ28C: DescriptionTransient Suppressor,; CategoryDiscrete semiconductor diode; File Size2MB，62 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com

Download Datasheet Parametric Compare View All

5.0SMCJ28C Overview

Transient Suppressor,

5.0SMCJ28C Parametric

Parameter Name	Attribute value
Maker	World Produts Inc.
Reach Compliance Code	compli
ECCN code	EAR99

Preview

Download Datasheet

View All

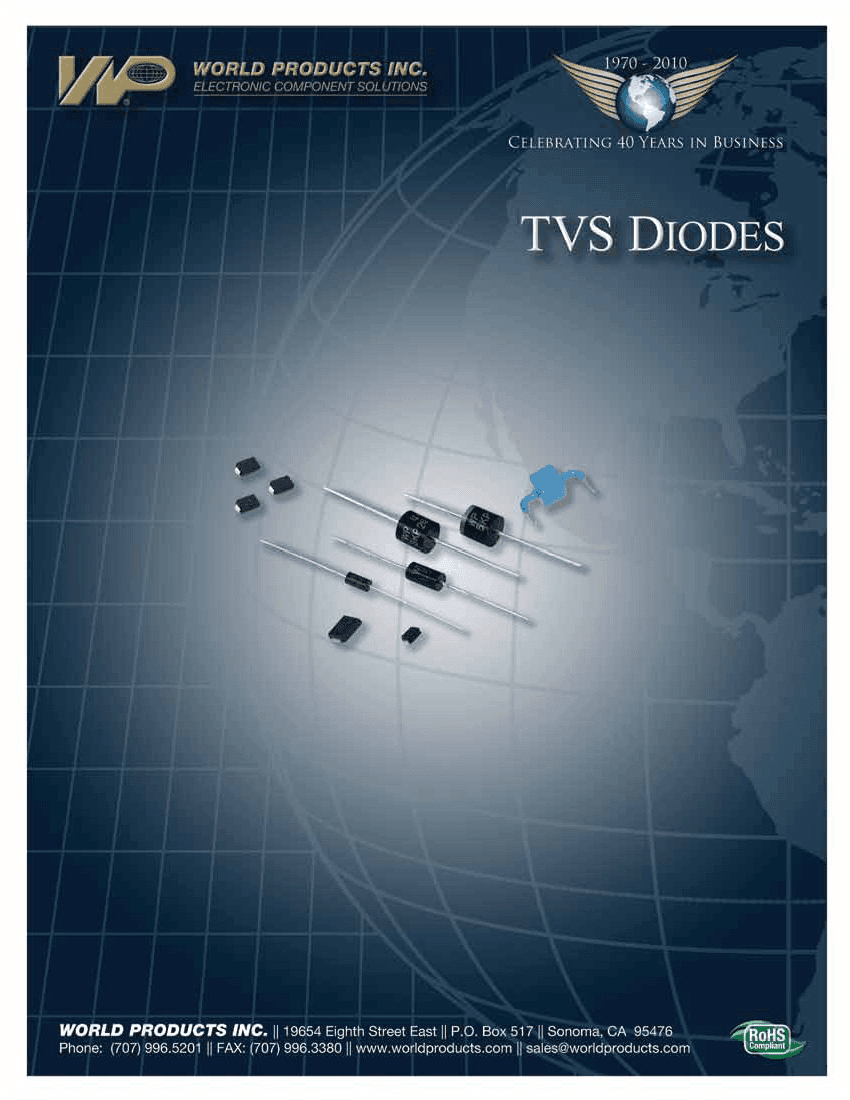

TVS D

ioDeS

World Products Inc.

19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com

Protection Products Catalog

| 1

Rev. 2.6 (02.24.10)

TVS D

ioDeS

Table of Contents

Transient Voltage Suppression Diodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

P4KE Series — 400 Watt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SA Series — 500 Watt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

P6KE Series — 600 Watt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5KE Series — 1500 Watt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3KP Series — 3000 Watt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5KP Series —5000 Watt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15KP Series —15000 Watt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

P4SMAJ Series — 400 Watt Surface Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

P6SMBJ Series — 600 Watt Surface Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5SMCJ Series — 1500 Watt Surface Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.0SMCJ Series — 3000 Watt Surface Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.0SMCJ Series — 5000 Watt Surface Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Circuit Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Transient Voltage Suppression Diodes

World Products Inc. is committed to providing the optimum products for your transient/surge protection problems.

Our TVS Diode satisfies the toughest requirements for a low clamping device and provides superior performance in all

applications.

World Products expands your options . . .

Large selection of equivalents to essentially all TVS Diodes. World Products

specifications are designed to provide all of the necessary physical and electrical parameters required for proper

component selection.

Discover why the first choice in TVS Diodes is WPI.

9000

•

SOCI

ÉT

ISO

9002

•

SOCI

ÉT

ISO

14001

STERED

ENVI

REGISTR

TEM

ÉE

World Products Inc.

19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com

ÉE

Protection Products Catalog

| 3

Rev. 2.6 (02.24.10)

TVS D

ioDeS

General Information

TVS Diode Technology

World Products Transient Voltage Suppression (TVS) Diodes are silicon avalanche devices designed, manufactured,

specified and tested according to voltage suppression applications.

These devices, with their fast response and low clamping characteristics, protect all MOS technology based devices,

hybrids, and other voltage sensitive components. The low clamping factor and pico-second response time of World

Products TVS Diodes clamps transient pulses early and maintains them at an acceptable level for their entire duration. In

other overvoltage protection devices, response times are delayed by 24nS to 2μs allowing transients to reach dangerous

levels. World Products TVS Diodes are designed to meet a 1.30 maximum clamping factor at their rated peak impulse

current. This can be compared to clamping factors of 2 to 5 found in other protection devices.

TVS Diode Applications

TVS Diodes are the optimum choice in protecting computer or data processor circuits and power supplies, airframe

avionics and controls, numerically controlled machines, telecom circuits, and many other applications. These devices

are designed to protect against transient voltages generated by lightning, electro-static discharge (ESD), and inductive

switching.

TVS Diode RoHS Compliance

All axial TVS Diodes (no suffix code required) and SMD TVS Diodes (denoted by suffix “F”) products purchased from

World Products Inc. comply to a maximum concentration value of 0.1% by weight in homogeneous materials for lead

(Pb), mercury, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE) and of

0.01% weight in homogeneous materials for cadmium and are in compliance with Directive 2002/95/EC of the European

Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in

electrical and electronic equipment (RoHS Directive).

Note: Lead(Pb) in high-melting point solder for internal connections is not inhibited by RoHS. (i.e. tin-lead solder alloys

containing more than 85%)

Selecting the Correct Part Type

The following guidelines should be observed in selecting the correct diode:

TVS Parameters Application Parameters

1. Stand-off Voltage

) >=

Operating Voltage

2. Peak Pulse Current (I

ppm

) >=

Source Transient Current

3. Clamping Voltage

)

Voltage Withstand

)

1. If the stand-off voltage is less than the operating voltage of the application, the diode will continually clamp the

circuit voltage.

2. The Peak Pulse Current (I

ppm

) is the maximum current the TVS can handle. The source transient current is

determined by dividing the peak transient voltage by the source impedance — this is often difficult to determine. In

many cases, however, this may be obtained from industry standard documents, customer requirements, etc.

3. Determine the maximum voltage level that the protected device can withstand (V

). Select a suppressor which will

clamp the transient at a lower level (V

Consider the transient source: lightning, electro-static discharge, inductive switching or nuclear explosion (NEMP).

Often, a 1500 watt peak pulse rated device will protect against transients due to secondary lightning effects or inductive

switching on power, data and telephone lines. A 500 watt device is sufficient to protect sensitive components against

transients generated by electro-static discharge.

World Products Inc.

19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com

4 |

Protection Products Catalog
