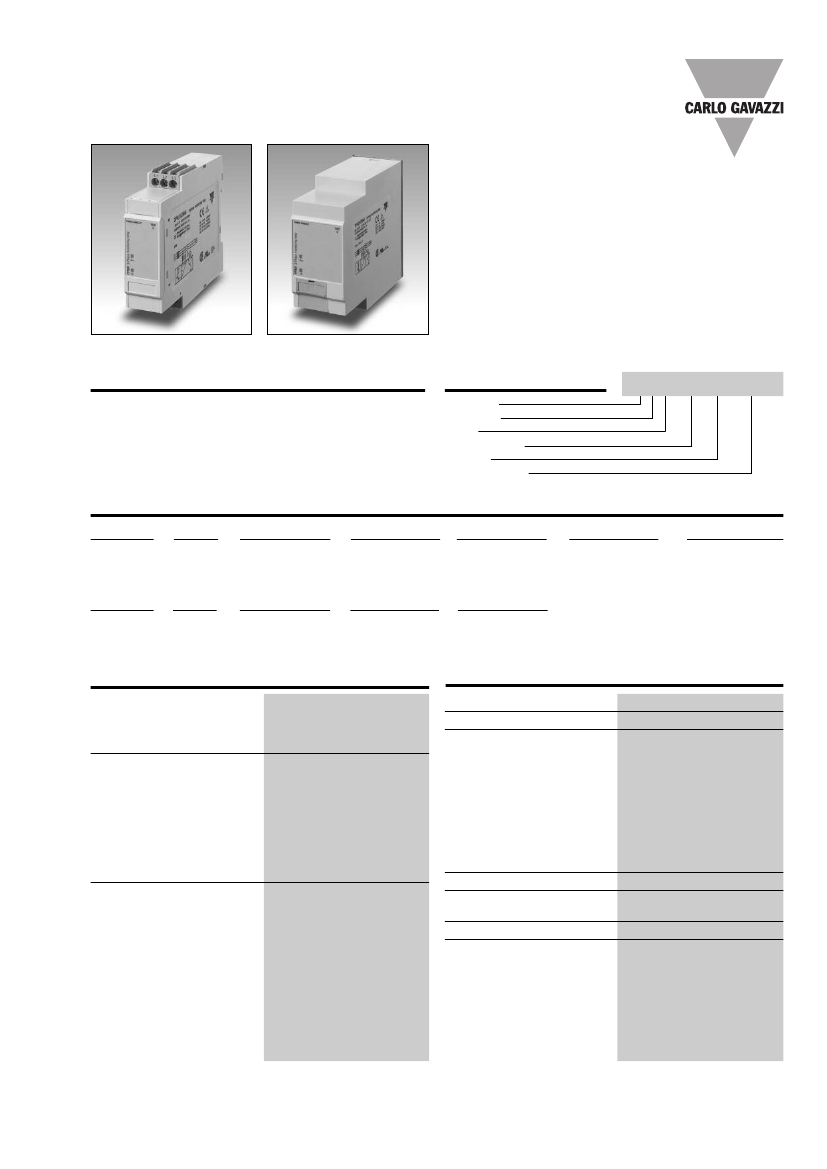

Monitoring Relays

3-Phase Sequence and Phase Loss

Types DPA01, PPA01

• 3-phase monitoring relays for phase

sequence and phase loss

• Detect when all 3 phases are present and have the

correct sequence

• Measure on own power supply

• Power supply range: 208 to 690 VAC (+10 -15%)

• Output: 8 A SPDT relay or 8 A DPDT normally energized

• For mounting on DIN-rail in accordance with DIN/EN

50 022 (DPA01) or plug-in module (PPA01)

• 22.5 mm Euronorm housing (DPA01) or 36 mm plug-in

module (PPA01)

• LED indication for relay and power supply ON

DPA01

PPA01

Product Description

3-phase relay for detection of

incorrect phase sequence,

total and partial phase loss.

Supply range from 208 to 690

VAC covered by two multi-

voltage relays.

For mounting on DIN-rail or

plug-in module. The device

detects regenerated voltages

up to 85% of the nominal

voltage (phase-phase).

Ordering Key

Housing

Function

Type

Item number

Output

Power supply

DPA 01 C M44

Type Selection

Mounting

DIN-rail

Mounting

Plug-in

Output

SPDT

DPDT

Output

SPDT

DPDT

208 to 480 VAC

DPA 01 C M44

DPA 01 D M23

208 to 415 VAC

PPA 01 C M44

PPA 01 D M23

PPA 01 D M48

208 to 240 VAC

DPA 01 D M48

380 to 415 VAC

208 to 240 VAC

380 to 480 VAC

380 to 600 VAC

DPA 01 C M60

600 to 690 VAC

DPA 01 C M69

Input Specifications

Input

L1, L2, L3

DPA01: Terminals L1, L2, L3

PPA01: Terminals 5, 6, 7

Measures on own supply

177 to 550 VAC

323 to 690 VAC

510 to 760 VAC

177 to 475 VAC

177 to 275 VAC

323 to 550 VAC

177 to 275 VAC

323 to 475 VAC

> 85% of the mains phase-

phase voltage

Output Specifications

Output

Rated insulation voltage

Contact ratings

(AgSnO

)

DPA01C, PPA01C (SPDT):

Resistive loads

AC 1

DC 12

Small inductive loads AC 15

DC 13

DPA01D, PPA01D (DPDT):

Resistive loads

AC 1

Small inductive loads AC 15

DC 13

Mechanical life

Electrical life

SPDT or DPDT relay, N.E.

250 VAC

8 A @ 250 VAC

5 A @ 24 VDC

2.5 A @ 250 VAC

2.5 A @ 24 VDC

8 A @ 250 VAC

3 A @ 250 VAC

2 A @ 24 VDC

≥

30 x 10

operations

≥

operations

(at 8 A, 250 V, cos

= 1)

≤

7200 operations/h

Measuring ranges

208 to 480 VAC (DPA01CM44)

380 to 600 VAC (DPA01CM60)

600 to 690 VAC (DPA01CM69)

208 to 415 VAC (PPA01CM44)

208 to 240 VAC (DPA01DM23)

380 to 480 VAC (DPA01DM48)

208 to 240 VAC (PPA01DM23)

380 to 415 VAC (PPA01DM48)

ON-level

Operating frequency

Dielectric strength

Dielectric voltage

≥

2 kVAC (rms)

Rated impulse withstand volt. 4 kV (1.2/50 µs)

Specifications are subject to change without notice (17.07.06)
