Film capacitors – Power Factor Correction
Key components – USB to RS485 converter
B44066R3333E230
B44066

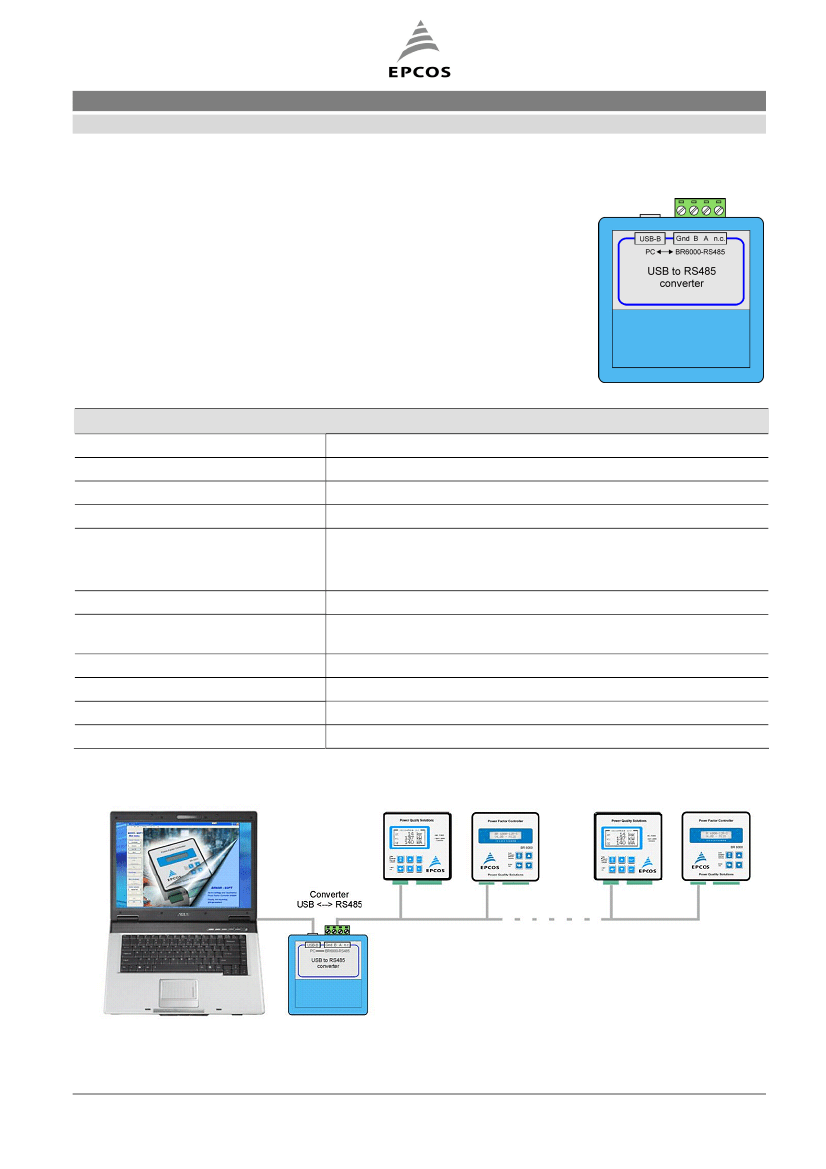

Characteristics
USB to RS485 converter to connect the power
factor controller BR6000 or BR7000 or other
devices with Interface RS485 to a PC with
USB-interface.
Connection of several devices at RS485
possible.
Technical data and specifications
Design
Dimensions w × h × l
Weight
Connection
RS485
USB
Power supply
Power consumption
Compatibility
Configuration
Ambient temperature
Storage temperature
4 pole terminal with mating plug for 1:1-connection with BR6000 or
BR7000, signals: A, B, GND
USB-B standard bushing, 1 USB cable 1 m length included in delivery
Via USB-connection from the PC
Auxiliary power approx. 40 mA, depending on number of connected
devices and cable length
USB 2.0, downward compatible
Plug and play
–10 … +60 °C
–20 … +75 °C
Compact form in plastic casing
66 mm × 28 mm × 66 mm
Approx. 0.1 kg
Connection diagram
.
FK PC PM PFC
Please read
Cautions and warnings
and
Important notes
at the end of this document.
