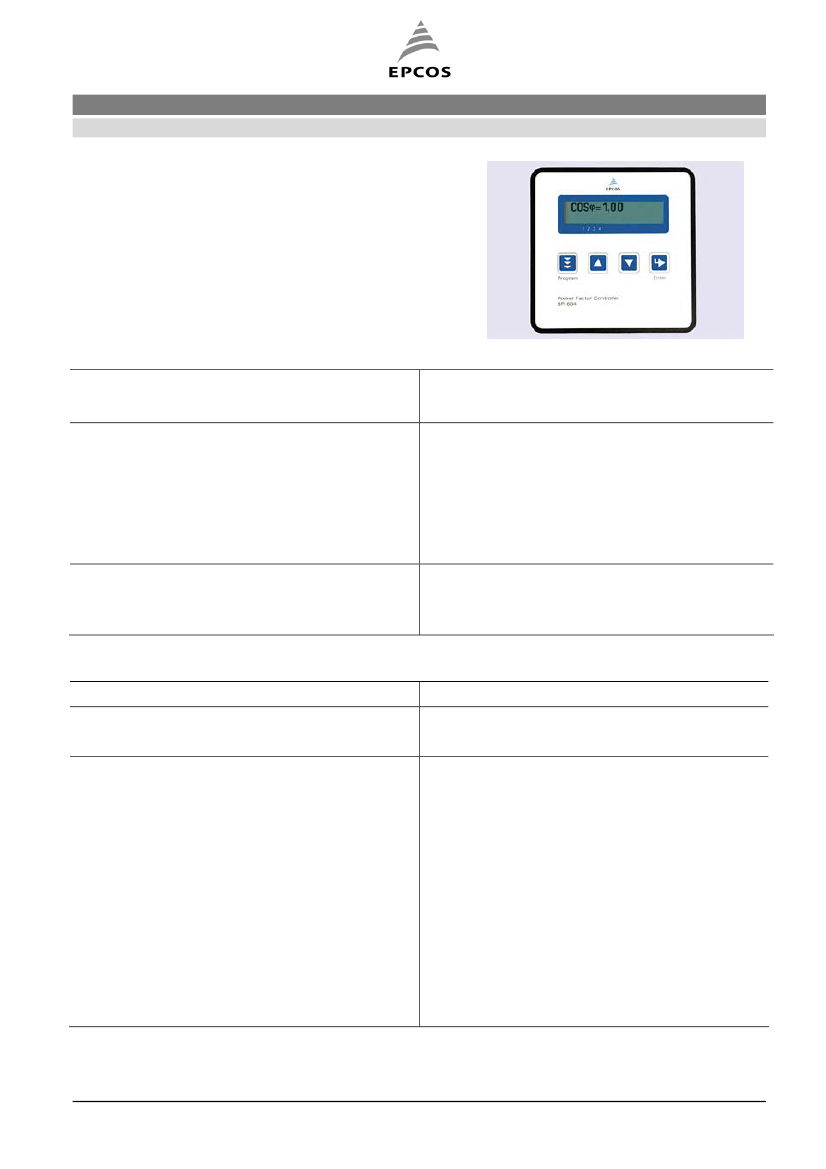

Power Factor Controller BR604
Series/Type:
BR604
Ordering code: B44066R6004E230
Date:
Version:
December 2006
2
Content of inside pages of data sheet. Data will be automatically entered into frontpage
headlines, headers and footers. Please fill in the table and then change the colour to “White”.
This ensures that the table disappears for the customer pdf.
Identification/Classification 1:
(header 1)
Identification/Classification 2:
(header 2)
Ordering code:
Series/Type:
Preliminary data (optional):
(if necessary)
Department:
Date:
PF-Controller
Accessories for power factor correction
B44066R6004E230
PF-Controller BR604
Preliminary data
FK PC PM PFC
December 2006
©
EPCOS AG 2006. Reproduction, publication and dissemination of this data sheet, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
Power Capacitor
Power Factor Controller Series BR604
Preliminary data
Characteristics
Intelligent control
Menu driven handling (plain language;
German/English)
Self-optimizing control capability
Recall function of recorded values
Four-quadrant operation (e.g. stand by generator)
Accessories
B44066R6004E230
Features
Display
-
-
System parameters displayed
-
-
-
-
-
-
-
-
Recall recorded values
-
-
-
-
Large and multifunctional LCD (2 x 16
characters)
Graphic and alphanumeric
System voltage (VAC)
Reactive power (kvar)
Active power (kW)
Apparent power (kVA)
Apparent current (A)
Real-time cos phi
Target cos phi
kvar value to target cos phi
Maximum voltage, (V
max
)
Maximum reactive power, Q (kvar)
Maximum active power, P (kW)
Maximum apparent power, S (kVA)
Technical Data
Weight
Case
Ambient conditions
-
-
-
-
-
-
-
-
-
-
0.5 kg
Panel-mounted instrument, 100 x 100 x 40 mm)
(cut out 92 x 92 mm)
Over-voltage class
Pollution degree
Operating temperature
Storage temperature
Sensitivity to inference (industrial areas)
Spurious radiation (residential areas)
Safety guidelines
Mounting position
Humidity class
III
2
-10 °C .... +70 °C
-20 °C ... +75 °C
EN55082-2.1995
EN55011 10.1997
EN61010-1 :2001
Any
15% to 95% without dew
FK PC PM PFC
Page 2 of 5
September 2006
Power Capacitor
Power Factor Controller Series BR604
Preliminary data
Protection class
-
-
Accessories
B44066R6004E230
Front plate
Rear side
Supply voltage
Target cos phi
Switching and discharge time range
Number of control series
Control modes
IP54 according to IEC60529 / DIN 40050
IP20 according to IEC60529 / DIN 40050
230 VAC, 50 and 60 Hz power lines
0.8 ind. – 0.8 cap.
1 – 255 seconds
23 series preset
Series switching (LIFO),
circular switching (FIFO),
self-optimized intelligent control mode
Operation
-
-
-
-
-
Measurement
-
-
-
-
-
-
Measurement voltage range
Fundamental frequency
Measurement current (CT)
Minimum operating current
Maximum current
Zero voltage release
= supply voltage: 230 VAC (L-N)
50 and 60 Hz
x/1 and x/5 Ampere possible
40 mA
5.3 (sinusodial)
< 15 ms
Switching outputs
Relay outputs
-
-
-
-
Number of relays
Switching voltage/power
Expected mechanical life
Expected electrical life
4 steps available
max. 250 VAC, max. 1000 W
> 30 x 10
6
switching operations
> 5 x 10
6
switching operations
(load = 200 VA, cosphi = 0.4)
B44066R6004E230
Ordering Code
FK PC PM PFC
Page 3 of 5
September 2006
Power Capacitor
Power Factor Controller Series BR604
Preliminary data
Accessories
B44066R6004E230
Connection plan
su pp ly / me as. -
vol ta ge
Vs
L1 (R)
L2 (S)
L3 (T)
N
PE
T 6 , 3A
me a s. cur r e nt
I m ( 5 A/ 1 A )
k
l
1 . c apa ci t or -
b ra nc h
L
Vs
N
k
Im
l
K1
1
2
3
4
capaci tor-
contactors 1-4
U
Cautions:
Controller hunting: When putting the capacitor bank into operation, it is required to avoid needless
switching cycles (means permanent switching on and off of steps without significant change of
consumer load). This so called “controller hunting“ would increase the number of switching operations
of the connected contactors and capacitors and decrease the expected life cycle (wear out) and, in
worst case, capacitor bursting and fire, etc . This can be avoided by a proper programming of the
BR604 with the actual system parameters (current transformer prim. and sec., first kvar step, control
series, switching time).
U
Please read cautions information about PFC capacitors and cautions as well as installation and maintenance instructions in the actual
version of the Product Profile
Power Factor Correction
to ensure optimum performance and prevent products from failing, and in worst case,
bursting and fire, etc
.
The actual Product Profile is available at www.epcos.com/publications.
Information given in the PFC-product profile and values given in the data sheet reflect typical specifications. You are kindly requested to
approve our product specifications or request our approval for your specification before
ordering.
FK PC PM PFC
Page 4 of 5
September 2006
Important notes
The following applies to all products named in this publication:
1. Some parts of this publication contain
statements about the suitability of our products for
certain areas of application.
These statements are based on our knowledge of typical
requirements that are often placed on our products in the areas of application concerned. We
nevertheless expressly point out
that such statements cannot be regarded as binding
statements about the suitability of our products for a particular customer application.
As a
rule, EPCOS is either unfamiliar with individual customer applications or less familiar with them
than the customers themselves. For these reasons, it is always ultimately incumbent on the
customer to check and decide whether an EPCOS product with the properties described in the
product specification is suitable for use in a particular customer application.
2. We also point out that
in individual cases, a malfunction of passive electronic components
or failure before the end of their usual service life cannot be completely ruled out in the
current state of the art, even if they are operated as specified.
In customer applications
requiring a very high level of operational safety and especially in customer applications in which
the malfunction or failure of a passive electronic component could endanger human life or health
(e.g. in accident prevention or life-saving systems), it must therefore be ensured by means of
suitable design of the customer application or other action taken by the customer (e.g. installation
of protective circuitry or redundancy) that no injury or damage is sustained by third parties in the
event of malfunction or failure of a passive electronic component.
3.
The warnings, cautions and product-specific notes must be observed.
4. In order to satisfy certain technical requirements,
some of the products described in this
publication may contain substances subject to restrictions in certain jurisdictions (e.g.
because they are classed as “hazardous”).
Useful information on this will be found in our
Material Data Sheets on the Internet (www.epcos.com/material). Should you have any more
detailed questions, please contact our sales offices.
5. We constantly strive to improve our products. Consequently,
the products described in this
publication may change from time to time.
The same is true of the corresponding product
specifications. Please check therefore to what extent product descriptions and specifications
contained in this publication are still applicable before or when you place an order.
We also
reserve the right to discontinue production and delivery of products.
Consequently,
we cannot guarantee that all products named in this publication will always be available.
6.
Unless otherwise agreed in individual contracts,
all orders are subject to the current version of
the “General Terms of Delivery for Products and Services in the Electrical Industry”
published by the German Electrical and Electronics Industry Association (ZVEI).
7. The trade names EPCOS, EPCOS-JONES, Baoke, CeraDiode, CSSP, MLSC, PhaseCap,
PhaseMod, SIFERRIT, SIFI, SIKOREL, SilverCap, SIMID, SIOV, SIP5D, SIP5K, UltraCap,
WindCap are
trademarks registered or pending
in Europe and in other countries. Further
information will be found on the Internet at www.epcos.com/trademarks.
FK PC PM PFC
Page 5 of 5
December 2006
Embedded System
