BB1110B_12 Overview

18 Bit SSTL_2 Termination Sets

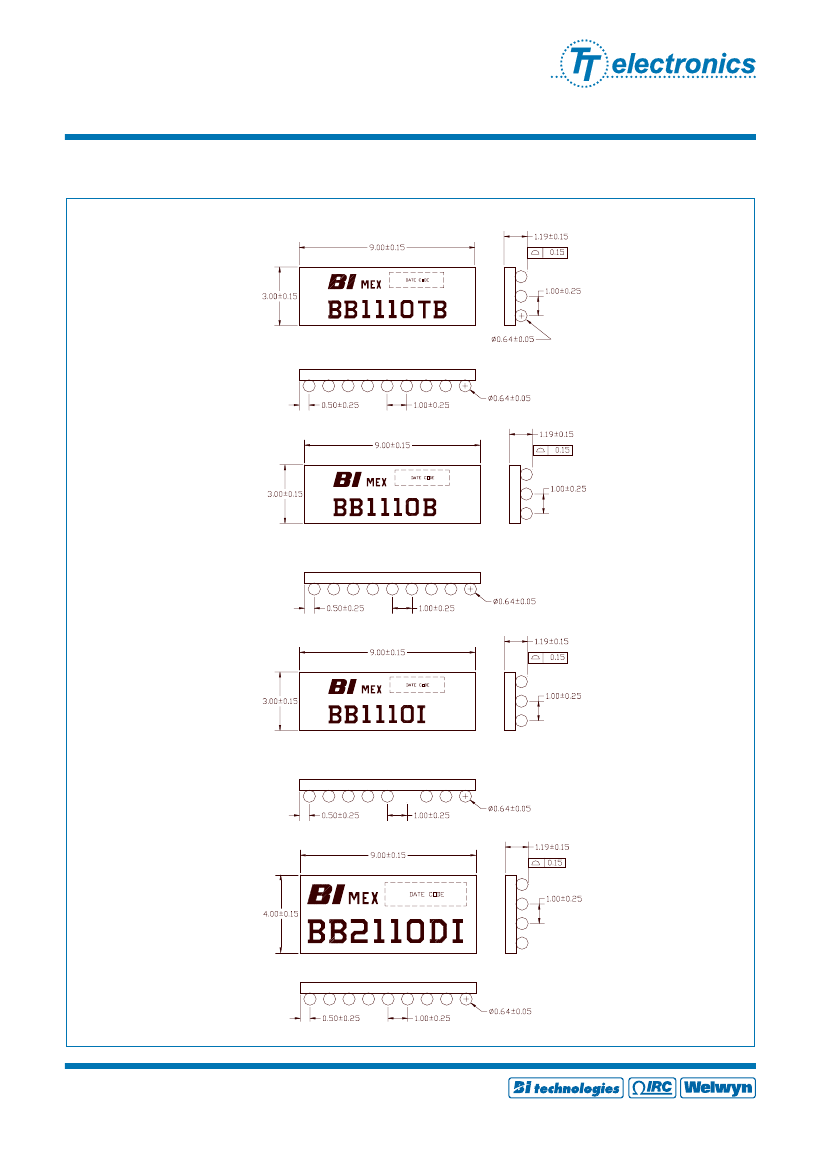

BB1110TB, BB1110B, BB1110I
and BB2110DI DDR SDRAM
Terminator Networks
BB 1110 / 2110 Series
·
·
·
·
·
18 Bit SSTL_2 Termination Sets.
Compliant to JEDEC Std. 8-9B.
Superior High Frequency Performance.
Minimal stray capacitance and inductance are achieved
by placing resistors and BGA termination on the same
side of ceramic substrate.
The device can be easily surface mounted using automatic
Pick and Place equipment
Description
This “BB” family of networks is for terminating SSTL_2 Class I and Class II systems, such as DDR
SDRAM. These specialty networks employ solder balls for surface mount flip chip attachment. Their
unique construction yields extremely low capacitance and inductance parasitics making them ideal for
high-speed bus applications.
Electrical
Parameter (Maximum)
Resistance, Nominal
Absolute Tolerance
Temperature Coefficient of
Resistance
Interlead Capacitance, Maximum
Operation Temperature
Power Rating (per package)
Limit
Various
1
200
0.1
-55 to 125
1
Units
Ω
%
ppm/°C
pF
°C
watt

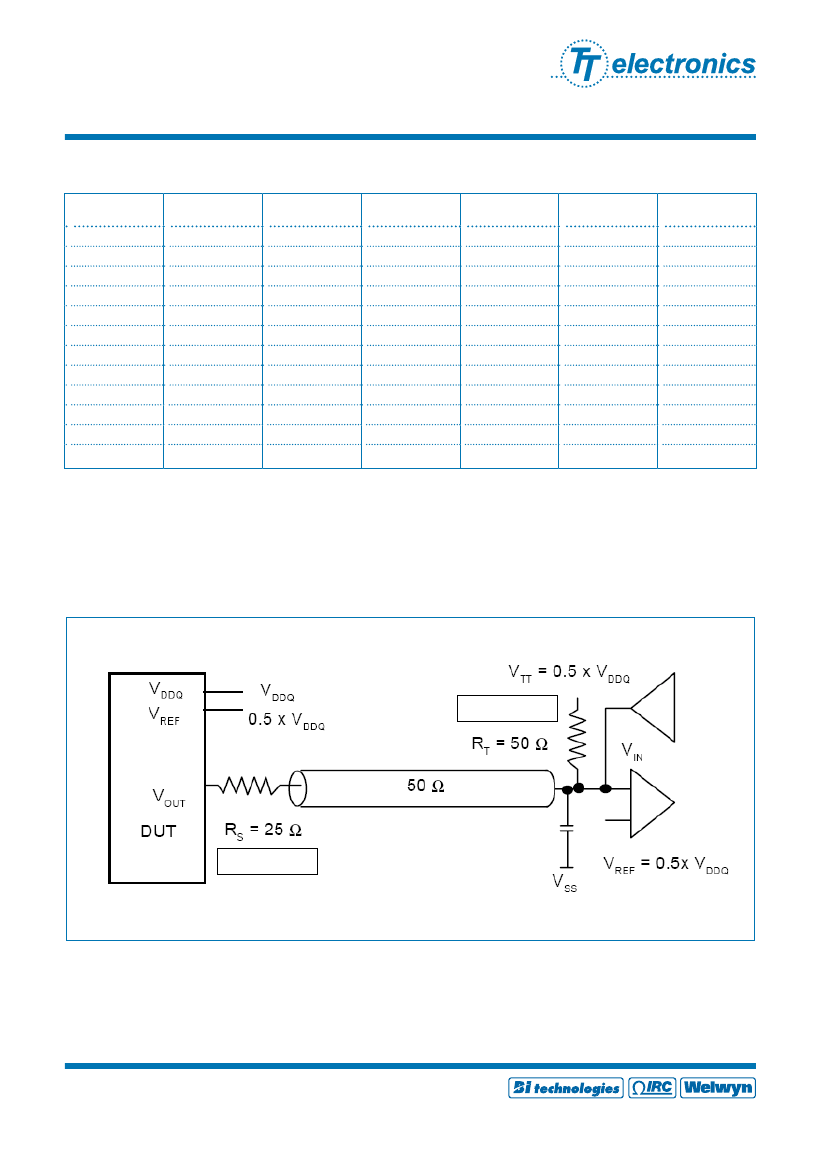

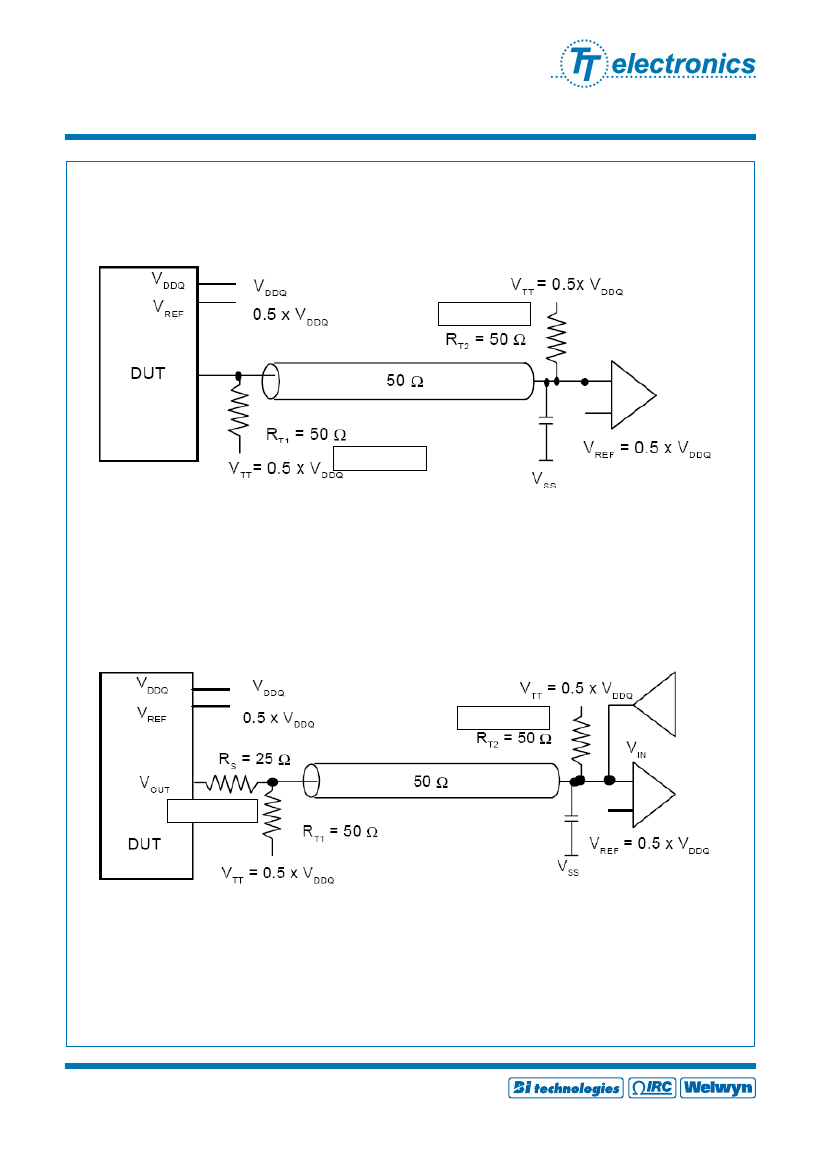

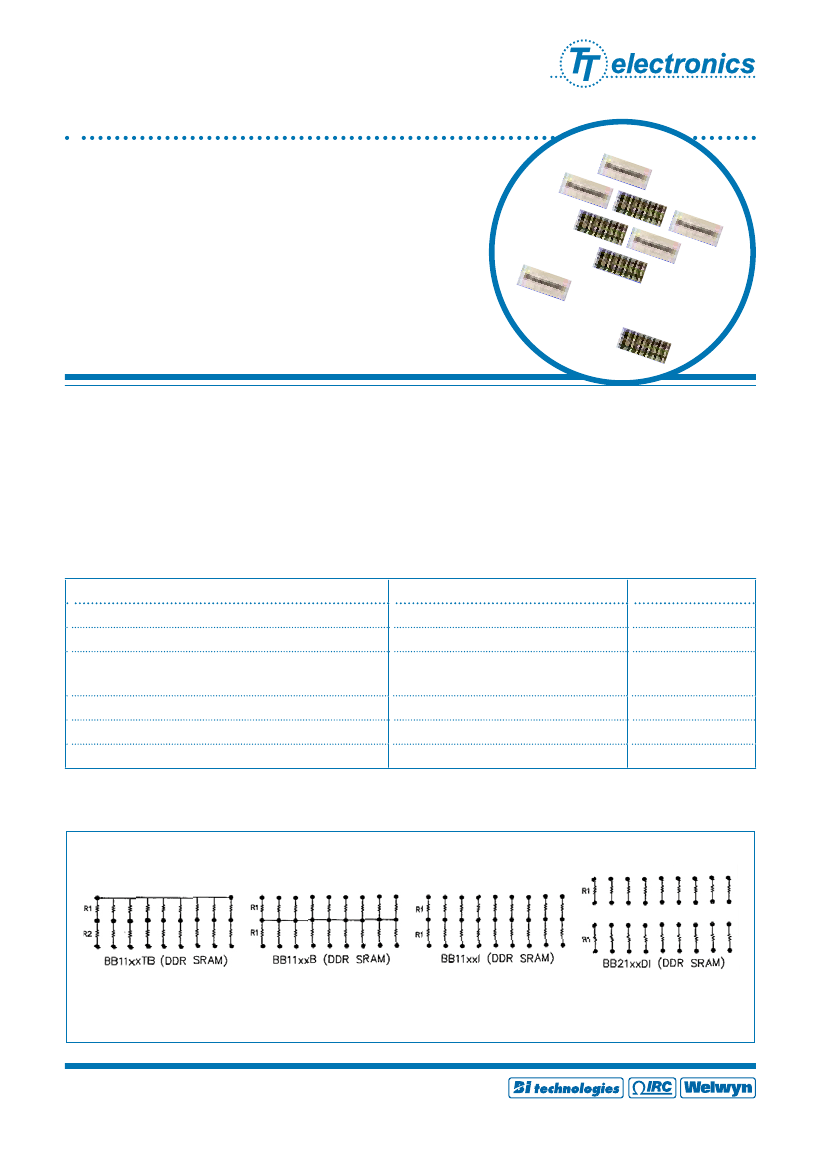

Schematic
xx denotes part number options. See ordering information for details.
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
06.12
