Crimp
BHT
CONNECTOR
Disconnectable Crimp style connectors
• High withstanding voltage
Emboss Tape
5.1mm
(.201") pitch
Features ––––––––––––––––––––––––
Conforming to IEC664-1 standards, the BHT connector is
designed to have a enough electrical creep distances at the
high-voltage side. Thus, compared to the conventional power
supply connector for liquid crystal display backlight lamps,
higher voltage is guaranteed.
• Low profile
Only 2.8mm (.118") height.
• Housing construction
Housing is of 2-piece construction, to prevent the contact for
the higher voltage side from being exposed, while the lower
voltage side is designed to be shorter for easy insertion of the
contact even with thin wires.

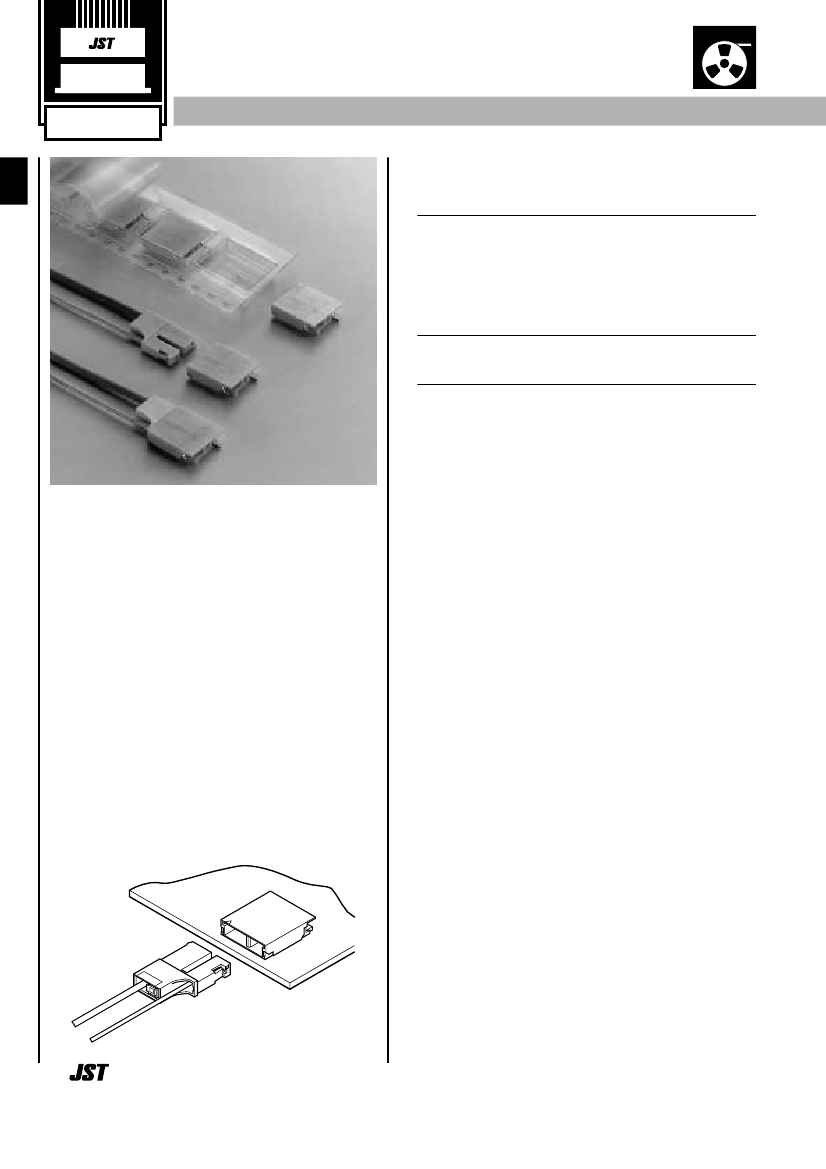

Low profile connectors with high
withstanding voltage, designed for
connecting liquid crystal display backlight
lamps to their starters.
Specifications –––––––––––––––––––
• Current rating: 1.0A AC, DC
• Voltage rating: 1,500V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 4,000V AC/minute
• Applicable wire: AWG #28 to #24
Insulation O.D/0.9 to 1.7mm(.035" to .067")
* Contact JST for details.
H
JS
T
Standards ––––––––––––––––––––––
164
0
1
Recognized E60389
Certified LR20812
BHT
4.75(.187)
0.9(.035)
1.3
1.4
(.051) (.055)
1.5
(.059)
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
SBHT-002T-P0.5
mm
2
Applicable wire
AWG # Insulation O.D. mm(in.)
28 to 24
0.9 to 1.7(.035 to .067)
Q'ty /
reel
10,000
0.08 to 0.22
Material and Finish
Copper alloy, tin-plated
1.2
(.047)
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
8.4(.331)
H JST
2.8(.110)
Circuits
2
Model No.
BHTR-02VS
Material
Q'ty / box
1,000
13.2(.520)
PBT, UL94V-0, natural (white)
5.1(.201)
2.2
(.087)
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
2
10.0(.394)
3.35(.132) 1.75(.069)
H JST
Model No.
SM02B-BHTS-B-TB
Material and Finish
Q'ty / reel
1,250
11.0(.433)
2.8
(.110)
1.0(.039)
Press pin: Copper alloy, copper-undercoated, tin/lead-plated
Post: Copper alloy, copper-undercoated, tin/lead-plated
Wafer : Modified 6T nylon, UL94V-0, natural (ivory)
Solder tab: Copper alloy, copper-undercoated, tin/lead-plated
Note: The products listed above are supplied on embossed tape.
3.6(.142)
Taping specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Feeding direction
Feeding direction
Carrier tape
380±2.0(14.961±.079)dia.
Cover tape leader area
Tail tape
(Unloaded area)
40.0(1.575)min.
Lead tape
(Unloaded area)
20 vacancies min.
Connector
loaded area 400(15.748)min.
[13(.512)dia.]
+2.5
25.5
-1.0
2.0
±0.5
(1.004
+.098
) (.079
±.020
)
-.039
Feeding direction
1.55
±0.05(.061±.002)dia.
1.75±0.1(.069±.004)
4.0±0.1
2.0±0.1
(.157±.004) (.079±.004)
Cover tape
Carrier tape
11.5±0.1
(.435±.004)
24.0±0.3(.945±.012)
16.0
±0.1(.630±.004)
0.3
±0.05
(.012±.002)
Note: 1. Conforms to JIS C0806. Tape width and tape connector recess dimensions depend the connector outer dimensions.
2. Specifications are subject to change without prior notice.
165
BHT
CONNECTOR
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––
3.0
±0.05
(.118
±.002
) 0.9
+0.1
(.035
+.004
)
0
0
1.0
+0.1
(.039
+.004
)
0
0
10.1
+0.1
(.398
±.004
)
0
0
0
0
8.2
-0.1
(.323
-.004
)
4.5
±0.05
(.177±.002)
16.8
(.661)
7.3 (.287
+0.1
0
0
-0.1
0
-.004
)
11.1 (.437 )
2.7
±0.05
(.106
±.002
)
+.004
0
1.8
+0.1
(.071
+.004
)
0
0
0
0
9.8
-0.1
(.386
-.004
)
0
12.3
+0.1
(.484
+.004
)
0
0.3
+0.1
(.012
+.004
)
0
0
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SBHT-002T-P0.5
Crimp applicator MKS-L
with safety cover
without safety cover
APLMK SBHT002-05
APLNC SBHT002-05
0.8
+0.1
(.031
+.004
)
0
0
9.2
±0.05
(.362
±.002
)
2.8
(.110)
Compact crimp applicator MKS-LS
with safety cover
without safety cover
–
–
Strip-crimp applicator MKS-SC
with safety cover
–
166
