BL8506
High-precision Low Voltage Detector
Outline:
BL8506 is a series of high precision voltage
detector with ultra low current consumption
(500nA typ. at Vdd=3.0V). It can work at very
low voltage, which makes it perfect for system
reset.
BL8506 is composed of high precision
voltage reference, comparator, output driver and
resistor array. Internally preset detect voltage
has a low temperature drift and requires no
external trimming.
Two type of output, CMOS and N-channel
open-drain are available.
BL8506 is available in SOT-89-3,SOT-23-3
TO92, SOT23-5 packages which is Pb free.
Features：
•
•
•
•
•
•
High-precision detection Voltage：
±2%
Detection Voltage：0.9V~6.0V (in 0.1V steps)
Precise hysteresis：4% typ.
Operating Voltage range：0.7V~10V
Ultra-low current consumption：500nA typ. (at
V
DD
＝3.0V)
Two Output forms
：CMOS
and N-channel
open-drain
Application：
•
•
•
•
•
Power monitor for portable equipment such as
PDA,DSC,Mobile phone,Notebook,MP3
CPU and Logic Circuit Reset
Battery Checker
Battery Back-up Circuit
Power Failure Detector
Selection Guide：
BL8506-XX
X XX

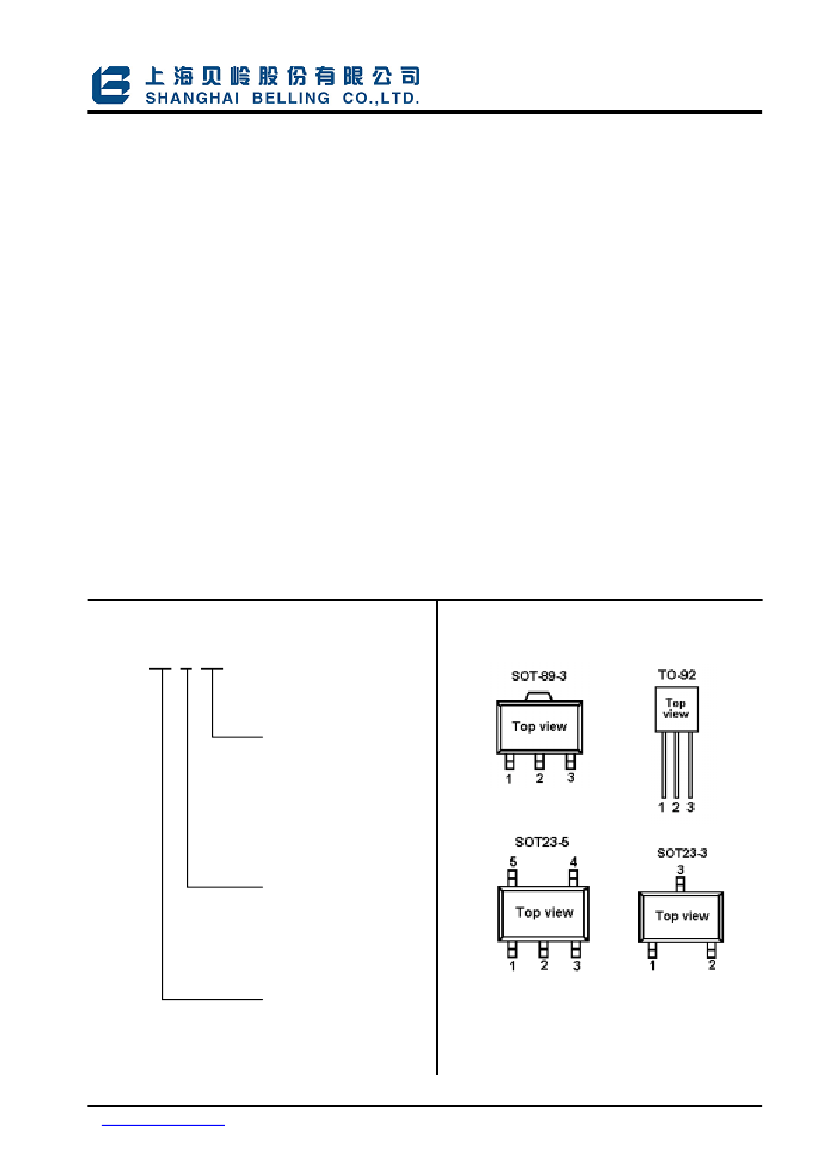

Pin Assignment：
Package Type：
RM： SOT-23-3
RN： SOT-23-5
SM： SOT-89-3
T： TO-92
（Default、Pb
Free）
Output Type：
N：Nch Open-drain
C：CMOS
Detector Voltage：
09……0.9V
30……3.0V
……
50……5.0V
60……6.0V
www.belling.com.cn
Ver1.1
1
BL8506

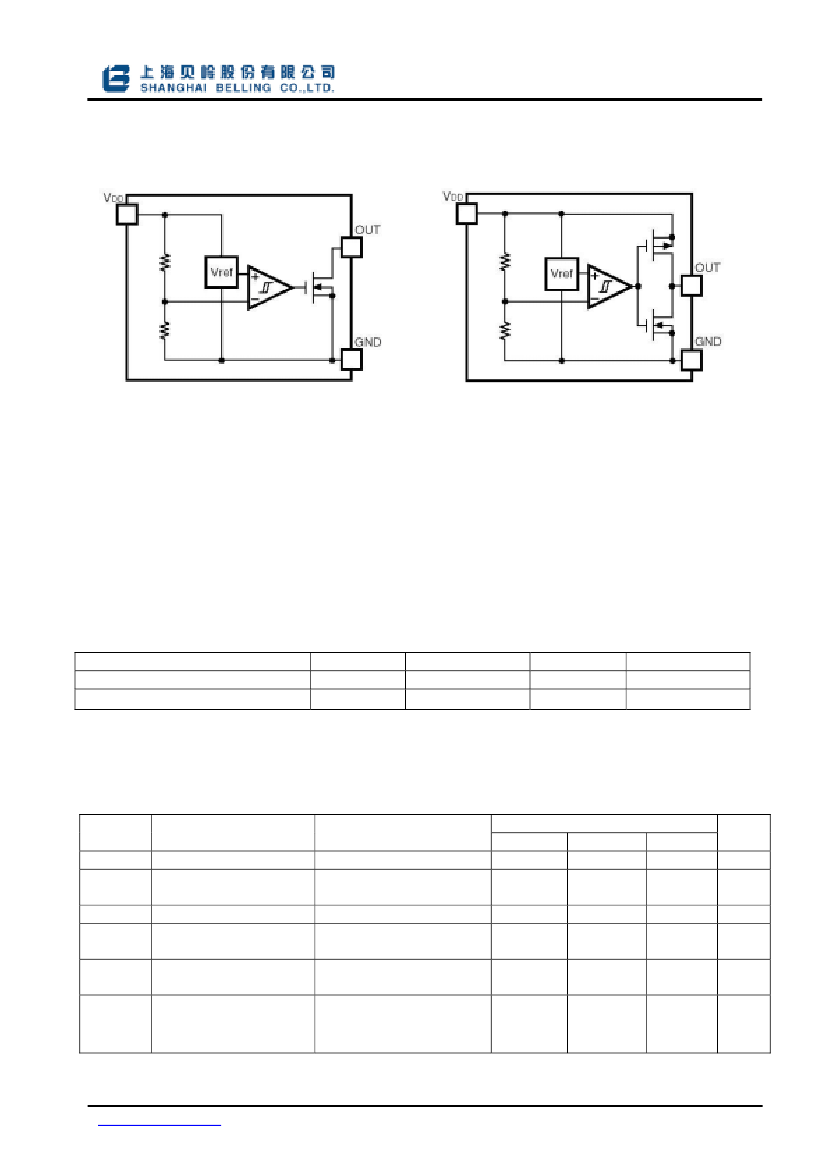

Block diagram:
N channel open-drain
Absolute Maximum Ratings：
CMOS output
Input Voltage range -------------------------------------------------------------------------------------0.3V~12V
Output Voltage range-----------------------------------------------------------------------------------0.3V~12V
Maximum Output current -----------------------------------------------------------------------------70mA
Maximum power dissipation -------------------------------------------------------------------------150mW
Ambient temperature ---------------------------------------------------------------------------------- -40~+70°C
Storage temperature----------------------------------------------------------------------------------- -40~125°C
Lead temperature and time --------------------------------------------------------------------------260°C,10S
Recommended Work Conditions：
Item
Input Voltage range
Ambient temperature
Min
0.7
-40
Recommended
25
Max
10
70
unit
V
℃
Electrical Characteristics：
•
BL8506-09C/NXX（0.9V）
Parameter
Detector Threshold
Detector Threshold
Hysteresis
Current consumption
Maximum operating
voltage
Minimum Operating
voltage
Output current
Conditions
(Topt＝25℃,Unless otherwise specified.)
Reference data
Min.
Typ.
Max.
0.882
0.9
0.918
0.018
V
DD
=2.9V
0.036
1
0.054
1.5
10
0.5
Nch
V
DS
=0.05V，V
DD
=0.7V
V
DS
=0.50V，V
DD
=0.8V
0.01
0.05
0.05
0.50
Unit
V
V
uA
V
V
mA
Symbol
-V
DET
V
HYS
I
SS
V
DDH
V
DDL
I
OUT
www.belling.com.cn
Ver1.1
3
BL8506
Pch
V
DS
=-2.1V，V
DD
=4.50V
T
PLH
Output Delay Time
mA
20
(Topt＝25℃,Unless otherwise specified.)
Conditions
Reference data
Min.
Typ.
Max.
2.646
2.7
2.754
0.054
V
DD
=4.7V
0.108
0.5
0.162
1
10
0.5
Nch
V
DS
=0.05V，
V
DD
=0.70V
Pch
V
DS
=-2.1V，
V
DD
=4.50V
Unit
V
V
uA
V
V
mA
0.01
0.05
mA
1.0
2.0
20
(Topt＝25℃,Unless otherwise specified.)
Conditions
Reference data
Min.
Typ.
Max.
2.94
3.0
3.06
0.060
V
DD
=5.0V
0.12
0.5
0.18
1
10
0.5
Nch
V
DS
=0.05V，V
DD
=0.7V
Pch
V
DS
=-2.1V，V
DD
=4.50V
T
PLH
Output Delay Time
Unit
V
V
uA
V
V
mA
0.01
1.0
0.05
2.0
20
(Topt＝25℃,Unless otherwise specified.)
Conditions
Reference data
Min.
Typ.
Max.
3.332
3.4
3.468
0.068
0.136
0.204
Unit
V
V
mA
uS
uS
uS
1.0
2.0
•
BL8506-27C/NXX（2.7V）
Parameter
Detector Threshold
Detector Threshold
Hysteresis
Current consumption
Maximum operating
voltage
Minimum Operating
voltage
Symbol
-V
DET
V
HYS
I
SS
V
DDH
V
DDL
I
OUT
Output current
T
PLH
Output Delay Time
•
BL8506-30C/NXX（3.0V）
Parameter
Detector Threshold
Detector Threshold
Hysteresis
Current consumption
Maximum operating
voltage
Minimum Operating
voltage
Symbol
-V
DET
V
HYS
I
SS
V
DDH
V
DDL
I
OUT
Output current
•
BL8506-34C/NXX（3.4V）
Parameter
Detector Threshold
Detector Threshold
Symbol
-V
DET
V
HYS
www.belling.com.cn
Ver1.1
4
