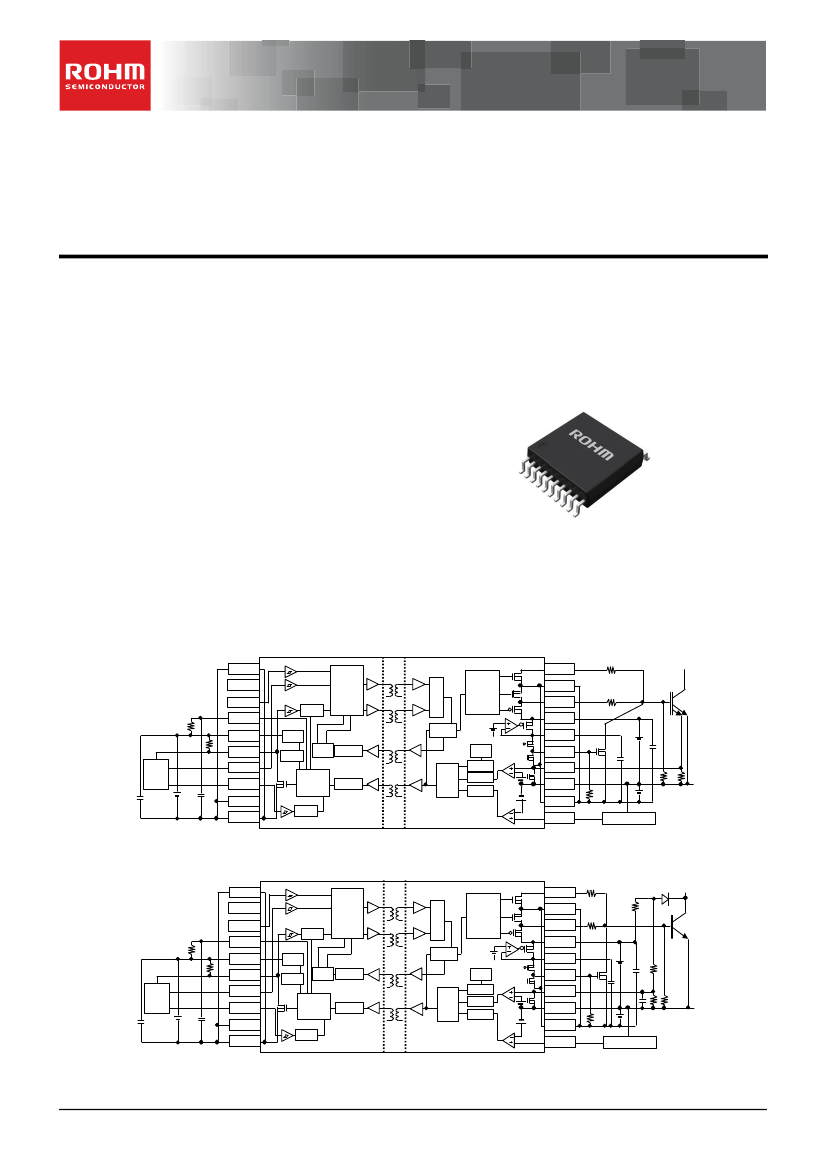

Gate Driver Providing Galvanic isolation Series

Isolation voltage 2500Vrms

1ch Gate Driver Providing Galvanic Isolation

BM6101FV-C

●General

Description

The BM6101FV-C is a gate driver with isolation voltage

2500Vrms, I/O delay time of 350ns, and minimum input

pulse width of 180ns, and incorporates the fault signal

output functions, undervoltage lockout (UVLO) function,

thermal protection function, and short current protection

(SCP, DESAT) function.

●Features



Providing Galvanic Isolation



Active Miller Clamping



Fault signal output function

(Adjustable output holding time)



Undervoltage lockout function



Thermal protection function



Short current protection function

(Adjustable reset time)



Soft turn-off function for short current protection

(Adjustable turn-off time)



Supporting Negative VEE



UL1577 Recognized:File No. E356010



AEC-Q100 Qualified

(Note 1)

(Note 1:Grade1)

●Typical

Application Circuits

GND1

PROOUT

LOGIC

MASK

FLTRLS

VCC1

FLT

LOGIC

UVLO

MASK

TIMER

VEE2

●Key

Specifications



Isolation voltage:



Maximum gate drive voltage:



I/O delay time:



Minimum input pulse width:

●Package

SSOP-B20W

2500Vrms(Max.)

24V(Max.)

350ns(Max.)

180ns(Max.)

W(Typ.) x D(Typ.) x H(Max.)

6.50mm x 8.10mm x 2.01mm

●Applications

■

Automotive isolated IGBT/MOSFET inverter gate drive

■

Automotive DC-DC converter

■

Industrial inverters system

■

UPS system

FLT RLS

INB

PRE

DRIVER

VEE2

OUT1

VCC2

UVLO

MASK

OUT2

SCPIN

GND2

VEE2

VTSIN

ECU

FLT RLS

VCC1

INA

ENA

TEST

MASK

GND1

FLT

TIMER

FLT

MASK

Input side

chip

Output side

chip

Temp Sensor

Figure 1. For using 4-pin IGBT (for using SCP function)

GND1

FLTRLS

PROOUT

LOGIC

MASK

VCC2

INB

FLTRLS

VCC1

FLT

UVLO

MASK

PRE

DRIVER

VEE2

OUT1

LOGIC

TIMER

VEE2

VREG

ECU

INA

ENA

FLT

TIMER

FLT

MASK

SCPIN

GND2

VEE2

VTSIN

Temp Sensor

FLTRLS

VCC1

TEST

GND1

MASK

Input side

chip

Output side

chip

Figure 2. For using 3-pin IGBT (for using DESAT function)

○Product

structure：Silicon integrated circuit

○This

product is not designed protection against radioactive rays

www.rohm.com

TSZ02201-0717ABH00090-1-2

1/31

25.Dec.2015 Rev.003

TSZ22111・14・001

UVLO

OUT2

VCC2

VREG

BM6101FV-C

●Description

of pins and cautions on layout of board

1) VCC1 (Input-side power supply pin)

The VCC1 pin is a power supply pin on the input side. To suppress voltage fluctuations due to the current to drive

internal transformers, connect a bypass capacitor between the VCC1 and the GND1 pins.

2) GND1 (Input-side ground pin)

The GND1 pin is a ground pin on the input side.

3) VCC2 (Output-side positive power supply pin)

The VCC2 pin is a positive power supply pin on the output side. To reduce voltage fluctuations due to OUT1 pin output

current and due to the current to drive internal transformers, connect a bypass capacitor between the VCC2 and the

GND2 pins.

4) VEE2 (Output-side negative power supply pin)

The VEE2 pin is a power supply pin on the output side. To suppress voltage fluctuations due to OUT1 pin output current and

due to the current to drive internal transformers, connect a bypass capacitor between the VEE2 and the GND2 pins. To use

no negative power supply, connect the VEE2 pin to the GND2 pin.

5) GND2 (Output-side ground pin)

The GND2 pin is a ground pin on the output side. Connect the GND2 pin to the emitter / source of a power device.

6) IN (Control input terminal)

The IN pin is a pin used to determine output logic.

ENA

INB

INA

OUT1

7) FLT (Fault output pin)

The FLT pin is an open drain pin used to output a fault signal when a fault occurs (i.e., when the undervoltage lockout

function (UVLO), short current protection function (SCP) or thermal protection function is activated).

This pin is I/O pin and if L voltage is externally input, the output is set to L status regardless of other input logic.

Consequently, be sure to connect the pull-up resistor between VCC1 pin and the FLT pin even if this pin is not used.

FLT

While in normal operation

Hi-Z

When an Fault occurs

(When UVLO, SCP or thermal protection is activated)

8) FLTRLS (Fault output holding time setting pin)

The FLTRLS pin is a pin used to make setting of time to hold a Fault signal. Connect a capacitor between the FLTRLS

pin and the GND1 pin, and a resistor between it and the VCC1 pin.

The Fault signal is held until the FLTRLS pin voltage exceeds a voltage set with the V

FLTRLS

parameter. To set holding

time to 0 ms, do not connect the capacitor. Short-circuiting the FLTRLS pin to the VCC1 pin will cause a high current to

flow in the FLTRLS pin and, in an open state, may cause the IC to malfunction. To avoid such trouble, be sure to connect

a resistor between the FLTRLS and the VCC1 pins.

9) OUT1 (Output pin)

The OUT1 pin is a pin used to drive the gate of a power device.

10) OUT2 (MOS FET control pin for Miller Clamp)

The OUT2 pin is a pin for controlling the external MOS switch for preventing increase in gate voltage due to the miller

current of the power device connected to OUT1 pin.

11) VREG (Power supply pin for driving MOS FET for Miller Clamp)

The VREG pin is a power supply pin for driving MOS FET for Miller Clamp. Be sure to connect a capacitor between

VREG pin and VEE2 pin for preventing the oscillation and to reduce voltage fluctuations due to OUT2 pin output current.

12) PROOUT (Soft turn-off pin)

The PROOUT pin is a pin used to put the soft turn-off function of a power devise in operation when the SCP function is

activated. This pin combines with the gate voltage monitoring pin for Miller Clamp.

13) SCPIN (Short current detection pin)

The SCPIN pin is a pin used to detect current for short current protection. When the SCPIN pin voltage exceeds a

voltage set with the V

SCDET

parameter, the SCP function will be activated. This may cause the IC to malfunction in an

open state. To avoid such trouble, short-circuit the SCPIN pin to the GND2 pin if the short current protection is not used.

In order to prevent the wrong detection due to noise, the noise mask time t

SCPMSK

is set.

www.rohm.com

TSZ22111・15・001

3/31

TSZ02201-0717ABH00090-1-2

25.Dec.2015 Rev.003
