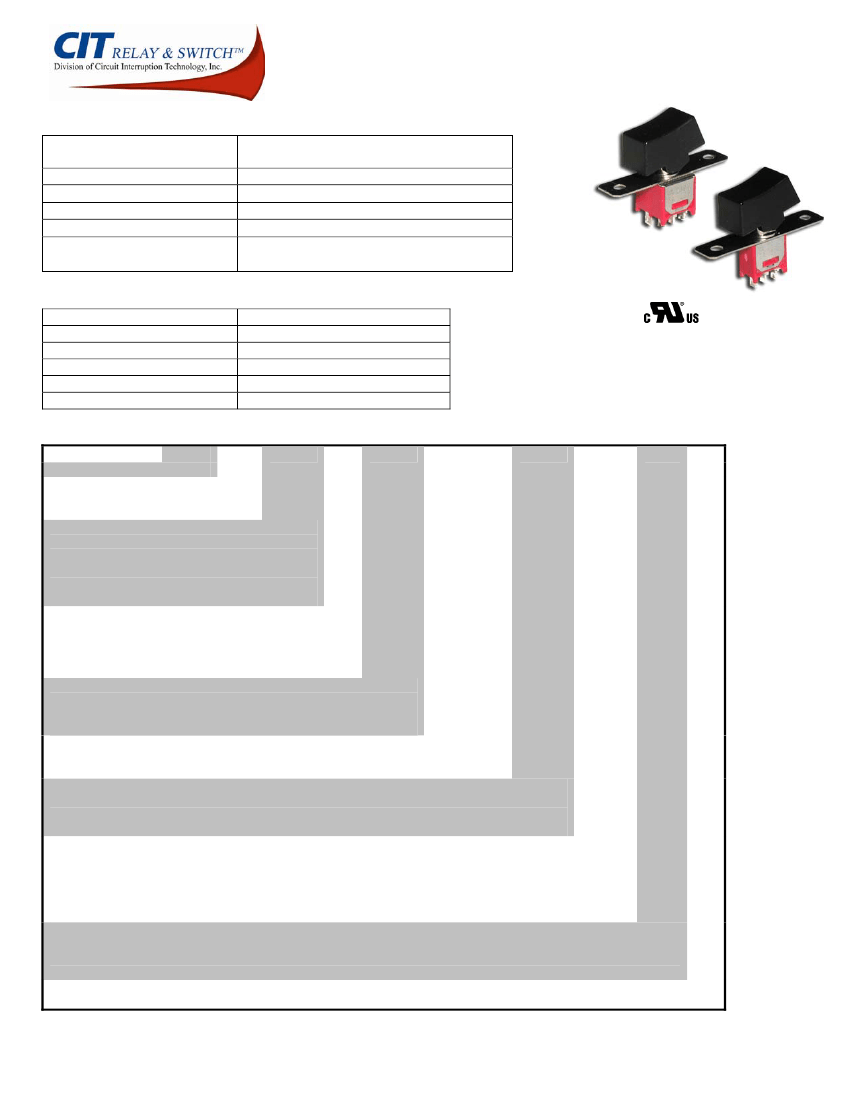

BNR

SPECIFICATIONS

Electrical Ratings

Electrical Life

Contact Resistance

Dielectric Strength

Insulation Resistance

Operating Temperature

Storage Temperature

3A @ 120VAC, 28VDC; 1A @ 250VAC

See Contact Options

30,000 cycles typical

< 20 mΩ max initial @ 2-4VDC, 100mA

1500Vrms min

> 100MΩ min

-40°C to 85°C

MATERIALS

←

RoHS COMPLIANT

Actuator

Housing

Cover

Bushing

Contacts

Terminals

6/6 Nylon

DAP – Diallyl Phthalate

Stainless Steel

Brass, Nickel Plated

Copper Alloy, Silver Plated

Brass, Silver Plated

- E222871

ORDERING INFORMATION

Series:

BNR

Number of Poles:

1 = SPDT

2 = DPDT

Switch Function:

1 = ON-NONE-ON

2 = ON-NONE-(ON)

3 = ON-OFF-ON

4 = (ON)-OFF-(ON) ** Only available in SPDT

5 = ON-OFF-(ON) ** Only available in SPDT

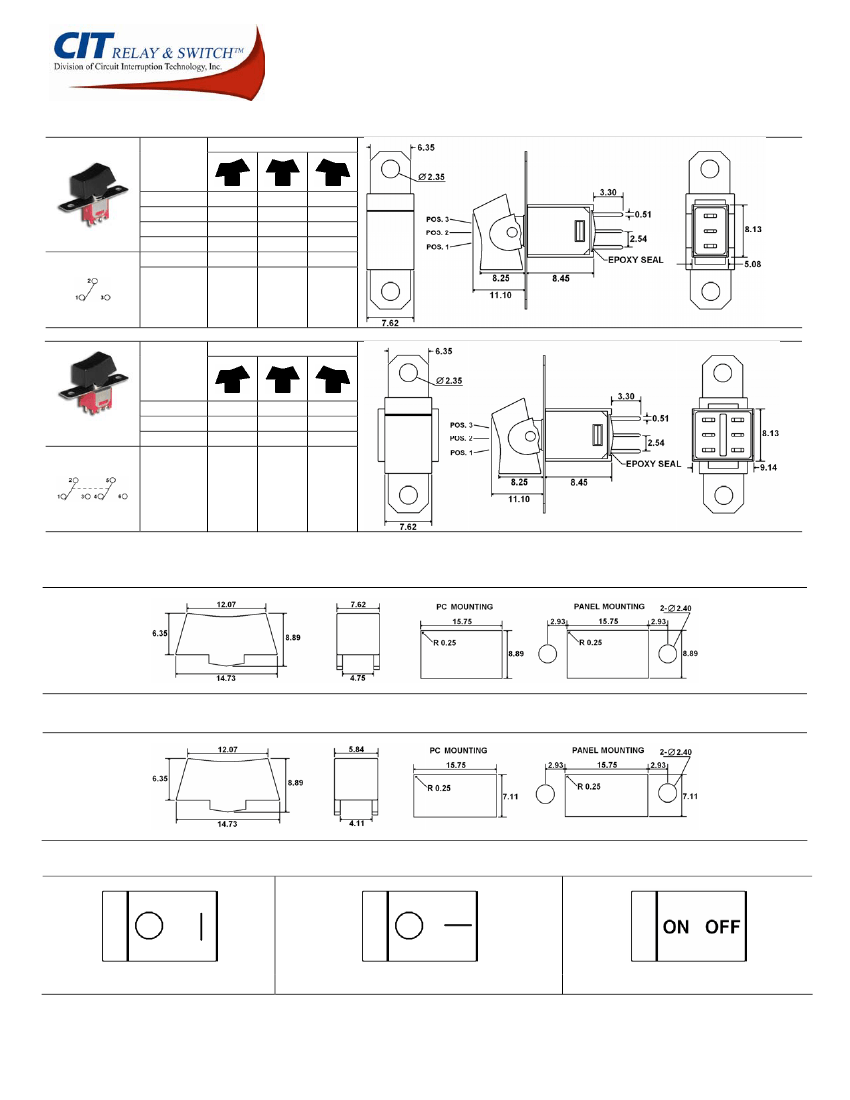

Actuator:

R1 = Rocker, Panel Mount

R2 = Rocker, Panel Mount

R1P = Rocker, PC Mount

R2P = Rocker, PC Mount

Actuator Color:

1 = White

2 = Black

3 = Red

Actuator Marking Style:

Blank = No Marking

A, B, C

Actuator Marking Color:

Blank = No Marking

W = White (Standard)

B = Black

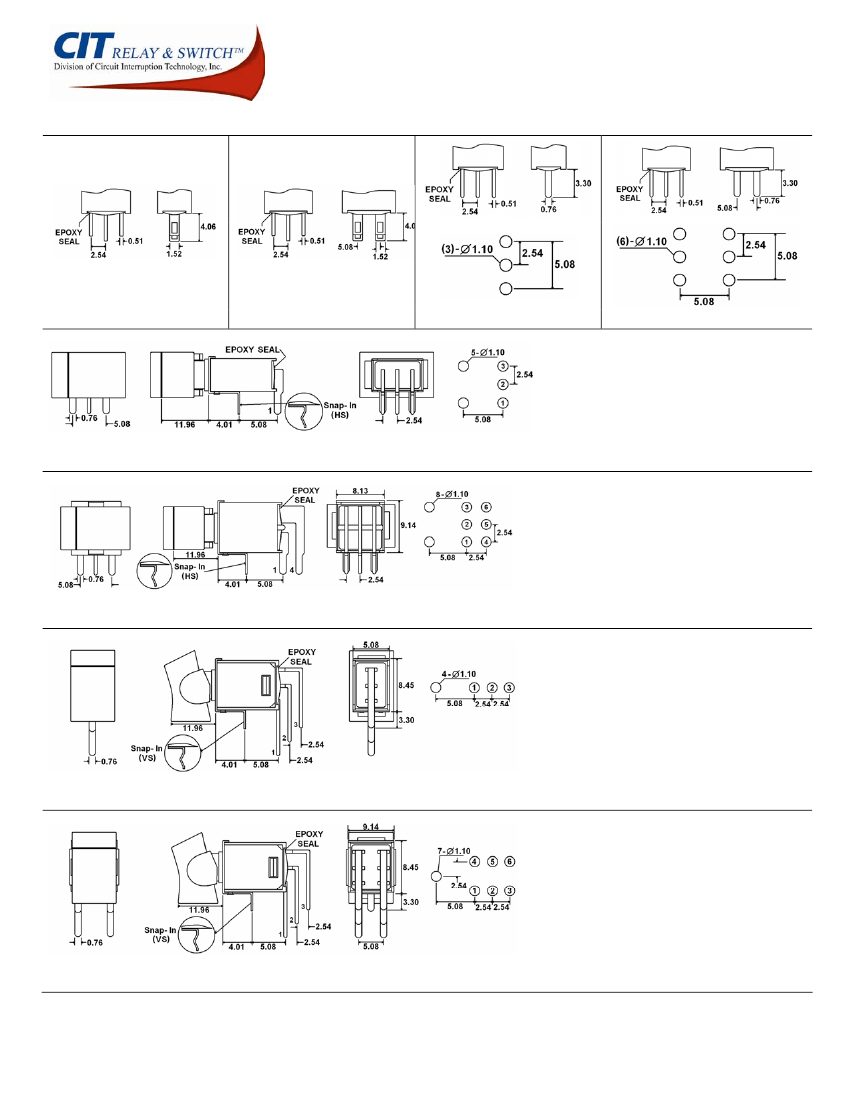

Terminals:

B = Solder Lugs

C = PC Pin

H = Horizontal Mount, Right Angle PC Pin;

HS = Snap-in

V = Vertical Mount, Right Angle PC Pin;

VS = Snap-in

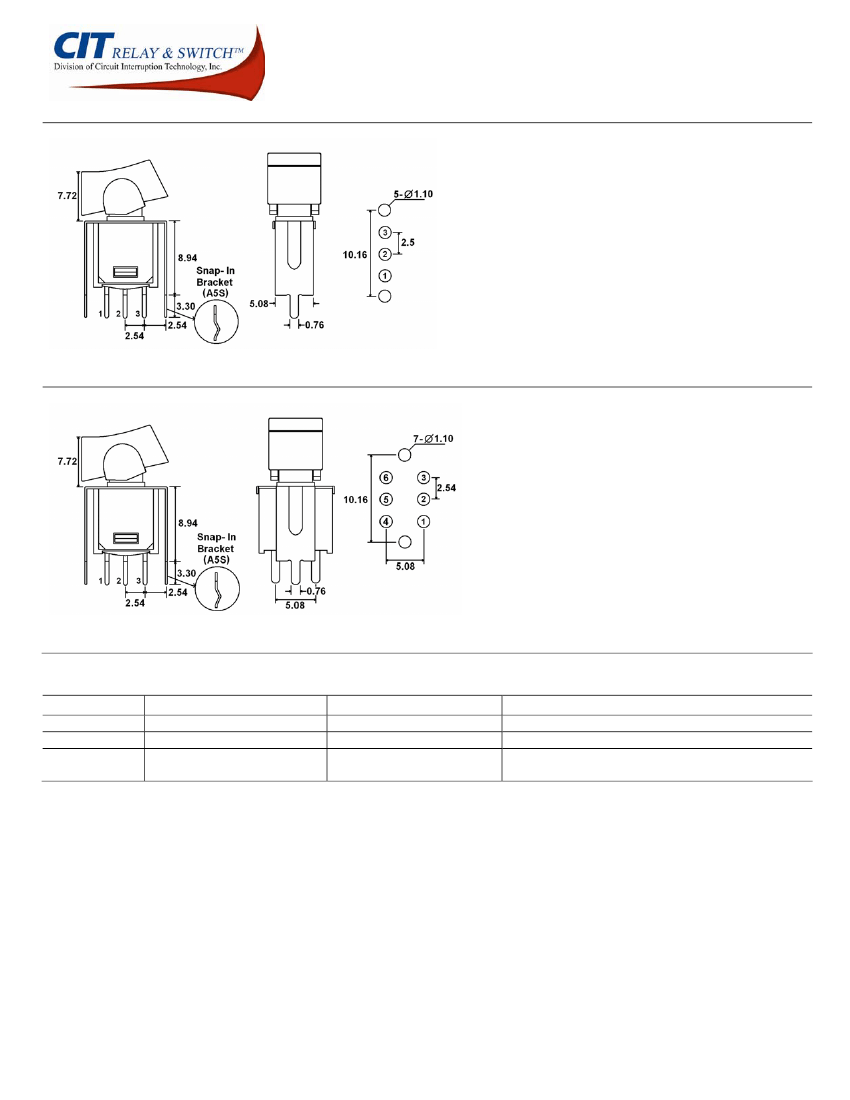

A5 = PC Pin with Support Bracket;

A5S = Snap-in Support Bracket

Contacts:

Q = Silver Plated

R = Gold Plated

G = Gold over Silver Plated

Epoxy Seal:

E = Epoxy Seal

page

163

www.citswitch.com

phone – 763.535.2339 fax – 763.535.2194
