MASTER INSTRUMENT CORPORATION
SINGLE-PHASE BRIDGE RECTIFIER
BR5005 THRU BR5010
FEATURES
l
Low cost
l
This series is UL recognized under component
index, file number E127707
l
High forward surge current capability
l
Integrally molded heatsink provide very low thermal resistance
l
High isolation voltage from case to leads
l
High temperature soldering guaranteed:
260
o
C/10 second, at 5 lbs. (2.3kg) tension.
MECHANICAL DATA
l
Case: Molded plastic body
l
Terminal: Plated lead 0.25”(6.35mm) lugs.
l
Polarity: Polarity symbols marked on case
l
Mounting: Thru hole for #10 screw, 20 in.-lbs torque max.
l
Weight:0.55ounce, 15.6 grams
VOLTAGE RANGE
CURRENT
50 to 1000 Volts
50 Amperes
1.13( 28.8)
1.11( 28.2)
0.666( 16.9)
0.626( 15.9)
BR-35N
+
AC
1.13( 28.8)
1.11( 28.2)
0.728( 18.5)
0.688( 17.5)
-
0.666( 16.9)
0.626( 15.9)
AC
0.570( 14.5)
0.530( 13.5)
0.205( 5.2)
0.197( 5.0)
DIA
METAL HEAT SINK
EXOPY CASE
0.32( 8.2)
0.30( 7.8)
0 .0
2 .3
9(
IA
) D
0.512( 13.0)
0.413( 10.5)
0.033( 0.84)
0.028( 0.71)
0.252( 6.4)
0.248( 6.3)
0.252( 6.4)
0.248( 6.3)
Dimensions in inches and (millimeters)

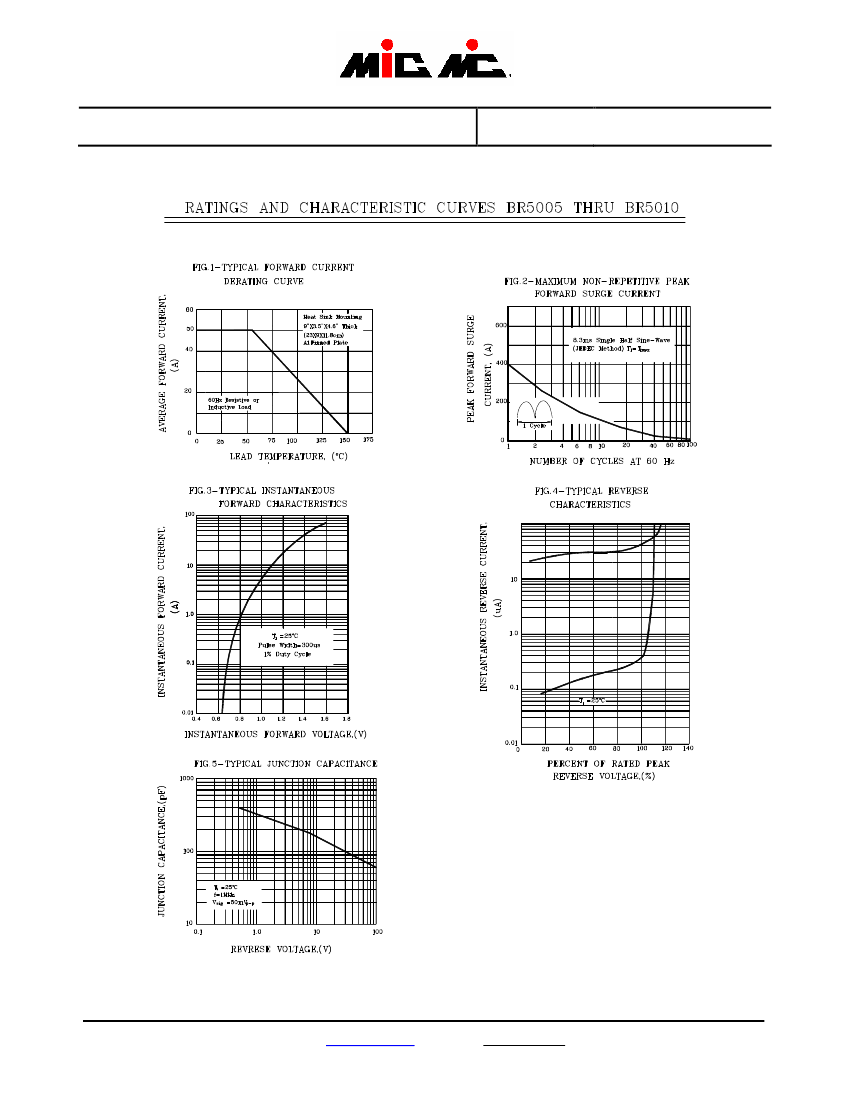

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load derate current by 20%.
SYMBOLS
BR5005
50
35
50
BR501
100
70
100
BR502
200
140
200
BR504
400
280
400
50
400
1037
1.1
10
1.0
2500
2.0
-55 to +150
-55 to +150
BR506
600
420
600
BR508 BR5010
800
560
800
1000
700
1000
UNITS
Volts
Volts
Volts
Amps
Amps
A
2
S
Volts
µAmps
mAmps
V
AC
℃/W
℃
℃
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Rectified Output Current, at T
C
=55℃(See FIG.1)
Peak Forward Surge Current 8.3ms single half sine-wave
superimposed on rated load (JEDEC Method)
Rating for Fusing(t<8.3ms)
Maximum Instantaneous Forward Voltage at 25.0A
Maximum DC Reverse Current at rated T
A
=25℃
DC blocking voltage
T
A
=100℃
Isolation Voltage from case to leads
Typical Thermal Resistance (Note 1,2)
Operating Temperature Range
Storage Temperature Range
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
I
2
T
V
F
I
R
V
ISO
R
θJC
T
J
T
STG
NOTES:
1.
Unit mounted on
9”×3.5”×4.6”
thick (23cm×9cm×11.8cm) Al. plate.
2.
Bolt down on heat-sink with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency with #10 screw.
E-mail:
sales@cnmic.com
Web Site: www.cnmic.com
1/2
