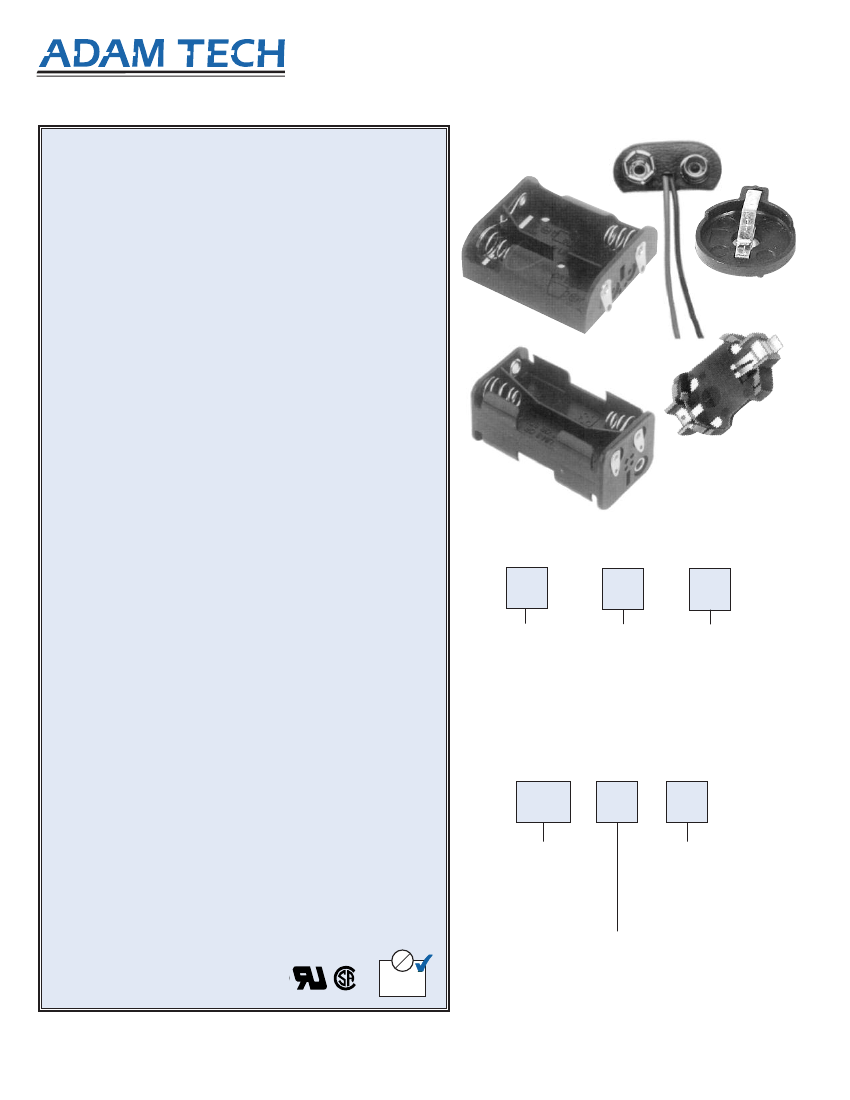

BATTERY HOLDERS & SNAPS
Adam Technologies, Inc.
INTRODUCTION:
Adam Tech BH and BS series battery holders and Battery snaps are
designed to contain batteries in electronic equipment. This series
includes battery holders and coin cell holders for a complete range of
AAA, AA, C, D, 9V and Coin Cells. Adam Tech produces this series
in a variety of terminations such as thru-hole PCB leads, SMT leads,
wire leads and solder lugs. Custom lead lengths on wired
configurations are also available. Our superior retention holders are
molded of UL94-VO or UL94-HB material with spring steel contacts
and perform extremely well under normal or adverse environment
conditions.
FEATURES:
Lightweight and compact
Multiple termination options
Various battery configurations
Alkaline and Lithium types
BATTERY HOLDER
SPECIFICATIONS:
Material:
Insulator: Impact resistant Polypropylene, rated UL94-HB
9V Holder, ABS, Glass filled rated UL94-HB
Coin Cell: PBT, rated UL94V-0
Insulator Color: Black
Spring: Spring Steel, Nickel plated
Contacts: Spring steel, Nickel plated
Snap terminals: Brass, Nickel plated
Wire: 26 Awg, PVC
BATTERY SNAPS
SPECIFICATIONS:
Material:
Soft PVC or rigid PP or PE
Snap terminals: Brass, nickel plated
Wire: 26 Awg stranded, UL1007, PVC insulation
Electrical:
Operating voltage: 9V max.
Temperature Rating:
Operating temperature: -10°C to +180°C
Electrical:
Operating voltage: 1.5V & 9V DC max.
Temperature Ratings:
Operating temperature: -10°C to +80°C
9V holder: -30°C to +105°C
Coin Cell: -55°C to + 205°C
SAFETY AGENCY APPROVALS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
AA, AAA, C, D & COIN CELL
BH & BS SERIES
ORDERING INFORMATION
BATTERY HOLDER
BH
SERIES INDICATOR
BH
= Battery Holder
01
TYPE
01 thru 23
3
TERMINATION
1
= PC Board Tails
2
= Male/Female Snaps
3
= Solder Terminals
4
= Wire Leads
5.90 [150.00]
5
= SMT (Coin Cell Types)
ORDERING INFORMATION
BATTERY SNAPS
BS
SERIES
INDICATOR
BS
= Battery Snap
1
1
LEADS
Pb
UL
®
TYPE
01 thru 6
®
®
D E
V
RoHS
COMPLIANT
2002
/ 95
/ EC
1
= Standard
5.90 [150.00]
length leads with
stripped ends
2
= Special lead
length specified
in inches as total
length/stripped
length (ie: 7/.250
7" leads with
.250" strip length)
358
909 Rahway Avenue
•
Union, New Jersey 07083
RoHS
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
COMPLIANT
