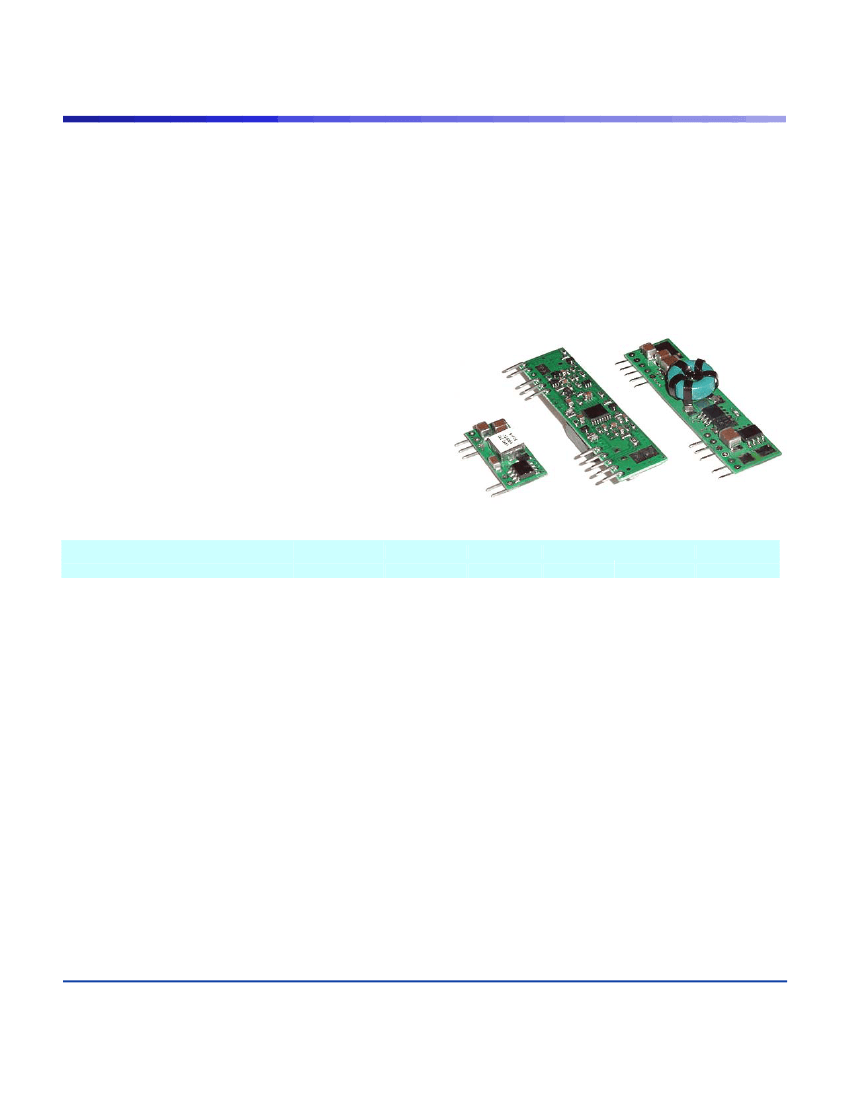

BTCPower
BSIP16-12
BSMT16-12 Series
TM
Broadband TelCom Power,
Inc.
Redefining “Current” Limits In Power Conversion
16A SIP & SMT 12V Input DC-DC Converters
Features
•
•
•
•
•
•
•
•
•
•
Industry standard pin out
High efficiency to 94%
300KHz switching frequency
9.0 – 14 Vdc input range
0.75-5.0Vdc wide output range
Over temperature protection
Continuous short circuit protection
Remote On/Off
Cost efficient open frame design
UL / cUL 60950 certified
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Input Current
No Load
Full Load
% Efficiency
BSIP16-12-075 / BSMT16-12-075
BSIP16-12-120 / BSMT16-12-120
BSIP16-12-150 / BSMT16-12-150
BSIP16-12-180 / BSMT16-12-180
BSIP16-12-200 / BSMT16-12-200
BSIP16-12-250 / BSMT16-12-250
BSIP16-12-330 / BSMT16-12-330
BSIP16-12-500 / BSMT16-12-500
9.0 -14 Vdc
9.0 -14 Vdc
9.0 -14 Vdc
9.0 -14 Vdc
9.0 -14 Vdc
9.0 -14 Vdc
9.0 -14 Vdc
9.0 -14 Vdc
0.75 Vdc
1.2 Vdc
1.5 Vdc
1.8 Vdc
2.0 Vdc
2.5 Vdc
3.3 Vdc
5.0 Vdc
16A
16A
16A
16A
16A
16A
16A
16A
40 mA
50 mA
50 mA
60 mA
60 mA
65 mA
75 mA
75 mA
1299 mA
1928 mA
2326 mA
2727 mA
2996 mA
3704 mA
4783 mA
7092 mA
77
83
86
88
89
90
92
94
Broadband TelCom Power, Inc. –
1719 S. Grand Avenue, Santa Ana, CA 92705 U.S.A.
Tel.: 714-259-4888 • Fax: 714-259-0840• www.btcpower.com • Email: sales@btcpower.com DS BSIP16-12 Rev1 10-26-04
BSIP16-12 Series
Specifications
Input Specifications:
16A SIP&SMT 12Vi DC-DC Converters
BTCPower
TM
Input Voltage Range…………….………12V………………... 9.0-14V
Under voltage lock-out ………………power up ……………8.0V Typ.
Power down ………..7.7V Typ.
Input Filter……………………………………………………Capacitive
Positive remove on /off control:
Module On …………………………Open circuit or =Vin
Module Off …………………………………….. < 0.4Vdc
Output Specifications:
Voltage Accuracy…………….. ………………………….+/- 1.5 % max.
Transient response : 25% step load change ……………< 200 u sec.
Ripple & Noise, 20 MHz BW (note3)………………….50 mV p-p max.
5Vo ………………………………...75 mV p-p max.
Temperature Coeffcient………………………… +/- 0.03 % / ºC max.
Short Circuit Protection………………………………..……Continuous
Line Regulation (note1) ………………………….……..+/- 0.2 % max.
Load Regulation (note2) …… …………….…….….….+/- 0.5 % max.
Capacitive load, low ESR…………………………………8000uF max.
General Specifications:
Efficiency………………………………………………..……...see table
Isolation Resistance………………………………………Non-isolation
Switching Frequency……………………………………..300 KHz, Typ.
Over temperature protection ………………….………….. 130 ºC Typ.
Operating Temperature Range…………………………-40ºC ~ +85ºC
Power derating curve …………………………………….. see fig. 1,2.
Storage Temperature Range……………………..…..-55 ºC ~ +125ºC
Dimensions:
SIP package: 2.0” x 0.512” x 0.327“ (50.8 x 13.0 x 8.3 mm)
SMT package: 1.3” x 0.53” x 0.366” (33.0 x 12.46 x 9.3 mm)
Structure …………………………..Non-potted with open frame type
Note:
1.
2.
3.
4.
5.
Measured from high line to low line;
Measured from full load to zero load;
Measured with 10uF tantalum capacitor and 1 uF ceramic
capacitor across output
The input terminal recommend to parallel with 100uF
capacitor ESR < 100 mohm
Suffix “N” to the model number with Negative logic remote
Model On: Open circuit or < 0.4Vdc
Model Off: > +2.8Vdc to Vin
Outline Information and Pin-out

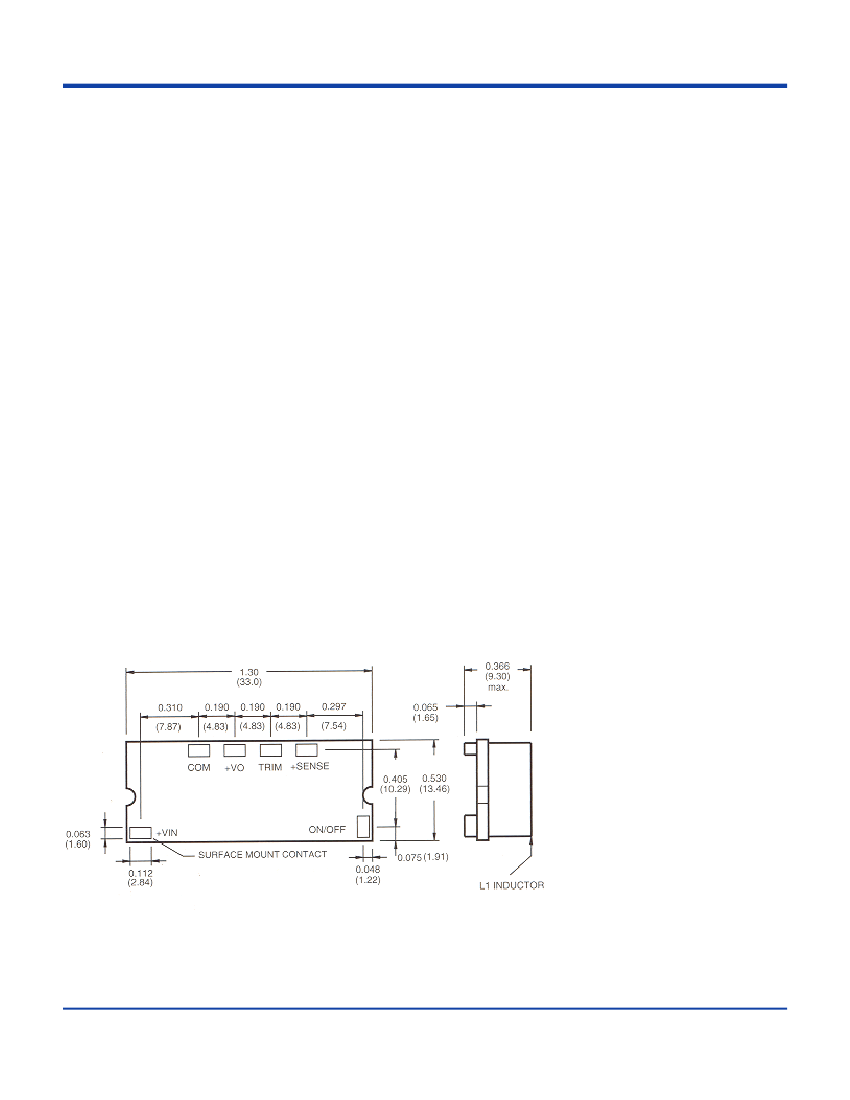

SMT Outline information
Broadband TelCom Power, Inc. –
1719 S. Grand Avenue, Santa Ana, CA 92705 U.S.A.
Tel.: 714-259-4888 • Fax: 714-259-0840• www.btcpower.com • Email: sales@btcpower.com DS BSIP16-12 Rev1 10-26-04
BSIP16-12 Series
16A SIP&SMT 12Vi DC-DC Converters
BTCPower
TM

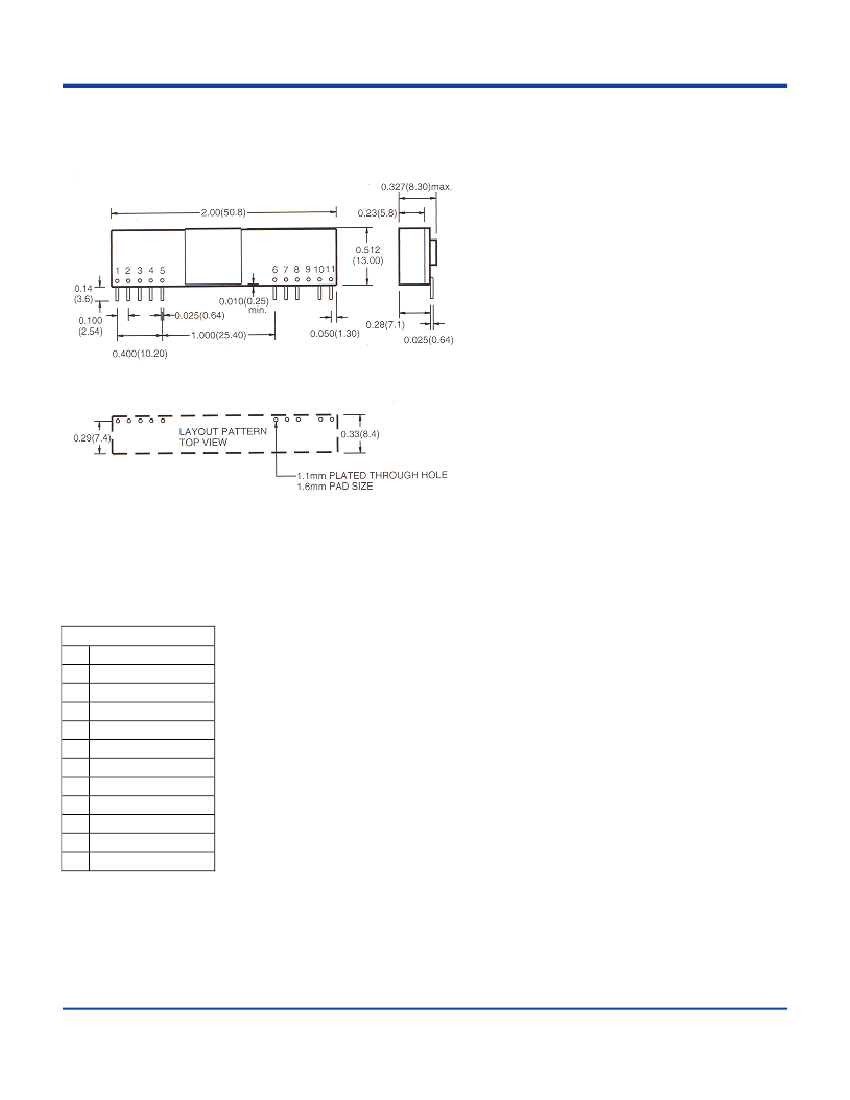

SIP Outline Inforamtion
Dimensions are in Inches (millimeters)
Tolerances: .XX ± 0.2” (.X ±0.5), unless otherwise noted
.XXX ±0.01” (.XX ±0.25)
PIN CONNECTION
Pin
1
2
3
4
5
6
7
8
9
10
11
Function
+ Output
+ Output
+ Sense
+ Output
Common
Common
+ V Input
+ V Input
No Pin
Trim
On / Off Control
Broadband TelCom Power, Inc. –
1719 S. Grand Avenue, Santa Ana, CA 92705 U.S.A.
Tel.: 714-259-4888 • Fax: 714-259-0840• www.btcpower.com • Email: sales@btcpower.com DS BSIP16-12 Rev1 10-26-04
BSIP16-12 Series
16A SIP&SMT 12Vi DC-DC Converters
BTCPower
TM
Product Brief
Temperature Typical Derating Curve

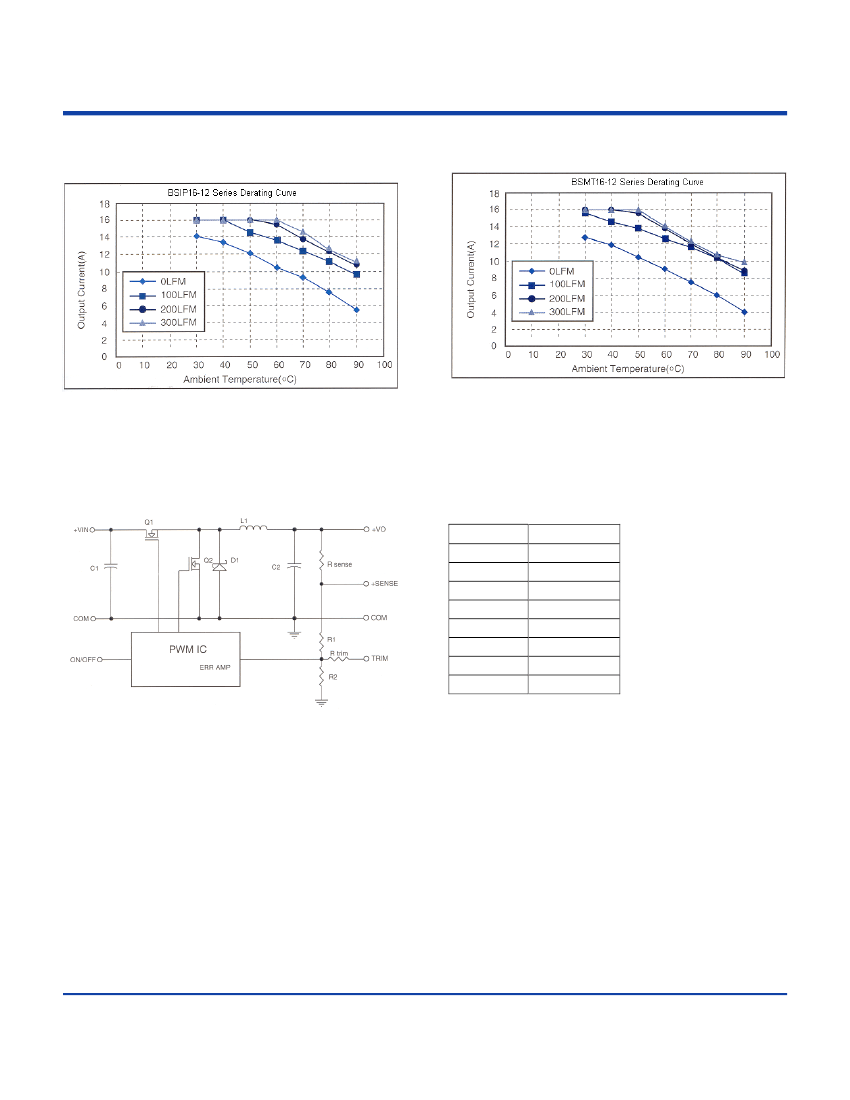

Fig 2.: Typical Derating Curve of BSMT16-12 series
Fig 1.: Typical Derating Curve of BSIP16-12 series
Trim Resistor Values
Vo (set) (V)
0.75
1.2
1.5
1.8
2
2.5
3.3
3.63
Rtrim (Kohm)
Open
22.33
13.0
9.0
7.4
5.0
3.12
1.47
Fig 3.: Simplified Schematic
The information and specifications contained in this brief are believed to be accurate and reliable at the time of publication. Specifications are
subject to change without notice. Refer to product specification sheet for performance characteristics and application guidelines.
Broadband TelCom Power, Inc. –
1719 S. Grand Avenue, Santa Ana, CA 92705 U.S.A.
Tel.: 714-259-4888 • Fax: 714-259-0840• www.btcpower.com • Email: sales@btcpower.com DS BSIP16-12 Rev1 10-26-04
