T510045004AB datasheet, PDF - EEWORLD Datasheet

T510045004AB: DescriptionSilicon Controlled Rectifier, 80A I(T)RMS, 80000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-83, HERMETIC SEALED, METAL PACKAGE-2; CategoryAnalog mixed-signal IC Trigger device; File Size1003KB，6 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric View All

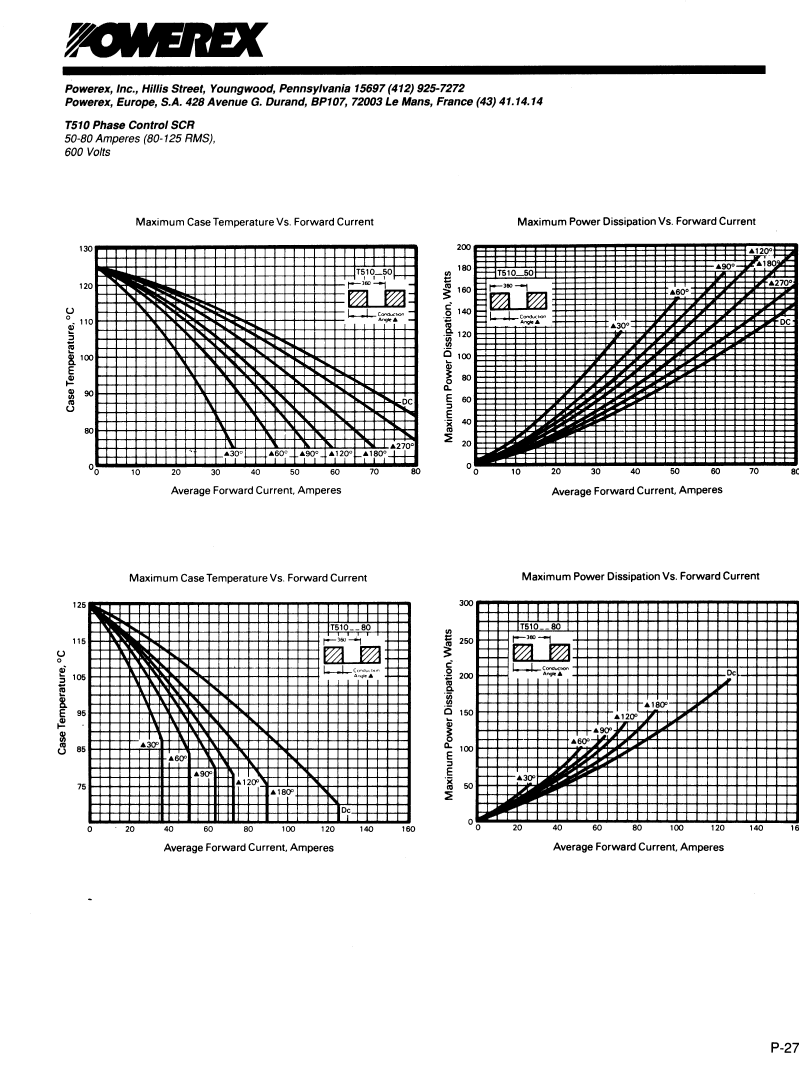

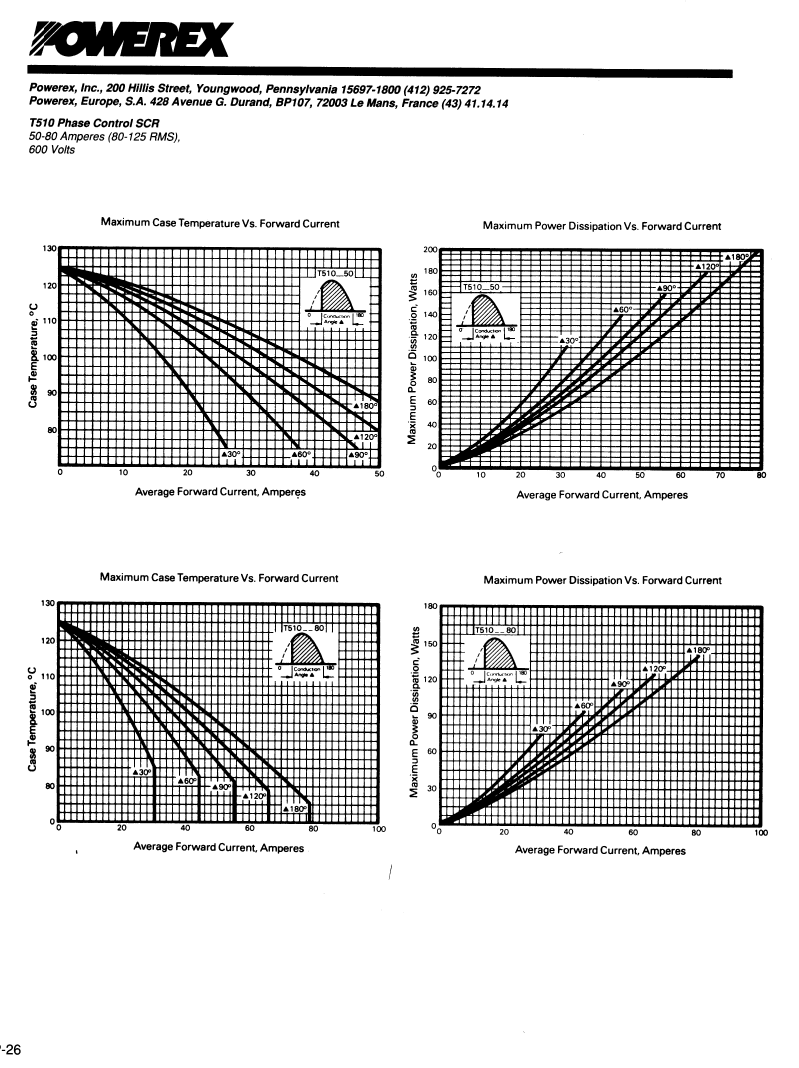

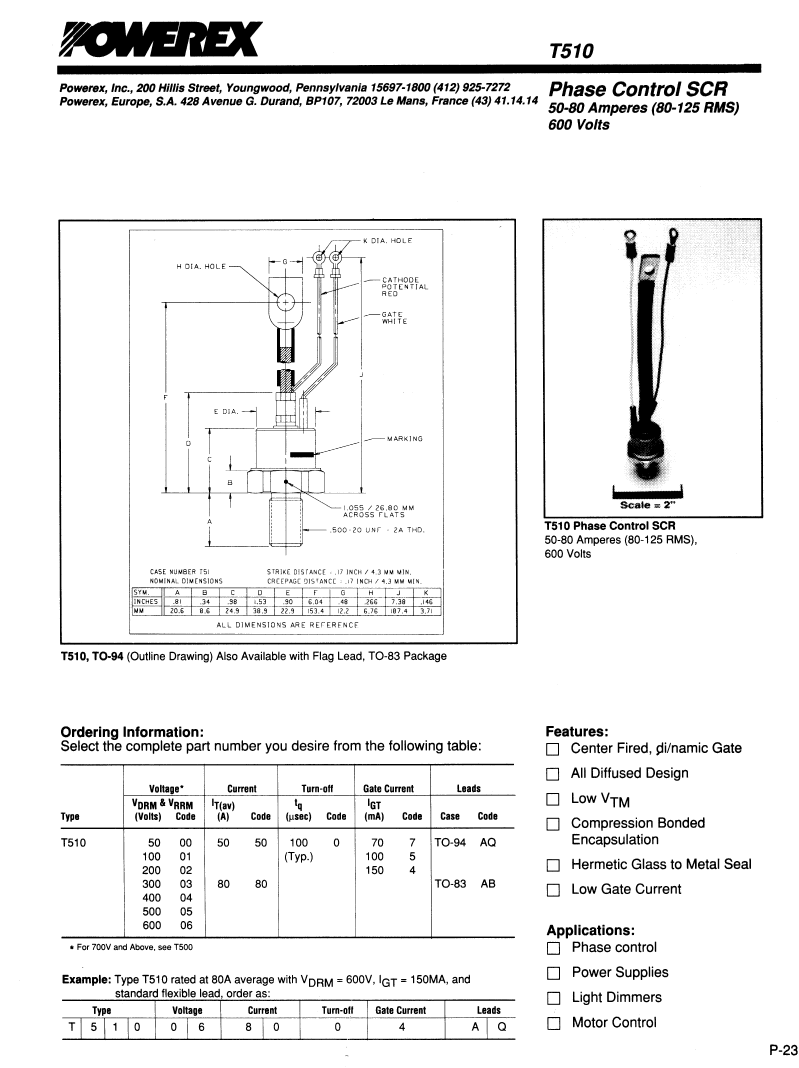

T510045004AB Overview

Silicon Controlled Rectifier, 80A I(T)RMS, 80000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-83, HERMETIC SEALED, METAL PACKAGE-2

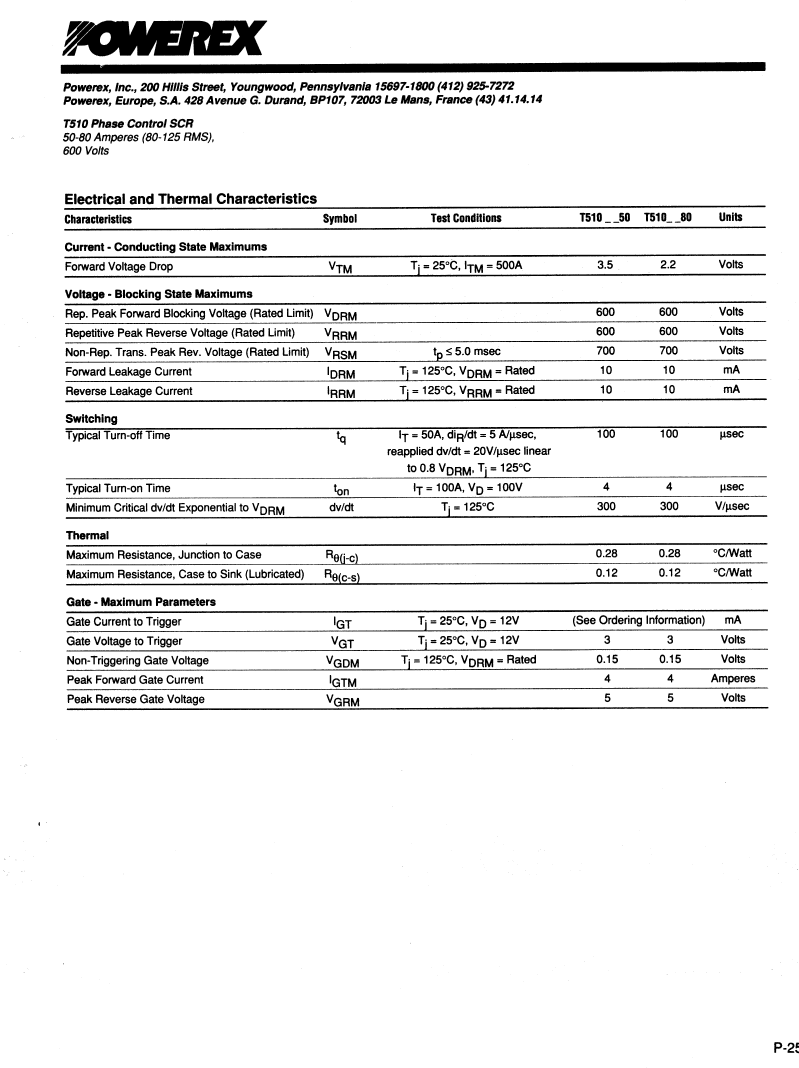

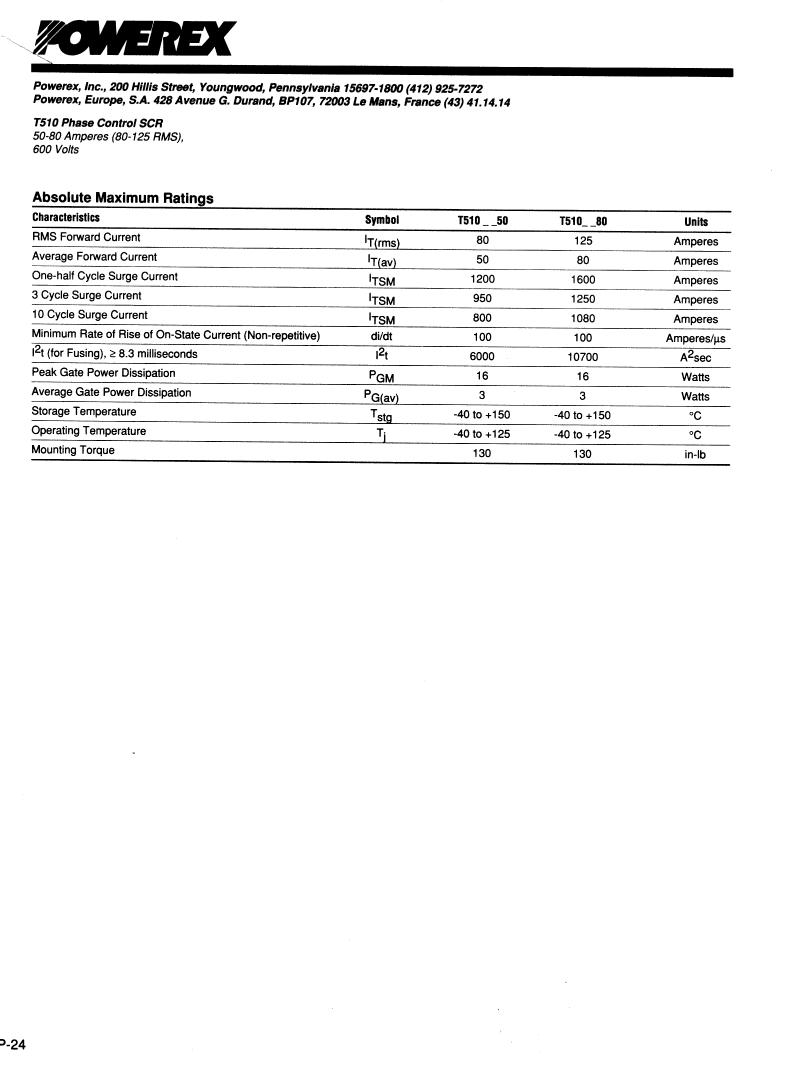

Parameter Name	Attribute value
Maker	POWEREX
Parts packaging code	TO-83
package instruction	POST/STUD MOUNT, O-MUPM-D2
Contacts	2
Reach Compliance Code	unknow
Nominal circuit commutation break time	50 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	300 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
JEDEC-95 code	TO-83
JESD-30 code	O-MUPM-D2
Maximum leakage current	10 mA
On-state non-repetitive peak current	1200 A
Number of components	1
Number of terminals	2
Maximum on-state current	80000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	80 A
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SCR
Base Number Matches	1
