BWR-12-830-D12A datasheet, PDF

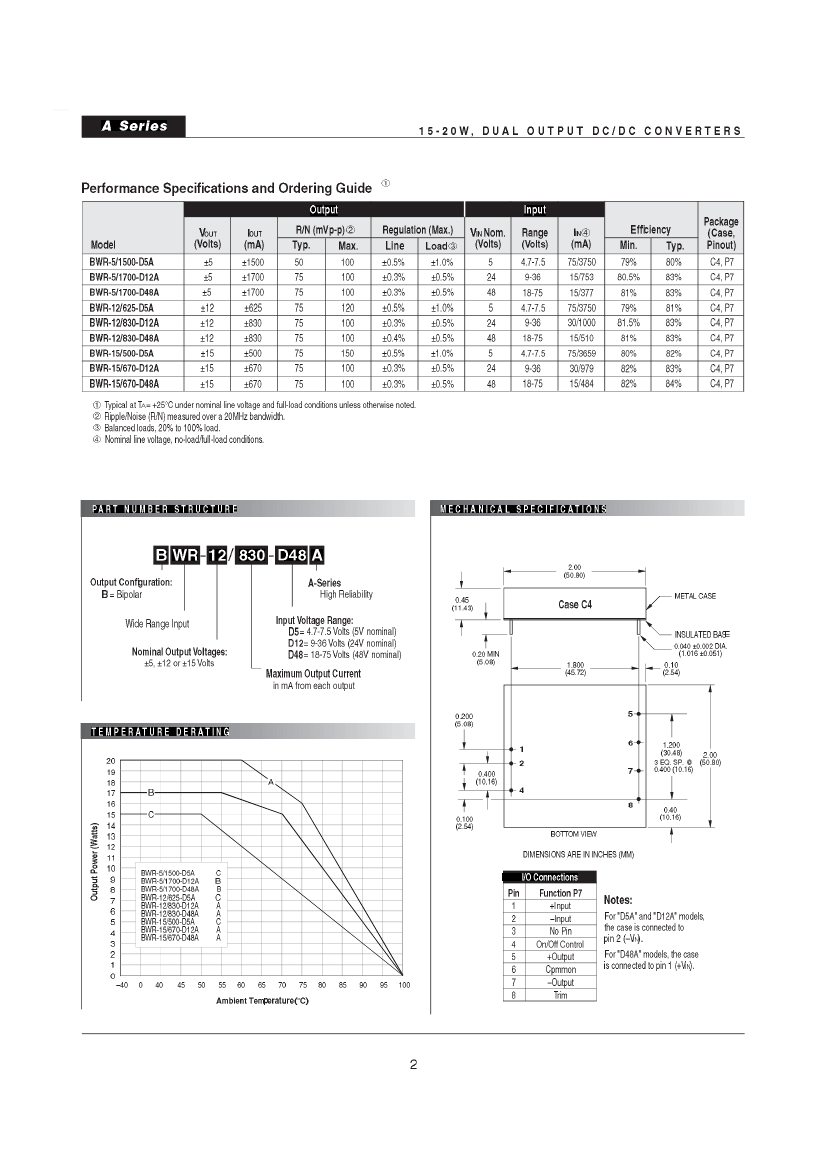

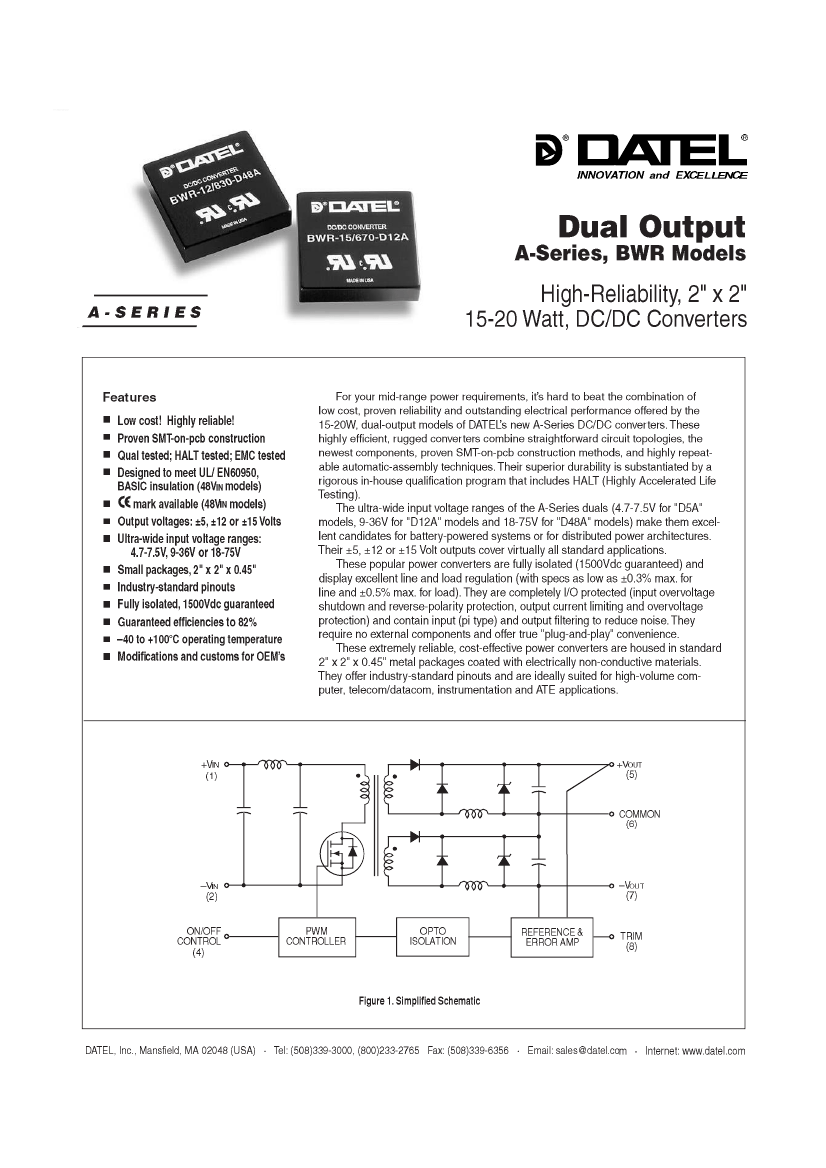

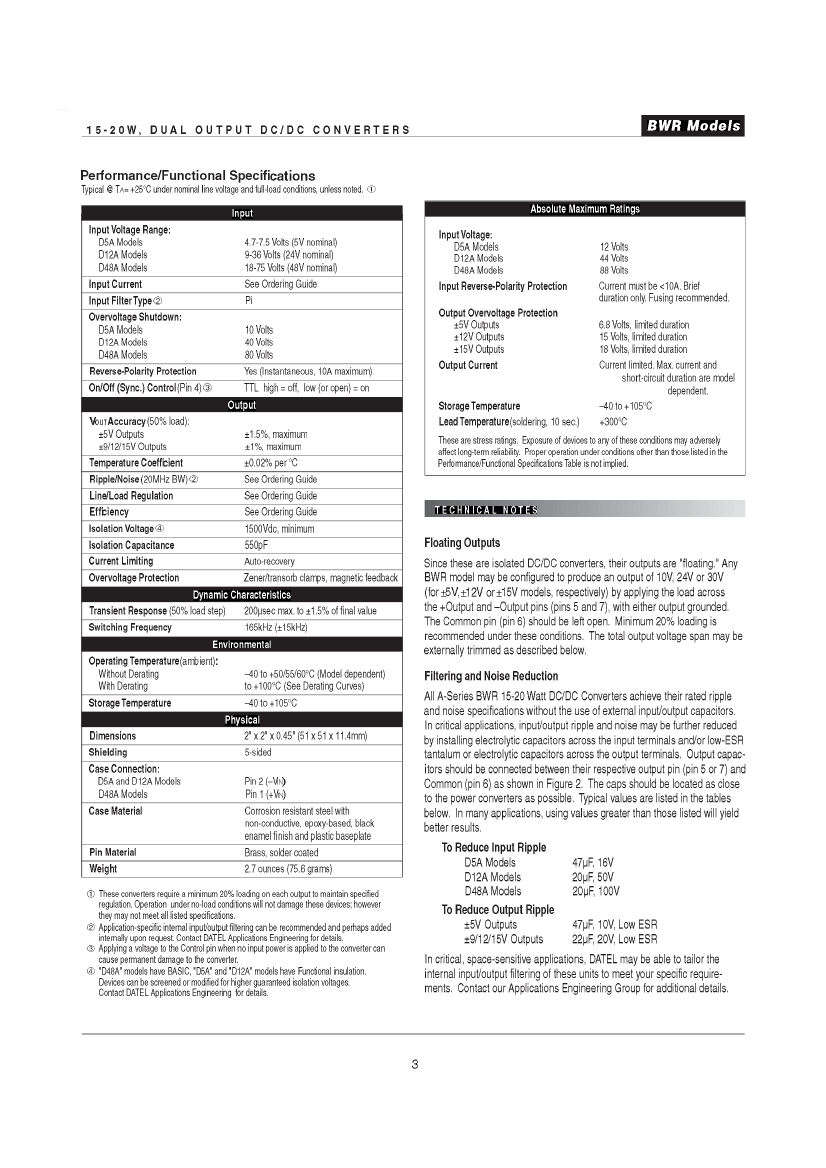

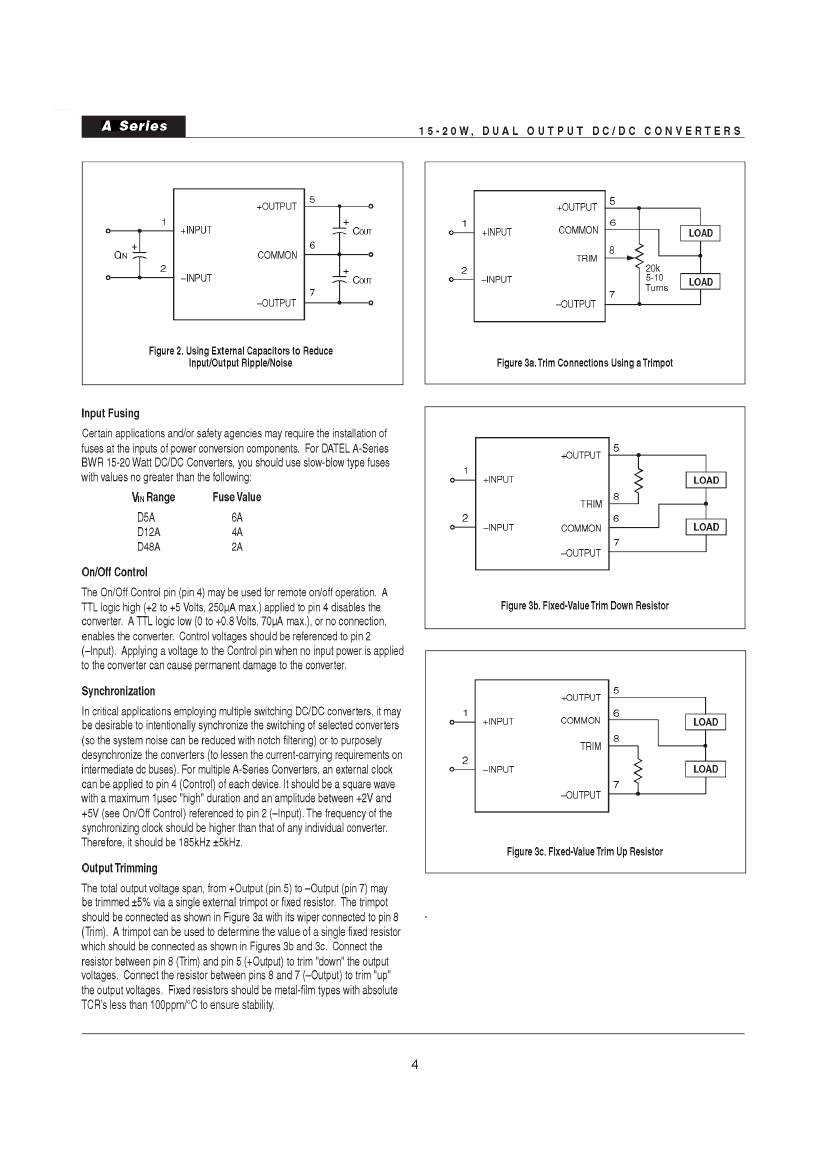

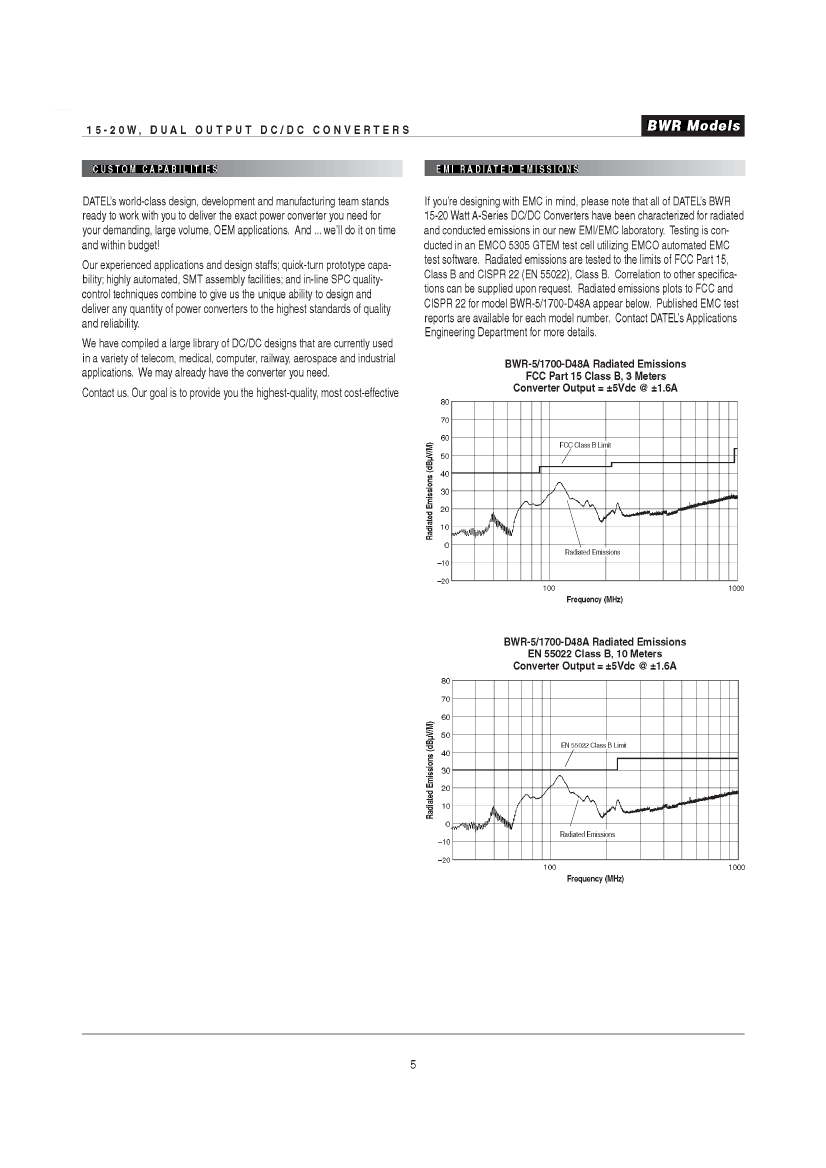

BWR-12-830-D12A: DescriptionDUAL OUTPUT A-SERIES, BWR MODELS HIGH-RELIABILITY, 2 X 2 15-20 WATT, DC/DC CONVERTERS; File Size608KB，6 Pages; ManufacturerETC1

Download Datasheet Compare View All

BWR-12-830-D12A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BWR-12-830-D12A	-	-	View	Buy Now

DUAL OUTPUT A-SERIES, BWR MODELS HIGH-RELIABILITY, 2 X 2 15-20 WATT, DC/DC CONVERTERS

	BWR-12-830-D12A	BWR-12-625-D5A	BWR-12-830-D48A	BWR-15-500-D5A	BWR-15-670-D12A	BWR-15-670-D48A	BWR-5-1500-D5A	BWR-5-1700-D12A	BWR-5-1700-D48A
Description	DUAL OUTPUT A-SERIES, BWR MODELS HIGH-RELIABILITY, 2 X 2 15-20 WATT, DC/DC CONVERTERS	DUAL OUTPUT A-SERIES, BWR MODELS HIGH-RELIABILITY, 2 X 2 15-20 WATT, DC/DC CONVERTERS	DUAL OUTPUT A-SERIES, BWR MODELS HIGH-RELIABILITY, 2 X 2 15-20 WATT, DC/DC CONVERTERS	DUAL OUTPUT A-SERIES, BWR MODELS HIGH-RELIABILITY, 2 X 2 15-20 WATT, DC/DC CONVERTERS	DUAL OUTPUT A-SERIES, BWR MODELS HIGH-RELIABILITY, 2 X 2 15-20 WATT, DC/DC CONVERTERS	DUAL OUTPUT A-SERIES, BWR MODELS HIGH-RELIABILITY, 2 X 2 15-20 WATT, DC/DC CONVERTERS	DUAL OUTPUT A-SERIES, BWR MODELS HIGH-RELIABILITY, 2 X 2 15-20 WATT, DC/DC CONVERTERS	DUAL OUTPUT A-SERIES, BWR MODELS HIGH-RELIABILITY, 2 X 2 15-20 WATT, DC/DC CONVERTERS	DUAL OUTPUT A-SERIES, BWR MODELS HIGH-RELIABILITY, 2 X 2 15-20 WATT, DC/DC CONVERTERS
