BZG03C-Series
Vishay Semiconductors
Zener Diodes
Features
•
•
•
•
•
•
•
Glass passivated junction
High reliability
e3
Voltage range 10 V to 270 V
Fits onto 5 mm SMD footpads
Wave and reflow solderable
Lead (Pb)-free component
Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
15811
Applications
Voltage stabilization
Mechanical Data
Case:
DO-214AC
Weight:
approx. 77 mg
Packaging Codes/Options:
TR / 1.5 k 7 " reel
TR3 / 6 k 13 " reel 6 k/box
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Power dissipation
Test condition
R
thJA
< 25 K/W, T
amb
= 100 °C
R
thJA
< 100 K/W, T
amb
= 50 °C
Non repetitive peak surge power t
p
= 100 s sq.pulse, T
j
= 25 °C
dissipation
prior to surge
Junction temperature
Storage temperature range
Symbol
P
diss
P
diss
P
ZSM
T
j
T
stg
Value
3
1.25
600
150
- 65 to + 150
Unit
W
W
W
°C
°C
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Junction lead
Junction ambient
mounted on epoxy-glass hard
tissue, Fig. 1a
mounted on epoxy-glass hard
tissue, Fig. 1b
mounted on Al-oxid-ceramic
(Al
2
O
3
), Fig. 1b
Test condition
Symbol
R
thJL
R
thJA
R
thJA
R
thJA
Value
25
150
125
100
Unit
K/W
K/W
K/W
K/W
Electrical Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Forward voltage
Test condition
I
F
= 0.5 A
Symbol
V
F
Min
Typ.
Max
1.2
Unit
V
Document Number 85593
Rev. 1.7, 15-Sep-05
www.vishay.com
1
BZG03C-Series
Vishay Semiconductors
Typical Characteristics (Tamb = 25 C unless otherwise specified)
a)
b)
I
F
– Forward Current (A )
3.0
5.0
2.5
2.0
1.5
1.0
0.5
2.0
1.5
10.0
2.0
25.0
94 9313
1.0
25.0
94 9581
0
0
0.5
1.0
1.5
2.0
V
F
– Forward Voltage ( V )

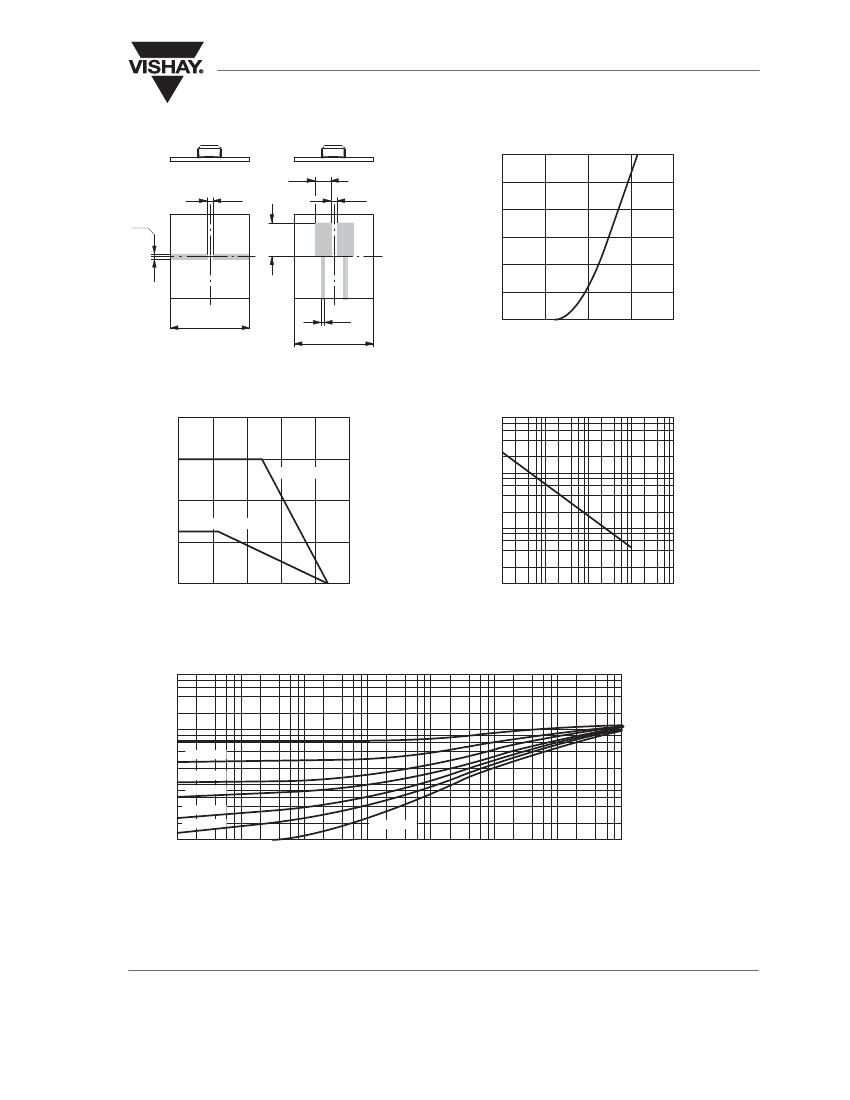

Figure 1. Boards for R
thJA
definition (copper overlay 35 )
Figure 3. Forward Current vs. Forward Voltage
3
R
thJA
=25K/W
2
R
thJA
=100K/W
1
P
ZSM
–
Non-Repetitive Surge
Power
Dissipation (W)
4
P
tot
–Total PowerDissipation(W )
10000
1000
100
0
0
94 9580
40
80
120
160
200
94 9582
10
0.01
0.1
1
10
100
T
amb
–
Ambient
Temperature(°C )
t
p
– Pulse Length (
ms
)
Figure 2. Total Power Dissipation vs. Ambient Temperature
Z thp–Thermal
Resistance
for Pulse Cond.(K/W
Figure 4. Non Repetitive Surge Power Dissipation vs. Pulse
Length
1000
100
t
p
/T=0.5
10
t
p
/T=0.2
t
p
/T=0.1
t
p
/T=0.05
t
p
/T=0.02
1
10
–5
10
–4
10
–3
t
p
/T=0.01
10
–2
10
–1
10
0
10
1
10
2
94 9583
t
p
– Pulse Length (
s
)
Figure 5. Thermal Response
Document Number 85593
Rev. 1.7, 15-Sep-05
www.vishay.com
3

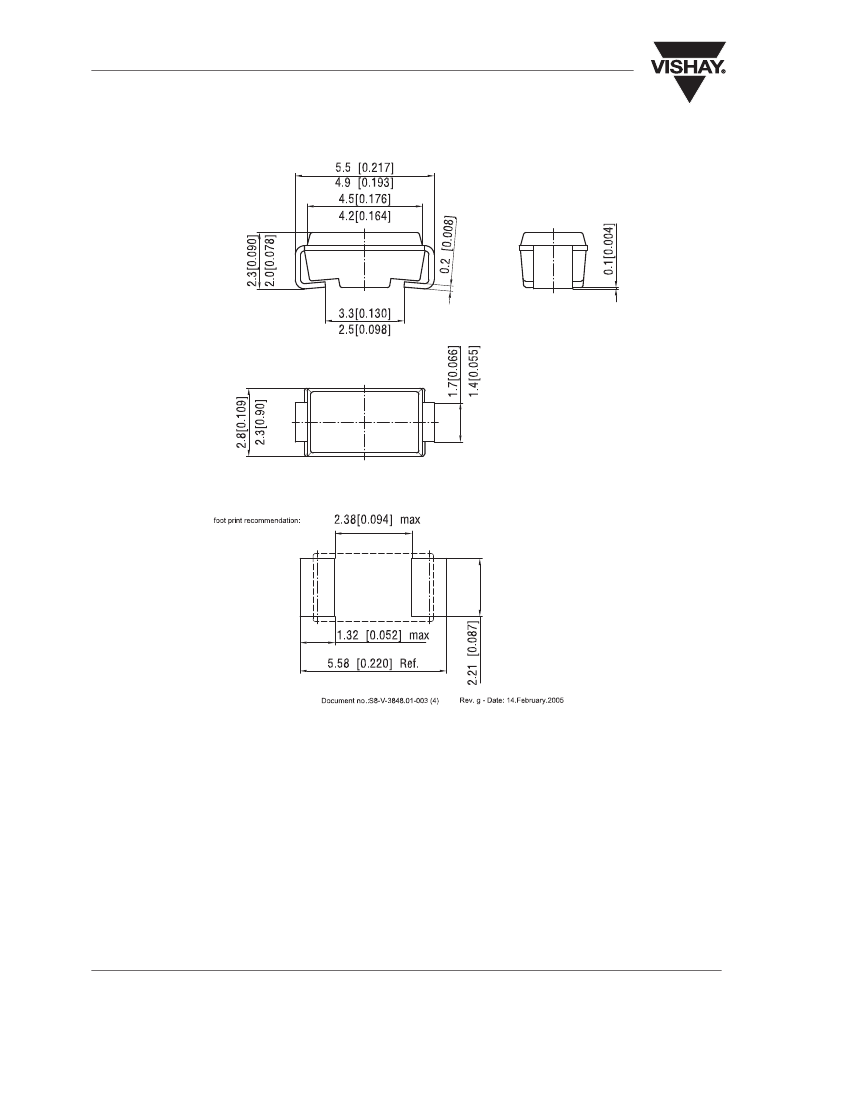

BZG03C-Series
Vishay Semiconductors
