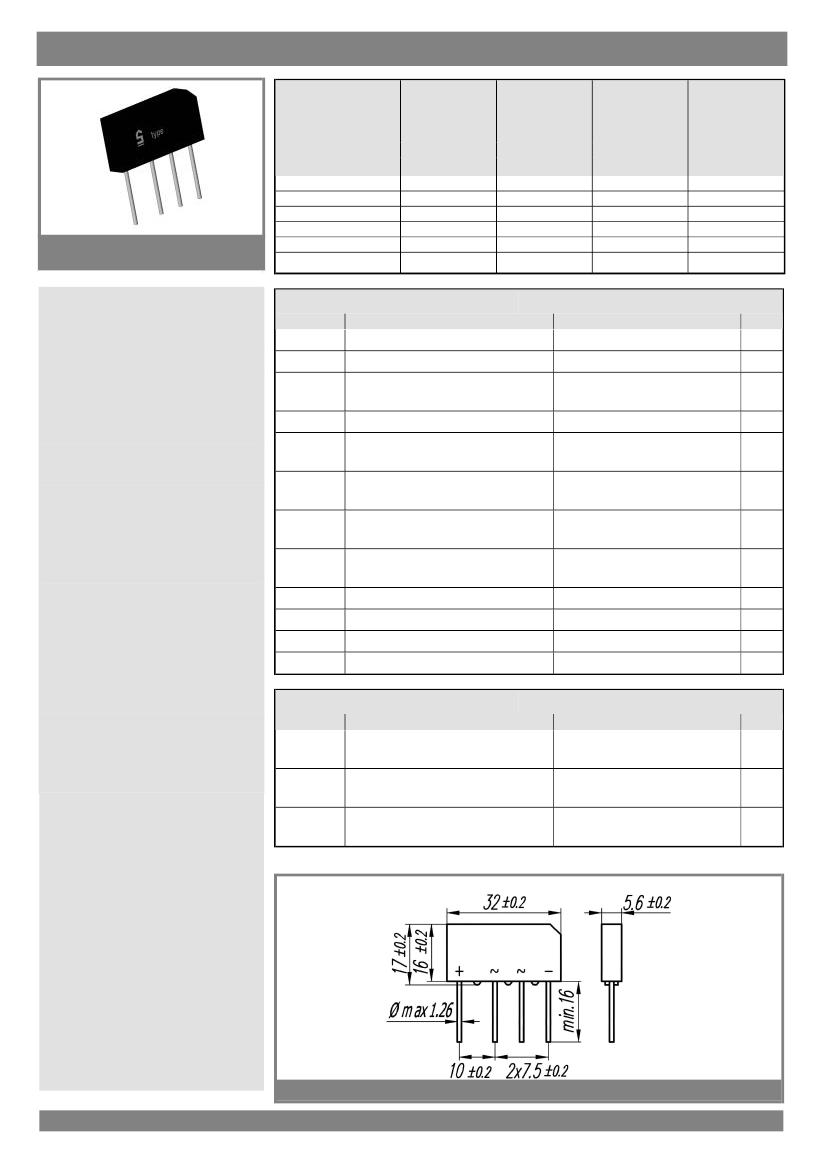

Silicon-Bridge Rectifiers

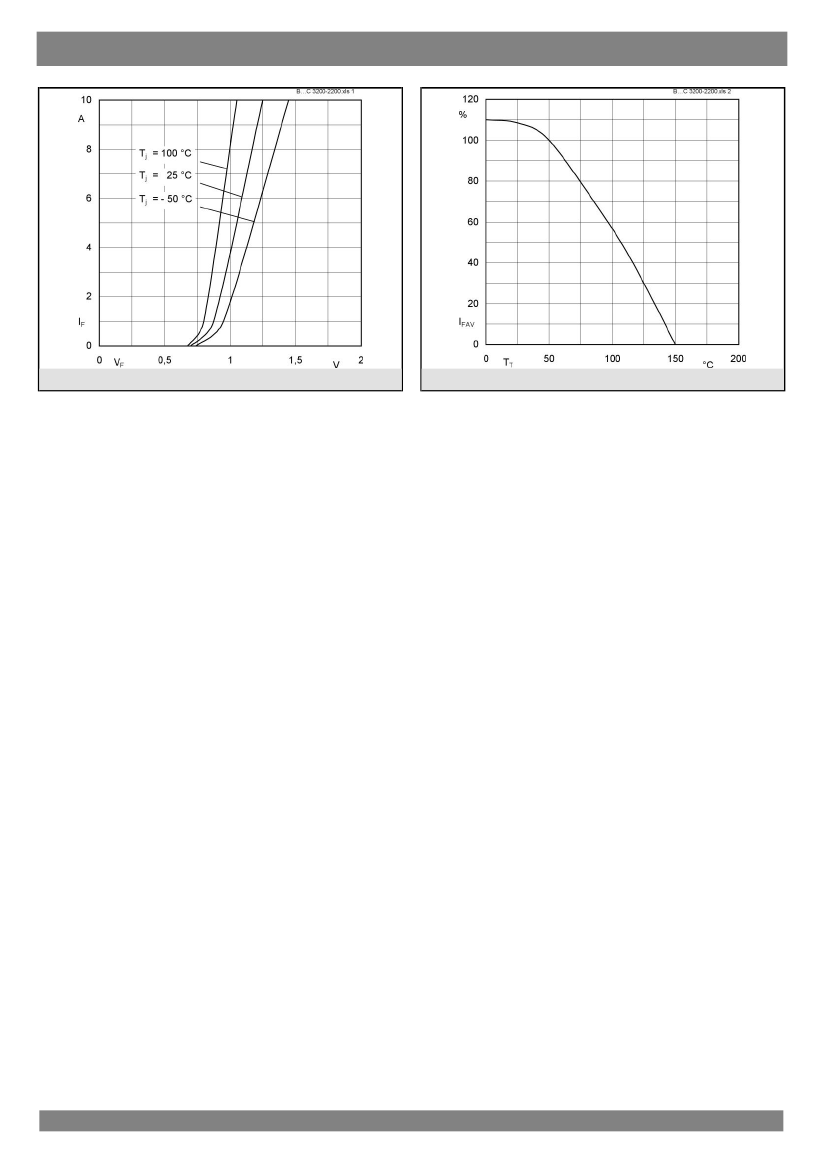

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | SEMIKRON |
| package instruction | R-PSIP-W4 |
| Contacts | 4 |
| Reach Compliance Code | compliant |
| Other features | UL RECOGNIZED |
| Configuration | BRIDGE, 4 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE |
| JESD-30 code | R-PSIP-W4 |
| JESD-609 code | e2 |
| Maximum non-repetitive peak forward current | 100 A |
| Number of components | 4 |
| Phase | 1 |
| Number of terminals | 4 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -50 °C |
| Maximum output current | 2.5 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 1000 V |
| surface mount | NO |
| Terminal surface | Tin/Silver (Sn/Ag) |
| Terminal form | WIRE |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| B500C3200-2200 | B250C3200-2200 | B40C3200-2200 | B80C3200-2200 | B380C3200-2200 | |
|---|---|---|---|---|---|
| Description | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers | Silicon-Bridge Rectifiers |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to |
| Maker | SEMIKRON | SEMIKRON | SEMIKRON | SEMIKRON | SEMIKRON |
| package instruction | R-PSIP-W4 | R-PSIP-W4 | R-PSIP-W4 | R-PSIP-W4 | R-PSIP-W4 |
| Contacts | 4 | 4 | 4 | 4 | 4 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| Other features | UL RECOGNIZED | UL RECOGNIZED | UL RECOGNIZED | UL RECOGNIZED | UL RECOGNIZED |
| Configuration | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE |
| JESD-30 code | R-PSIP-W4 | R-PSIP-W4 | R-PSIP-W4 | R-PSIP-W4 | R-PSIP-W4 |
| JESD-609 code | e2 | e2 | e2 | e2 | e2 |
| Maximum non-repetitive peak forward current | 100 A | 100 A | 100 A | 100 A | 100 A |
| Number of components | 4 | 4 | 4 | 4 | 4 |
| Phase | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 4 | 4 | 4 | 4 | 4 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C |
| Maximum output current | 2.5 A | 2.5 A | 2.5 A | 2.5 A | 2.5 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 1000 V | 600 V | 80 V | 160 V | 800 V |
| surface mount | NO | NO | NO | NO | NO |
| Terminal surface | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) |
| Terminal form | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
