Surface mount zener diode
FEATURES
Planar die construction.
500mW power dissipation on ceramic
PCB.
General purpose, medium current.
Production specification
BZT52C2V0-BZT52C51
Pb
Lead-free
Ideally suited for automated assembly processes.
APPLICATIONS
Zener diode.
Ultra-small surface mount package.
SOD-123
ORDERING INFORMATION
Type No.
BZT52C2V4-BZT52C51
Marking
See table 2
Package Code
SOD-123
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Characteristic
Forward Voltage
Power Dissipation
Thermal resistance,junction to ambient air
Junction temperature
Storage temperature range
@ I
F
=10mA
Symbol
V
F
P
d
R
θjA
T
j
T
stg
Value
0.9
500
305
150
-65-150
Unit
V
mW
℃/W
℃
℃
Notes: 1. Device mounted on ceramic PCB; 7.6mm x 9.4mm x 0.87mm with pad areas 25mm
2
2. Short duration test pulse used to minimize self-heating effect.
3. When provided, otherwise, parts are provided with date code only, and type number
identifications appears on reel only.
4. f = 1KHz
Document number: BL/SSZDA002
Rev.A
www.galaxycn.com
1
BL
Galaxy Electrical
Surface mount zener diode
Production specification
BZT52C2V0-BZT52C51
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Zener Voltage Range
V
Z
@I
ZT
Nom(V)
BZT52C2V0
BZT52C2V4
BZT52C2V7
BZT52C3V0
BZT52C3V3
BZT52C3V6
BZT52C3V9
BZT52C4V3
BZT52C4V7
BZT52C5V1
BZT52C5V6
BZT52C6V2
BZT52C6V8
BZT52C7V5
BZT52C8V2
BZT52C9V1
BZT52C10
BZT52C11
BZT52C12
BZT52C13
BZT52C15
BZT52C16
BZT52C18
BZT52C20
BZT52C22
BZT52C24
BZT52C27
BZT52C30
BZT52C33
BZT52C36
BZT52C39
BZT52C43
BZT52C47
BZT52C51
WY
WX
W1
W2
W3
W4
W5
W6
W7
W8
W9
WA
WB
WC
WD
WE
WF
WG
WH
WI
WJ
WK
WL
WM
WN
WO
WP
WQ
WR
WS
WT
WU
WV
WW
2.0
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
Min(V)
1.91
2.2
2.5
2.8
3.1
3.4
3.7
4.0
4.4
4.8
5.2
5.8
6.4
7.0
7.7
8.5
9.4
10.4
11.4
12.4
13.8
15.3
16.8
18.8
20.8
22.8
25.1
28.0
31.0
34.0
37.0
40.0
44.0
48.0
Max(V)
2.09
2.6
2.9
3.2
3.5
3.8
4.1
4.6
5.0
5.4
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.1
15.6
17.1
19.1
21.2
23.3
25.6
28.9
32.0
35.0
38.0
41.0
46.0
50.0
54.0
I
ZT
mA
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
5
5
5
100
100
100
95
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
100
100
100
Maximum Zener
Impedance
Z
ZT
@I
ZT
Ω
600
600
600
600
600
600
600
600
500
480
400
150
80
80
80
100
150
150
150
170
200
200
225
225
250
250
300
300
325
350
350
700
750
750
Z
ZK
@I
ZK
I
ZK
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
1.0
1.0
1.0
Maximum
Reverse
Current
I
R
μA
150
50
20
10
5.0
5.0
3.0
3.0
3.0
2.0
1.0
3.0
2.0
1.0
0.7
0.5
0.2
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
@V
R
V
1
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
8.0
10.5
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.1
25.2
27.3
32
35
38
Typical
Temperature
Coefficient@
I
ZTC
mV/℃
Min
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-2.7
-2
0.4
1.2
2.5
3.2
3.8
4.5
5.4
6.0
7.0
9.2
10.4
12.4
14.4
16.4
18.4
21.4
24.4
27.4
30.4
33.4
10.0
10.0
10.0
Max
0
0
0
0
0
0
0
0
0
1.2
2.5
3.7
4.5
5.3
6.2
7.0
8.0
9.0
10.0
11.0
13.0
14.0
16.0
18.0
20.0
22.0
25.3
29.4
33.4
37.4
41.2
12.0
12.0
12.0
Test
Current
I
ZTC
mA
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
5
5
5
Type
Number
Marking
Code
Document number: BL/SSZDA002
Rev.A
www.galaxycn.com
2
BL
Galaxy Electrical
Surface mount zener diode
Production specification
BZT52C2V0-BZT52C51

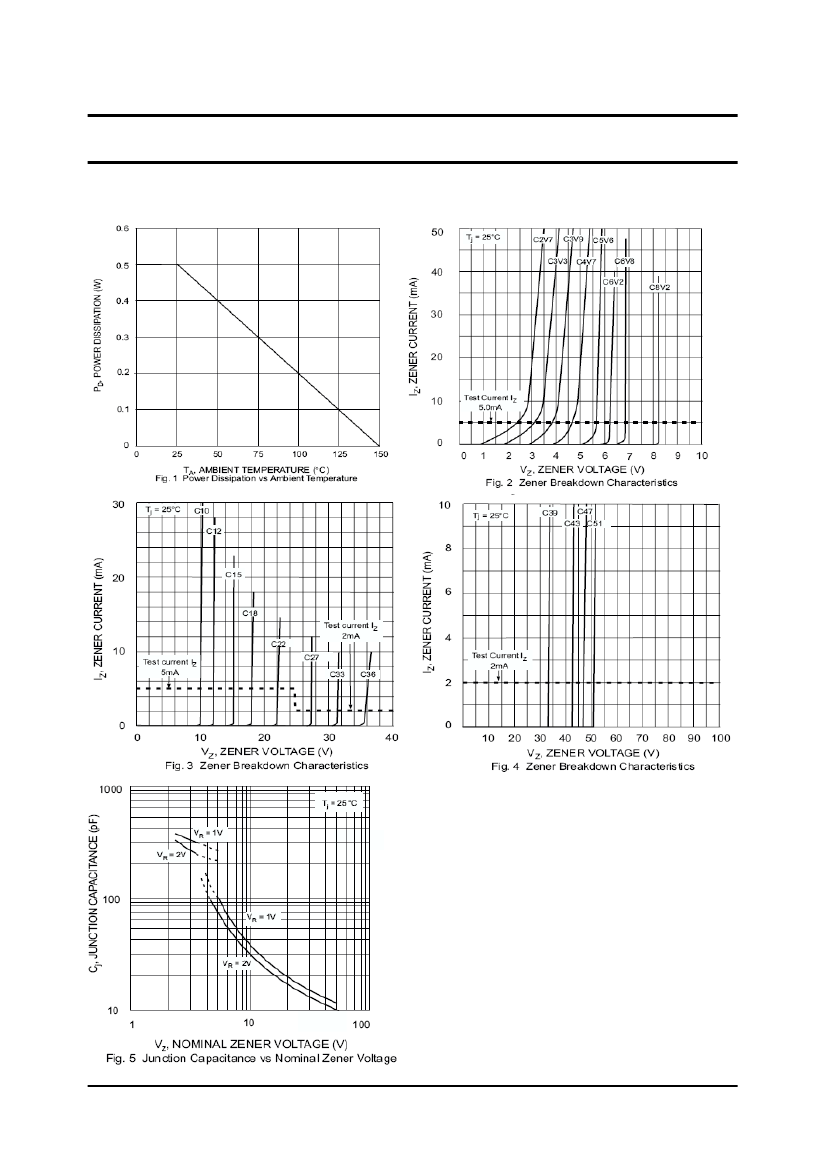

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Document number: BL/SSZDA002
Rev.A
www.galaxycn.com
3
BL
Galaxy Electrical
Surface mount zener diode
PACKAGE OUTLINE
Plastic surface mounted package
Production specification
BZT52C2V0-BZT52C51
SOD-123
K
B
SOD-123
Dim
C
Min
1.4
2.55
Max
1.8
2.85
A
B
A
D
H
E
J
C
D
E
H
J
K
1.15 Typical
0.5
0.3
0.02
0.6
0.4
0.10
0.1 Typical
3.55
3.85
All Dimensions in mm
SOLDERING FOOTPRINT
Unit : mm
PACKAGE
Device
INFORMATION
Package
SOD-123
Shipping
3000/Tape&Reel
BZT52C2V0-BZT52C51
Document number: BL/SSZDA002
Rev.A
www.galaxycn.com
4
