B5A100VI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B5A100VI

B5A100VI: Description5 A, 100 V, SILICON, RECTIFIER DIODE, TO-220AB; CategoryDiscrete semiconductor diode; File Size33KB，2 Pages; ManufacturerKEC; Websitehttp://www.keccorp.com/

Download Datasheet Parametric View All

B5A100VI Overview

5 A, 100 V, SILICON, RECTIFIER DIODE, TO-220AB

B5A100VI Parametric

Parameter Name	Attribute value
Maker	KEC
Parts packaging code	TO-220AB
package instruction	TO-220IS, 3 PIN
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

SEMICONDUCTOR

TECHNICAL DATA

SWITCHING TYPE POWER SUPPLY APPLICATION.

CONVERTER & CHOPPER APPLICATION.

FEATURES

Average Output Rectified Current

: I

=5A (Tc=115 ).

Repetitive Peak Reverse Voltage

: V

RRM

=100V.

Fast Reverse Recovery Time : t

=35ns.

Low Peak Forward Voltage : 0.75V(Typ.)

B5A100VI

SCHOTTKY BARRIER TYPE DIODE

MAXIMUM RATING (Ta=25

CHARACTERISTIC

Repetitive Peak Reverse Voltage

Average Output Rectified

Current (Tc=115 )

Peak One Cycle Surge Forward

Current (Non-Repetitive 60Hz)

Junction Temperature

Storage Temperature Range

)

SYMBOL

RRM

FSM

stg

RATING

100

-40 150

-55 150

UNIT

DIM

R H

1. CATHODE

2. NC

3. ANODE

MILLIMETERS

10.30 MAX

15.30 MAX

2.70 + 0.30

0.85 MAX

Φ3.20

+ 0.20

_ 0.30

3.00 +

12.30 MAX

0.75 MAX

13.60 + 0.50

3.90 MAX

1.20

1.30

2.54

4.50 + 0.20

6.80

2.60 + 0.20

0.5

2.60 + 0.15

1.5 MAX

TO-220IS

ELECTRICAL CHARACTERISTICS (Ta=25 )

CHARACTERISTIC

Peak Forward Voltage

Repetitive Peak Reverse Current

Reverse Recovery Time

Thermal Resistance

SYMBOL

RRM

th(j-c)

TEST CONDITION

=5A, Tc=25

RRM

=Rated

=1.0A, di/dt=-20A/ s

Juction to Case

MIN.

TYP.

0.75

MAX.

0.80

4.5

UNIT

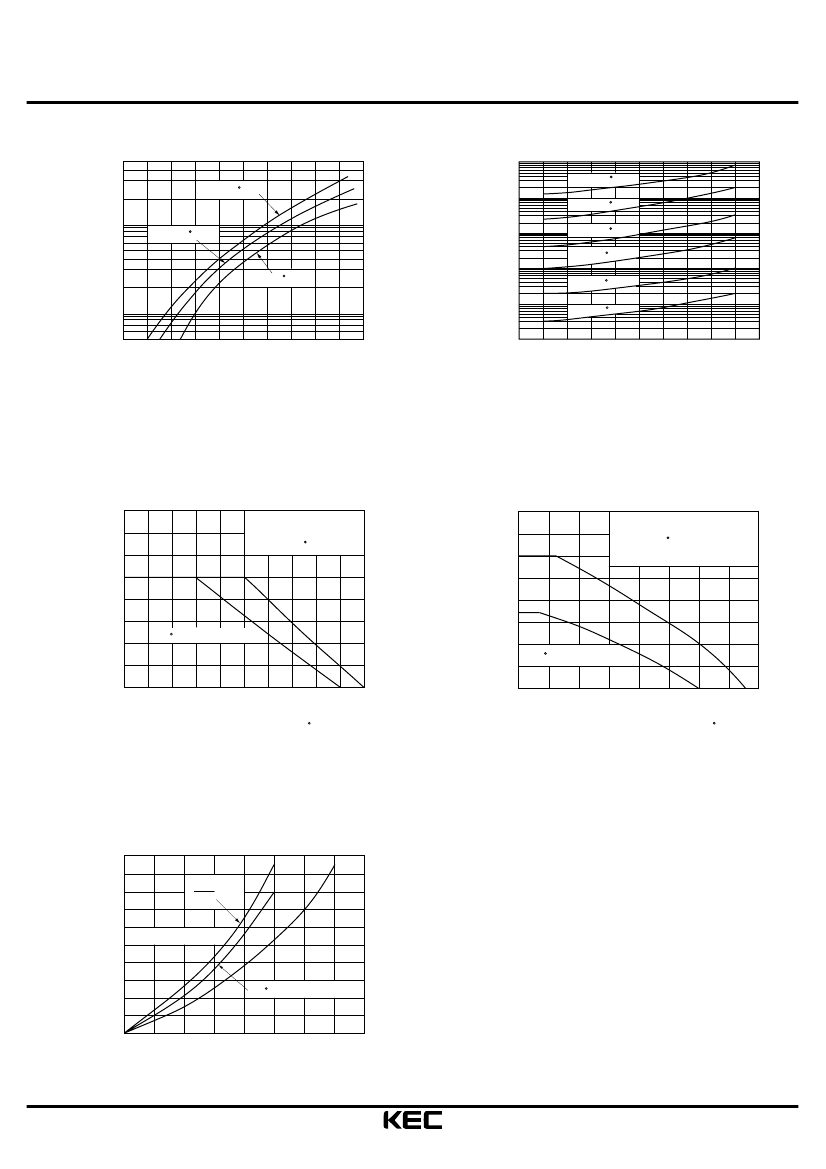

2002. 9. 10

Revision No : 0

1/2
