Type C
Multilayer Ceramic Chip Capacitors
Surface Mount Chip Capacitors
Type C surface mount multilayer chip capacitors are
available on tape and reel in COG (NPO), X7R, Z5U
and Y5V temperature coefficients. Five standard sizes
(0402, 0603, 0805, 1206, and 1210) are available in
most of the temperature coefficients - 0603 is not avail-
able in Z5U.
Highlights
•
•
•
•
Nickel barrier/solder terminations
50 Vdc units can be used in 63 Vdc applications
Tape and reel standard
Surface Mount
Specifications
Capacitance Range:
COG
0.5 pF
X7R
150 pF
Z5U
6800 pF
Y5V
0.022 µF
Voltage Range:
COG
X7R
Z5U
Y5V
Standard Sizes:
to
to
to
to
0.012 µF
0.33 µF
0.47 µF
2.2 µF
RoHS Compliant
10, 16, 25, 50, 100, 200 Vdc
10, 16, 25, 50, 100, 200 Vdc
50, 100 Vdc
10, 16, 25, 50 Vdc
0402, 0603, 0805, 1206, 1210
(0603 not available in Z5U)
Parts with ^ (caret) following the part number are 2,500
pieces per reel. Parts with # following the part number are
10,000 pieces per reel.
13” reels are available by special request - contact the
factory.
Tape & Reel:
7” reel per EIA RS 481-1

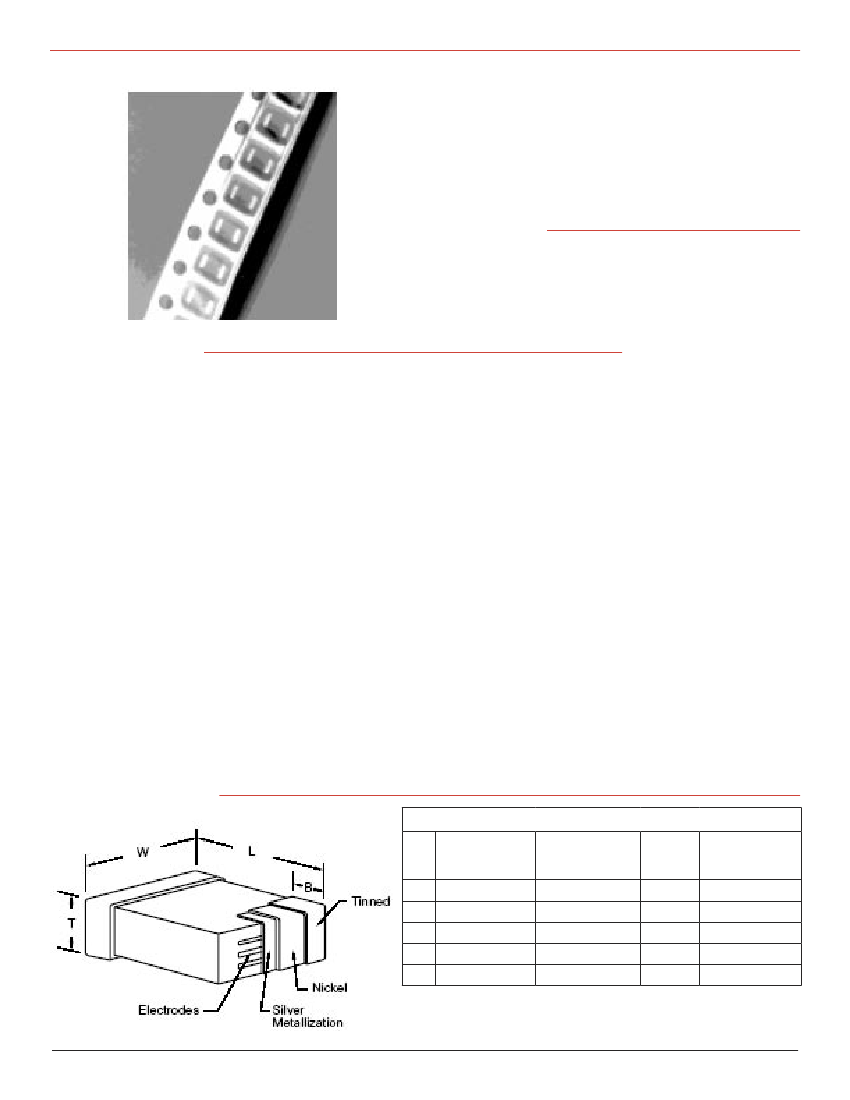

Outline Drawing
Dimensions – Millimeters (Inches)
Size
Code
L
Length
W
Width
T Max.
Thickness
B
Bandwidth
0.20(.008) Minimum
402 1.0(.040) ±0.05(.002) 0.50(.020) ±0.05(.002) 0.55(.022)
603 1.6(.063) ±0.15(.006) 0.80(.032) ±0.15(.006) 0.90(.035) 0.35(.014) ±0.15(.006)
805 2.0(.079) ±0.20(.008) 1.25(.049) ±0.20(.008) 1.30(.051) 0.50(.020) ±0.25(.010)
1206 3.2(.126) ±0.20(.008) 1.60(.063) ±0.20(.008) 1.50(.059) 0.50(.020) ±0.25(.010)
1210 3.2(.126) ±0.20(.008) 2.50(.098) ±0.20(.008) 1.70(.067) 0.50(.020) ±0.25(.010)
Z5U meets all Y5V requirements and can be used in its place
Y5V - Δ ≤ +22/–82% over –30 ºC to +85 ºC
Z5U - Δ ≤ +22/ –56% over +10ºC to +85ºC
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type C
Multilayer Ceramic Chip Capacitors
Performance Characteristics
Parameter
Temperature Characteristics:
Range ºC
Cap change without DC voltage
Aging Rate:
% C / Decade Hour, Max.
Dissipation Factor:
Test conditions @ 25 ºC
Limits:
Insulation
Resistance (IR):
After 2 min. electrification @ 25 ºC with rated voltage applied:
1000 megohms x µF
or 100 gigaohms
Moisture Resistance:
MIL-STD-202
Method 106 (20 cycles w / 50 V applied)
Post test limits @ 25 ºC, whichever is smaller
100 megohms x µF
or 10 gigaohms
Immersion Cycling:
MIL-STD-202, Method 104, Condition B
(2 cycles @ 15 minutes each. Each cycle consists of immersion
in hot bath @ 65 ºC followed by immersion in cold salt water bath.)
Post test limits @ 25 ºC
Insulation Resistance, whichever is smaller..
Life Test:
1000 Hrs
Test Potential and Temperature
Post test limits @ 25 ºC
Capacitance Change, whichever is greater
Dissipation Factor
Insulation Resistance, whichever is smaller..
< 2% or 0.5 pF
0.25% Max.
100 megohms x µF
or 10 gigaohms
* 60 PPM/ ºC below 10 pF nominal
+53 PPM –30 PPM/ºC from +25 ºC to –55 ºC comparable to MIL-C-20
±15% of initial value** ±30% of initial value** ±30% of initial value**
0.25% Max.
100 megohms x µF
or 10 gigaohms
5.0% Max.
100 megohms x µF
or 1 gigaohm
7.0% Max.
10 megohms x µF
or 1,000 megohms
200% V @ 125 ºC
200% V @ 125 ºC
150% V @ 85 ºC
200% V @ 85 ºC
100 megohms x µF
or 10 gigaohms
100 megohms x µF 1000 megohms x µF
or 10 gigaohms
or 1 gigaohm
10 megohms x µF
or 1,000 megohms
100 megohms x µF 1000 megohms x µF
or 10 gigaohms
or 1 gigaohm
10 megohms x µF
or 1,000 megohms
1000 megohms x µF 1000 megohms x µF
or 100 gigaohms
or 10 gigaohms
500 megohms x µF
or 10,000 megohms
>100 pF w/ 1.0 vrms @ 1 kHz w/ 1.0 vrms @ 1 kHz w/ 0.5 vrms @ 1 kHz w/ 1.0 vrms @ 1 kHz
≤100 pF w/ 1.0 vrms @ 1 MHz
0.10% Max.
2.5% Max.
4.0% Max.
7.0% Max.
–55 ºC to +125 ºC
0±30 PPM/ºC
0%
–55 ºC to +125 ºC
±15%
2.5%
+10 ºC to +85 ºC
+22%, –56%
5.0%
–30 ºC to +85 ºC
+22%, –82%
3.5% 0603; 7.0% 0805
RoHS Compliant
X7R
Z5U
Y5V
COG (NPO)
Dielectric Strength 2.5 times rated voltage for 5 seconds with current limited to 50 mA
**X7R and Z5U dielectrics exhibit aging characteristics; therefore, it
is highly recommended that capacitors be de-aged for 2 hours at
+150 ºC and stabilized at room temperature for 48 hours before
capacitor measurements are made.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type C
Multilayer Ceramic Chip Capacitors
Ratings
COG (NPO) Temperature Coefficient
Cap
.50 pF
.75 pF
1.0 pF
1.2 pF
1.5 pF
1.8 pF
2.2 pF
2.7 pF
3.3 pF
3.9 pF
4.7 pF
5.6 pF
6.8 pF
8.2 pF
10 pF
12 pF
15 pF
18 pF
22 pF
27 pF
33 pF
39 pF
47 pF
56 pF
68 pF
82 pF
100 pF
RoHS Compliant
10 Vdc
Catalog Part Number 0402 Size Code
16 Vdc
25 Vdc
50 Vdc
C0402C508*8GAC# C0402C508*4GAC# C0402C508*3GAC# C0402C508*5GAC#
C0402C758*8GAC# C0402C758*4GAC# C0402C758*3GAC# C0402C758*5GAC#
C0402C109*8GAC# C0402C109*4GAC# C0402C109*3GAC# C0402C109*5GAC#
C0402C129*8GAC# C0402C129*4GAC# C0402C129*3GAC# C0402C129*5GAC#
C0402C159*8GAC# C0402C159*4GAC# C0402C159*3GAC# C0402C159*5GAC#
C0402C189*8GAC# C0402C189*4GAC# C0402C189*3GAC# C0402C189*5GAC#
C0402C229*8GAC# C0402C229*4GAC# C0402C229*3GAC# C0402C229*5GAC#
C0402C279*8GAC# C0402C279*4GAC# C0402C279*3GAC# C0402C279*5GAC#
C0402C339*8GAC# C0402C339*4GAC# C0402C339*3GAC# C0402C339*5GAC#
C0402C399*8GAC# C0402C399*4GAC# C0402C399*3GAC# C0402C399*5GAC#
C0402C479*8GAC# C0402C479*4GAC# C0402C479*3GAC# C0402C479*5GAC#
C0402C569*8GAC# C0402C569*4GAC# C0402C569*3GAC# C0402C569*5GAC#
C0402C689*8GAC# C0402C689*4GAC# C0402C689*3GAC# C0402C689*5GAC#
C0402C829*8GAC# C0402C829*4GAC# C0402C829*3GAC# C0402C829*5GAC#
C0402C100*8GAC# C0402C100*4GAC# C0402C100*3GAC# C0402C100*5GAC#
C0402C120*8GAC# C0402C120*4GAC# C0402C120*3GAC# C0402C120*5GAC#
C0402C150*8GAC# C0402C150*4GAC# C0402C150*3GAC# C0402C150*5GAC#
C0402C180*8GAC# C0402C180*4GAC# C0402C180*3GAC# C0402C180*5GAC#
C0402C220*8GAC# C0402C220*4GAC# C0402C220*3GAC# C0402C220*5GAC#
C0402C270*8GAC# C0402C270*4GAC# C0402C270*3GAC# C0402C270*5GAC#
C0402C330*8GAC# C0402C330*4GAC# C0402C330*3GAC# C0402C330*5GAC#
C0402C390*8GAC# C0402C390*4GAC# C0402C390*3GAC# C0402C390*5GAC#
C0402C470*8GAC# C0402C470*4GAC# C0402C470*3GAC# C0402C470*5GAC#
C0402C560*8GAC# C0402C560*4GAC# C0402C560*3GAC# C0402C560*5GAC#
C0402C680*8GAC# C0402C680*4GAC# C0402C680*3GAC# C0402C680*5GAC#
C0402C820*8GAC# C0402C820*4GAC# C0402C820*3GAC#
C0402C101*8GAC# C0402C101*4GAC# C0402C101*3GAC#
*
Insert proper letter code for desired tolerance:
Other Available tolerances:
Values less than 27 pF:
C = ±0.25 pF, D = ±0.5 pF
Values greater than 10 pF:
F = ±1%; G = ±2%;
H = ±2.5%
J = ±5%; K = ±10%; M = ±20%
±0.25 pF (C) is standard on values less than 10 pF
±5% (J) is standard on values ≥ 10 pF
^ Parts with caret (^) following catalog number are
2.500 pcs per reel
# Parts with (#) following catalog number are 10,000
pieces per reel.
All others are 4,000 pcs per reel
Cap
Catalog Part Number 0603 Size Code COG (NPO)
50 Vdc
100 Vdc
200 Vdc
Cap
Catalog Part Number 0603 Size Code COG (NPO)
50 Vdc
100 Vdc
200 Vdc
.50 pF C0603C508*5GAC
.75 pF C0603C758*5GAC
1.0 pF C0603C109*5GAC C0603C109*1GAC C0603C109*2GAC
1.2 pF C0603C129*5GAC C0603C129*1GAC C0603C129*2GAC
1.5 pF C0603C159*5GAC C0603C159*1GAC C0603C159*2GAC
1.8 pF C0603C189*5GAC C0603C189*1GAC C0603C189*2GAC
2.2 pF C0603C229*5GAC C0603C229*1GAC C0603C229*2GAC
2.7 pF C0603C279*5GAC C0603C279*1GAC C0603C279*2GAC
3.3 pF C0603C339*5GAC C0603C339*1GAC C0603C339*2GAC
3.9 pF C0603C399*5GAC C0603C399*1GAC C0603C399*2GAC
4.7 pF C0603C479*5GAC C0603C479*1GAC C0603C479*2GAC
5.6 pF C0603C569*5GAC C0603C569*1GAC C0603C569*2GAC
6.8 pF C0603C689*5GAC C0603C689*1GAC C0603C689*2GAC
8.2 pF C0603C829*5GAC C0603C829*1GAC C0603C829*2GAC
10 pF C0603C100*5GAC C0603C100*1GAC C0603C100*2GAC
12 pF C0603C120*5GAC C0603C120*1GAC C0603C120*2GAC
15 pF C0603C150*5GAC C0603C150*1GAC C0603C150*2GAC
18 pF C0603C180*5GAC C0603C180*1GAC C0603C180*2GAC
22 pF C0603C220*5GAC C0603C220*1GAC C0603C220*2GAC
27 pF C0603C270*5GAC C0603C270*1GAC C0603C270*2GAC
33 pF C0603C330*5GAC C0603C330*1GAC C0603C330*2GAC
39 pF C0603C390*5GAC C0603C390*1GAC C0603C390*2GAC
47 pF C0603C470*5GAC C0603C470*1GAC C0603C470*2GAC
56 pF C0603C560*5GAC C0603C560*1GAC C0603C560*2GAC
68 pF C0603C680*5GAC C0603C680*1GAC C0603C680*2GAC
82 pF C0603C820*5GAC C0603C820*1GAC C0603C820*2GAC
100 pF C0603C101*5GAC C0603C101*1GAC
120 pF C0603C121*5GAC C0603C121*1GAC
150 pF C0603C151*5GAC C0603C151*1GAC
180 pF C0603C181*5GAC C0603C181*1GAC
220 pF C0603C221*5GAC
