861-91-024-10-001 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 861-91-024-10-001

Preview

861-91-024-10-001: DescriptionBoard Connector, 24 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket,; CategoryThe connector The connector; File Size192KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

861-91-024-10-001 Overview

Board Connector, 24 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket,

861-91-024-10-001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compli
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (100)
Contact completed and terminated	TIN LEAD (200)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	861
Plug information	860-10-024-10-001
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

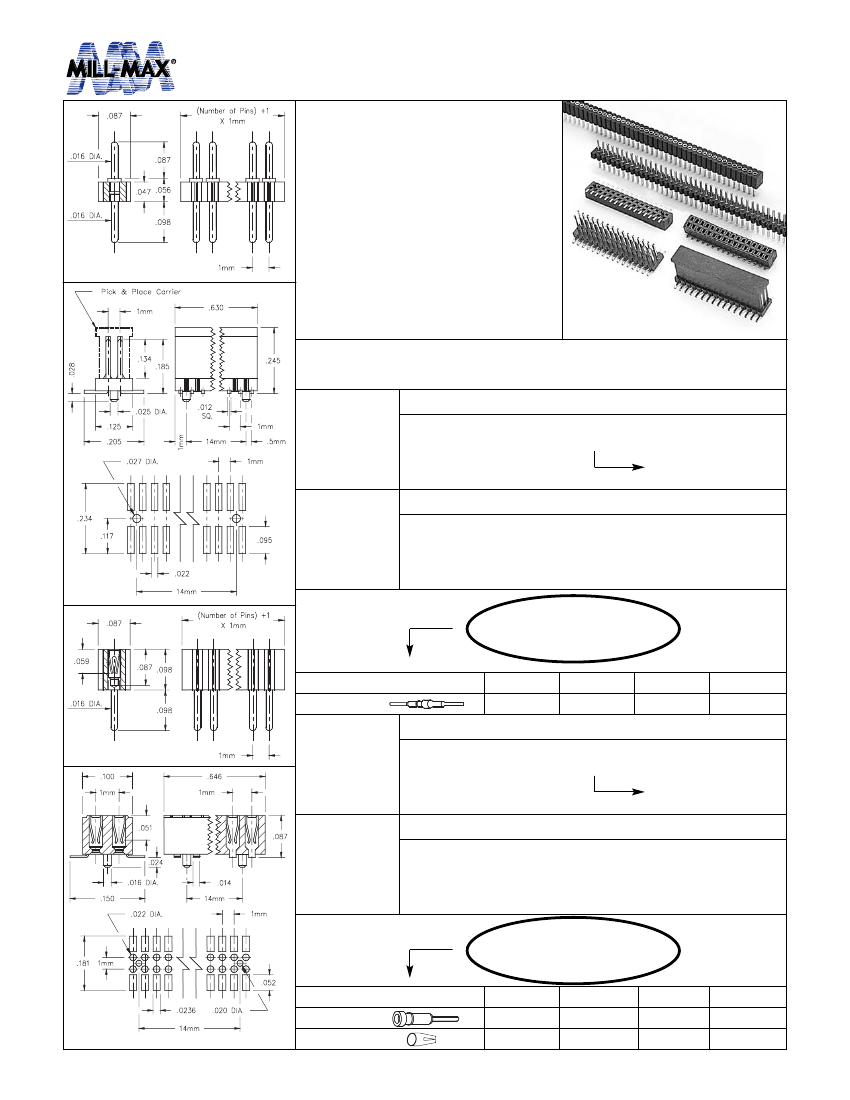

INTERCONNECTS

1mm Grid

Single & Double Row

•

Single row header and socket

have .016” dia. pins for thru-hole

mount. A mated pair achieves a

stack height of .154”.

•

Dual row header has .012” square

pins.

•

Dual row socket is designed for top

or bottom entry of the header. Top

entry achieves a stack height of

.138”, bottom entry achieves a stack

height of .051”.

•

Dual row socket and header have

location posts to permit hand place-

ment prior to soldering.

Series 86X

Fig. 1

Ordering Information

Single Row Pin Header, Thru Hole Mount

Fig. 1

860-XX-0_ _-10-001

Specify # of pins

03-50

Double Row Pin Header, Surface Mount

Fig. 2

862-XX-032-10-001

32 pins (2x16)

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

10

10µ” Au

Pin Plating

Single Row Socket, Thru Hole Mount

Fig. 3

861-XX-0_ _-10-001

Specify # of pins

03-50

Double Row Socket, Surface Mount

Fig. 4

863-XX-032-10-001

32 pins (2x16)

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

91

200µ” Sn/Pb

10µ” Au

Sleeve (Pin)

Fig. 4

Contact (Clip)

w w w. m i l l - m a x . c o m

69

516-922-6000
