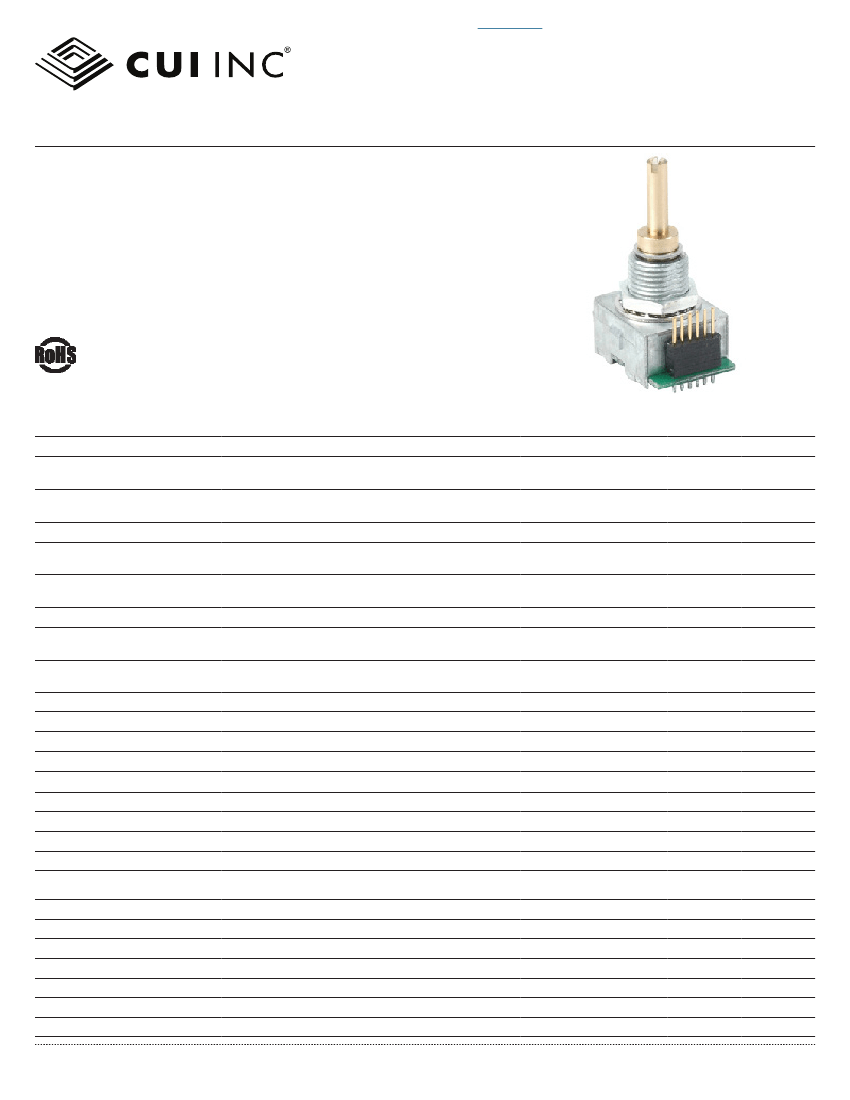

SERIES:
C14
│
DESCRIPTION:
PANEL MOUNT ENCODER
FEATURES
• 2-bit quadrature output
• compact
•
•
•
•
rugged metal design
1 million cycle life
multiple termination options
IP65 rating option
ELECTRICAL
parameter
power supply
supply current
output
output code
power consumption
output resolution
angle of throw
conditions/description
3.3Vdc input models
5Vdc input models
3.3Vdc input models
5Vdc input models
open collector
2-bit quadrature, channel A leads channel B by 90°
with clockwise rotation
3.3Vdc input models
5Vdc input models
4 ppr (16 cpr), 8 ppr (32 cpr)
16 detent postion models
32 detent postion models
22.5
11.25
°
°
132
100
mW
mW
min
3.168
4.75
typ
3.3
5
max
3.432
5.25
40
20
units
Vdc
Vdc
mA
mA
PUSH SWITCH SPECIFICATIONS
parameter
rating
contact resistance
isolation voltage
insulation resistance
operating push force
travel
bounce
push switch life
1,000,000
for 1 minute
100
3.5
0.2
4.5
0.5
5.5
0.8
10
250
conditions/description
12 Vdc at 50 mA
200
m
Ω
Vac
M
Ω
N
mm
ms
cycles
min
typ
max
units
ENVIRONMENTAL
parameter
operating temperature
storage temperature
vibration
shock
cold test
heat test
10~55Hz with a peak to peak amplitude of 1.5mm
half sine wave for 11ms
at -20°C for 96 hours
at +80°C for 96 hours
cui.com
50
G
conditions/description
min
-10
-20
typ
max
70
80
units
°C
°C
For more information, please visit the
product page.
CUI Inc
│
SERIES:
C14
│
DESCRIPTION:
PANEL MOUNT ENCODER
date
05/20/2014│
page
2 of 7
ENVIRONMENTAL (CONTINUED)
parameter
temperature change test
humidity test
RoHS
conditions/description
at -10~70°C for 30 minutes each
at 40°C, 90~95% humidity for 96 hours
2011/65/EU
min
typ
max
units
MECHANICAL
parameter
shaft load
operational torque
mounting torque
rotational life
weight
conditions/description
radial
axial
without detent
with detent
0.2
0.4
100
1,000,000
11
min
typ
max
10
15
0.2
0.6
units
N
N
N·cm
N·cm
N·cm
cycles
g
OUTPUT WAVEFORMS
PART NUMBER KEY
C14XXXX
- XXXX
Base Number
Detent:
D = with detent
N = without detent
Angle of throw:
16 = 22.5° for code change
and 16 detent positions
32 = 11.25° for code change
and 32 detent positions
Push Switch:
P = with push switch
N = without push switch
cui.com
Input Voltage:
“blank” = 5 V input
3 = 3.3 V input
Waterproof:
“blank” = standard
A = IP65
Termination:
A = Ø0.5 mm holes
B = 130 mm cable with
connector
C = with header I
D = with header II
E = horizontal PCB
F = vertical PCB
Shaft Diameter:
1 = Ø3.175 mm (1/8”)
2 = Ø6 mm
3 = Ø6.35 mm (1/4”)
For more information, please visit the
product page.
CUI Inc
│
SERIES:
C14
│
DESCRIPTION:
PANEL MOUNT ENCODER
date
05/20/2014│
page
3 of 7

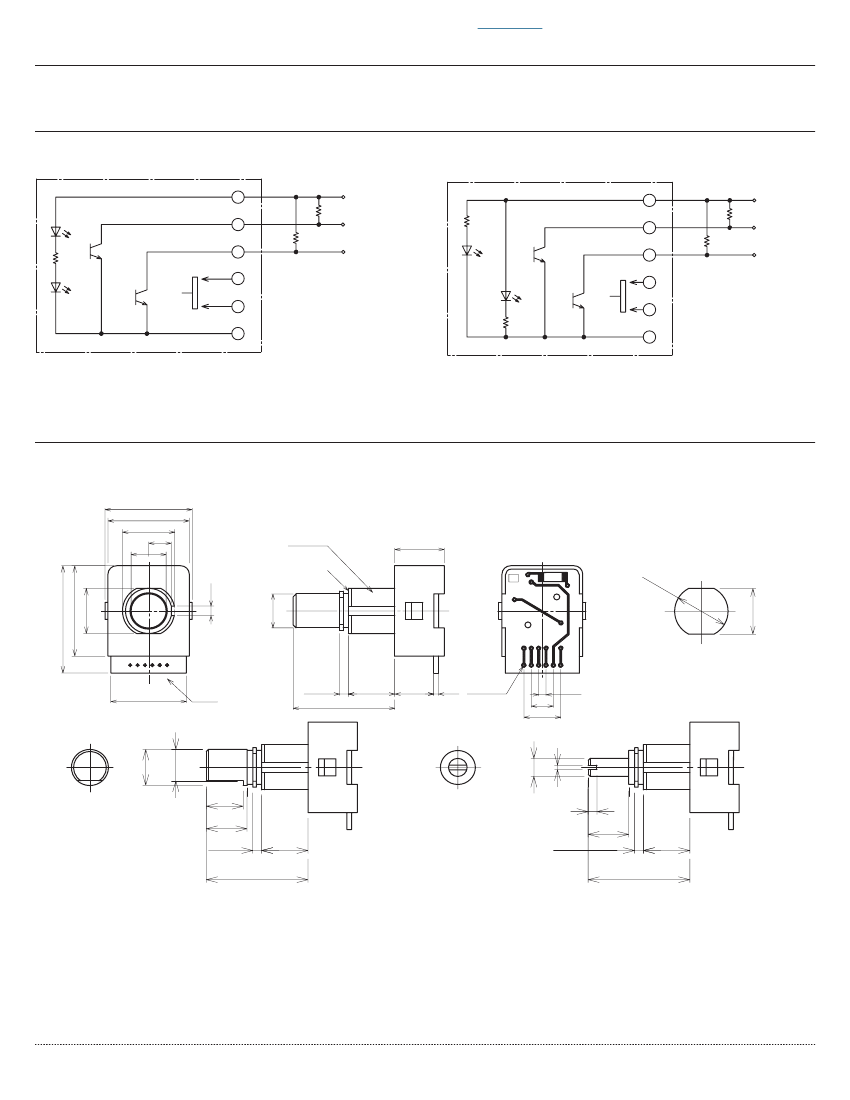

OUTPUT CIRCUIT
5V Input
3.3V Input
MECHANICAL DRAWING
5V INPUT, WITH PUSH SWITCH
units: mm
Ø6.0mm
Shaft
Mounting Hole
Dimensions
ＣＵＩＩＮＣ
Ø6.35mm
Shaft
Ø3.175mm
Shaft
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
C14
│
DESCRIPTION:
PANEL MOUNT ENCODER
date
05/20/2014│
page
4 of 7

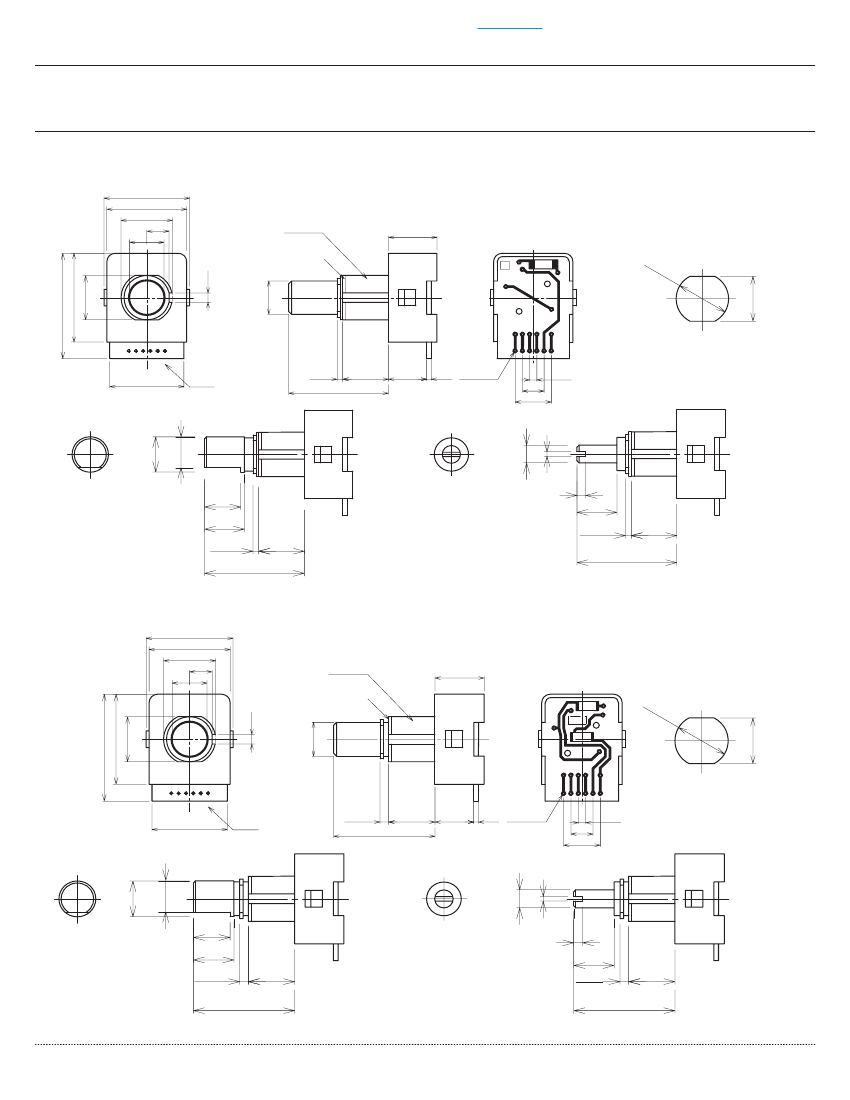

MECHANICAL DRAWING (CONTINUED)
5V INPUT, WITHOUT PUSH SWITCH
units: mm
Ø6.0mm
Shaft
Mounting Hole
Dimensions
ＣＵＩＩＮＣ
Ø6.35mm
Shaft
Ø3.175mm
Shaft
3.3V INPUT, WITH PUSH SWITCH
units: mm
Ø6.0mm
Shaft
Mounting Hole
Dimensions
ＣＵＩＩＮＣ
Ø6.35mm
Shaft
Ø3.175mm
Shaft
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
C14
│
DESCRIPTION:
PANEL MOUNT ENCODER
date
05/20/2014│
page
5 of 7

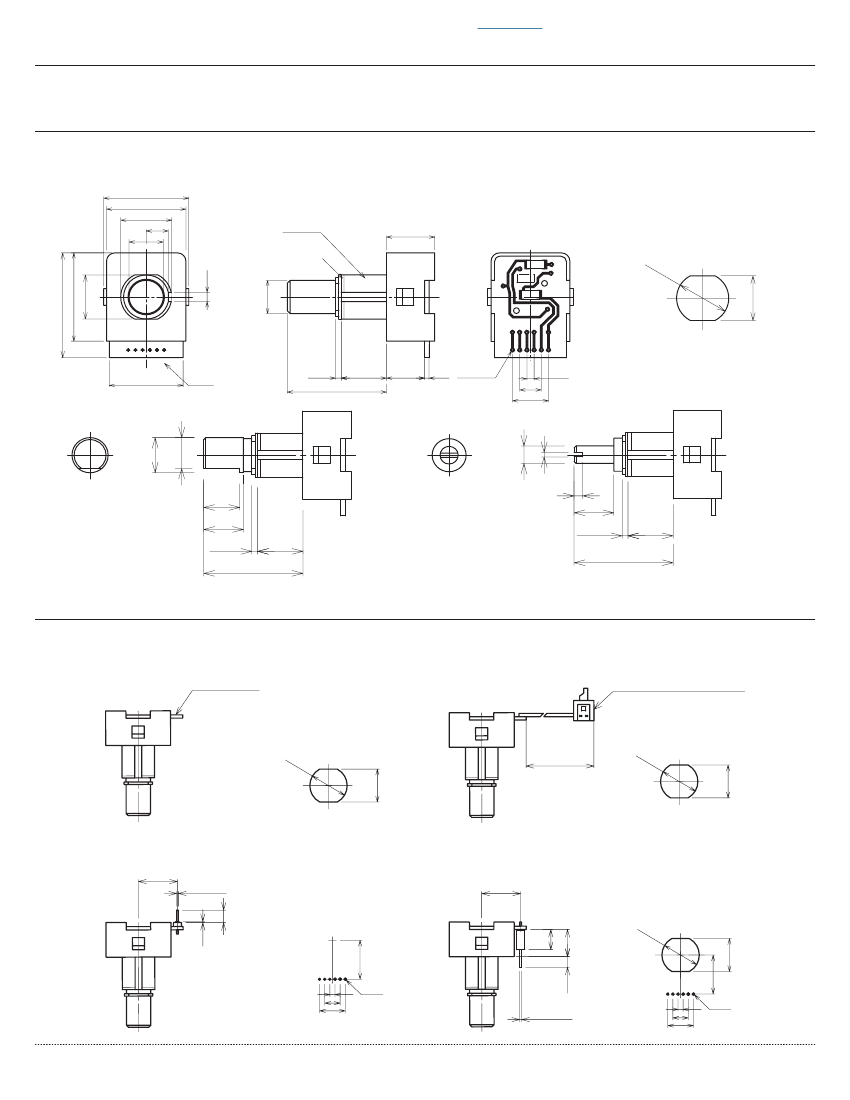

MECHANICAL DRAWING (CONTINUED)
3.3V INPUT, WITHOUT PUSH SWITCH
units: mm
Ø6.0mm
Shaft
Mounting Hole
Dimensions
ＣＵＩＩＮＣ
Ø6.35mm
Shaft
Ø3.175mm
Shaft
MECHANICAL DRAWING, TERMINATION OPTIONS
units: mm
OPTION A:
Ø0.5MM
HOLES
OPTION B: 130MM CABLE WITH CONNECTOR
Mounting Hole
Dimensions
Mounting Hole
Dimensions
OPTION C: HEADER I
OPTION D: HEADER II
PCB Layout
tolerance: ±0.05
PCB Layout
tolerance: ±0.05
cui.com
