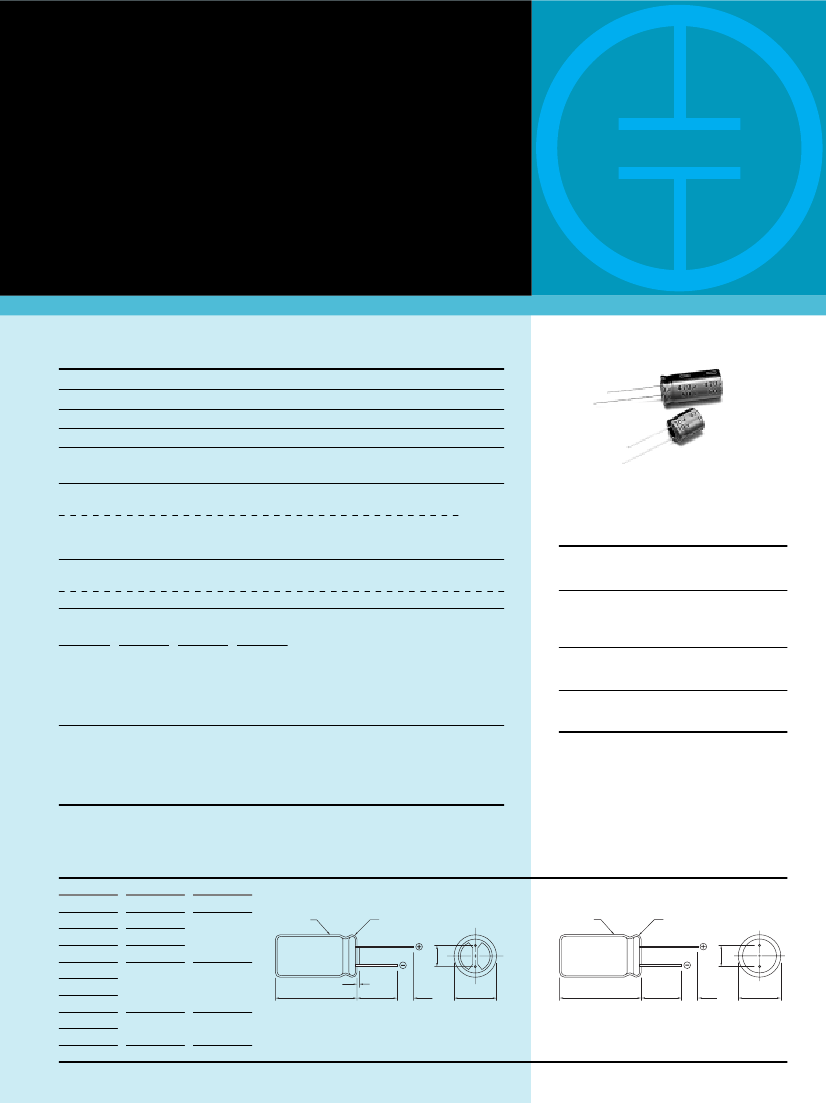

YAGEO CORPORATION
ALUMINUM ELECTROLYTIC CAPACITORS
SX
[ For Low Impedance & Low E.S.R ]
105°C Single-Ended Lead Aluminum Electrolytic Capacitors For High Frequency Applications
Miniature Size Aluminum
Electrolytic Capacitors
ELECTRICAL CHARACTERISTICS
Working Voltage : 6.3 ~ 100V
Operating Temperature : -40º ~ +105ºC
Rate Capacitance Range : 22 ~ 15000µF
Capacitance Tolerance : -20 ~ +20%
DC Leakage Current (µA) : I = 0.01 CV or 3(µA) Whichever is greater.
( Measurements shall be Made After a 2 Minute Charge at Rated Working Voltage )
Dissipation Factor : at 120 Hz, 25ºC
WV (V) : 6.3
10
16
25
35
50
63
80
100
D.F (%) : 19
16
14
12
10
8
8
7
7
For capacitor whose capacitance exceeds 1000µF. The value of D.F(%) is increased by 2% for every
addition of 1000µF.
Temperature Characteristics : at 120 Hz
WV (V)
:
Impedance : Z - 40°C / Z + 20°C
6.3
10
10
6
16
5
25
4
35
4
50
4
63
4
100
4
DESCRIPTION
Used in switching regulator applications in
computers. Especially for high frequency.
Low impedance and E.S.R., high permissible
ripple current at high frequency and highter
operation temperature (-40ºC to +105ºC).
High Temperature Load Life at 105ºC for
2000 ~ 5000 Hours
For Detail Specifications, Please Refer to
Engineering Bulletin No. 2059
Load Life : At 105°C Assured with Full Rated Maximum Ripple Current Applied
Case Dia
Load Life
øD
≤
8
2000
øD = 10
3000
øD
≥
12
5000
(a) Capacitance Change : Within 20% of Initial Value
(b) Dissipation Factor : Not Exceed 200% of Initial Requirement
(c) Leakage Current : Not Exceed the Initial Requirement
Shelf Life : 1000 Hours, No Voltage Applied, at 105ºC
(a) Capacitance Change : Within 20% of Initial Value
(b) Dissipation Factor : Not Exceed 200 % of Initial Requirement
(c) Leakage Current : Not Exceed 200% of Initial Requirement
DIAGRAM OF DIMENSIONS
Dimensions : mm
Dø
4.0
5.0
6.0
8.0
10.0
12.0
13.0
16.0
18.0
22.0
F
1.5
2.0
2.5
3.5
5.0
dø
0.45
0.5
Rubber Stand-off
Vinyl Sleeve
(P.V.C)
Rubber End Seal
Vinyl Sleeve
(P.V.C)
Rubber End Seal
F±0.5
F±0.5
0.6
L
0.4Max.
15Min.
5Min.
D±0.5
L
15Min.
5Min.
D±0.5
7.5
10.0
0.8
0.8
L
≤
12
13≤ L
≤
15
L
≥
16
L + 1.5Max.
+1.0
L
-0.5
L + 2.0Max.
