June 2011
Ordering Information
ZL30342GGG
64 Pin CABGA
ZL30342GGG2
64 Pin CABGA*
*Pb Free Tin/Silver/Copper
-40
o
C to +85
o
C
•
•
Meets the SONET/SDH jitter generation
requirements up to OC-48/STM-16
Synchronizes to telecom reference clocks (2 kHz,
N*8 kHz up to 77.76 MHz, 155.52 MHz) or to
Ethernet reference clocks (25 MHz, 50 MHz,
62.5 MHz, 125 MHz)
Programmable output synthesizers (P0, P1)
generate telecom clock frequencies from any
multiple of 8 kHz up to 100 MHz
Generates standard SONET/SDH clock rates
(e.g., 19.44 MHz, 38.88 MHz, 77.76 MHz,
155.52 MHz, 622.08 MHz) or Ethernet clock rates
(e.g., 25 MHz, 50 MHz, 125 MHz, 156.25 MHz,
312.5 MHz) for synchronizing Gigabit Ethernet
PHYs
DPLL that is configurable through a serial interface
Client reference switching between multiple
Servers
Client holdover when Server packet connectivity is
lost
Trays
Trays
Features
•
Supports the requirements of ITU-T G.8262 for
synchronous Ethernet Equipment slave Clocks
(EEC option 1 and 2)
Supports the requirements of Telcordia GR-1244
Stratum 3 and GR-253, ITU-T G.812 and ITU-T
G.813
Supports ITU-T G.823, G.824 and G.8261 for 2048
kbit/s and 1544 kbit/s interfaces
Frequency, Phase and Time Synchronization over
IP, MPLS and Ethernet Packet Networks
•
Frequency accuracy performance for WCDMA-
FDD, GSM, LTE-FDD and femtocell
applications, with target performance less than
± 15 ppb.
Frequency performance for ITU-T G.823 and
G.824 synchronization interface, as well as
G.8261 PNT EEC, PNT PEC and CES interface
specifications.
Phase Synchronization performance for
WCDMA-TDD, Mobile WiMAX, TD-SCDMA and
CDMA2000 applications with target
performance less than ± 1
s
phase alignment.
Time Synchronization for UTC-traceability and
GPS replacement.
•
•
•
•
•
•
•
•
•
•
•
osci
osco
ref0
ref1
ref2
Software PLL Control
(over I2C/SPI)
/N1
/N2
ref
SONET /
Ethernet
APLL
diff
apll_clk
sync0
sync1
sync2
Software PLL Control
(over I2C/SPI)
DPLL
sync
Programmable
Synthesizer
N*8kHz
p_clk
p_fp
mode
lock
hold
I
2
C/SPI
JTAG
Figure 1 - Functional Block Diagram
1
Zarlink Semiconductor Inc.
Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.
Copyright 2011, Zarlink Semiconductor Inc. All Rights Reserved.
ZL30342
Applications
•
•
•
•
•
•
•
•
ITU-T G.8262 System Timing Cards which support 1 GbE and 10 GbE interfaces
Telcordia GR-253 Carrier Grade SONET/SDH Stratum 3 System Timing Cards
System Timing Cards which supports ITU-T G.781 SETS (SDH Equipment Timing Source)
Data Sheet
Integrated basestation reference clock for air interface for GSM, WCDMA, LTE and WiMAX macro, micro or
femtocells
Mobile Backhaul NID, edge router or access aggregation node
EPON/GE-PON & GPON OLT
EPON/GE-PON & GPON ONU/OLT
DSLAM and RT-DSLAM
Description
The ZL30342 is a member of a family of footprint-compatible devices offering the full range of features required for
timing and synchronization across packet networks. These devices focus on the Clock Recovery, Servo
Mechanism and Clock Generation for Synchronization using IEEE-1588. They work seamlessly with Time Stamp
solutions from all the major Switch/PHY NPU/CPU vendors.
These are the only commercially available single chip devices to offer both packet timing using IEEE-1588
Precision Time Protocol (PTP) and Synchronous Ethernet (SyncE) capable of driving the physical layer clock with
the required very low jitter. The ZL30342 offers a full Stratum 3 DPLL, ideal for Timing Card applications and
supports clock recovery over L2 and L3 networks for all wireless applications.
2
Zarlink Semiconductor Inc.
c Zarlink Semiconductor 2005 All rights reserved.

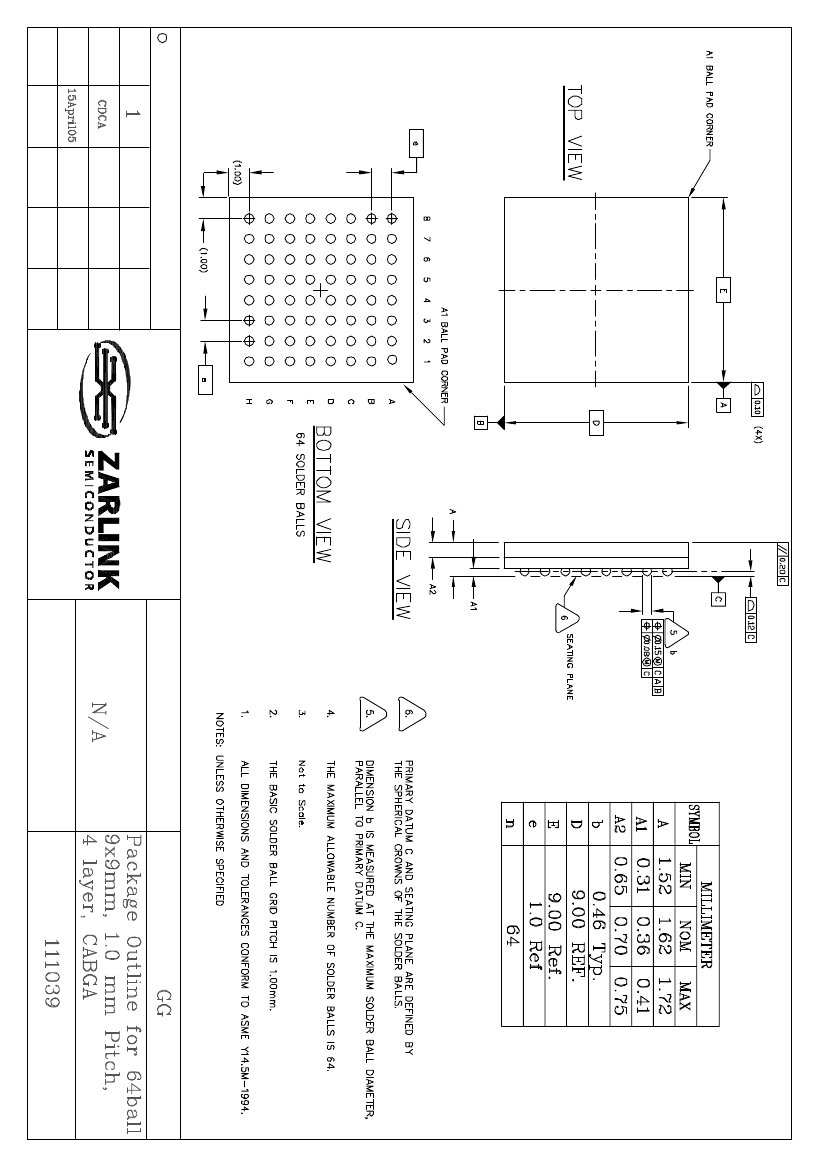

Package Code
