ZM33064N8TC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ZM33064N8TC

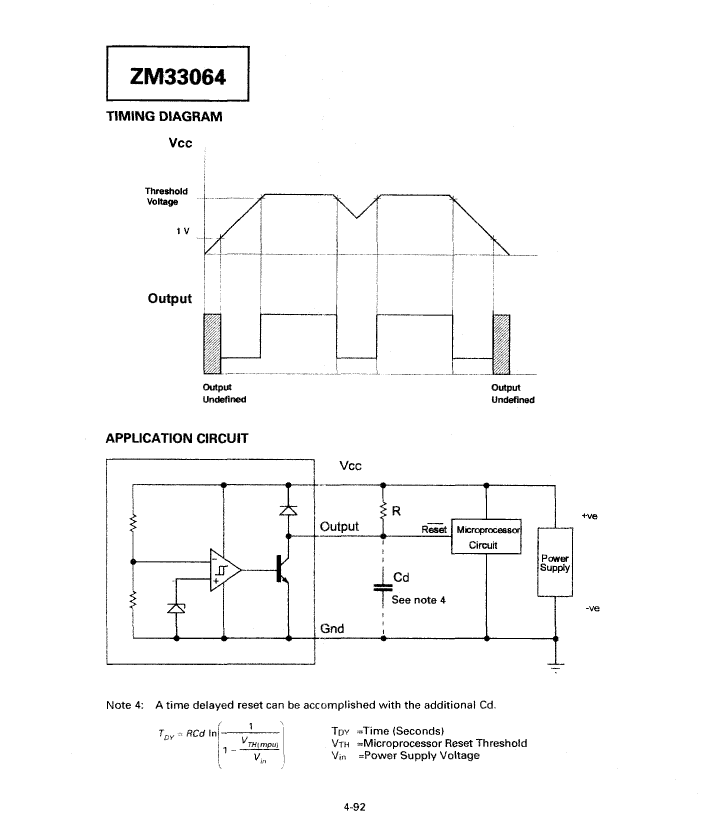

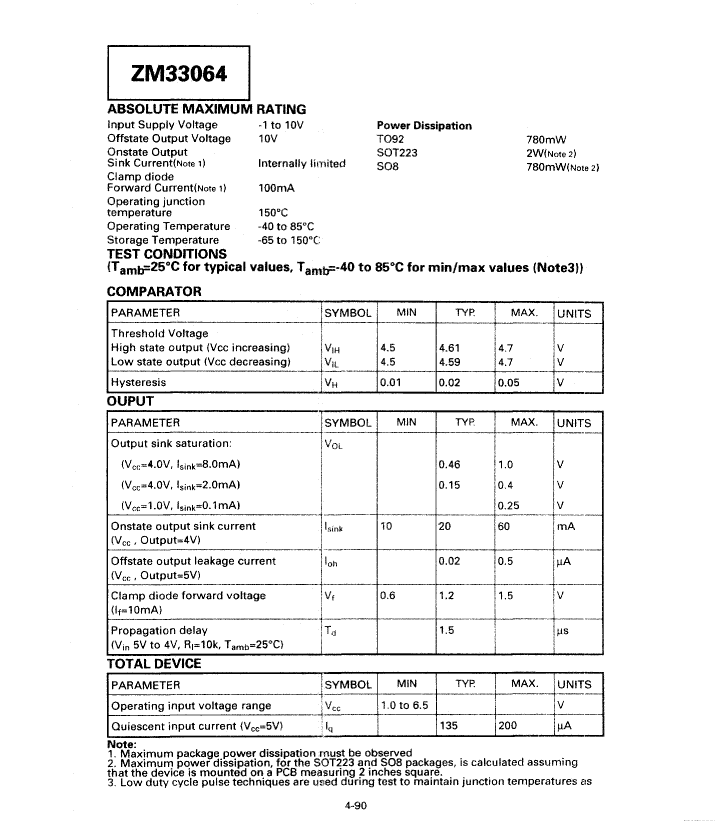

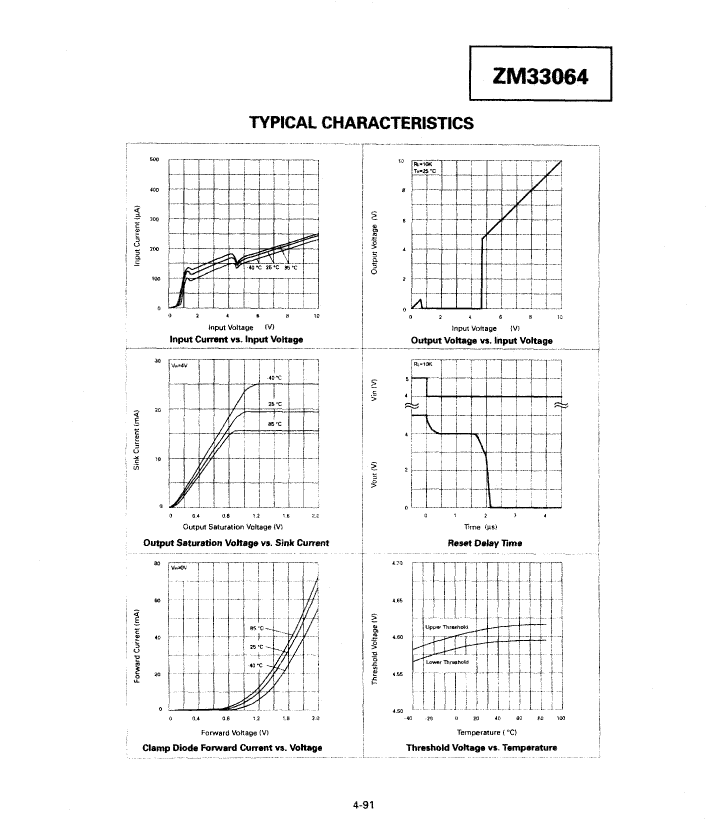

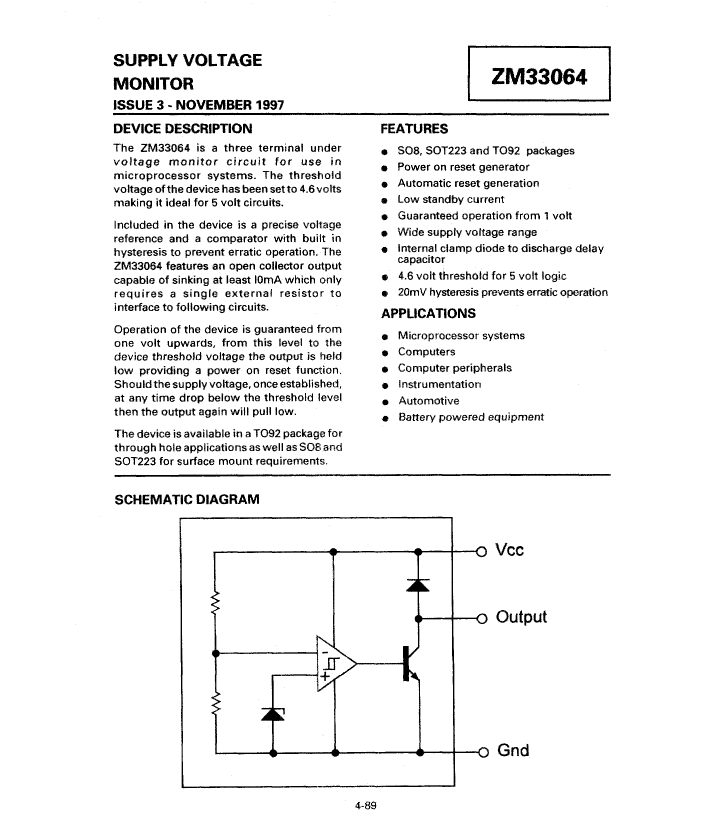

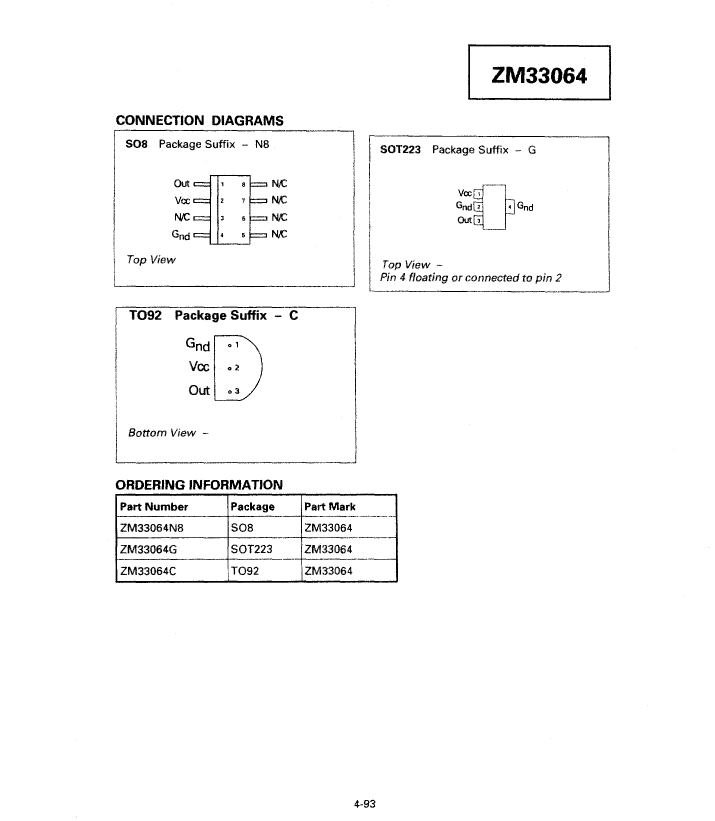

Preview

ZM33064N8TC: DescriptionPower Supply Support Circuit, Fixed, 1 Channel, PDSO8, SO-8; CategoryPower/power management The power supply circuit; File Size178KB，5 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ZM33064N8TC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZM33064N8TC	-	-	View	Buy Now

ZM33064N8TC Overview

Power Supply Support Circuit, Fixed, 1 Channel, PDSO8, SO-8

ZM33064N8TC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Zetex Semiconductors
package instruction	SOP,
Reach Compliance Code	unknow
ECCN code	EAR99
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	4.9 mm
Humidity sensitivity level	1
Number of channels	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	6.5 V
Minimum supply voltage (Vsup)	1 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	3.9 mm

Preview

Download Datasheet

View All

ZM33064N8TC Related Products

	ZM33064N8TC	UZM33064GTC	UZM33064CSTOB
Description	Power Supply Support Circuit, Fixed, 1 Channel, PDSO8, SO-8	Power Supply Support Circuit, Fixed, 1 Channel, PDSO4, SOT-223, 4 PIN	Power Supply Support Circuit, Fixed, 1 Channel, PBCY3, TO-92, 3 PIN
Is it Rohs certified?	conform to	conform to	conform to
Maker	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors
package instruction	SOP,	SOT-223, 4 PIN	TO-92, 3 PIN
Reach Compliance Code	unknow	_compli	not_compliant
ECCN code	EAR99	EAR99	EAR99
Adjustable threshold	NO	NO	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G8	R-PDSO-G4	O-PBCY-T3
JESD-609 code	e3	e3	e3
Humidity sensitivity level	1	1	1
Number of channels	1	1	1
Number of functions	1	1	1
Number of terminals	8	4	3
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	TO-92
Package shape	RECTANGULAR	RECTANGULAR	ROUND
Package form	SMALL OUTLINE	SMALL OUTLINE	CYLINDRICAL
Peak Reflow Temperature (Celsius)	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	6.5 V	6.5 V	6.5 V
Minimum supply voltage (Vsup)	1 V	1 V	1 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	MATTE TIN	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	BOTTOM
Maximum time at peak reflow temperature	40	40	40
length	4.9 mm	6.5 mm	-
Maximum seat height	1.75 mm	1.8 mm	-
Terminal pitch	1.27 mm	2.3 mm	-
width	3.9 mm	3.5 mm	-
