ZUMD54TC datasheet, PDF - EEWORLD Datasheet

ZUMD54TC: DescriptionRectifier Diode, Schottky, 1 Element, 0.2A, Silicon,; CategoryDiscrete semiconductor diode; File Size73KB，2 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

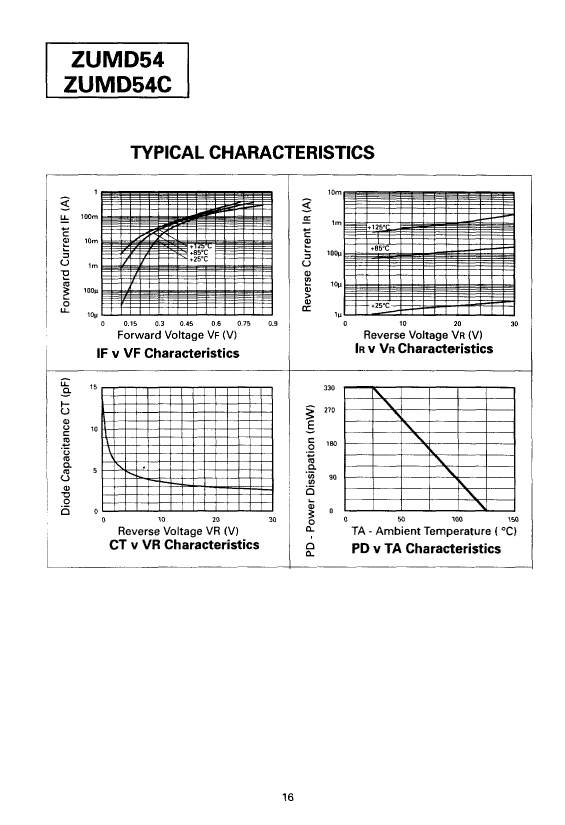

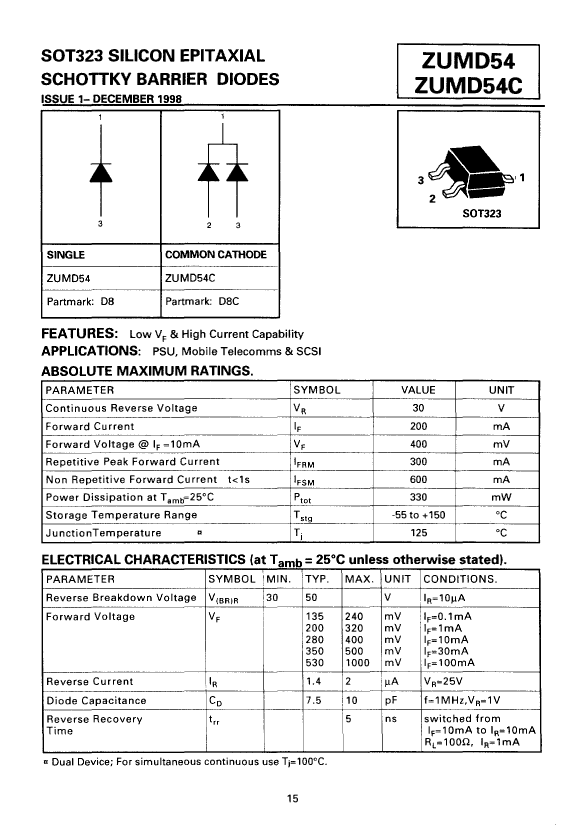

ZUMD54TC Overview

Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Zetex Semiconductors
Reach Compliance Code	_compli
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.33 W
Certification status	Not Qualified
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40

	ZUMD54TC	ZUMD54CTA	ZUMD54TA	ZUMD54CTC
Description	Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon,	Rectifier Diode, Schottky, 2 Element, 0.2A, Silicon	Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon,	Rectifier Diode, Schottky, 2 Element, 0.2A, Silicon
Maker	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors
Reach Compliance Code	_compli	unknown	not_compliant	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	COMMON CATHODE, 2 ELEMENTS	SINGLE	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	2	1	2
Number of terminals	3	3	3	3
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.33 W	0.33 W	0.33 W	0.33 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse recovery time	0.005 µs	0.005 µs	0.005 µs	0.005 µs
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
