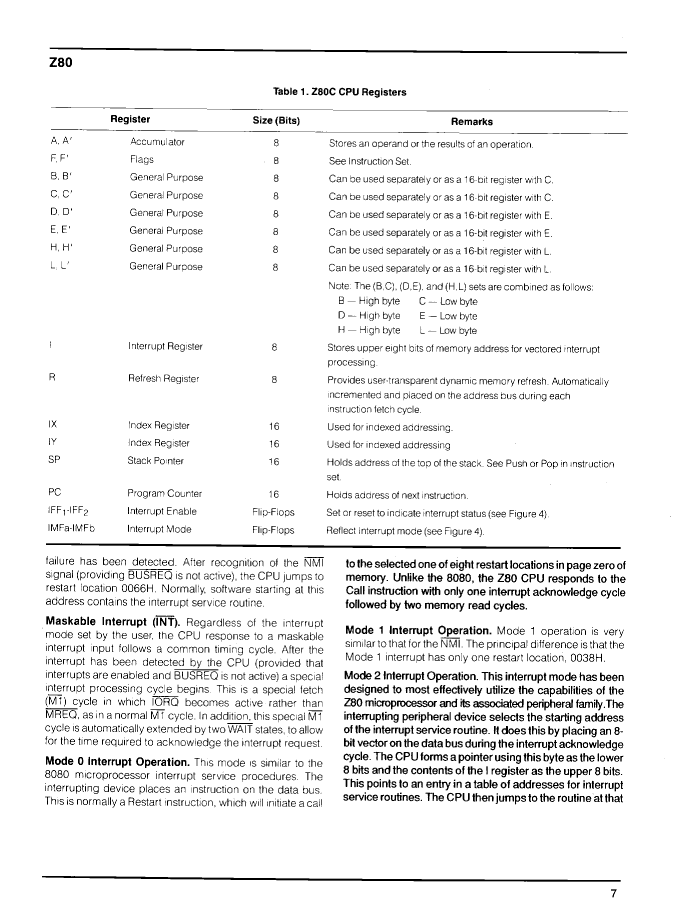

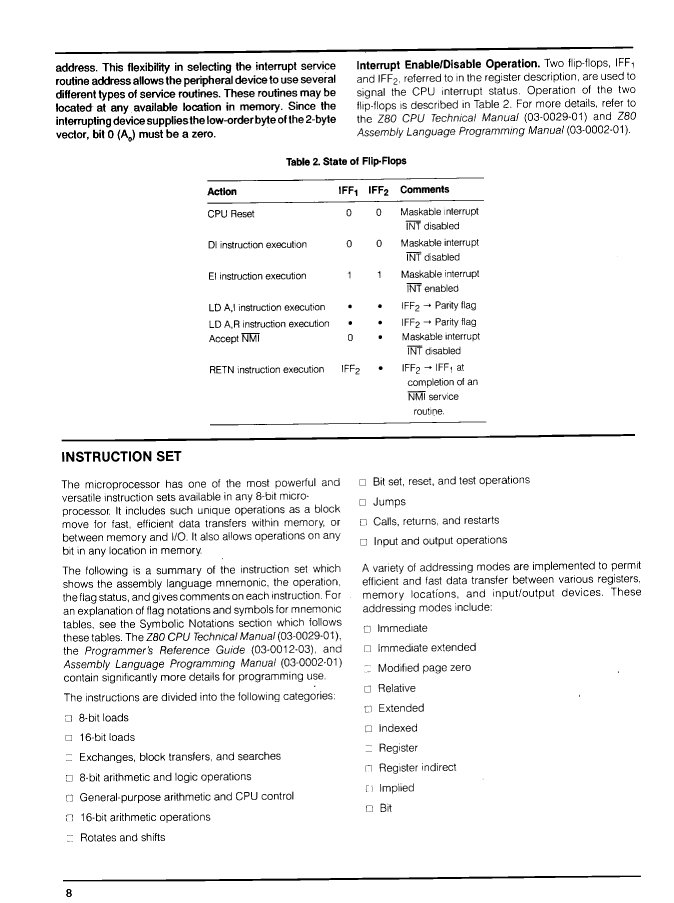

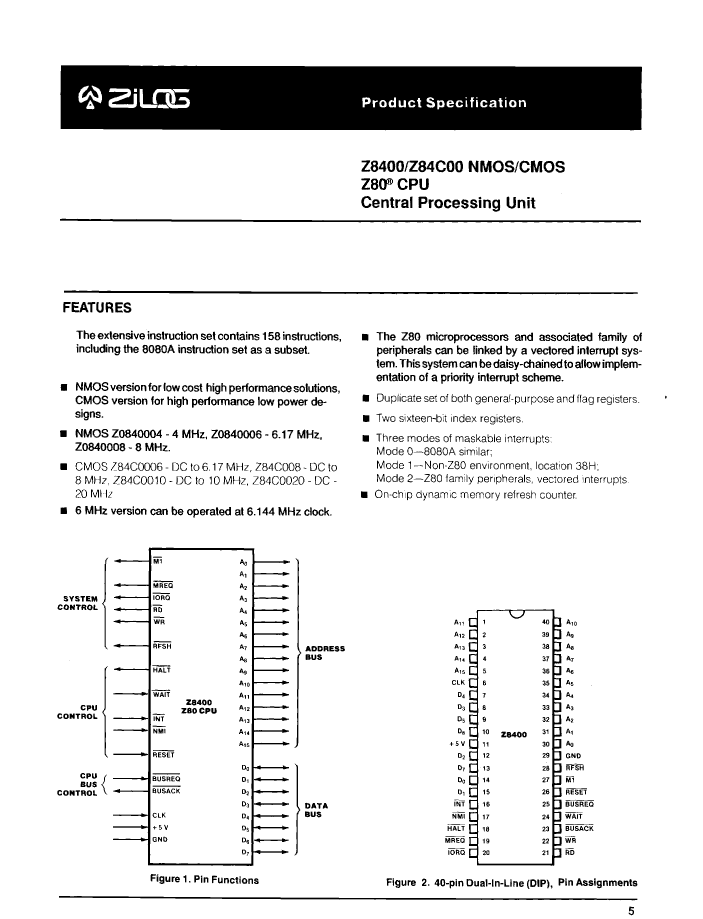

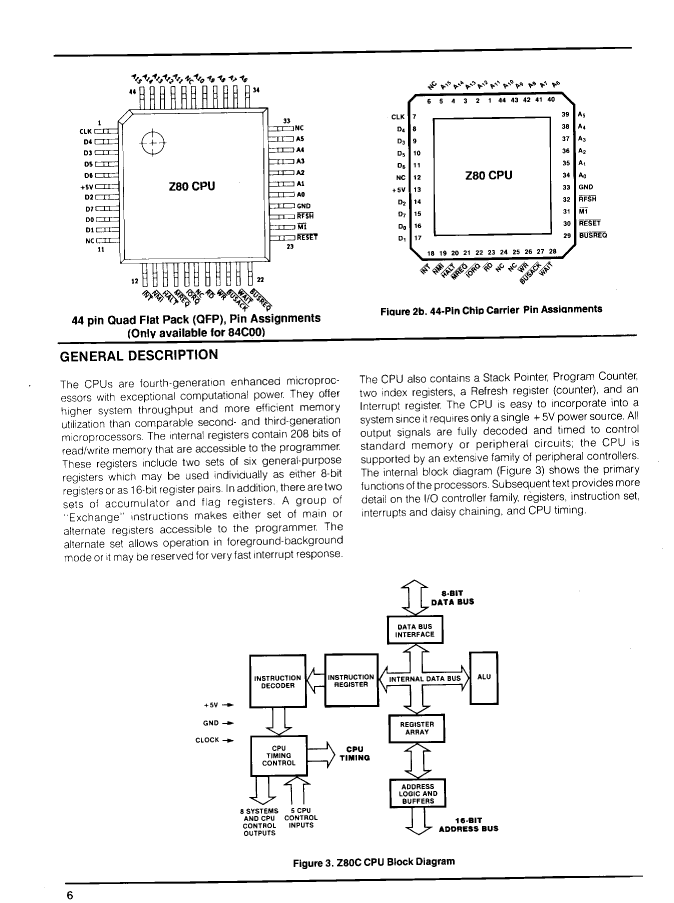

Microprocessor, 8-Bit, 6.17MHz, NMOS, PDIP40, PLASTIC, DIP-40
| Parameter Name | Attribute value |
| Maker | Zilog, Inc. |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 40 |
| Reach Compliance Code | unknow |
| Other features | DRAM REFRESH COUNTER |
| Address bus width | 16 |
| bit size | 8 |
| boundary scan | NO |
| maximum clock frequency | 6.17 MHz |
| External data bus width | 8 |
| Format | FIXED POINT |
| Integrated cache | NO |
| JESD-30 code | R-PDIP-T40 |
| low power mode | YES |
| Number of DMA channels | |
| Number of external interrupt devices | 2 |
| Number of serial I/Os | |
| Number of terminals | 40 |
| On-chip data RAM width | |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| RAM (number of words) | 0 |
| Maximum seat height | 4.445 mm |
| speed | 6.17 MHz |
| Maximum slew rate | 200 mA |
| Maximum supply voltage | 5.25 V |
| Minimum supply voltage | 4.75 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | NMOS |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | MICROPROCESSOR |
| Z0840006PSE | Z0840004DSC | Z0840006DSC | Z0840004PSE | |
|---|---|---|---|---|
| Description | Microprocessor, 8-Bit, 6.17MHz, NMOS, PDIP40, PLASTIC, DIP-40 | Microprocessor, 8-Bit, 4MHz, NMOS, CDIP40, CERDIP-40 | Microprocessor, 8-Bit, 6.17MHz, NMOS, CDIP40, CERDIP-40 | Microprocessor, 8-Bit, 4MHz, NMOS, PDIP40, PLASTIC, DIP-40 |
| Parts packaging code | DIP | DIP | DIP | DIP |
| package instruction | DIP, | DIP, | DIP, | DIP, |
| Contacts | 40 | 40 | 40 | 40 |
| Reach Compliance Code | unknow | unknown | unknown | unknown |
| Other features | DRAM REFRESH COUNTER | DRAM REFRESH COUNTER | DRAM REFRESH COUNTER | DRAM REFRESH COUNTER |
| Address bus width | 16 | 16 | 16 | 16 |
| bit size | 8 | 8 | 8 | 8 |
| boundary scan | NO | NO | NO | NO |
| maximum clock frequency | 6.17 MHz | 4 MHz | 6.17 MHz | 4 MHz |
| External data bus width | 8 | 8 | 8 | 8 |
| Format | FIXED POINT | FIXED POINT | FIXED POINT | FIXED POINT |
| Integrated cache | NO | NO | NO | NO |
| JESD-30 code | R-PDIP-T40 | R-GDIP-T40 | R-GDIP-T40 | R-PDIP-T40 |
| low power mode | YES | YES | YES | YES |
| Number of external interrupt devices | 2 | 2 | 2 | 2 |
| Number of terminals | 40 | 40 | 40 | 40 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.445 mm | 7.366 mm | 7.366 mm | 4.445 mm |
| speed | 6.17 MHz | 4 MHz | 6.17 MHz | 4 MHz |
| Maximum slew rate | 200 mA | 200 mA | 200 mA | 200 mA |
| Maximum supply voltage | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO |
| technology | NMOS | NMOS | NMOS | NMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| width | 15.24 mm | 15.24 mm | 15.24 mm | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | MICROPROCESSOR | MICROPROCESSOR | MICROPROCESSOR | MICROPROCESSOR |
| Maker | Zilog, Inc. | - | Zilog, Inc. | Zilog, Inc. |
