Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z0853604CMB

Preview

Z0853604CMB: DescriptionParallel I/O Port, 20 I/O, NMOS, CDIP40, CERAMIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size987KB，28 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z0853604CMB Overview

Parallel I/O Port, 20 I/O, NMOS, CDIP40, CERAMIC, DIP-40

Z0853604CMB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknow
ECCN code	EAR99
maximum clock frequency	4 MHz
External data bus width	8
JESD-30 code	R-CDIP-T40
JESD-609 code	e0
Number of I/O lines	20
Number of ports	3
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	4.699 mm
Maximum slew rate	200 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE

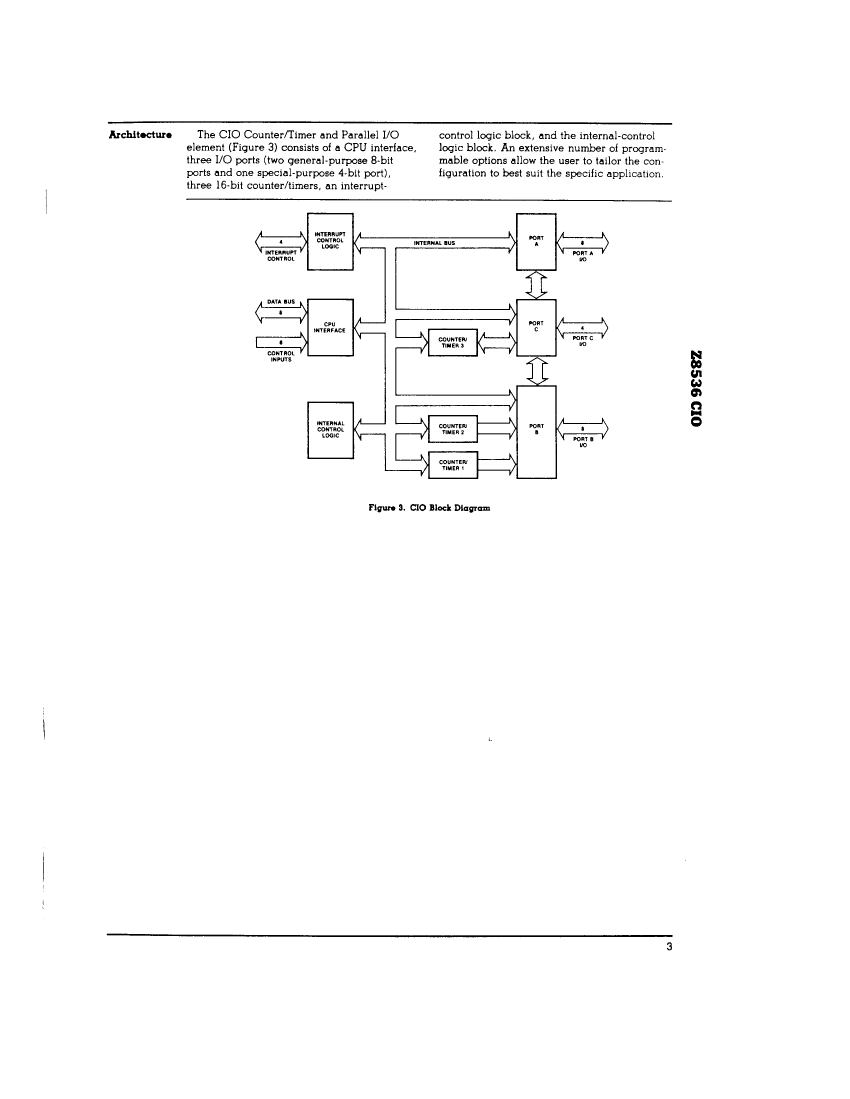

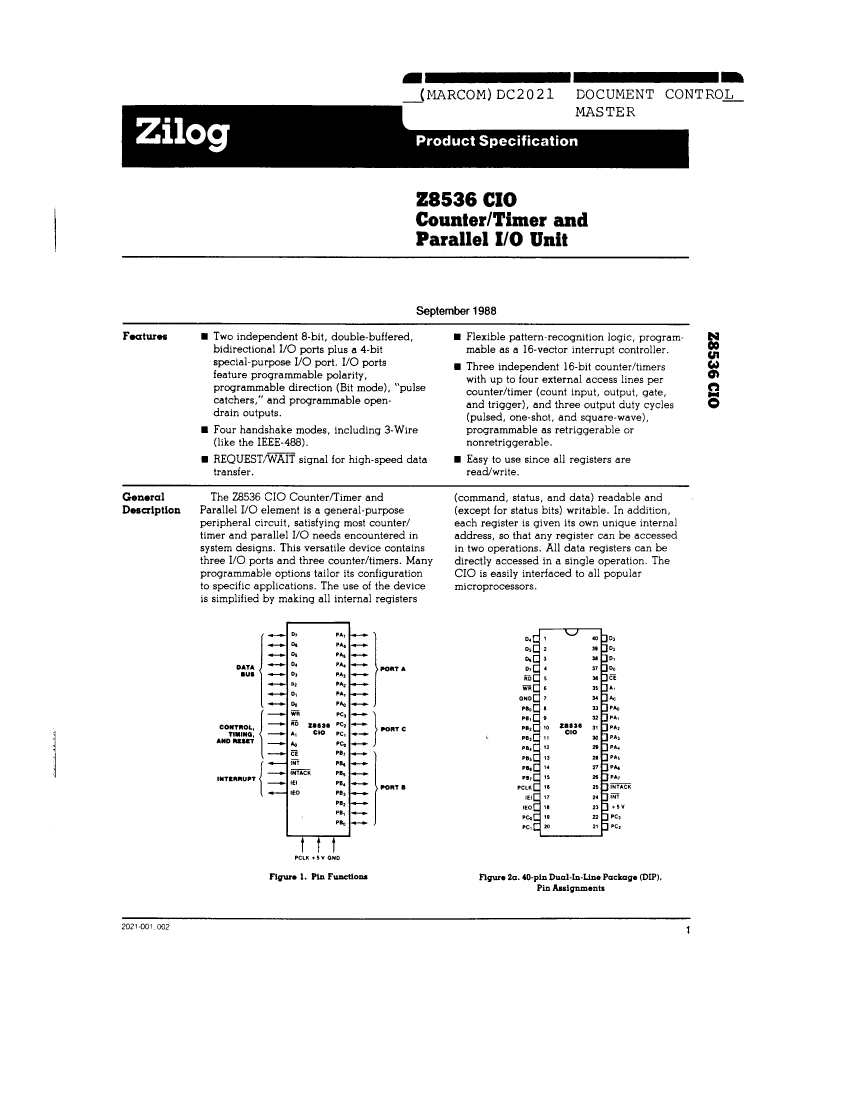

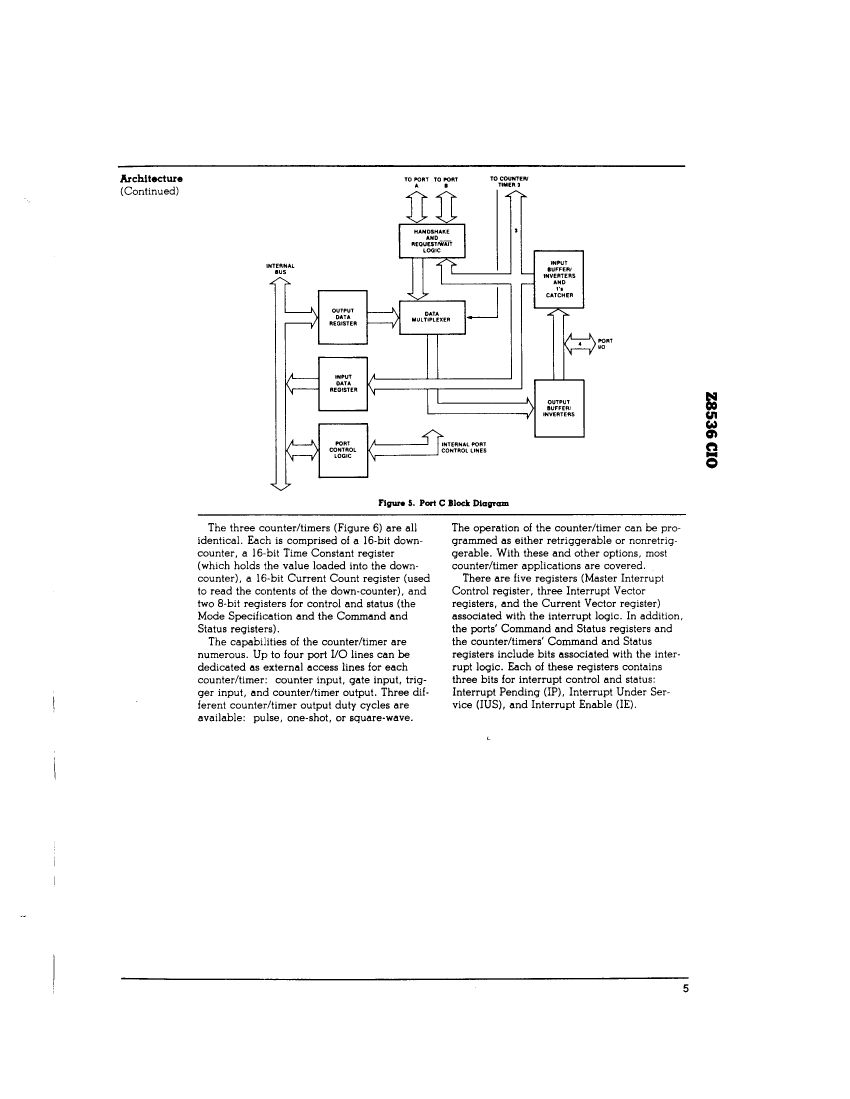

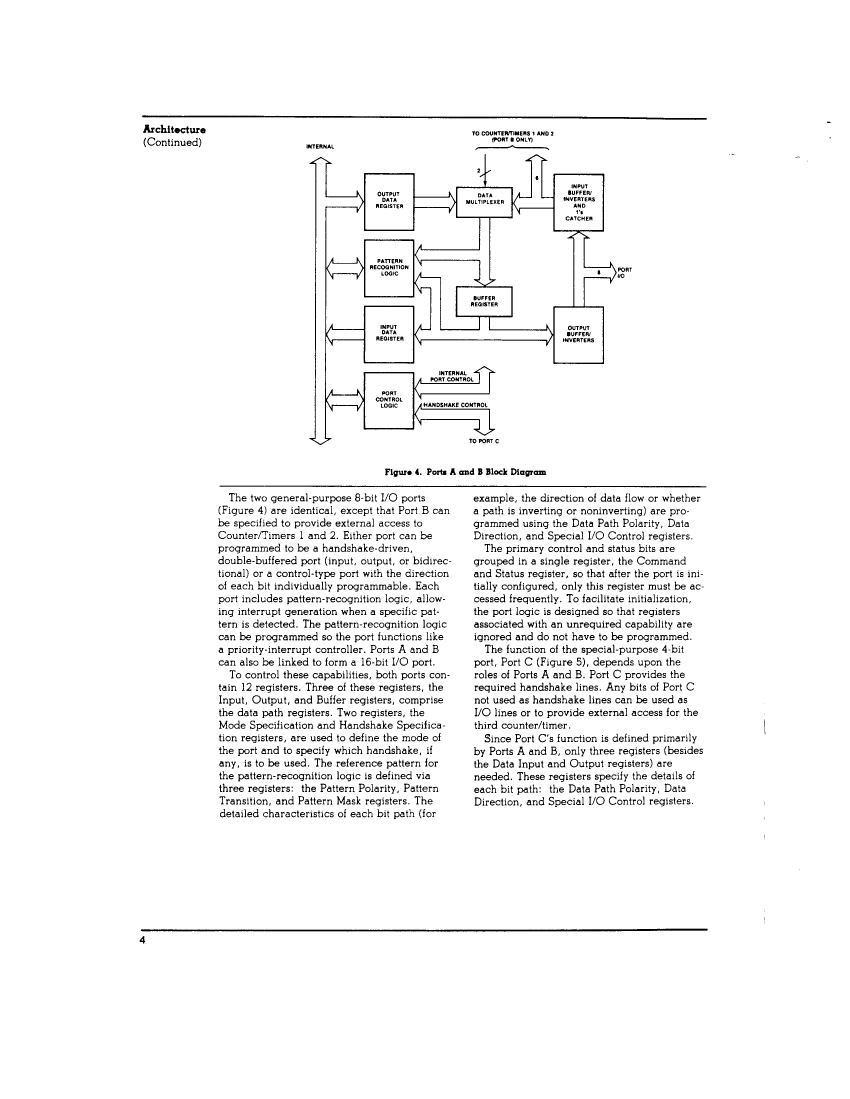

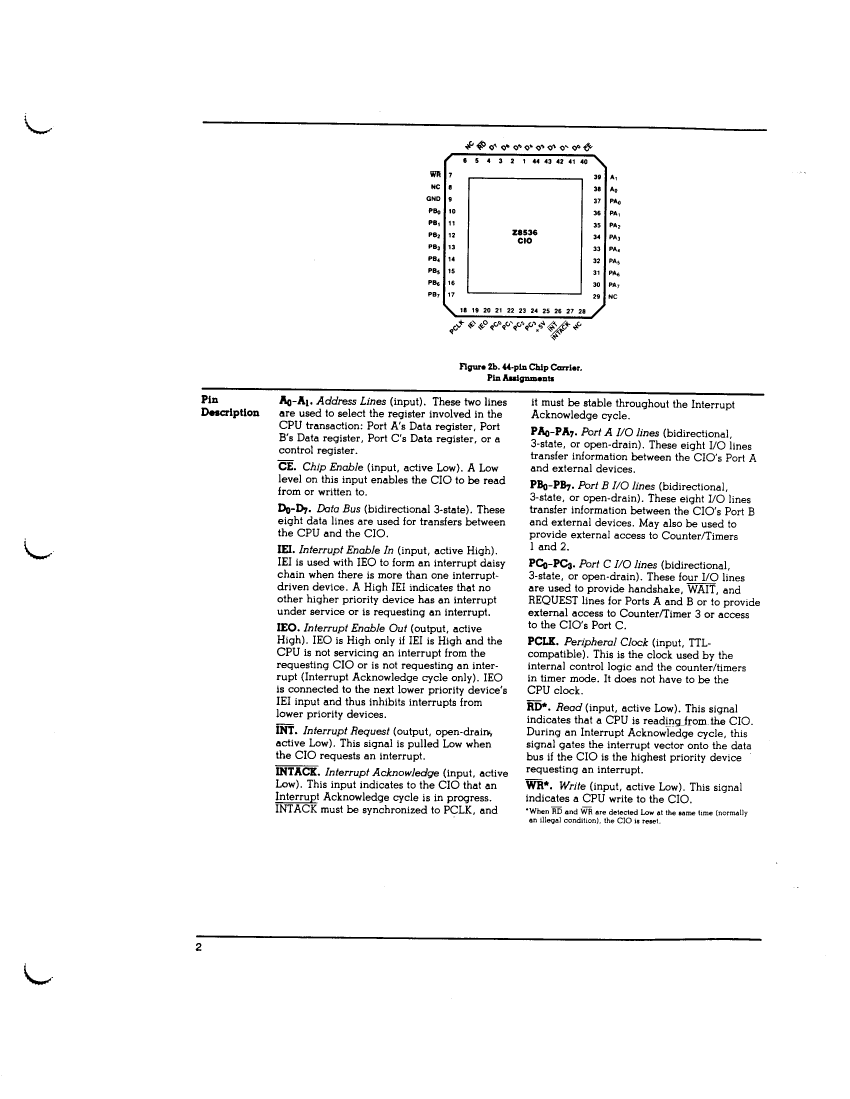

Preview

Download Datasheet

View All

Z0853604CMB Related Products

	Z0853604CMB	Z0853606LMB	Z0853606LME	Z0853604LMB
Description	Parallel I/O Port, 20 I/O, NMOS, CDIP40, CERAMIC, DIP-40	Parallel I/O Port, 20 I/O, NMOS, CQCC44, CERAMIC, LCC-44	Parallel I/O Port, 20 I/O, NMOS, CQCC44, CERAMIC, LCC-44	Parallel I/O Port, 20 I/O, NMOS, CQCC44, CERAMIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	LCC	LCC	LCC
package instruction	DIP, DIP40,.6	QCCJ, LCC44,.65SQ	CERAMIC, LCC-44	QCCJ, LCC44,.65SQ
Contacts	40	44	44	44
Reach Compliance Code	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
maximum clock frequency	4 MHz	6.06 MHz	6.06 MHz	4 MHz
External data bus width	8	8	8	8
JESD-30 code	R-CDIP-T40	S-CQCC-J44	S-CQCC-J44	S-CQCC-J44
JESD-609 code	e0	e0	e0	e0
Number of I/O lines	20	20	20	20
Number of ports	3	3	3	3
Number of terminals	40	44	44	44
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCJ	QCCJ	QCCJ
Encapsulate equivalent code	DIP40,.6	LCC44,.65SQ	LCC44,.65SQ	LCC44,.65SQ
Package shape	RECTANGULAR	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.699 mm	2.286 mm	2.286 mm	2.286 mm
Maximum slew rate	200 mA	200 mA	200 mA	200 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES
technology	NMOS	NMOS	NMOS	NMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND	J BEND	J BEND
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	16.51 mm	16.51 mm	16.51 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE
Maker	Zilog, Inc.	Zilog, Inc.	-	Zilog, Inc.
Filter level	MIL-STD-883 Class B	MIL-STD-883 Class B	-	MIL-STD-883 Class B
length	-	16.51 mm	16.51 mm	16.51 mm
