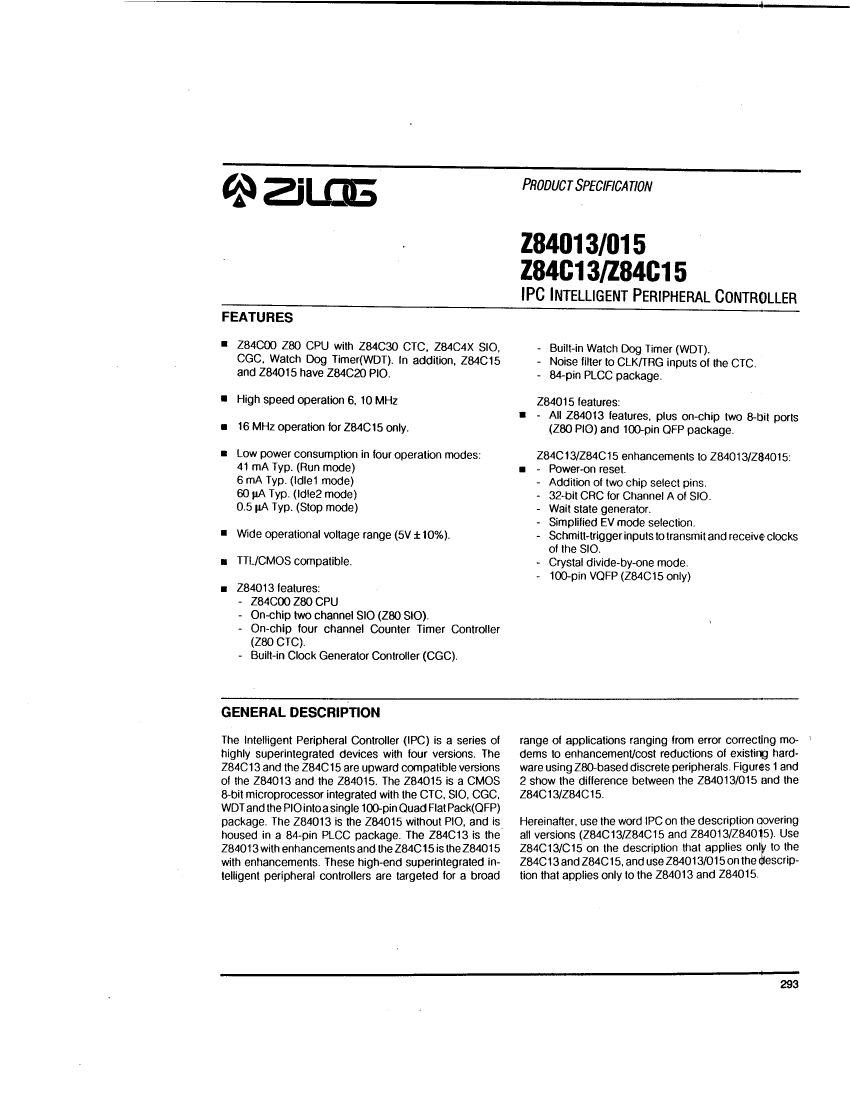

Z8401306VEC datasheet, PDF - EEWORLD Datasheet

Z8401306VEC: DescriptionMicrocontroller, 8-Bit, 6MHz, CMOS, PQCC84, PLASTIC, LCC-84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，65 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric View All

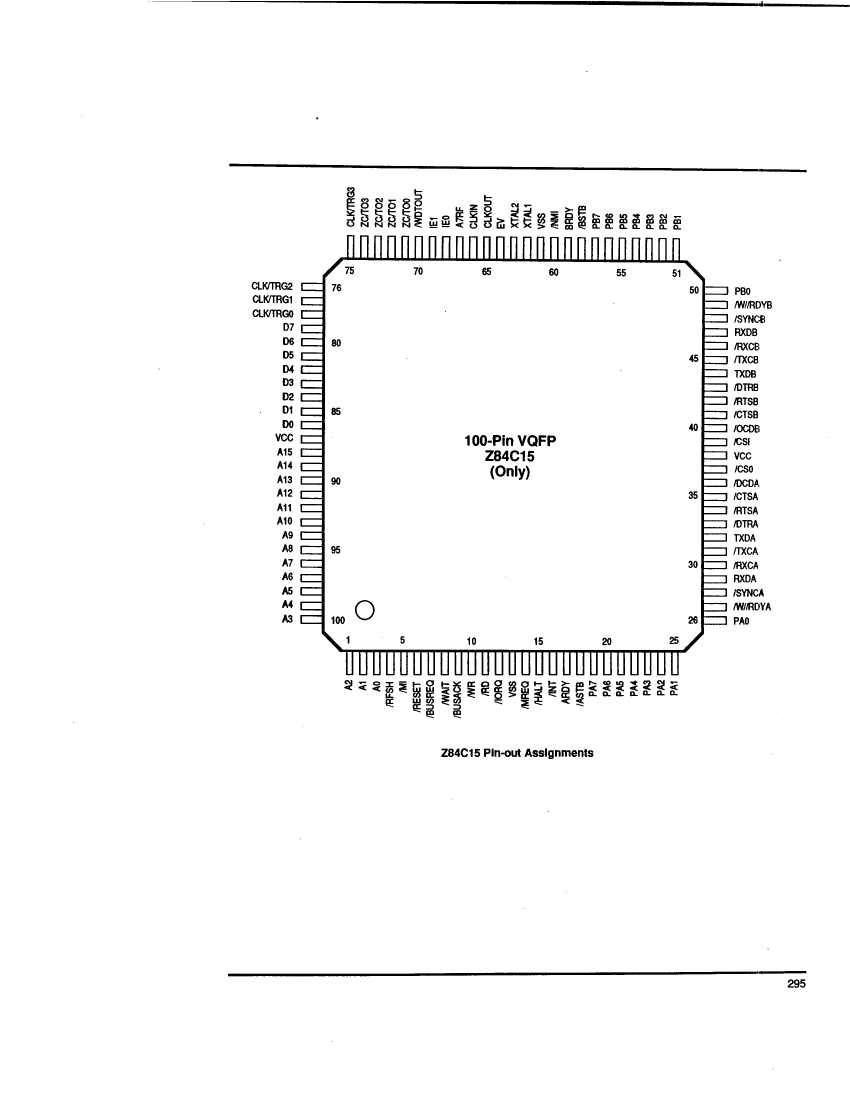

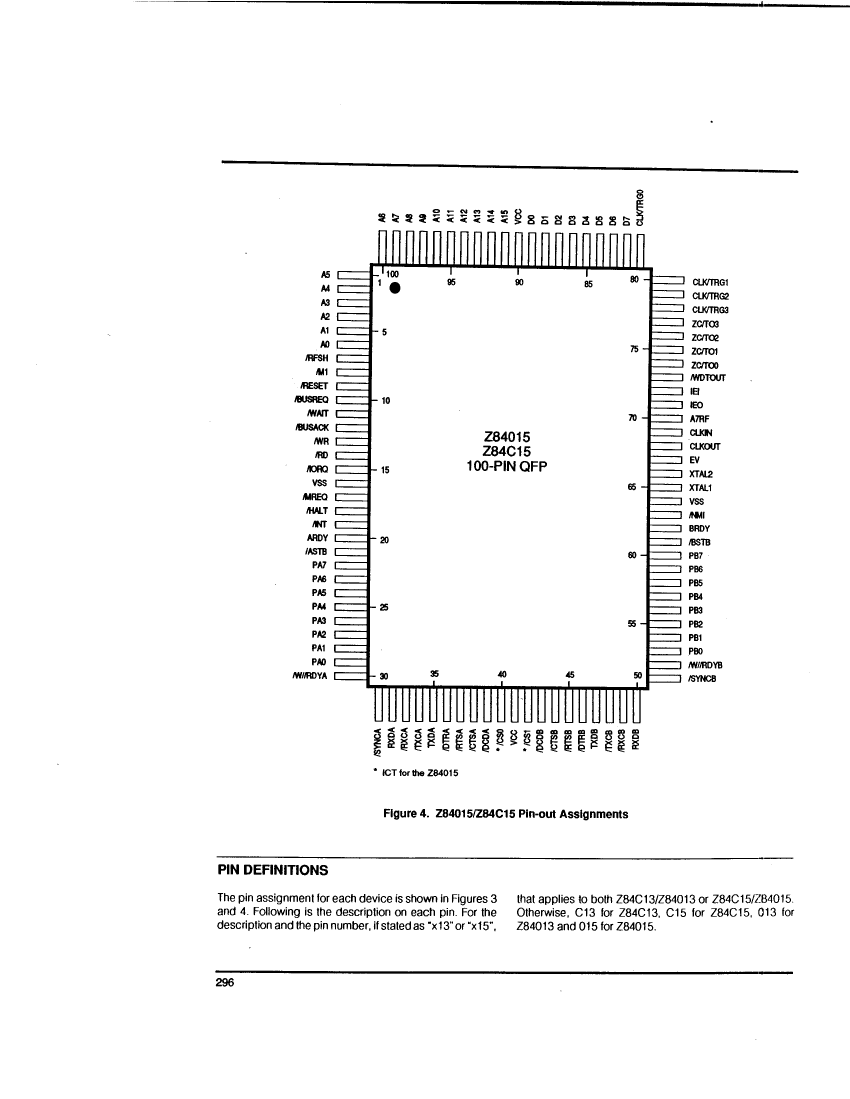

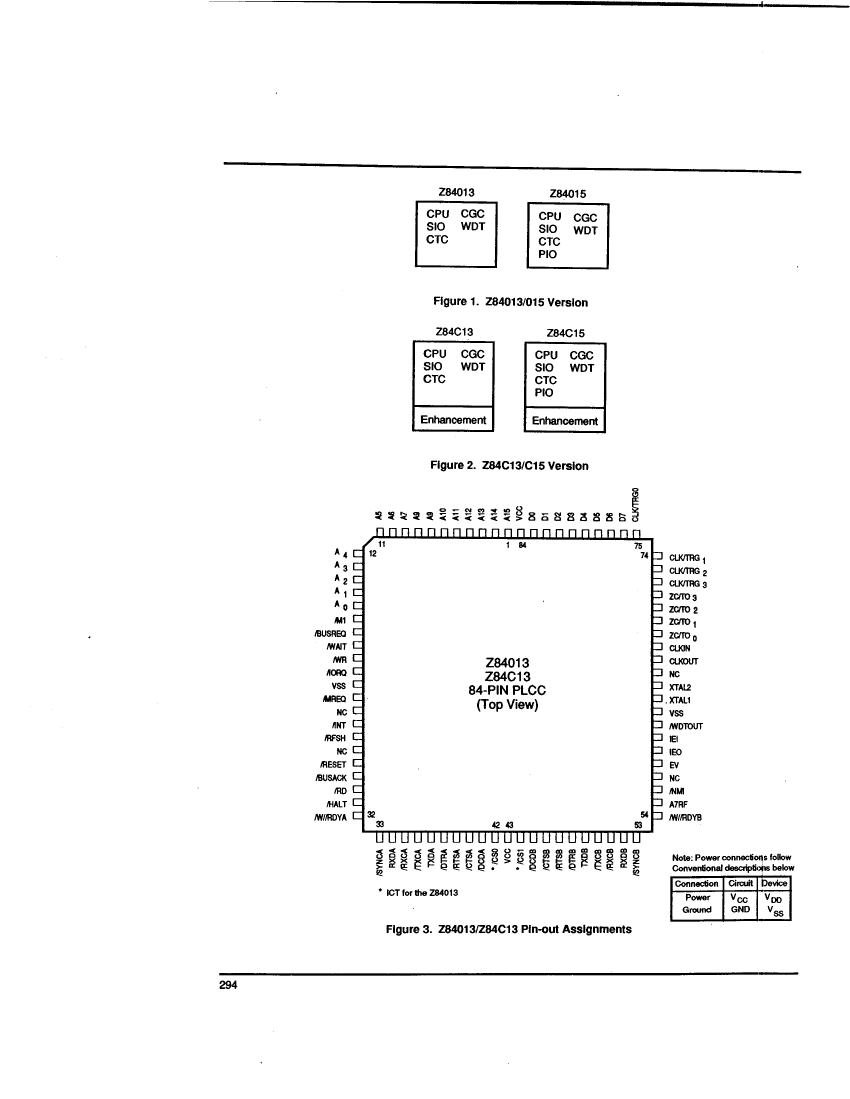

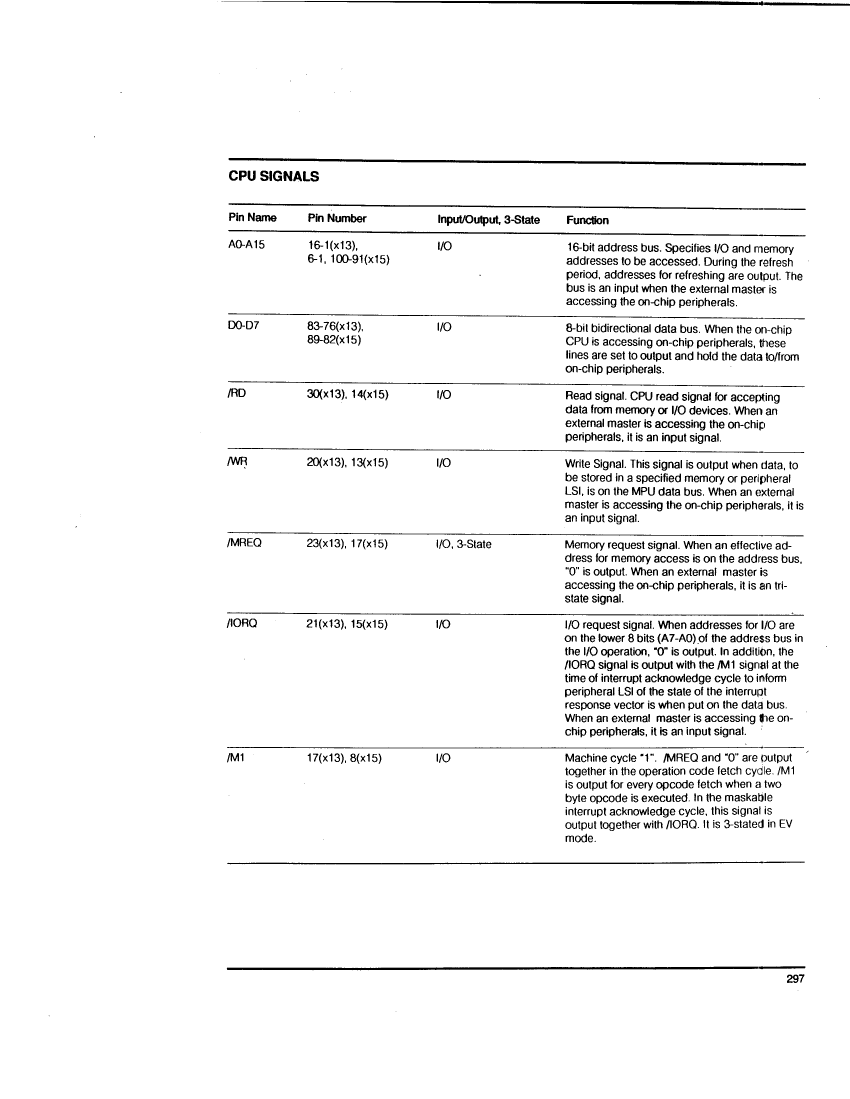

Z8401306VEC Overview

Microcontroller, 8-Bit, 6MHz, CMOS, PQCC84, PLASTIC, LCC-84

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	LCC
package instruction	PLASTIC, LCC-84
Contacts	84
Reach Compliance Code	unknow
Has ADC	NO
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	6 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J84
JESD-609 code	e0
length	29.3116 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	16
Number of serial I/Os	2
Number of terminals	84
Number of timers	1
On-chip data RAM width
On-chip program ROM width
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC84,1.2SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
rom(word)	0
Maximum seat height	4.57 mm
speed	6 MHz
Maximum slew rate	30 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	29.3116 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

PS018201-0602
