Z84C2006FSC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z84C2006FSC

Preview

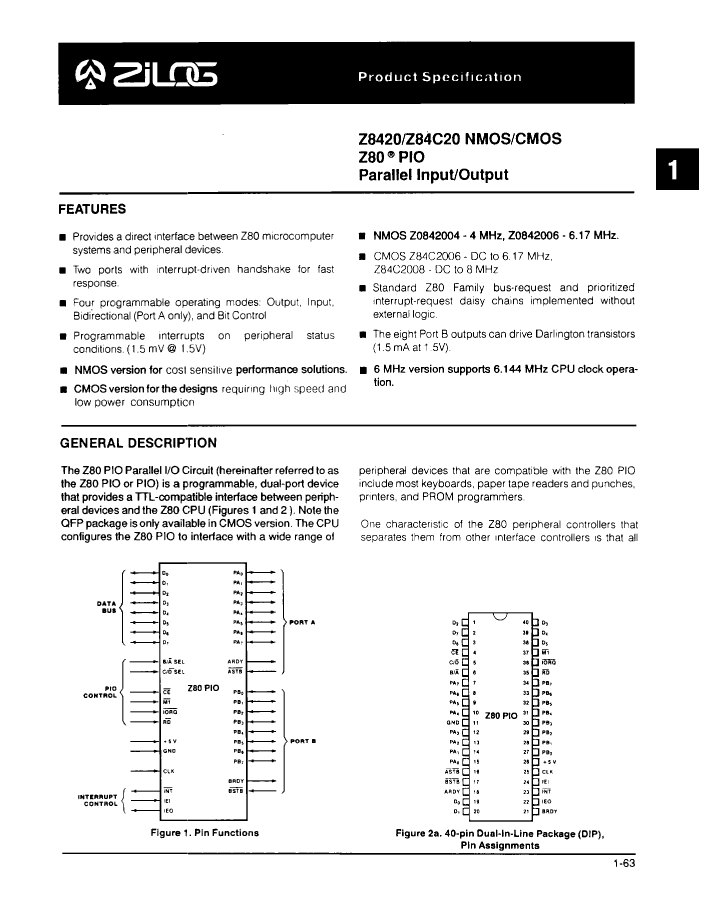

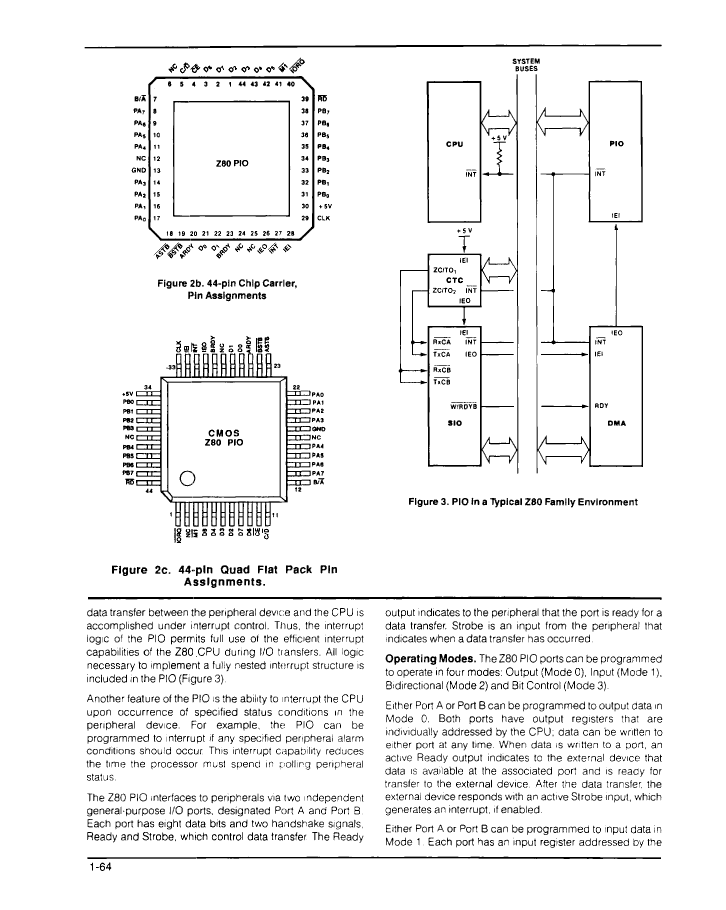

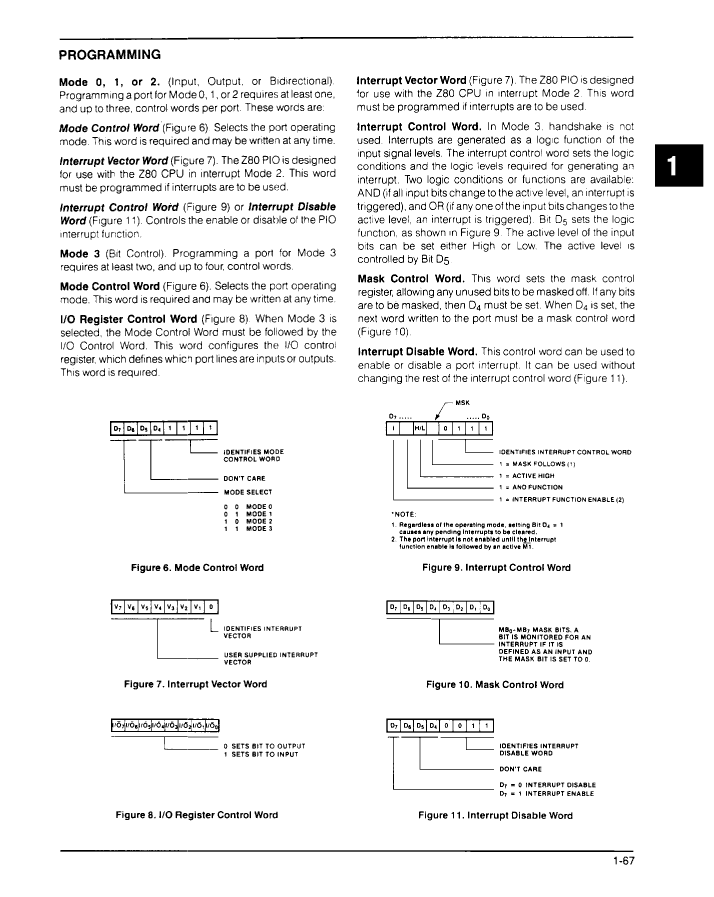

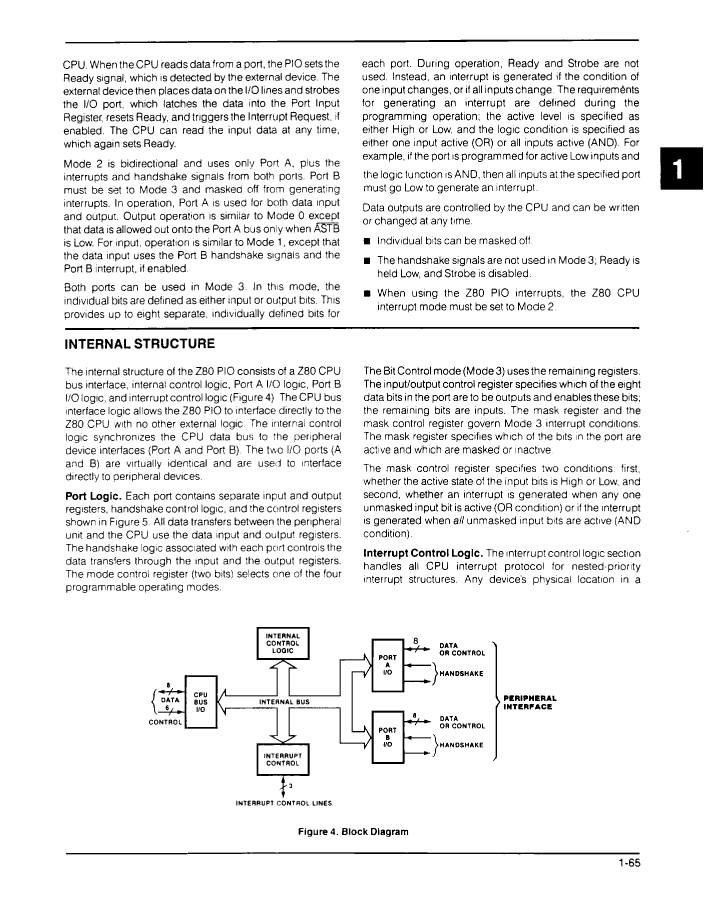

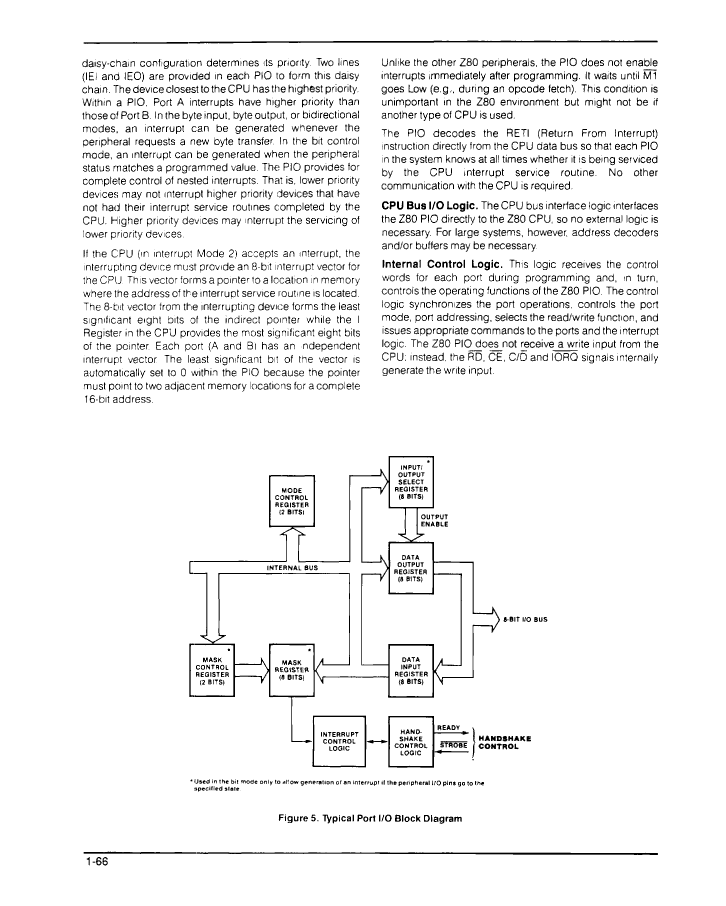

Z84C2006FSC: DescriptionParallel I/O Port, 20 I/O, CMOS, PQFP44, QFP-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size544KB，15 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z84C2006FSC Overview

Parallel I/O Port, 20 I/O, CMOS, PQFP44, QFP-44

Z84C2006FSC Parametric

Parameter Name	Attribute value
Maker	Zilog, Inc.
Parts packaging code	QFP
package instruction	QFP,
Contacts	44
Reach Compliance Code	unknow
ECCN code	EAR99
JESD-30 code	S-PQFP-G44
length	10 mm
Number of I/O lines	20
Number of ports	2
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	2.5 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE

Preview

Download Datasheet

View All

Z84C2006FSC Related Products

	Z84C2006FSC	Z84C2006PSC	Z84C2006DSE	Z0842004VEC	Z84C2006VSC	Z84C2008PSC	Z0842006PEC
Description	Parallel I/O Port, 20 I/O, CMOS, PQFP44, QFP-44	Parallel I/O Port, 20 I/O, CMOS, PDIP40, DIP-40	Parallel I/O Port, 20 I/O, CMOS, CDIP40, DIP-40	Parallel I/O Port, 20 I/O, NMOS, PQCC44, CC-44	Parallel I/O Port, 20 I/O, CMOS, PQCC44, CC-44	Parallel I/O Port, 20 I/O, CMOS, PDIP40, DIP-40	Parallel I/O Port, 20 I/O, NMOS, PDIP40, DIP-40
Parts packaging code	QFP	DIP	DIP	QFN	QFN	DIP	DIP
package instruction	QFP,	DIP, DIP40,.6	DIP,	QCCJ,	QCCJ, LDCC(UNSPEC)	DIP, DIP40,.6	DIP,
Contacts	44	40	40	44	44	40	40
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	S-PQFP-G44	R-PDIP-T40	R-GDIP-T40	S-PQCC-J44	S-PQCC-J44	R-PDIP-T40	R-PDIP-T40
Number of I/O lines	20	20	20	20	20	20	20
Number of ports	2	2	2	2	2	2	2
Number of terminals	44	40	40	44	44	40	40
Maximum operating temperature	70 °C	70 °C	70 °C	100 °C	70 °C	70 °C	100 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	DIP	DIP	QCCJ	QCCJ	DIP	DIP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.5 mm	4.96 mm	7.366 mm	4.57 mm	4.57 mm	4.96 mm	4.96 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	NMOS	CMOS	CMOS	NMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	0.8 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	QUAD	DUAL	DUAL	QUAD	QUAD	DUAL	DUAL
width	10 mm	15.24 mm	15.24 mm	16.5862 mm	16.5862 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE
Maker	Zilog, Inc.	-	-	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
length	10 mm	52.325 mm	-	16.5862 mm	16.5862 mm	52.325 mm	52.325 mm
Is it Rohs certified?	-	incompatible	-	-	incompatible	incompatible	incompatible
