Z8523010LMB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z8523010LMB

Z8523010LMB: DescriptionSerial I/O Controller, 2 Channel(s), CMOS, CQCC44, CERAMIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，40 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z8523010LMB Overview

Serial I/O Controller, 2 Channel(s), CMOS, CQCC44, CERAMIC, LCC-44

Z8523010LMB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	LCC
package instruction	QCCN, LCC44(UNSPEC)
Contacts	44
Reach Compliance Code	unknow
Other features	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS; 10 X 19 FRAME STATUS FIFO
boundary scan	NO
maximum clock frequency	10 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)
External data bus width	8
JESD-30 code	S-CQCC-N44
JESD-609 code	e0
length	16.51 mm
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	44
On-chip data RAM width
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC44(UNSPEC)
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.286 mm
Maximum slew rate	18 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.51 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

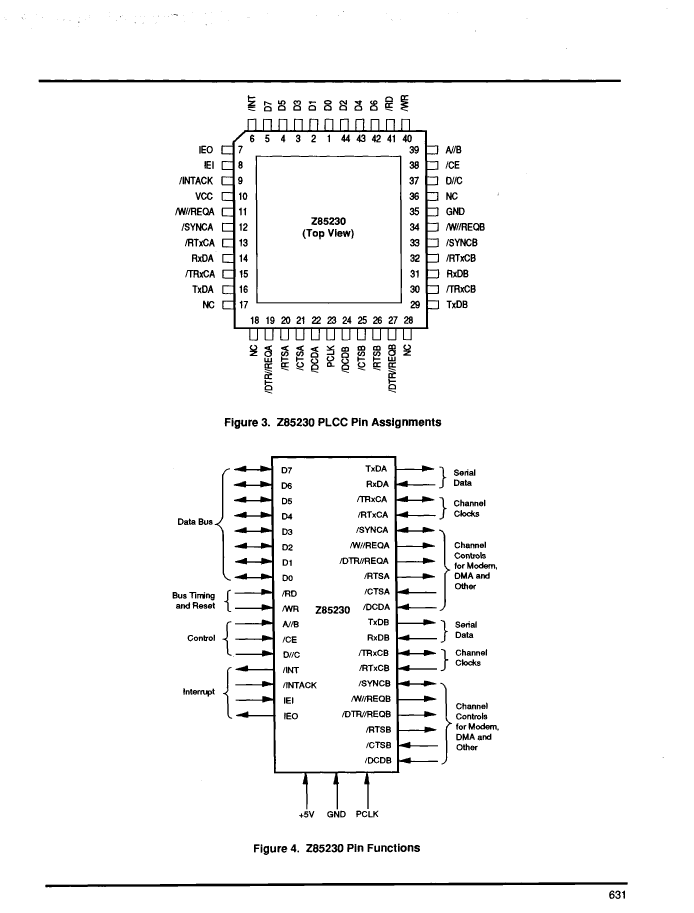

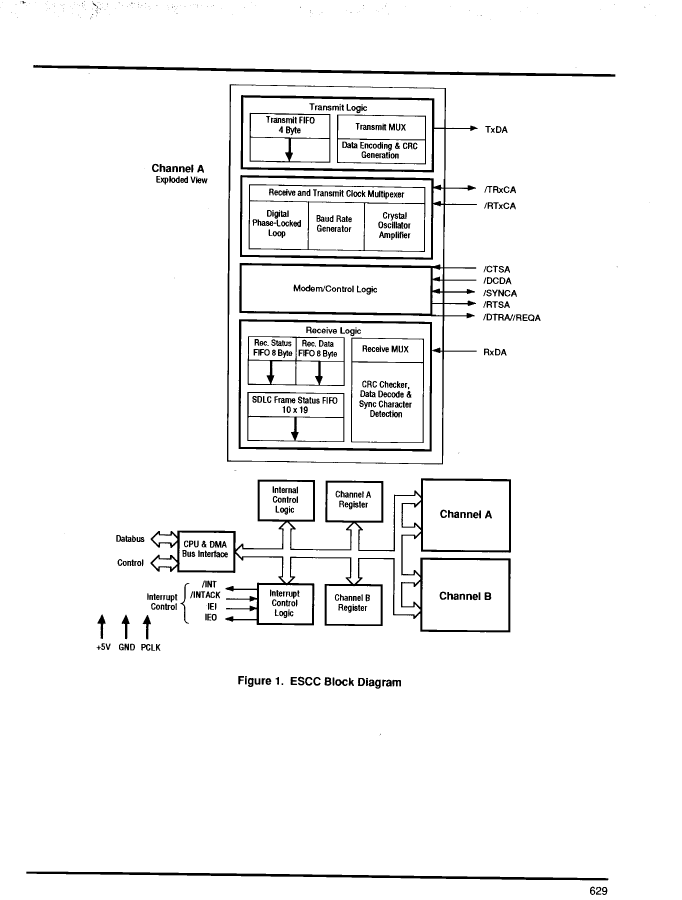

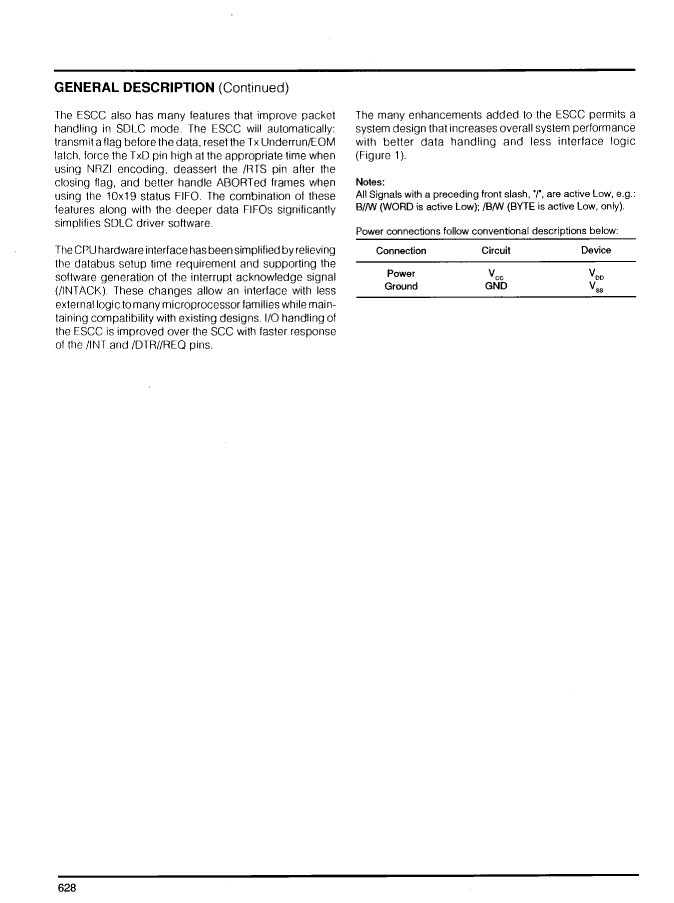

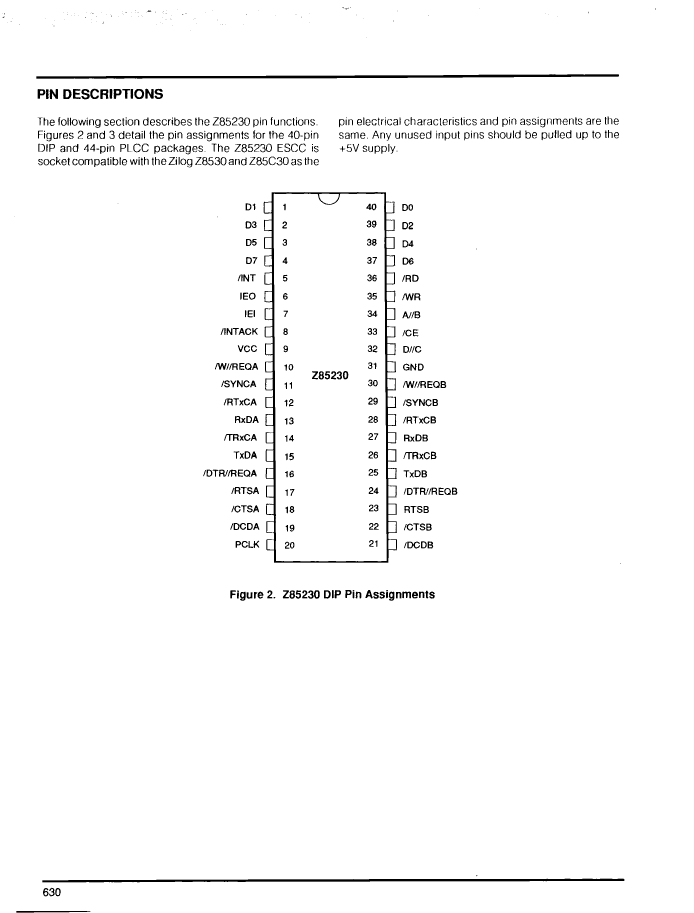

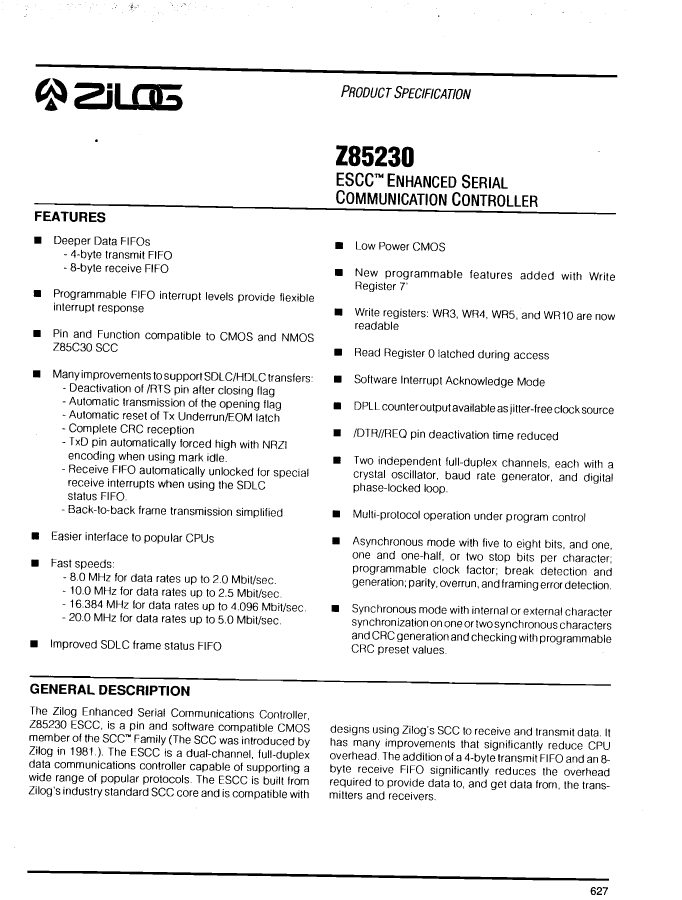

Preview

Download Datasheet

View All

Z8523010LMB Related Products

	Z8523010LMB	Z8523008CMB	Z8523016LMB	Z8523010CMB	Z8523016CMB	Z8523008LMB
Description	Serial I/O Controller, 2 Channel(s), CMOS, CQCC44, CERAMIC, LCC-44	Serial I/O Controller, 2 Channel(s), CMOS, CDIP40, SIDE BRAZED, CERDIP-40	Serial I/O Controller, 2 Channel(s), CMOS, CQCC44, CERAMIC, LCC-44	Serial I/O Controller, 2 Channel(s), CMOS, CDIP40, SIDE BRAZED, CERDIP-40	Serial I/O Controller, 2 Channel(s), CMOS, CDIP40, SIDE BRAZED, CERDIP-40	Serial I/O Controller, 2 Channel(s), CMOS, CQCC44, CERAMIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Parts packaging code	LCC	DIP	LCC	DIP	DIP	LCC
package instruction	QCCN, LCC44(UNSPEC)	DIP, DIP40,.6	QCCN, LCC44(UNSPEC)	DIP, DIP40,.6	DIP, DIP40,.6	QCCN, LCC44(UNSPEC)
Contacts	44	40	44	40	40	44
Reach Compliance Code	unknow	unknown	unknown	unknow	unknow	unknown
Other features	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS; 10 X 19 FRAME STATUS FIFO	MODEM CONTROL I/OS USABLE AS GP I/OS; 10 X 19 FRAME STATUS FIFO; ICC SPECIFIED @ 8.5MHZ	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS; 10 X 19 FRAME STATUS FIFO	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS; 10 X 19 FRAME STATUS FIFO	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS; 10 X 19 FRAME STATUS FIFO	MODEM CONTROL I/OS USABLE AS GP I/OS; 10 X 19 FRAME STATUS FIFO; ICC SPECIFIED @ 8.5MHZ
boundary scan	NO	NO	NO	NO	NO	NO
maximum clock frequency	10 MHz	8 MHz	16.384 MHz	10 MHz	16.384 MHz	8 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)
External data bus width	8	8	8	8	8	8
JESD-30 code	S-CQCC-N44	R-CDIP-T40	S-CQCC-N44	R-CDIP-T40	R-CDIP-T40	S-CQCC-N44
JESD-609 code	e0	e0	e0	e0	e0	e0
low power mode	NO	NO	NO	NO	NO	NO
Number of serial I/Os	2	2	2	2	2	2
Number of terminals	44	40	44	40	40	44
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DIP	QCCN	DIP	DIP	QCCN
Encapsulate equivalent code	LCC44(UNSPEC)	DIP40,.6	LCC44(UNSPEC)	DIP40,.6	DIP40,.6	LCC44(UNSPEC)
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	2.286 mm	4.699 mm	2.286 mm	4.699 mm	4.699 mm	2.286 mm
Maximum slew rate	18 mA	15 mA	22 mA	18 mA	22 mA	15 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	QUAD	DUAL	DUAL	QUAD
width	16.51 mm	15.24 mm	16.51 mm	15.24 mm	15.24 mm	16.51 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
