Z86C1112VEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C1112VEC

Z86C1112VEC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size649KB，21 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86C1112VEC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44

Z86C1112VEC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	LCC
package instruction	QCCJ, LDCC44,.7SQ
Contacts	44
Reach Compliance Code	unknow
Has ADC	NO
Other features	RAM/ROM PROTECT; OPTIONAL LOW EMI MODE; 2 STANDBY MODES; OPTIONAL ROMLESS MODE
Address bus width	16
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.5862 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	32
Number of serial I/Os	1
Number of terminals	44
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	236
RAM (number of words)	256
rom(word)	4000
ROM programmability	MROM
Maximum seat height	4.57 mm
speed	12 MHz
Maximum slew rate	30 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

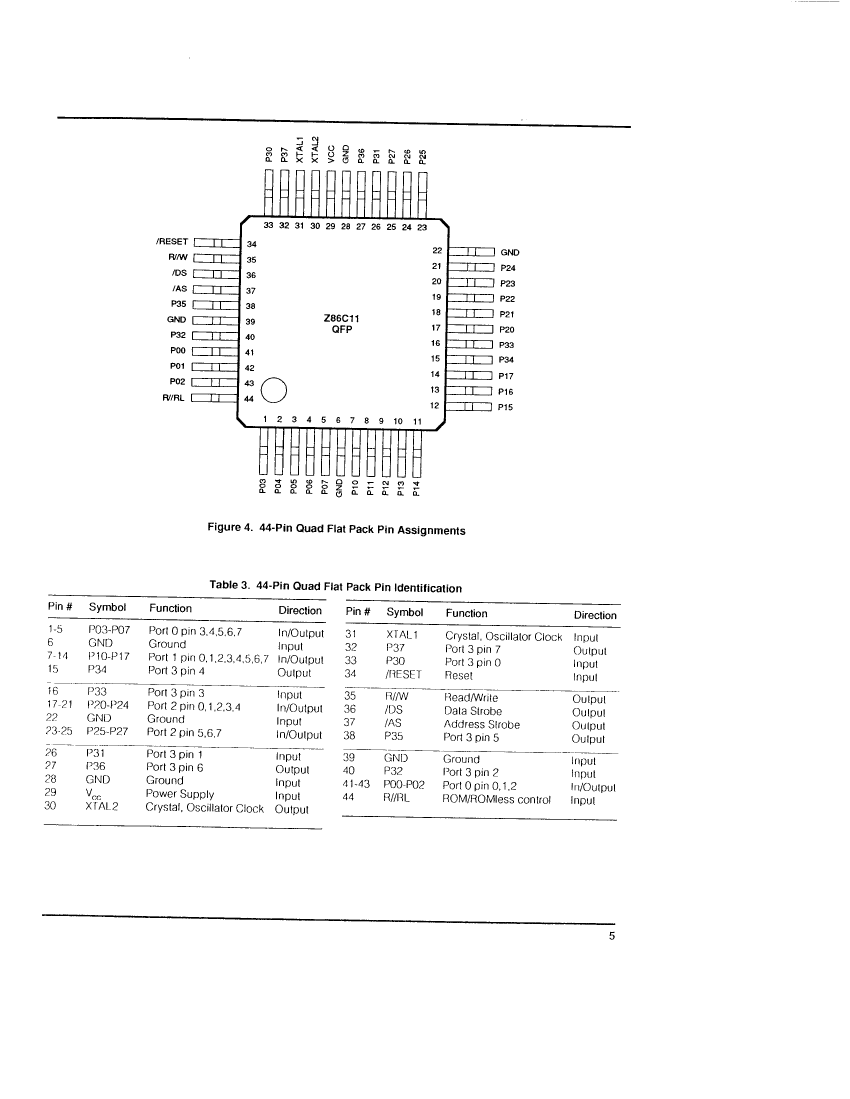

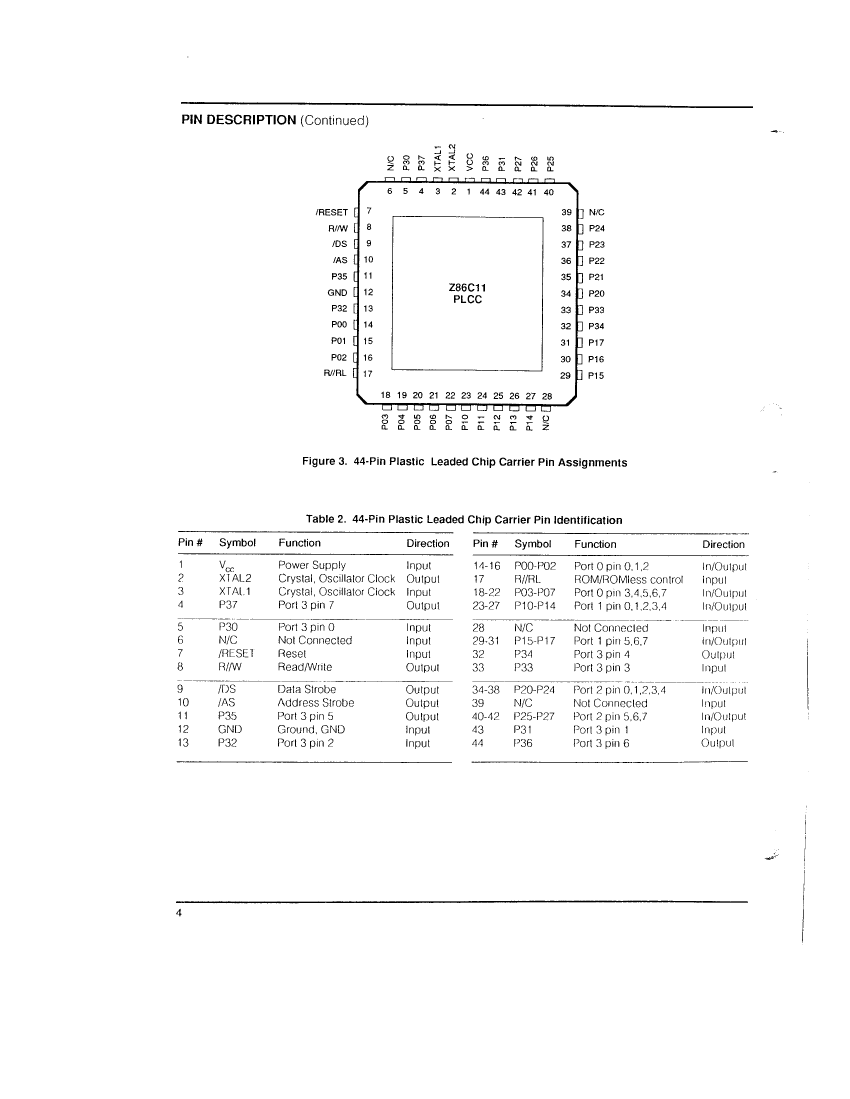

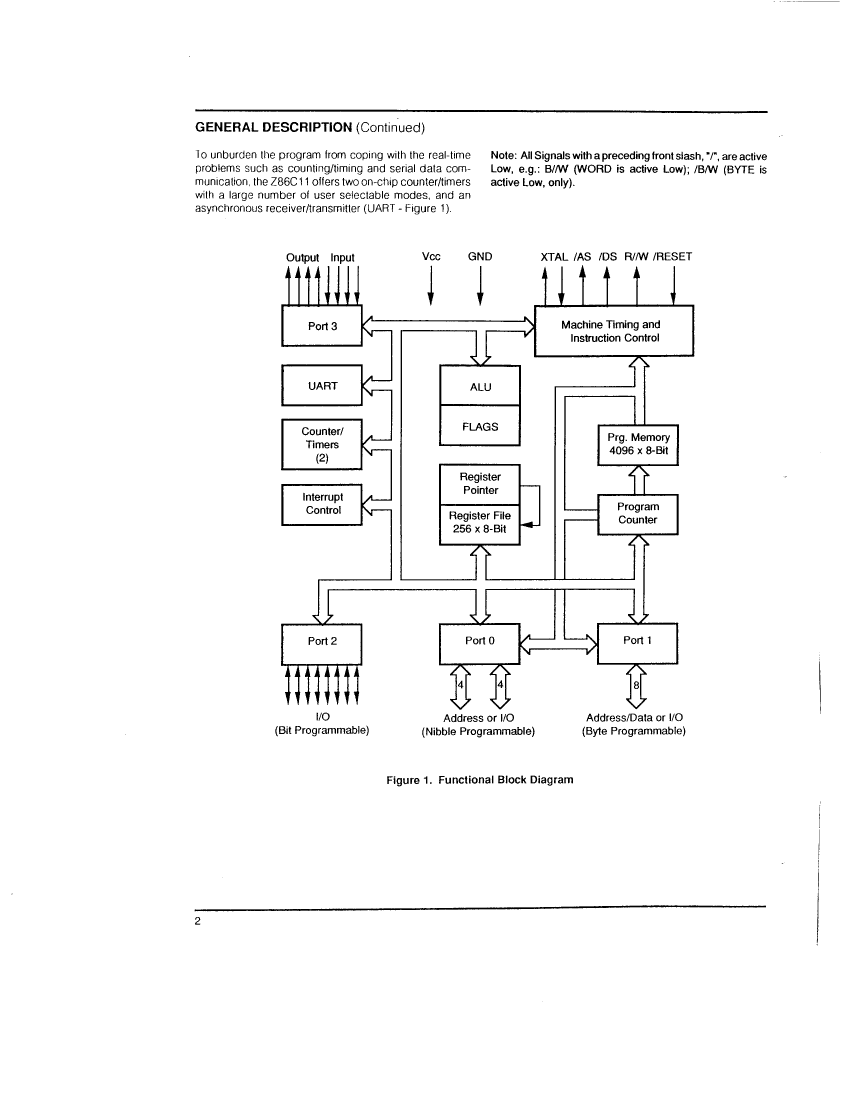

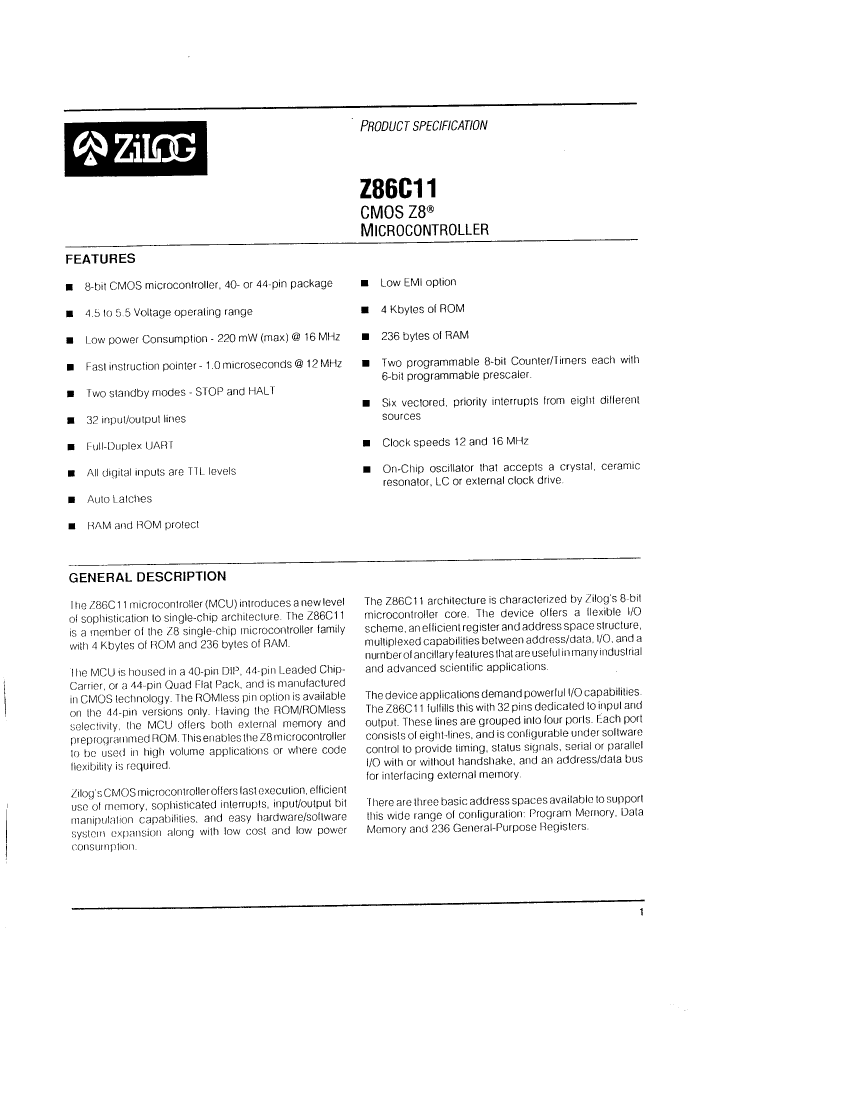

Preview

Download Datasheet

View All

Z86C1112VEC Related Products

	Z86C1112VEC	Z86C1112PEC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	LCC	DIP
package instruction	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6
Contacts	44	40
Reach Compliance Code	unknow	unknown
Has ADC	NO	NO
Other features	RAM/ROM PROTECT; OPTIONAL LOW EMI MODE; 2 STANDBY MODES; OPTIONAL ROMLESS MODE	RAM/ROM PROTECT; OPTIONAL LOW EMI MODE; 2 STANDBY MODES
Address bus width	16	16
bit size	8	8
boundary scan	NO	NO
CPU series	Z8	Z8
maximum clock frequency	12 MHz	12 MHz
DAC channel	NO	NO
DMA channel	NO	NO
External data bus width	8	8
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	S-PQCC-J44	R-PDIP-T40
JESD-609 code	e0	e0
length	16.5862 mm	52.325 mm
low power mode	YES	YES
Number of external interrupt devices	4	4
Number of I/O lines	32	32
Number of serial I/Os	1	1
Number of terminals	44	40
Number of timers	2	2
On-chip data RAM width	8	8
On-chip program ROM width	8	8
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP
Encapsulate equivalent code	LDCC44,.7SQ	DIP40,.6
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	240	240
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	236	236
RAM (number of words)	256	256
rom(word)	4000	4000
ROM programmability	MROM	MROM
Maximum seat height	4.57 mm	4.24 mm
speed	12 MHz	12 MHz
Maximum slew rate	30 mA	30 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	16.5862 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
