Z86E7408VSC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86E7408VSC

Z86E7408VSC: DescriptionMicrocontroller, 8-Bit, OTPROM, Z8 CPU, 8MHz, CMOS, PQCC68, PLASTIC, LCC-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size285KB，19 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86E7408VSC Overview

Microcontroller, 8-Bit, OTPROM, Z8 CPU, 8MHz, CMOS, PQCC68, PLASTIC, LCC-68

Z86E7408VSC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	LCC
package instruction	QCCJ, LDCC68,1.0SQ
Contacts	68
Reach Compliance Code	unknow
Has ADC	NO
Other features	ROMLESS MODE OPTION
Address bus width	16
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J68
JESD-609 code	e0
length	24.2316 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	3
Number of I/O lines	51
Number of serial I/Os
Number of terminals	68
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	1024
RAM (number of words)	512
rom(word)	32768
ROM programmability	OTPROM
Maximum seat height	4.57 mm
speed	8 MHz
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	24.2316 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

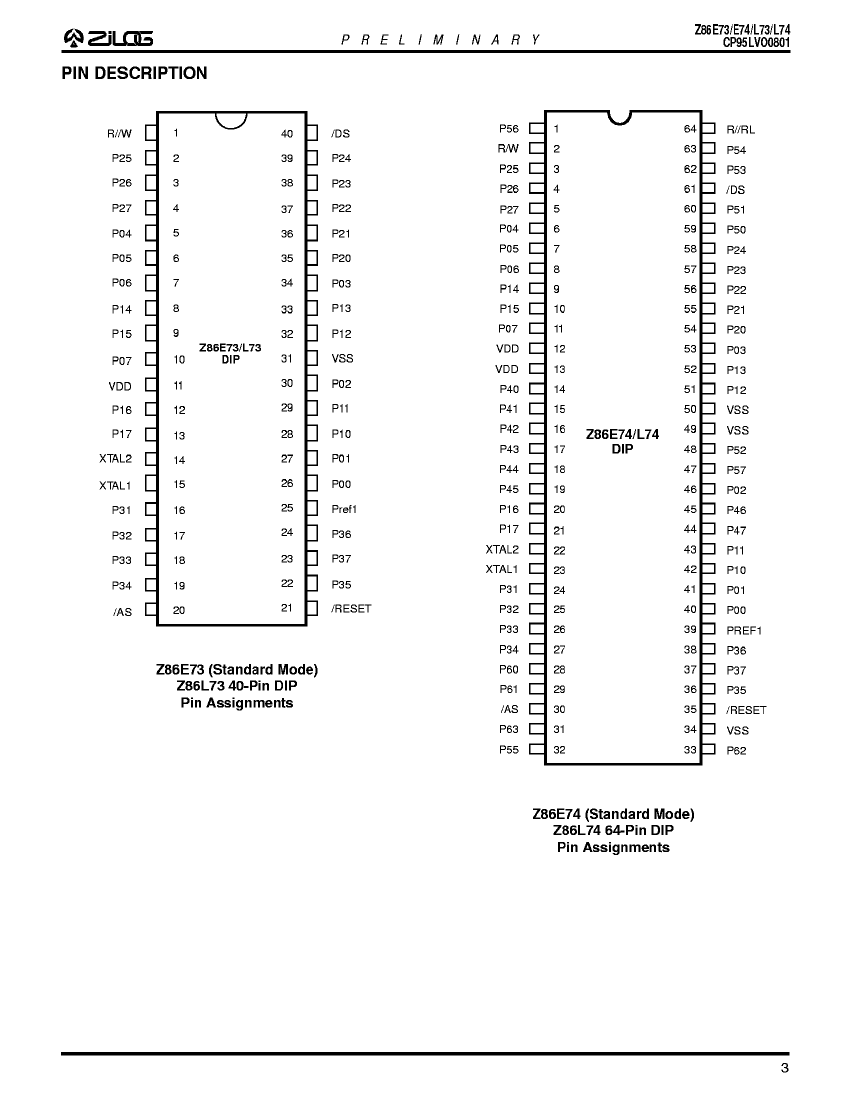

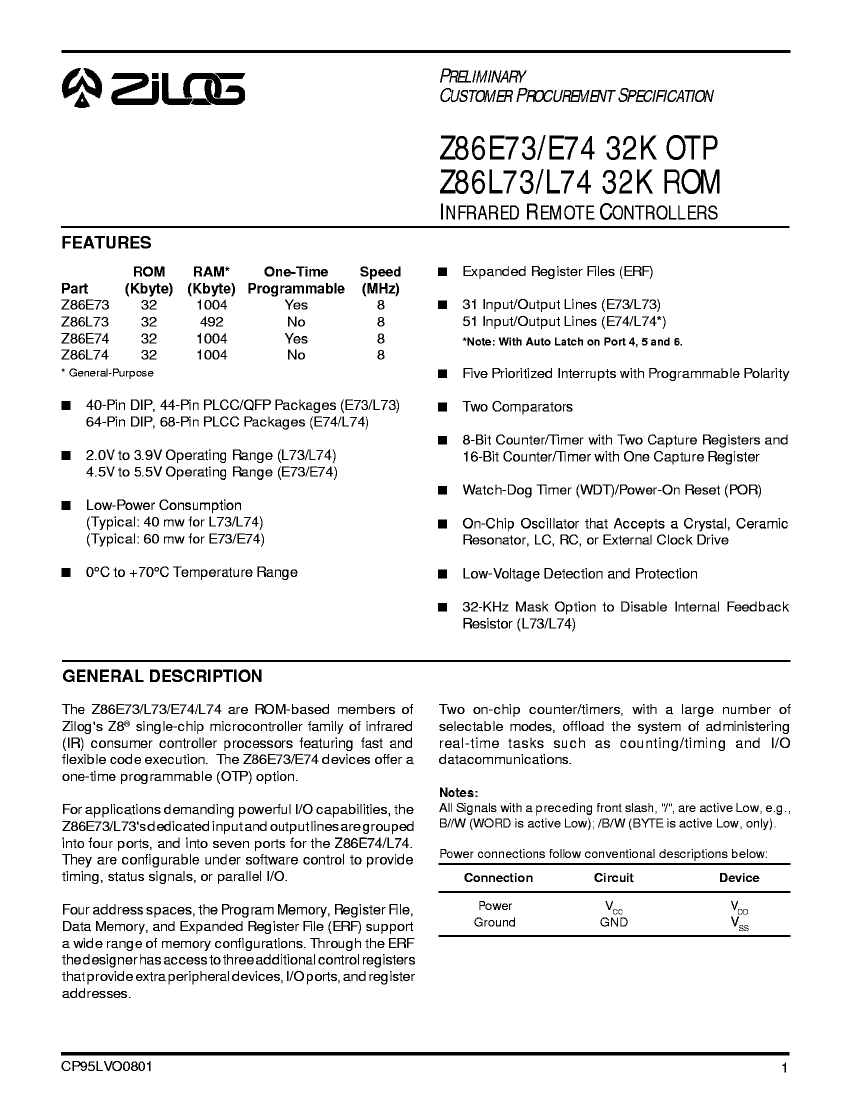

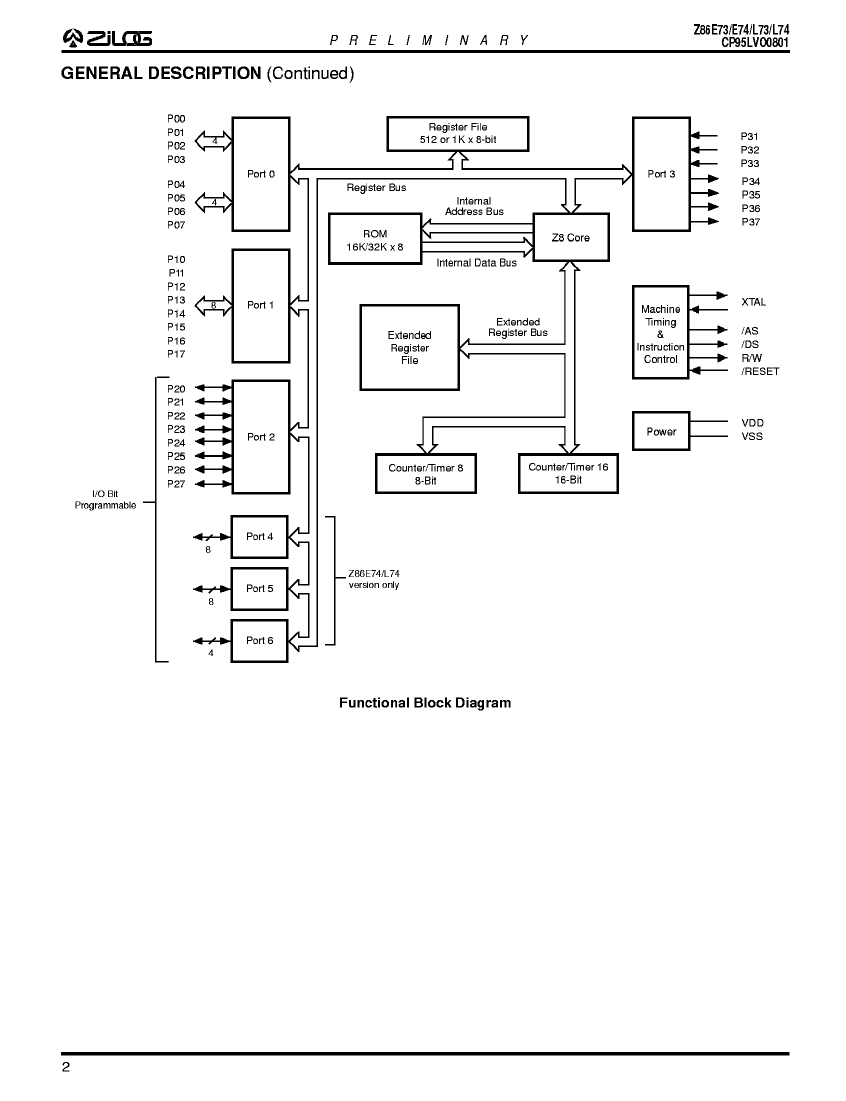

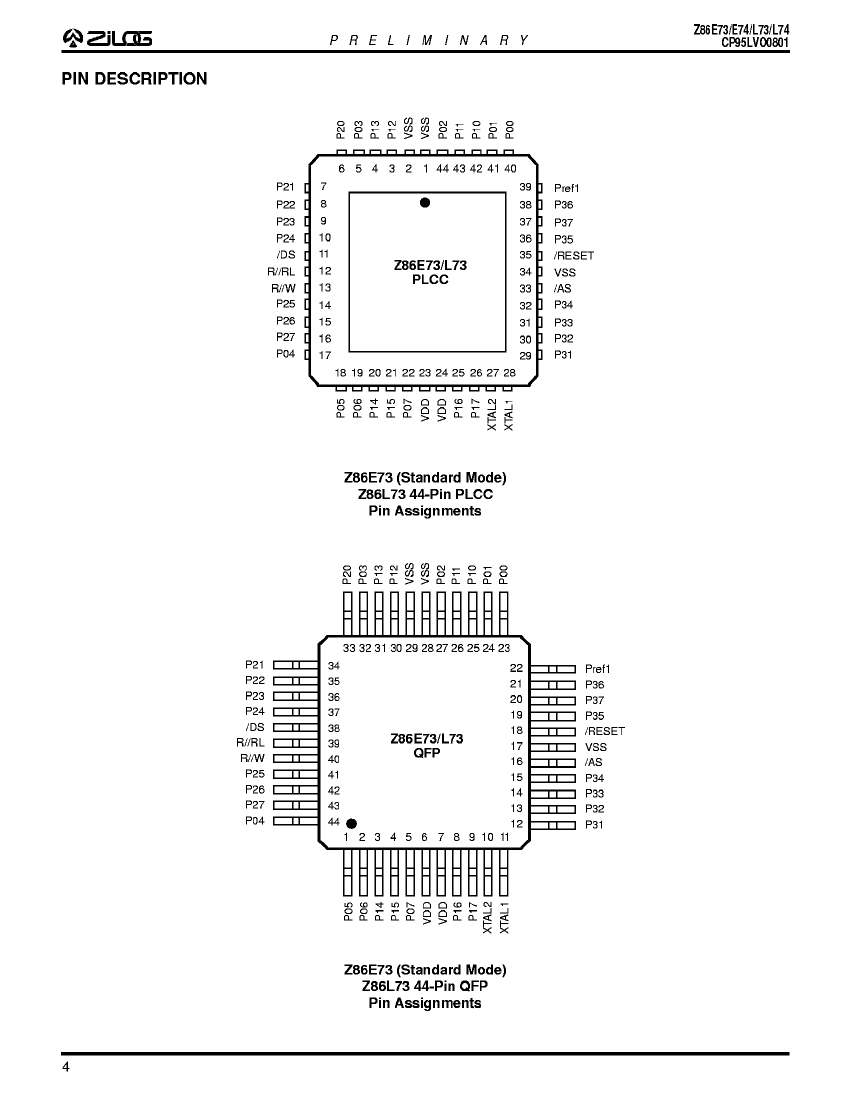

Z86E7408VSC Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Z86E7408VSC Related Products

	Z86E7408VSC	Z86L7408PSC	Z86L7408VSC	Z86E7408PSC	Z86E7308FSC	Z86E7308PSC	Z86E7308VSC
Description	Microcontroller, 8-Bit, OTPROM, Z8 CPU, 8MHz, CMOS, PQCC68, PLASTIC, LCC-68	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDIP64, DIP-64	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PQCC68, PLASTIC, LCC-68	Microcontroller, 8-Bit, OTPROM, Z8 CPU, 8MHz, CMOS, PDIP64, DIP-64	Microcontroller, 8-Bit, OTPROM, Z8 CPU, 8MHz, CMOS, PQFP44, QFP-44	Microcontroller, 8-Bit, OTPROM, Z8 CPU, 8MHz, CMOS, PDIP40, DIP-40	Microcontroller, 8-Bit, OTPROM, Z8 CPU, 8MHz, CMOS, PQCC44, PLASTIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Parts packaging code	LCC	DIP	LCC	DIP	QFP	DIP	LCC
package instruction	QCCJ, LDCC68,1.0SQ	DIP-64	QCCJ, LDCC68,1.0SQ	SDIP, DIP64(UNSPEC)	QFP-44	DIP-40	QCCJ, LDCC44,.7SQ
Contacts	68	64	68	64	44	40	44
Reach Compliance Code	unknow	unknown	unknown	unknown	unknow	unknow	unknow
Has ADC	NO	NO	NO	NO	NO	NO	NO
Address bus width	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO	NO
CPU series	Z8	Z8	Z8	Z8	Z8	Z8	Z8
maximum clock frequency	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQCC-J68	R-PDIP-T64	S-PQCC-J68	R-PDIP-T64	S-PQFP-G44	R-PDIP-T40	S-PQCC-J44
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	24.2316 mm	57.785 mm	24.2316 mm	57.785 mm	10 mm	52.325 mm	16.5862 mm
low power mode	YES	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	3	3	3	3	3	3	3
Number of I/O lines	51	51	51	51	31	31	31
Number of terminals	68	64	68	64	44	40	44
Number of timers	2	2	2	2	2	2	2
On-chip data RAM width	8	8	8	8	8	8	8
On-chip program ROM width	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	SDIP	QCCJ	SDIP	QFP	DIP	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ	DIP64(UNSPEC)	LDCC68,1.0SQ	DIP64(UNSPEC)	QFP44,.57SQ,32	DIP40,.6	LDCC44,.7SQ
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE, SHRINK PITCH	CHIP CARRIER	IN-LINE, SHRINK PITCH	FLATPACK	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240	240	240	240	240	240	240
power supply	5 V	2.2/3.6 V	2.2/3.6 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	1024	1024	1024	1024	1024	1024	1024
RAM (number of words)	512	512	512	512	512	512	512
rom(word)	32768	32768	32768	32768	32768	32768	32768
ROM programmability	OTPROM	MROM	MROM	OTPROM	OTPROM	OTPROM	OTPROM
Maximum seat height	4.57 mm	5.01 mm	4.57 mm	5.01 mm	2.5 mm	4.96 mm	4.57 mm
speed	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
Maximum slew rate	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
Maximum supply voltage	5.5 V	3.9 V	3.9 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4 V	2 V	2 V	4 V	4 V	4 V	4 V
Nominal supply voltage	5 V	3 V	3 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	GULL WING	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	1.778 mm	1.27 mm	1.778 mm	0.8 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	QUAD	DUAL	QUAD	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	24.2316 mm	19.05 mm	24.2316 mm	19.05 mm	10 mm	15.24 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Other features	ROMLESS MODE OPTION	ROMLESS MODE OPTION	ROMLESS MODE OPTION	ROMLESS MODE OPTION	ROMLESS MODE OPTION	-	ROMLESS MODE OPTION
