Z8937120VEC datasheet, PDF - EEWORLD Datasheet

Z8937120VEC: DescriptionDigital Signal Processor, 0-Ext Bit, 20MHz, CMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size870KB，32 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric View All

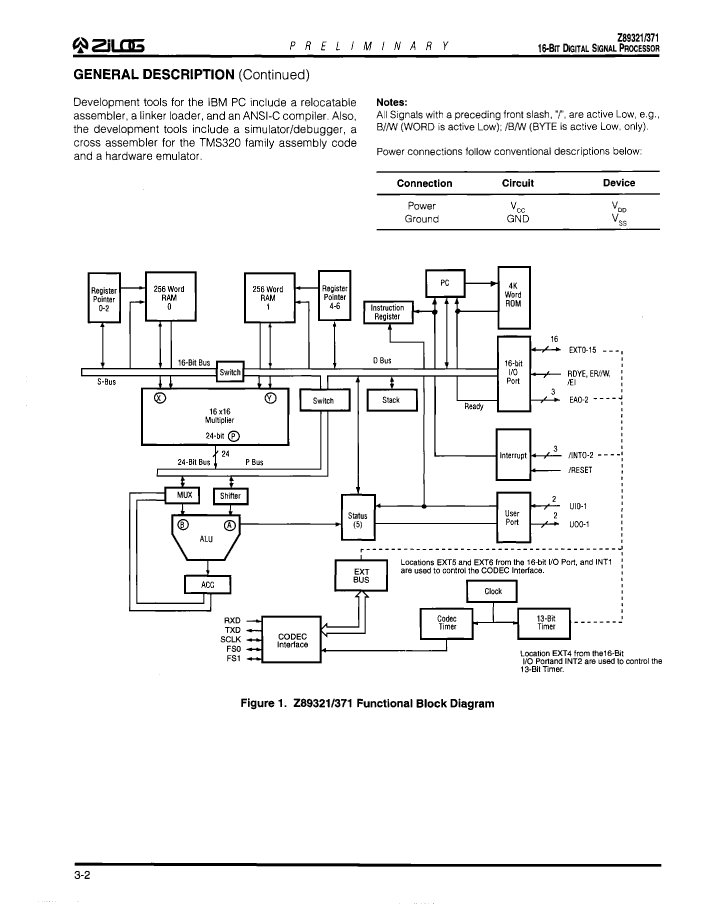

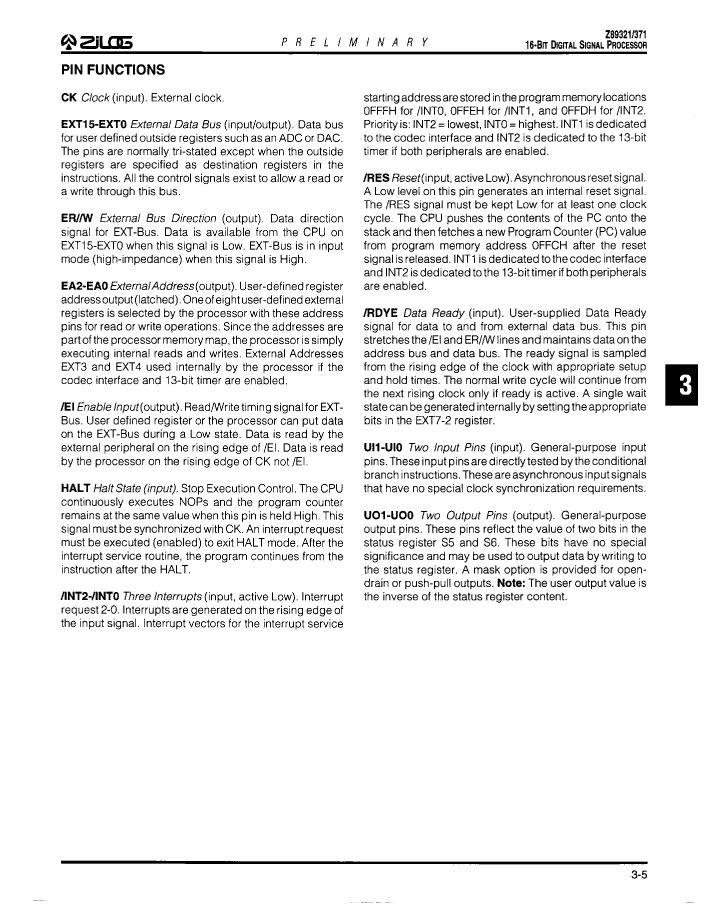

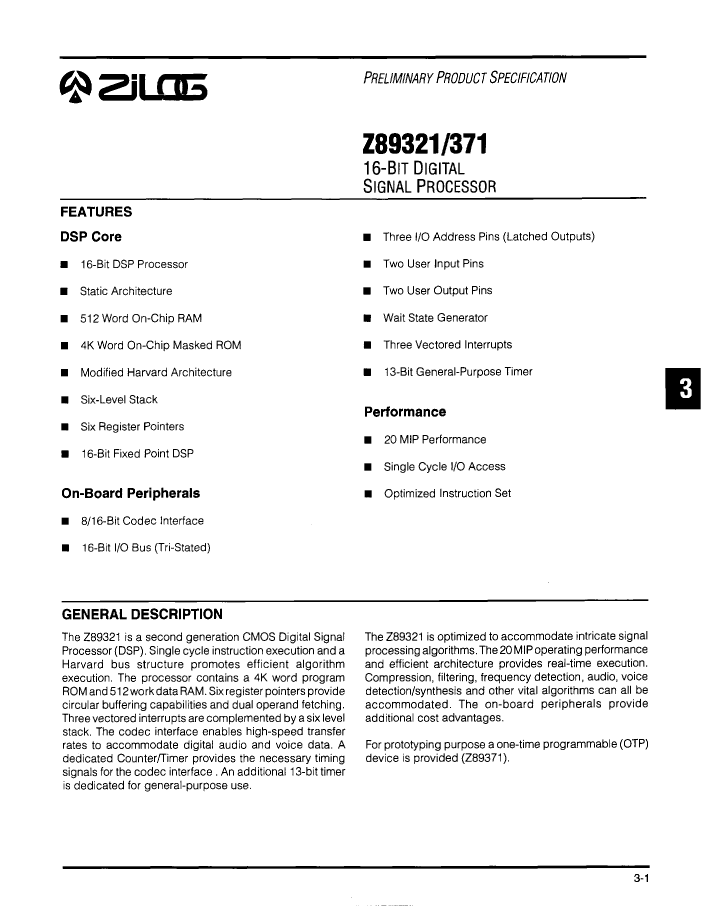

Z8937120VEC Overview

Digital Signal Processor, 0-Ext Bit, 20MHz, CMOS, PQCC44, PLASTIC, LCC-44

Parameter Name	Attribute value
Maker	Zilog, Inc.
Parts packaging code	LCC
package instruction	QCCJ,

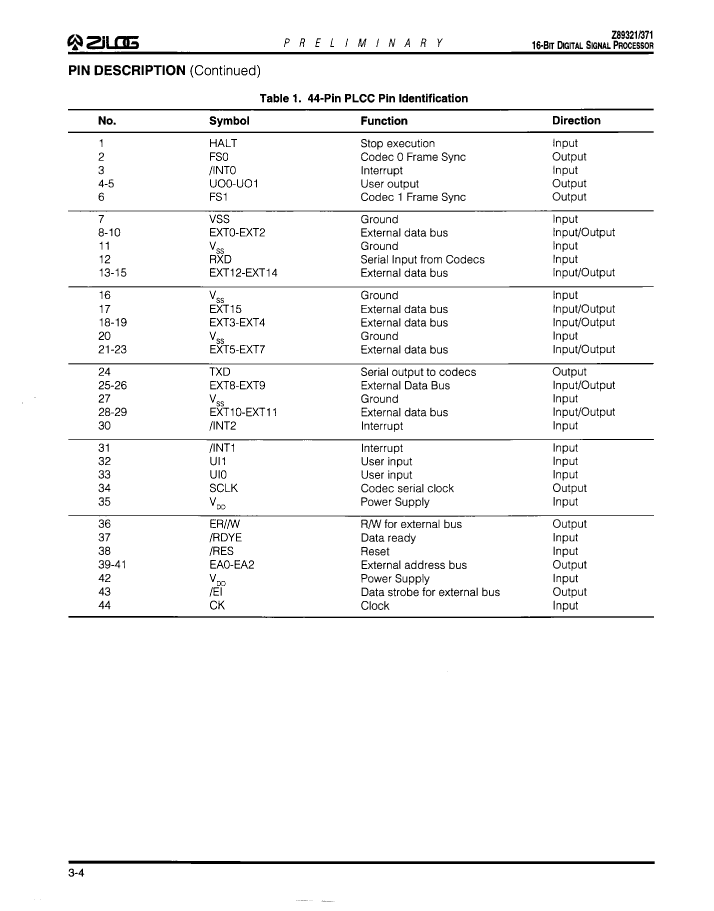

Contacts	44
Reach Compliance Code	unknow
Other features	16-BIT DATA AND 3-BIT ADDRESS BUS FOR USER DEFINED REGISTERS
Address bus width
barrel shifter	NO
boundary scan	NO
maximum clock frequency	20 MHz
External data bus width
Format	FIXED POINT
Integrated cache	NO
Internal bus architecture	MULTIPLE
JESD-30 code	S-PQCC-J44
length	16.5862 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	3
Number of serial I/Os
Number of terminals	44
Number of timers	2
On-chip data RAM width	16
On-chip program ROM width	16
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	512
ROM programmability	OTPROM
Maximum seat height	4.57 mm
Maximum slew rate	60 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER
