B82471-A1104-K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> B82471-A1104-K

B82471-A1104-K: Description1 ELEMENT, 150 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryThe sensor; File Size234KB，3 Pages; ManufacturerETC

Download Datasheet Parametric Compare View All

B82471-A1104-K Overview

1 ELEMENT, 150 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

B82471-A1104-K Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	2
Maximum operating temperature	150 Cel
Minimum operating temperature	-55 Cel
Rated inductance	150 uH
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
core material	FERRITE
DC Resistance	1.1 ohm
surface mount	Yes
Terminal shape	WRAPAROUND
terminal coating	TIN OVER NICKEL
Terminal layout	DUAL ENDED
Manufacturer Series	B82471A1
Inductor applications	POWER INDUCTOR
Shape and size description	RECTANGULAR PACKAGE
deviation	10 %
Inductor type	GENERAL PURPOSE INDUCTOR
1Rated value test frequency	0.1000 MHz
Maximum rated current	0.4000 A

Preview

Download Datasheet

View All

Data downloaded from http://www.angliac.com - the website of Anglia - tel: 01945 474747

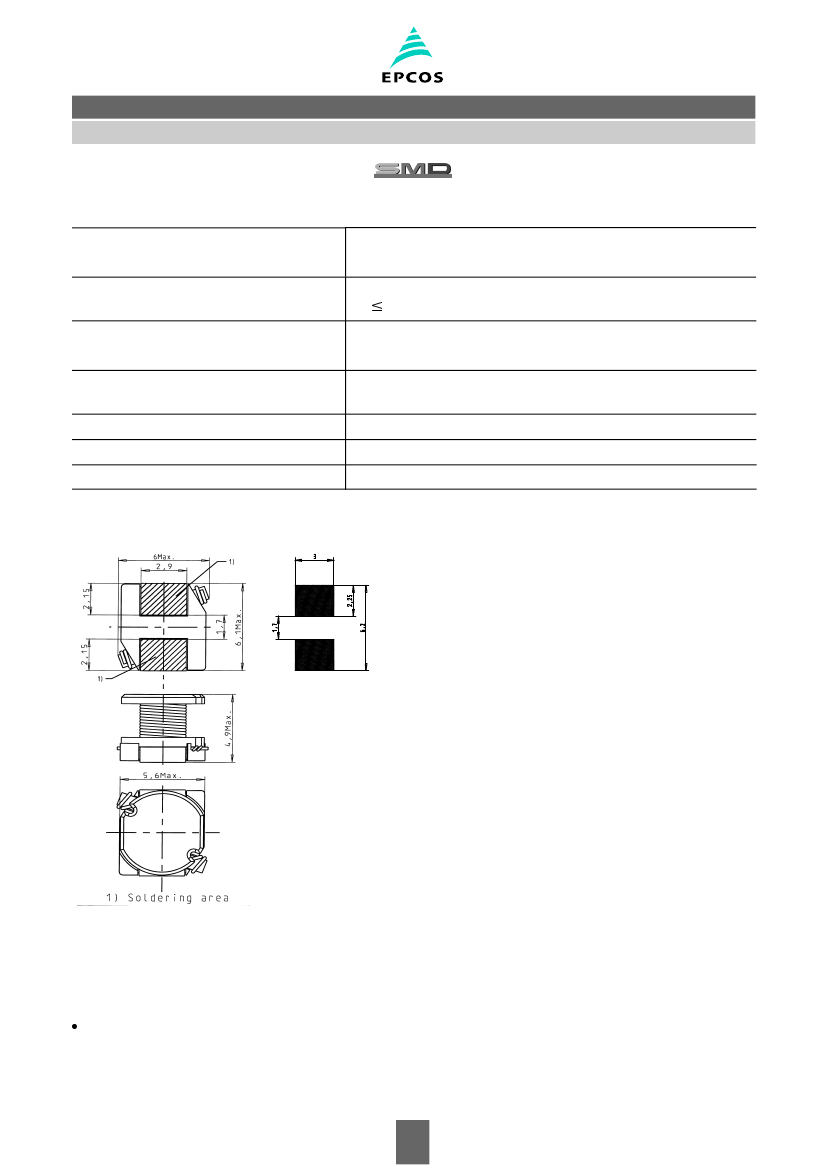

SMT–Power–Inductors

B82471

DATA SHEET

Rated inductance 10

µH

.. 220

µH

Construction

Ferrite core

Winding: enamel copper wire

Winding soldered to terminals

Plastic terminal carrier

Features

High rated current

Low DC resistance

Suitable for reflow soldering (IR and vapor phase)

Applications

Filtering of supply voltages

Coupling / decoupling

DC/DC converters

Automotive electronics

Terminals

Tinned

Marking

Marking on component:

Manufacturer, L value (in

µH)

Minimum marking on reel:

Manufacturer, part number, ordering code,

L value and tolerance

quantity, date of packing

Delivery mode

16–mm blister tape , reel packing

packaging quantity 2000pcs/reel

Mit den Angaben im Datenblatt werden die Bauelemente

spezifiziert, nicht Eigenschaften zugesichert.

Liefermöglichkeiten und technische Änderungen vorbehalten.

B82471–3–5976

05.09.2002

For the very latest product data and news visit angliac.com

B82471-A1104-K Related Products

	B82471-A1104-K	B82471	B82471-A1473-M	B82471-A1103-M	B82471-A1683-K	B82471-A1153-M	B82471-A1154-K	B82471-A1223-M	B82471-A1333-M	B82471-A1224-K
Description	1 ELEMENT, 150 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 150 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 150 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 150 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 150 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 150 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 150 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 22 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 150 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 220 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	150 Cel	150 Cel	150 Cel	150 Cel	150 Cel	150 Cel	150 Cel	150 Cel	150 Cel	150 Cel
Minimum operating temperature	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel
Rated inductance	150 uH	150 uH	150 uH	150 uH	150 uH	150 uH	150 uH	22 uH	150 uH	220 uH
Processing package description	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Lead-free	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
China RoHS regulations	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	1.1 ohm	1.1 ohm	1.1 ohm	1.1 ohm	1.1 ohm	1.1 ohm	1.1 ohm	0.1800 ohm	1.1 ohm	1.57 ohm
surface mount	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
terminal coating	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Terminal layout	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Manufacturer Series	B82471A1	B82471A1	B82471A1	B82471A1	B82471A1	B82471A1	B82471A1	B82471A1	B82471A1	B82471A1
Inductor applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Shape and size description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
deviation	10 %	10 %	10 %	10 %	10 %	10 %	10 %	20 %	10 %	10 %
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
1Rated value test frequency	0.1000 MHz	0.1000 MHz	0.1000 MHz	0.1000 MHz	0.1000 MHz	0.1000 MHz	0.1000 MHz	0.1000 MHz	0.1000 MHz	0.1000 MHz
Maximum rated current	0.4000 A	0.4000 A	0.4000 A	0.4000 A	0.4000 A	0.4000 A	0.4000 A	1.11 A	0.4000 A	0.3500 A
