5962-01-107-6931 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> 5962-01-107-6931

5962-01-107-6931: DescriptionIC IC,VOLT REFERENCE,FIXED,10V,BIPOLAR,CAN,3PIN,METAL, Voltage Reference; CategoryPower/power management The power supply circuit; File Size219KB，6 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-01-107-6931 Overview

IC IC,VOLT REFERENCE,FIXED,10V,BIPOLAR,CAN,3PIN,METAL, Voltage Reference

5962-01-107-6931 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Reach Compliance Code	compli
JESD-30 code	O-MBCY-W3
Number of terminals	3
Maximum operating temperature	70 °C
Minimum operating temperature
Nominal output voltage	10 V
Package body material	METAL
Encapsulate equivalent code	CAN3/4,.2
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
technology	BIPOLAR
Maximum voltage temperature coefficient	15 ppm/°C
Temperature level	COMMERCIAL
Terminal form	WIRE
Terminal location	BOTTOM
Fine-tuning/adjustable output	NO
Maximum voltage tolerance	0.1%

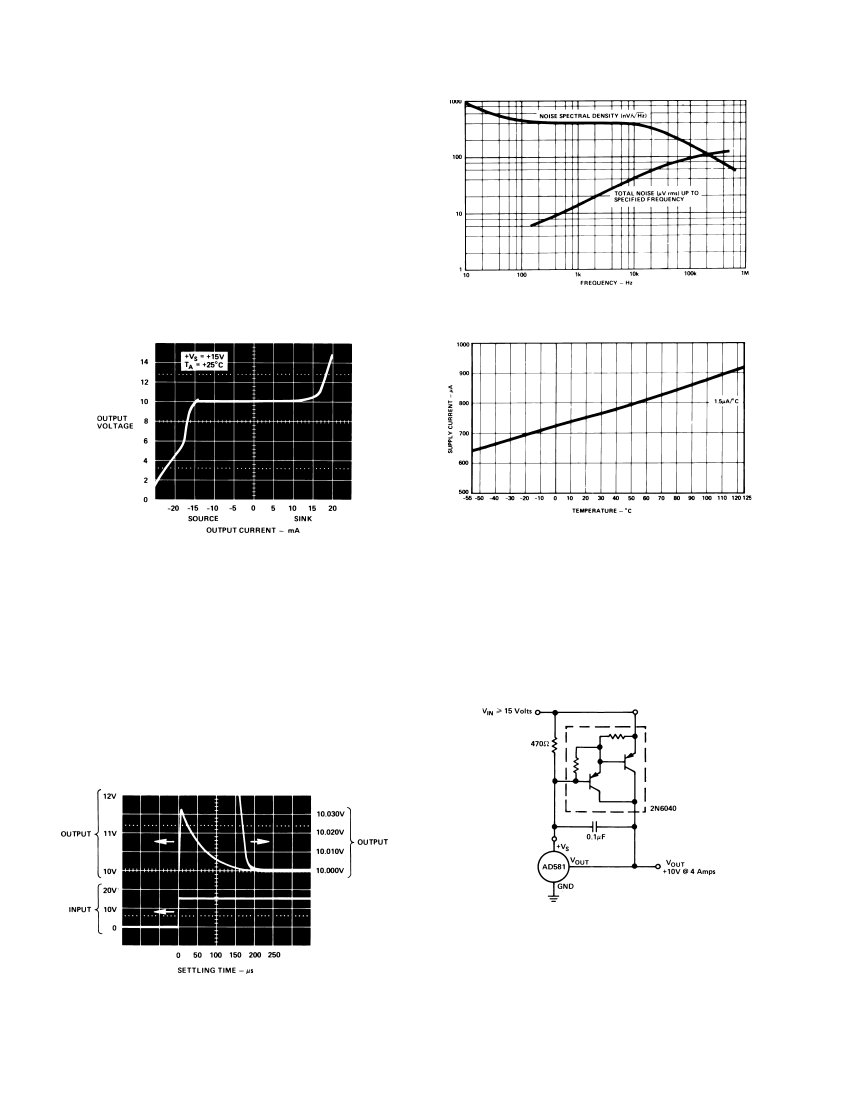

Preview

Download Datasheet

View All

FEATURES

Laser Trimmed to High Accuracy:

10.000 Volts 5 mV (L and U)

Trimmed Temperature Coefficient:

5 ppm/ C max, 0 C to +70 C (L)

10 ppm/ C max, –55 C to +125 C (U)

Excellent Long-Term Stability:

25 ppm/1000 hrs. (Noncumulative)

Negative 10 Volt Reference Capability

Low Quiescent Current: 1.0 mA max

10 mA Current Output Capability

3-Terminal TO-5 Package

MIL-STD-883 Compliant Versions Available

High Precision

10 V IC Reference

AD581*

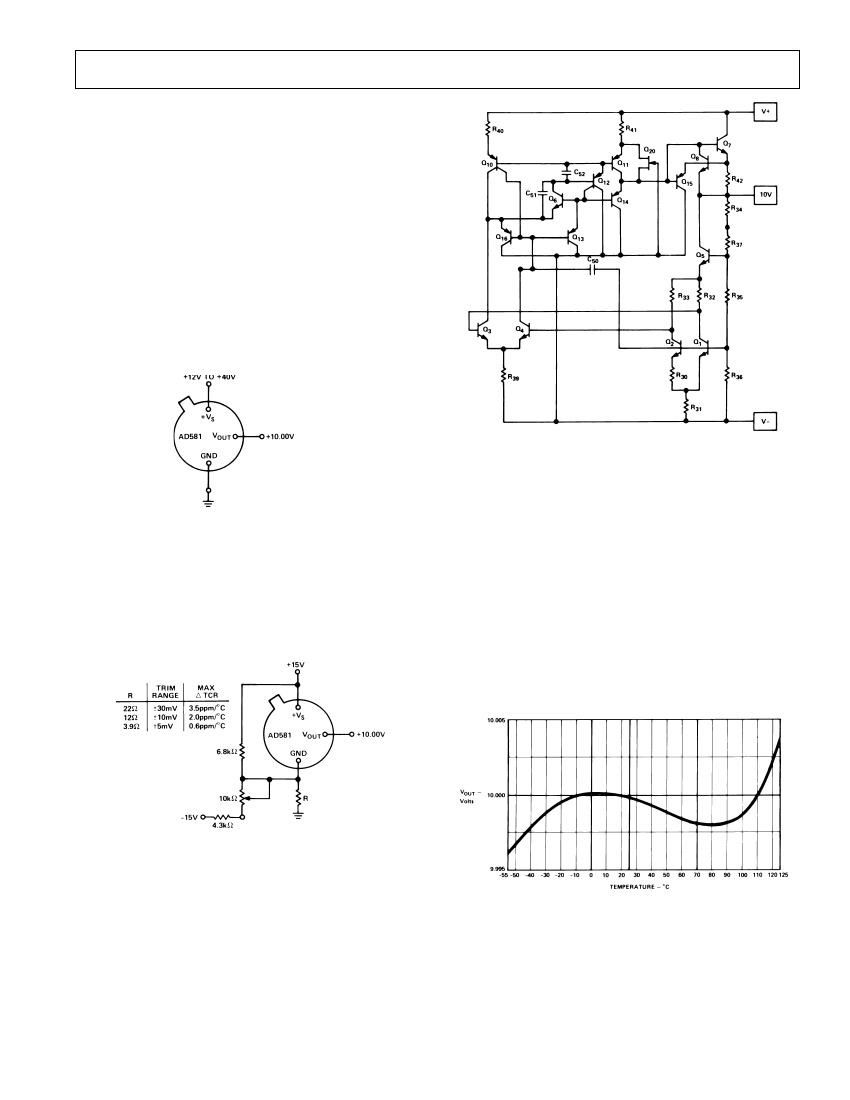

FUNCTIONAL BLOCK DIAGRAM

PRODUCT DESCRIPTION

PRODUCT HIGHLIGHTS

The AD581 is a three-terminal, temperature compensated,

monolithic bandgap voltage reference which provides a precise

10.00 volt output from an unregulated input level from 12 to 30

volts. Laser Wafer Trimming (LWT) is used to trim both the

initial error at +25°C as well as the temperature coefficient,

which results in high precision performance previously available

only in expensive hybrids or oven-regulated modules. The 5 mV

initial error tolerance and 5 ppm/°C guaranteed temperature co-

efficient of the AD581L represent the best performance combi-

nation available in a monolithic voltage reference.

The bandgap circuit design used in the AD581 offers several ad-

vantages over classical Zener breakdown diode techniques. Most

important, no external components are required to achieve full

accuracy and stability of significance to low power systems. In

addition, total supply current to the device, including the output

buffer amplifier (which can supply up to 10 mA) is typically

750

µA.

The long-term stability of the bandgap design is equiva-

lent or superior to selected Zener reference diodes.

The AD581 is recommended for use as a reference for 8-, 10- or

12-bit D/A converters which require an external precision refer-

ence. The device is also ideal for all types of A/D converters up

to 14-bit accuracy, either successive approximation or integrat-

ing designs, and in general can offer better performance than

that provided by standard self-contained references.

The AD581J, K, and L are specified for operation from 0°C to

+70°C; the AD581S, T, and U are specified for the –55°C to

+125°C range. All grades are packaged in a hermetically sealed

three-terminal TO-5 metal can.

*Covered

by Patent Nos. 3,887,863; RE 30,586.

1. Laser trimming of both initial accuracy and temperature

coefficient results in very low errors over temperature

without the use of external components. The AD581L

has a maximum deviation from 10.000 volts of

±7.25

from 0°C to +70°C, while the AD581U guarantees

15 mV maximum total error without external trims

from –55°C to +125°C.

2. Since the laser trimming is done on the wafer prior to sepa-

ration into individual chips, the AD581 will be extremely

valuable to hybrid designers for its ease of use, lack of

required external trims, and inherent high performance.

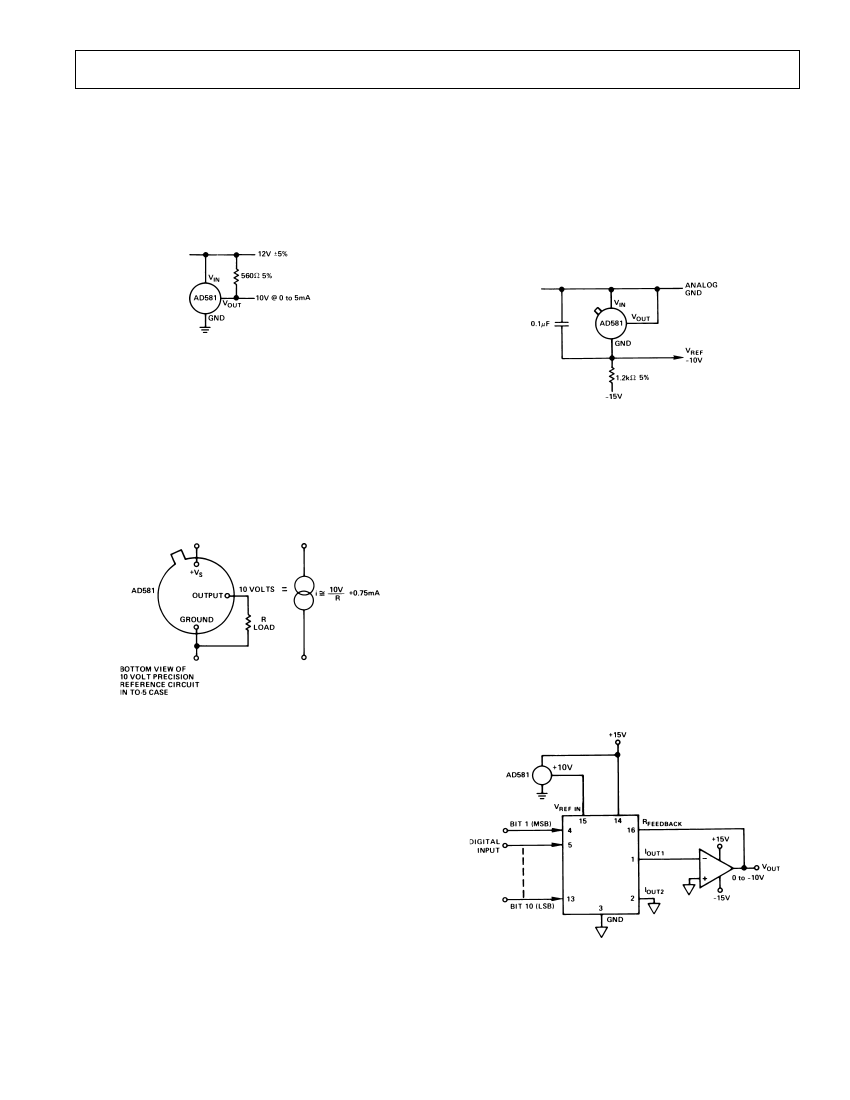

3. The AD581 can also be operated in a two-terminal

“Zener” mode to provide a precision negative 10 volt

reference with just one external resistor to the unregu-

lated supply. The performance in this mode is nearly equal

to that of the standard three-terminal configuration.

4. Advanced circuit design using the bandgap concept

allows the AD581 to give full performance with an un-

regulated input voltage down to 13 volts. With an exter-

nal resistor, the device will operate with a supply as low

as 11.4 volts.

5. The AD581 is available in versions compliant with MIL-

STD-883. Refer to the Analog Devices Military Prod-

ucts Databook or current AD581/883B data sheet for

detailed specifications.

REV. B

Information furnished by Analog Devices is believed to be accurate and

reliable. However, no responsibility is assumed by Analog Devices for its

use, nor for any infringements of patents or other rights of third parties

which may result from its use. No license is granted by implication or

otherwise under any patent or patent rights of Analog Devices.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781/329-4700

World Wide Web Site: http://www.analog.com

Fax: 781/326-8703
