HMC547ALP3 / 547ALP3E
v00.1115
GaAs MMIC SPDT NON-REFLECTIVE
SWITCH, DC - 20 GHz
Typical Applications
the hMc547ALP3 & hMc547ALP3e is ideal for:
Features
high isolation: >50 dB up to 5 Ghz
>45 dB up to 15 Ghz
Low insertion Loss: 1.6 dB @ 10 Ghz
2 dB @ 20 Ghz
Fast Switching
Non-Reflective Design
QFN SMt Package, 9 mm
2
SwitcheS - SPDt - SMt
• Basestation Infrastructure
• Fiber Optics & Broadband Telecom
• Microwave Radio & VSAT
•
Military Radios, Radar, & ecM
• Test Instrumentation
Electrical Specifications,
T
A
= +25° C, With 0/-5V Control, 50 Ohm System
Parameter
Frequency
Dc - 6.0 Ghz
Dc - 10.0 Ghz
Dc - 15.0 Ghz
Dc - 20.0 Ghz
Dc - 6.0 Ghz
Dc - 15.0 Ghz
Dc - 20.0 Ghz
“On State”
“Off State”
Dc - 20.0 Ghz
Dc - 6.0 Ghz
Dc - 15.0 Ghz
Dc - 20.0 Ghz
0.5 - 20.0 Ghz
0.5 - 10.0 Ghz
0.5 - 20.0 Ghz
Dc - 20 Ghz
20
45
40
33
Min.
typ.
1.5
1.6
1.8
2.0
50
45
38
17
25
17
13
23
48
45
3
6
Max.
1.9
2.0
2.2
2.5
Units
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
ns
ns
insertion Loss
isolation
Return Loss
Return Loss RF1, RF2
input Power for 1 dB compression
Input Third Order Intercept
(two-tone input Power= +7 dBm each tone)
Switching characteristics
tRiSe, tFALL (10/90% RF)
tON, tOFF (50% CTL to 10/90% RF)
Pr
el
1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
the hMc547ALP3 & hMc547ALP3e are general
pur-pose broadband high isolation non-reflective
GaAs MeSFet SPDt switches in low cost
leadless QFN surface mount plastic packages.
covering Dc to 20 Ghz, the switch offers high
isolation and low insertion loss. the switch
features >50 dB isolation up to 5 Ghz and
>45 dB isolation up to 15 Ghz. the switch
operates using complementary negative con-trol
voltage logic lines of -5/0V and requires no bias
supply. the hMc547ALP3 & hMc547ALP3e are
packaged in leadless QFN 3x3 mm surface
mount packages.
im
in
ar
For price, delivery, and to place orders: Analog Devices, Inc.,
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
y
Functional Diagram
General Description
HMC547ALP3 / 547ALP3E
v00.1115
GaAs MMIC SPDT NON-REFLECTIVE
SWITCH, DC - 20 GHz
Absolute Maximum Ratings
RF input Power (Vctl = -5V)
+30 dBm
+0.5V to -7.5 V
+23 dBm
150 °c
0.26 w
420 °c/w
250 °c/w
-65 to +150 °c
-40 to +85 °c
class 1A
A
high
Low
Control Voltages
State
Low
high
Bias condition
0 to -0.5V @ 10 uA Max.
-5V @ 3 uA typ. to -7V @ 10 uA typ. (± 0.5 V)
SwitcheS - SPDt - SMt
control Voltage Range (A & B)
hot Switch Power Level
(Vctl = -5V)
channel temperature
continuous Pdiss (t=85°c)
(derate 4 mw/°c about 85°c)
thermal Resistance
(insertion Loss Path)
thermal Resistance
(terminated Path)
Storage temperature
Operating Temperature
eSD Sensitivity (hBM)
Truth Table
control input
B
Low
high
Signal Path State
RFc to RF1
On
Off
RFc to RF2
Off
On

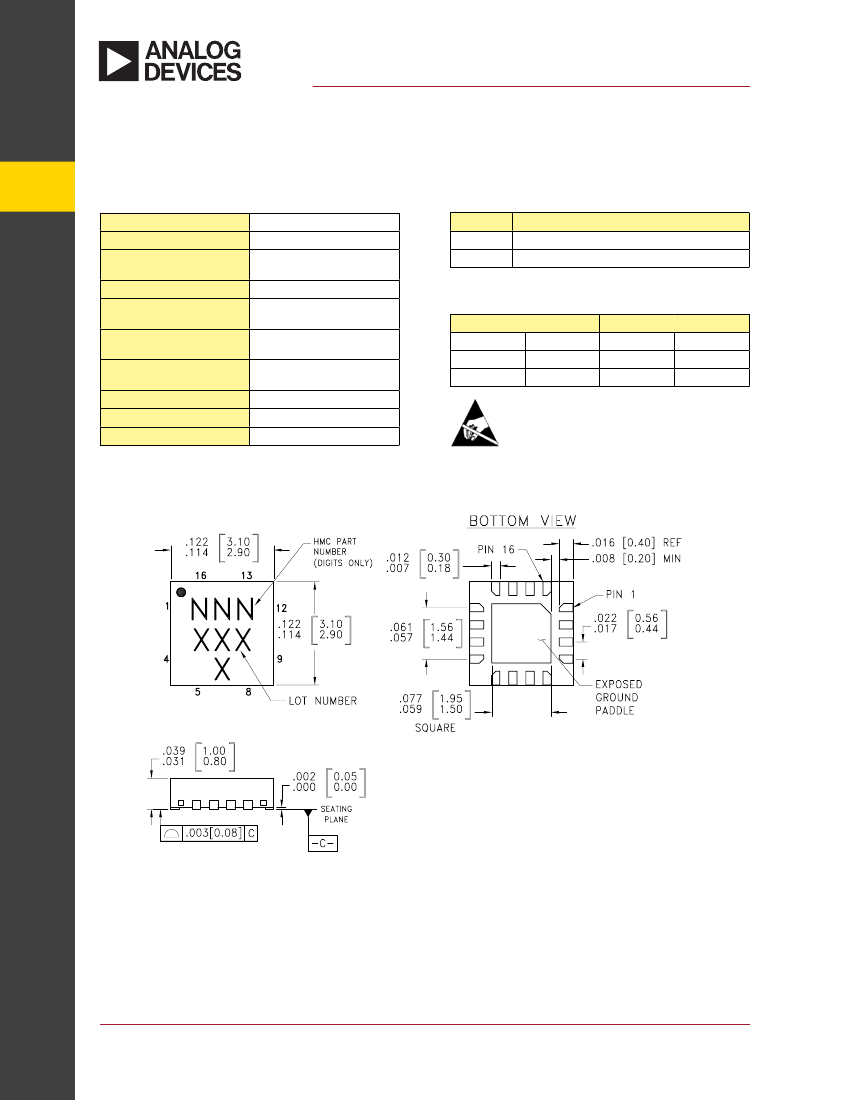

Outline Drawing
Pr
2
el
NOTES:
1.
2.
3.
4.
5.
6.
7.
EADFRAME MATERIAL: COPPER ALLOY
IMENSIONS ARE IN INCHES [MILLIMETERS]
EAD SPACING TOLERANCE IS NON-CUMULATIVE
AD BURR LeNGth ShALL Be 0.15mm MAXiMUM.
PAD BURR heiGht ShALL Be 0.05mm MAXiMUM.
ACKAGE WARP SHALL NOT EXCEED 0.05mm.
LL GROUND LEADS AND GROUND PADDLE MUST BE
SOLDERED TO PCB RF GROUND.
