0612ZC683MAT4A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.068uF, Surface Mount, 0612, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size748KB，4 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

0612ZC683MAT4A Overview

Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.068uF, Surface Mount, 0612, CHIP, ROHS COMPLIANT

0612ZC683MAT4A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AVX
package instruction	, 0612
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.068 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Manufacturer's serial number	0612
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
size code	0612
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

Low Inductance Capacitors

Introduction

The signal integrity characteristics of a Power Delivery Network (PDN)

are becoming critical aspects of board level and semiconductor

package designs due to higher operating frequencies, larger power

demands, and the ever shrinking lower and upper voltage limits around

low operating voltages. These power system challenges are coming

from mainstream designs with operating frequencies of 300MHz

or greater, modest ICs with power demand of 15 watts or more, and

operating voltages below 3 volts.

The classic PDN topology is comprised of a series of capacitor stages.

Figure 1 is an example of this architecture with multiple capacitor

stages.

An ideal capacitor can transfer all its stored energy to a load instantly.

A real capacitor has parasitics that prevent instantaneous transfer of a

capacitor’s stored energy. The true nature of a capacitor can be modeled

as an RLC equivalent circuit. For most simulation purposes, it is possible

to model the characteristics of a real capacitor with one capacitor, one

resistor, and one inductor. The RLC values in this model are commonly

referred to as equivalent series capacitance (ESC), equivalent series

resistance (ESR), and equivalent series inductance (ESL).

The ESL of a capacitor determines the speed of energy transfer to a

load. The lower the ESL of a capacitor, the faster that energy can be

transferred to a load. Historically, there has been a tradeoff between

energy storage (capacitance) and inductance (speed of energy

delivery). Low ESL devices typically have low capacitance. Likewise,

higher capacitance devices typically have higher ESLs. This tradeoff

between ESL (speed of energy delivery) and capacitance (energy

storage) drives the PDN design topology that places the fastest low ESL

capacitors as close to the load as possible. Low Inductance MLCCs are

found on semiconductor packages and on boards as close as possible

to the load.

Slowest Capacitors

Fastest Capacitors

Semiconductor Product

Bulk

Board-Level

Package-Level

Die-Level

Low Inductance Decoupling Capacitors

Figure 1 Classic Power Delivery Network (PDN) Architecture

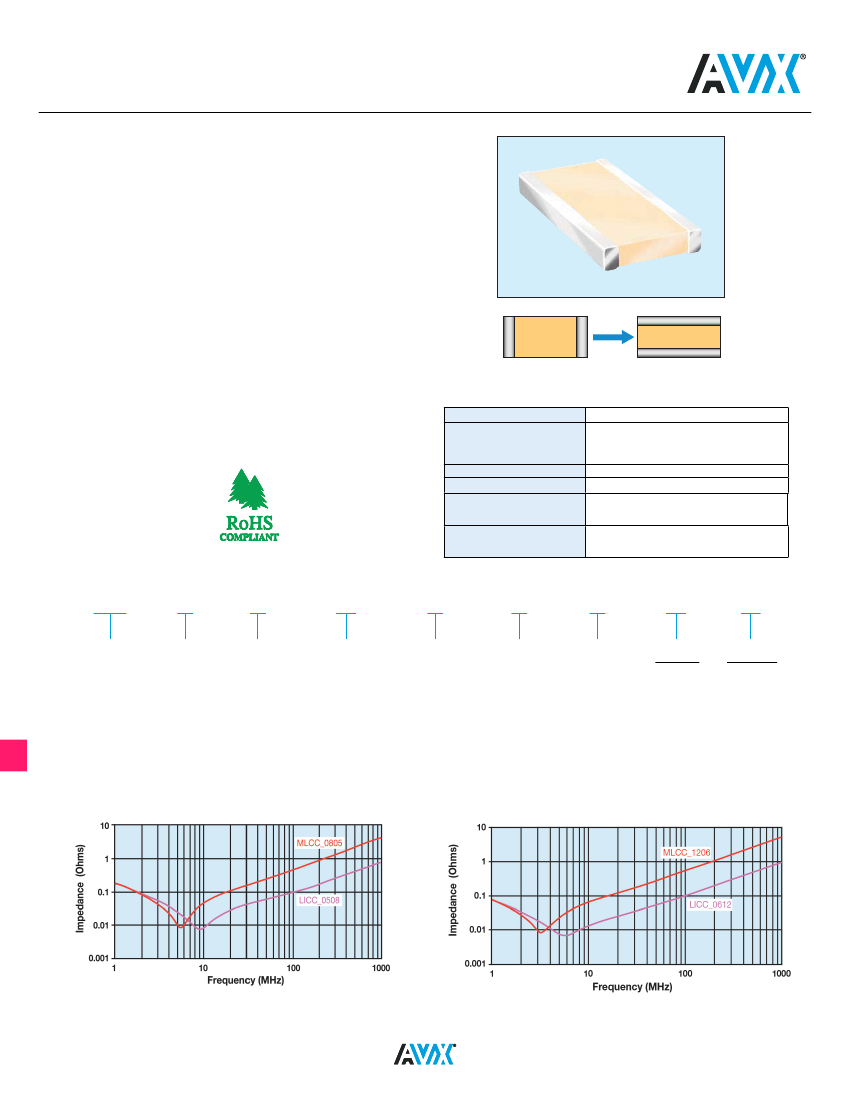

LOW INDUCTANCE CHIP CAPACITORS

The key physical characteristic determining equivalent series inductance

(ESL) of a capacitor is the size of the current loop it creates. The smaller

the current loop, the lower the ESL. A standard surface mount MLCC is

rectangular in shape with electrical terminations on its shorter sides.

A Low Inductance Chip Capacitor (LICC) sometimes referred to as

Reverse Geometry Capacitor (RGC) has its terminations on the longer

side of its rectangular shape.

When the distance between terminations is reduced, the size of

the current loop is reduced. Since the size of the current loop is the

primary driver of inductance, an 0306 with a smaller current loop has

significantly lower ESL then an 0603. The reduction in ESL varies by EIA

size, however, ESL is typically reduced 60% or more with an LICC versus

a standard MLCC.

INTERDIGITATED CAPACITORS

The size of a current loop has the greatest impact on the ESL

characteristics of a surface mount capacitor. There is a secondary

method for decreasing the ESL of a capacitor. This secondary method

uses adjacent opposing current loops to reduce ESL. The InterDigitated

Capacitor (IDC) utilizes both primary and secondary methods of

reducing inductance. The IDC architecture shrinks the distance between

terminations to minimize the current loop size, then further reduces

inductance by creating adjacent opposing current loops.

An IDC is one single capacitor with an internal structure that has been

optimized for low ESL. Similar to standard MLCC versus LICCs, the

reduction in ESL varies by EIA case size. Typically, for the same EIA

size, an IDC delivers an ESL that is at least 80% lower than an MLCC.
