LD065A391FAB7A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> LD065A391FAB7A

LD065A391FAB7A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, C0G, -/+30ppm/Cel TC, 0.00039uF, 1206; CategoryPassive components capacitor; File Size82KB，7 Pages; ManufacturerAVX

Download Datasheet Parametric View All

LD065A391FAB7A Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, C0G, -/+30ppm/Cel TC, 0.00039uF, 1206

LD065A391FAB7A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	AVX
package instruction	, 1206
Reach Compliance Code	_compli
ECCN code	EAR99
capacitance	0.00039 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.94 mm
JESD-609 code	e0
length	3.2 mm
Manufacturer's serial number	LD
multi-layer	Yes
negative tolerance	1%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	Bulk Cassette
positive tolerance	1%
Rated (DC) voltage (URdc)	50 V
series	LD
size code	1206
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
width	1.6 mm

LD065A391FAB7A Preview

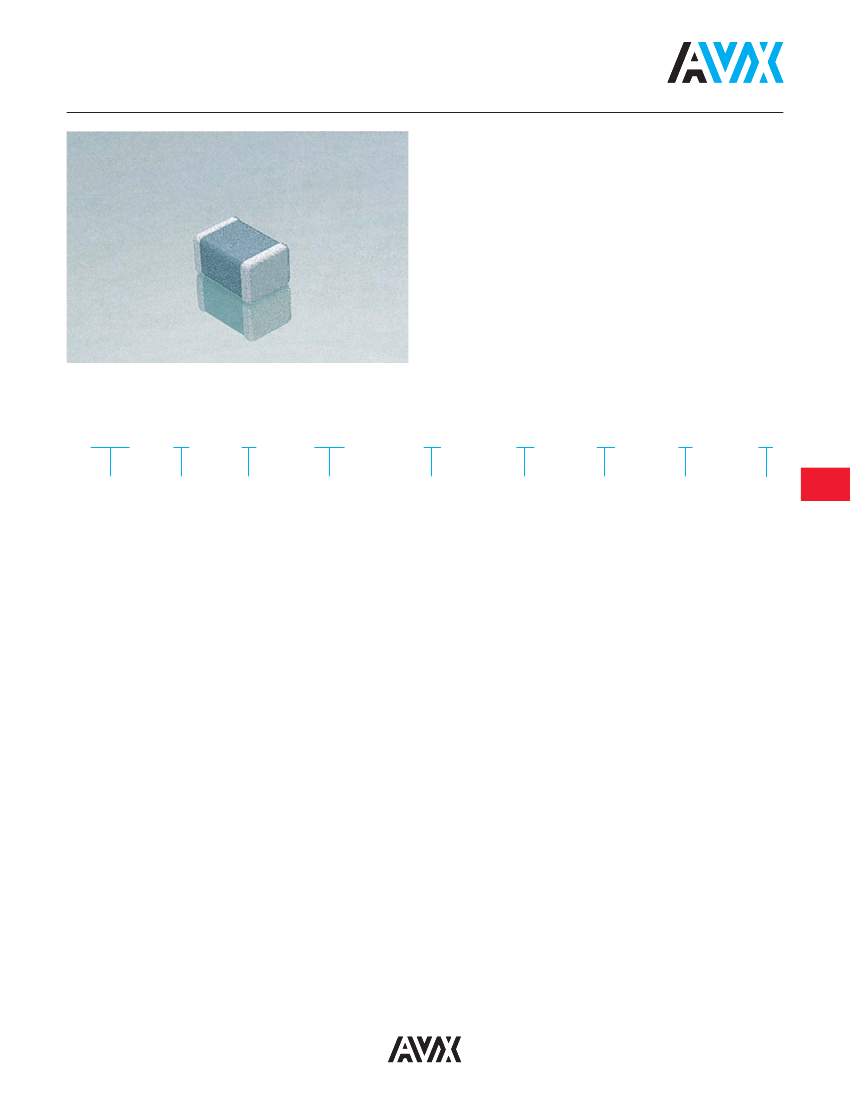

MLCC Tin/Lead Termination “B”

General Specifications

AVX Corporation will support those customers for

commercial and military Multilayer Ceramic Capacitors with

a termination consisting of 5% minimum lead. This

termination is indicated by the use of a “B” in the 12th

position of the AVX Catalog Part Number. This fulfills AVX’s

commitment to providing a full range of products to our

customers. AVX has provided in the following pages a full

range of values that we are currently offering in this special

“B” termination. Please contact the factory if you require

additional information on our MLCC Tin/Lead Termination

“B” products.

PART NUMBER (see page 2 for complete part number explanation)

LD05

Size

LD02 - 0402

LD03 - 0603

LD04 - 0504*

LD05 - 0805

LD06 - 1206

LD10 - 1210

LD12 - 1812

LD13 - 1825

LD14 - 2225

LD20 - 2220

101

Capacitance

Code (In pF)

2 Sig. Digits +

Number of

Zeros

Capacitance

Tolerance

±.10 pF (<10pF)

±.25 pF (<10pF)

±.50 pF (<10pF)

±1% (≥ 10 pF)

±2% (≥ 10 pF)

±5%

±10%

±20%

Packaging

2 = 7" Reel

4 = 13" Reel

7 = Bulk Cass.

9 = Bulk

Special

Code

A = Std.

Product

Dielectric

Voltage

6.3V = 6 C0G (NP0) = A

X7R = C

10V = Z

X5R = D

16V = Y

X8R = F

25V = 3

35V = D

50V = 5

100V = 1

200V = 2

500V = 7

Terminations

Failure

Rate

B = 5% min lead

A = Not X = FLEXITERM

Applicable

with 5% min

lead**

**X7R only

Contact

Factory

For

Multiples

*LD04 has the same CV ranges as LD03.

NOTE: Contact factory for availability of Tolerance Options for Specific Part Numbers.

Contact factory for non-specified capacitance values.

See FLEXITERM

section

for CV options

NP0

X7R

X7S

X5R

Y5V

Refer to page 4 for Electrical Graphs

Refer to page 16 for Electrical Graphs

Refer to page 20 for Electrical Graphs

Refer to page 23 for Electrical Graphs

Refer to page 26 for Electrical Graphs

MLCC Tin/Lead Termination “B”

Capacitance Range (NP0 Dielectric)

PREFERRED SIZES ARE SHADED

SIZE

Soldering

Packaging

(L) Length

(W) Width

(t) Terminal

Cap

(pF)

(in.)

WVDC

0.5

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

0.010

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.068

0.082

0.1

WVDC

LD02

Reflow/Wave

All Paper

1.00 ± 0.10

(0.040 ± 0.004)

0.50 ± 0.10

(0.020 ± 0.004)

0.25 ± 0.15

(0.010 ± 0.006)

LD03

Reflow/Wave

All Paper

1.60 ± 0.15

(0.063 ± 0.006)

0.81 ± 0.15

(0.032 ± 0.006)

0.35 ± 0.15

(0.014 ± 0.006)

LD05

Reflow/Wave

Paper/Embossed

2.01 ± 0.20

(0.079 ± 0.008)

1.25 ± 0.20

(0.049 ± 0.008)

0.50 ± 0.25

(0.020 ± 0.010)

100

LD06

Reflow/Wave

Paper/Embossed

3.20 ± 0.20

(0.126 ± 0.008)

1.60 ± 0.20

(0.063 ± 0.008)

0.50 ± 0.25

(0.020 ± 0.010)

100

200

Cap

(μF)

200

500

100

200

100

200

500

SIZE

Letter

Max.

Thickness

0.33

(0.013)

LD02

0.56

(0.022)

0.71

(0.028)

PAPER

0.90

(0.035)

LD03

0.94

(0.037)

1.02

(0.040)

1.27

(0.050)

LD05

1.40

(0.055)

1.52

1.78

(0.060)

(0.070)

EMBOSSED

2.29

(0.090)

LD06

2.54

(0.100)

2.79

(0.110)

MLCC Tin/Lead Termination “B”

Capacitance Range (NP0 Dielectric)

PREFERRED SIZES ARE SHADED

SIZE

Soldering

Packaging

(L) Length

(W) Width

(t) Terminal

Cap

(pF)

(in.)

WVDC

0.5

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

0.010

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.068

0.082

0.1

WVDC

LD10

Reflow Only

Paper/Embossed

3.20 ± 0.20

(0.126 ± 0.008)

2.50 ± 0.20

(0.098 ± 0.008)

0.50 ± 0.25

(0.020 ± 0.010)

100

200

LD12

Reflow Only

All Embossed

4.50 ± 0.30

(0.177 ± 0.012)

3.20 ± 0.20

(0.126 ± 0.008)

0.61 ± 0.36

(0.024 ± 0.014)

100

200

LD13

Reflow Only

All Embossed

4.50 ± 0.30

(0.177 ± 0.012)

6.40 ± 0.40

(0.252 ± 0.016)

0.61 ± 0.36

(0.024 ± 0.014)

100

LD14

Reflow Only

All Embossed

5.72 ± 0.25

(0.225 ± 0.010)

6.35 ± 0.25

(0.250 ± 0.010)

0.64 ± 0.39

(0.025 ± 0.015)

100

500

200

Cap

(μF)

100

200

500

100

200

500

100

200

100

200

SIZE

Letter

Max.

Thickness

0.33

(0.013)

0.56

(0.022)

LD10

0.71

(0.028)

PAPER

0.90

(0.035)

0.94

(0.037)

1.02

(0.040)

LD12

1.27

(0.050)

1.40

(0.055)

LD13

1.52

1.78

(0.060)

(0.070)

EMBOSSED

2.29

(0.090)

2.54

(0.100)

2.79

(0.110)

LD14

MLCC Tin/Lead Termination “B”

Capacitance Range (X8R Dielectric)

SIZE

271

331

471

681

102

152

182

222

272

332

392

472

562

682

822

103

123

153

183

223

273

333

393

473

563

683

823

104

124

154

184

224

274

334

394

474

684

824

105

Cap

(pF)

WVDC

270

330

470

680

1000

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

0.01

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.082

0.1

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.68

0.82

WVDC

LD03

25V

50V

25V

LD05

50V

25V

LD06

50V

Cap

(μF)

25V

50V

25V

50V

25V

50V

SIZE

Letter

Max.

Thickness

0.33

(0.013)

0.56

(0.022)

0.71

(0.028)

PAPER

0.90

(0.035)

LD03

0.94

(0.037)

1.02

(0.040)

1.27

(0.050)

LD05

1.40

(0.055)

1.52

1.78

(0.060)

(0.070)

EMBOSSED

2.29

(0.090)

LD06

2.54

(0.100)

2.79

(0.110)

MLCC Tin/Lead Termination “B”

Capacitance Range (X7R Dielectric)

PREFERRED SIZES ARE SHADED

SIZE

Soldering

Packaging

(L) Length

(W) Width

(t)

Terminal

Cap

(pF)

(in.)

WVDC

100

150

220

330

470

680

1000

1500

2200

3300

4700

6800

0.010

0.015

0.022

0.033

0.047

0.068

0.10

0.15

0.22

0.33

0.47

0.68

1.0

1.5

2.2

3.3

4.7

100

WVDC

LD02

Reflow/Wave

All Paper

1.00 ± 0.10

(0.040 ± 0.004)

0.50 ± 0.10

(0.020 ± 0.004)

0.25 ± 0.15

(0.010 ± 0.006)

LD03

Reflow/Wave

All Paper

1.60 ± 0.15

(0.063 ± 0.006)

0.81 ± 0.15

(0.032 ± 0.006)

0.35 ± 0.15

(0.014 ± 0.006)

LD05

Reflow/Wave

Paper/Embossed

2.01 ± 0.20

(0.079 ± 0.008)

1.25 ± 0.20

(0.049 ± 0.008)

0.50 ± 0.25

(0.020 ± 0.010)

LD06

Reflow/Wave

Paper/Embossed

3.20 ± 0.20

(0.126 ± 0.008)

1.60 ± 0.20

(0.063 ± 0.008)

0.50 ± 0.25

(0.020 ± 0.010)

25 50

100

6.3

100

200

6.3

100

200

6.3

200

500

Cap

(μF

6.3

100

200

6.3

100

200

6.3

100

200

500

SIZE

Letter

Max.

Thickness

0.33

(0.013)

LD02

0.56

(0.022)

0.71

(0.028)

PAPER

0.90

(0.035)

LD03

0.94

(0.037)

1.02

(0.040)

1.27

(0.050)

LD05

1.40

(0.055)

1.52

1.78

(0.060)

(0.070)

EMBOSSED

2.29

(0.090)

LD06

2.54

(0.100)

2.79

(0.110)

= Under Development

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
