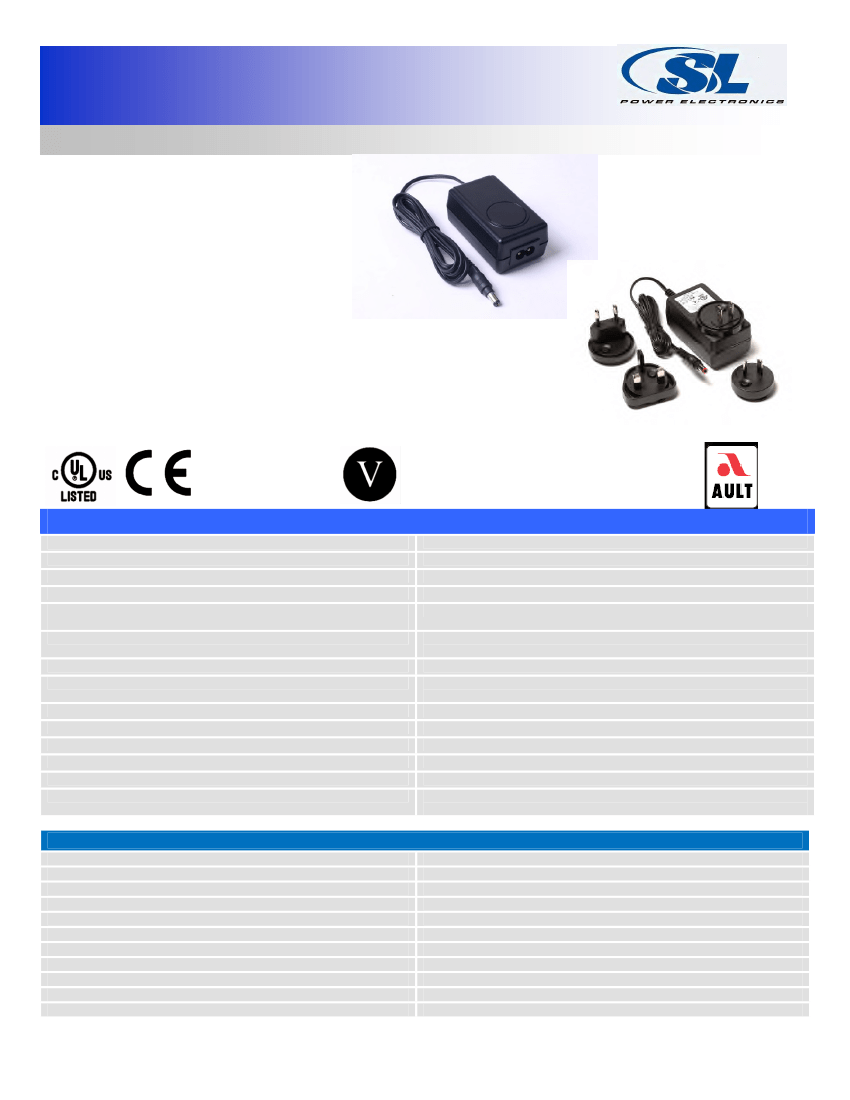

CENB1010
Universal 10 Watt Series
ITE Switch-Mode Power Supply
•
100-240VAC Universal Input Range
•
Meets EISA2007, CEC Efficiency Level V,
3 Year Warranty
EU (EC) No 278/2009 Phase II
•
Desktop & Wall Plug Styles
•
5V to 48V Single Output Models, up to 12W
•
Modified and Custom Designs Available
•
Regulated Output with Low Ripple
•
Impact-Resistant Polycarbonate Enclosure
•
No load Power Consumption <0.3W
•
Limited Power Source
•
Certified to UL/EN/IEC60950-1, 2
nd
Edition
RoHS
Specifications
AC Input
Input Current
Inrush Current
Input Fuse
Efficiency
Output Voltage
Output Power
Ripple and Noise
Line & Load Voltage Regulation
Minimum Load
Case Material
Case Dimensions
Weight
100-240VAC, -/-10%, 47-63 Hz, 1
100Vac: 0.27A
60 A peak max at 264 Vac
Meets EISA2007, CEC Efficiency Level V,
EU (EC) No 278/2009 Phase II
See chart
See chart
1% pk-pk max., 20MHz BW
Line: +/- 1%, Load: +/-5%
Not required
Black 94V-0 Polycarbonate
84 x 47 x 32mm. See outline drawing
110g
Internal
Primary Current Fuse provided (1A, 250Vac rated)
LPS
All Specifications are typical at nominal input, full load at 25
C unless otherwise stated.
MTBF
Hold-up Time
Overload Protection
Short Circuit Protection
Topology
Safety Standards
EMC, Radiated & Conducted
Dielectric Withstand
>100,000 hours (calculated)
18 ms min. @ 115Vac, 60 ms min. @ 230 Vac
Hiccup Mode
Hiccup Mode
Switching – Fixed Frequency Flyback
EN/IEC/CSA/UL60950-1, 2
nd
Edition, LPS
See Chart below
Input-Output: 4,242Vdc,
Input-Ground: 1,500 Vac, Output-Ground: 500 Vdc
Operating Temperature
0 to 40C, no derating
Storage Temperature
Relative Humidity
Altitude
Output Cable
Output Connector
-30 to +85C
5% to 95%, non-condensing
0 to 10,000 ft
#20AWG (UL2468), 1500mm, 2 conductor
2.5mm barrel type (Ault #3), center contact (+)
Other options available, contact the factory for details
EMC Specifications
Conducted Emissions
Radiated Emissions
Line Frequency Harmonics
Voltage Fluctuations/Flicker
Static Discharge Immunity
Radiated RF Immunity
EFT/Burst Immunity
Line Surge Immunity
Conducted RF Immunity
Power Frequency Magnetic Field Immunity
Voltage Dip Immunity
EN55022 Class B, FCC Part 15, Class B.
EN55022 Class B, FCC Part 15, Class B.
EN61000-3-2, Class A
EN61000-3-3
EN61000-4-2, 6kV Contact Discharge, 8kV air discharge
EN61000-4-3, 3V/m.
EN61000-4-4, 2kV/5kHz.
EN61000-4-5, 1kV differential, 2kV common-mode
EN61000-4-6, 3Vrms
EN61000-4-8, 3A/m
EN61000-4-11, Criteria B
________________________________________________________________________________________________________________________________
1 of 3
SL Power Electronics Corp
6050 King Drive Ventura, CA 93003
Phone 805.486.4565
Fax 858.712.2040
Email: info@slpower.com
www.slpower.com
CENB1010
Universal 10 Watt Series
ITE Switch-Mode Power Supply
Model Number
Volts (V)
Output Current (max)
3 Year Warranty
Max Watts
Ripple (Vp-p max)
CENB1010A0503F01
5V
2.00 A
10.0 W
50 mV
CENB1010A0603F01
6V
2.00 A
12.0 W
60 mV
CENB1010A0703F01
7.5 V
1.60 A
12.0 W
75 mV
CENB1010A0903F01
9V
1.10 A
10.0 W
90 mV
CENB1010A1203F01
12 V
1.00 A
12.0 W
120 mV
CENB1010A1503F01
15 V
0.80 A
12.0 W
150 mV
CENB1010A1603F01
16 V
0.75 A
12.0 W
160 mV
CENB1010A1803F01
18 V
0.67 A
12.0 W
180 mV
CENB1010A2403F01
24 V
0.50 A
12.0 W
240 mV
CENB1010A4803F01
48 V
0.25 A
12.0 W
480 mV
Notes: Part numbers above include #3 output connector and IEC320 C14 grounded input receptacle. See below for other options.
Model Number Key
CENB 1 010 A VV 03 F 01
Model
Input Connector:
Output Connector:
Output Voltage:
Model
Output Pow er:
# of Outputs
Product Family:
"01" = Standard. "02" and higher indicates a modified m odel.
"F" = IEC320 C14 grounded, Other options available, see below
"03" = 2.5m m Barrel Type Connector. Other options available, contact factory.
"05" = 5Vdc, "12" = 12Vdc, "24" = 24Vdc, etc.
"A" = Original Configuration
"010" = 10 Watts
"1" = Single Output
"C" = Com m ercial/ITE/Industrial, "E" = External, "NB" = Model Series Designator
AC Input Receptacle Options
Desktop
Wall-Plug
Output Connector
IEC320 - C14
Class I
Grounded
IEC320 - C18
Class II
Ungro unded
IEC320 - C8
Class II
"Shaver"
N. Am erica
Japan
Fixed
Int e rc ha nga ble
N. Am erica
Japan
Europe
Fixed
United
Kingdom
Fixed
Australia
Fixed
(F)
Notes:
(Q)
(N)
(B)
(C)
(M)
(G)
(H)
Notes:
1. Ault #3 Connector, center contact (+).
2. Connector is Sw itchcraft 760 plug or equivalent.
Mating connector is Sw itchcraft 712A or equivalent.
3. Other connector options are available. Contact your local
SL Pow er Representative for details.
1. For desktop options, choose applicable letter above.
2. For Wall-Plug options, choose the applicable letter above and the unit w ill be fitted w ith
the receptacle chosen. The N. A. blade version (B) w ill be an interchangeable blade.
The other options (C), (M), (G), and (H) w ill be fixed blades m olded in the case.
3. Blade Kit is available w hich w ill include one each of a EU, UK, and Australian blade. Kit part #
is KT1027K. These can be used w ith the (B) version, to allow blades to be changed.

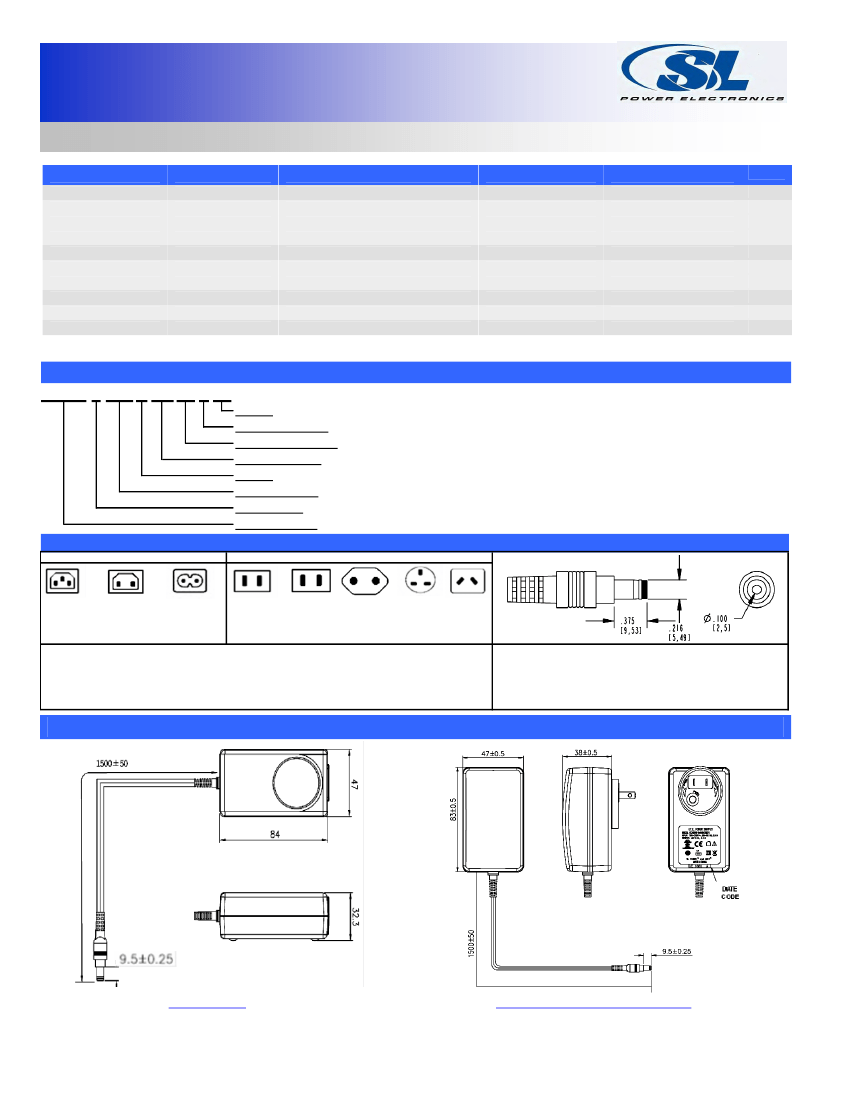

Outline Drawings
Desktop Style
Wall-Plug Style (Option “B” Shown)
________________________________________________________________________________________________________________________________
2 of 3
SL Power Electronics Corp
6050 King Drive Ventura, CA 93003
Phone 805.486.4565
Fax 858.712.2040
Email: info@slpower.com
www.slpower.com
CENB1010
Universal 10 Watt Series
ITE Switch-Mode Power Supply
3 Year Warranty

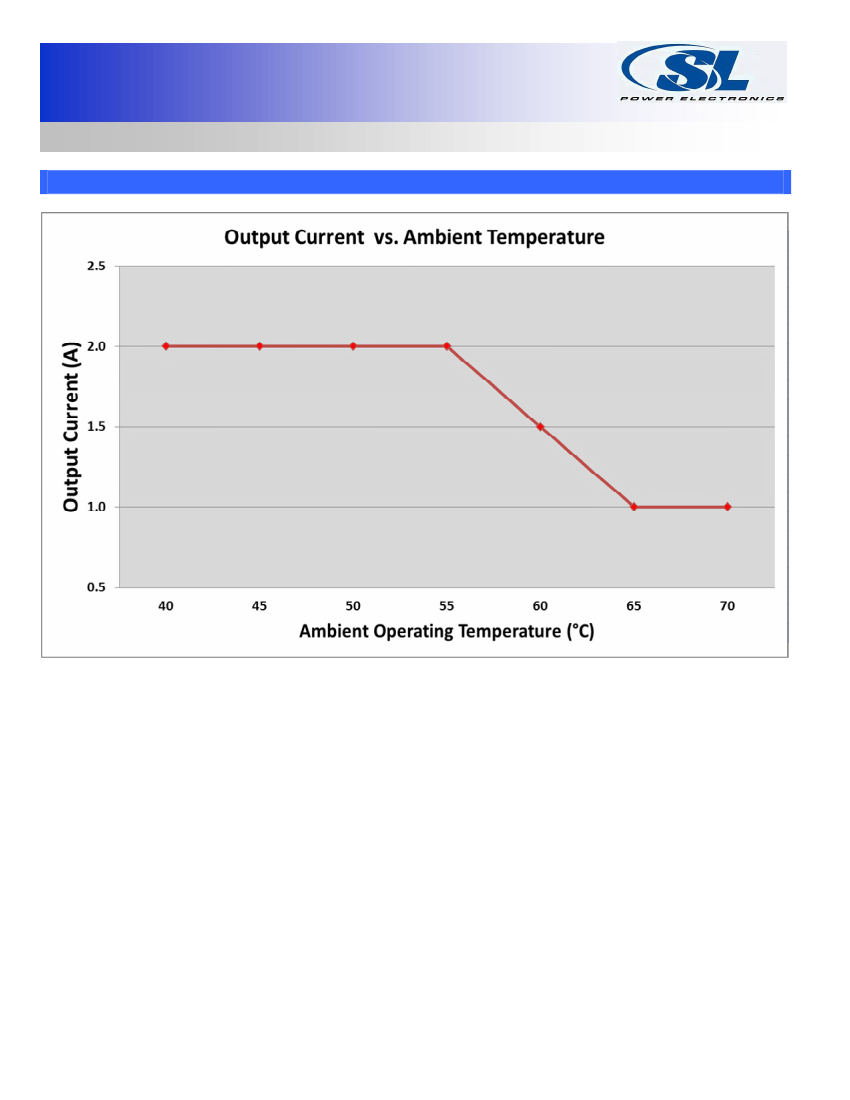

Output Derating Chart
(5V Model, 90-264Vac input range)
Data Sheet © 2012 SL Power Electronics Corp. The information and specifications contained herein are believed to be correct at the time of publication.
Rev. 12-18-2012
However, SL Power accepts no responsibility for consequences arising from reproduction errors or inaccuracies. Specifications are subject to change without notice.
________________________________________________________________________________________________________________________________
3 of 3
SL Power Electronics Corp
6050 King Drive Ventura, CA 93003
Phone 805.486.4565
Fax 858.712.2040
Email: info@slpower.com
www.slpower.com
