LMXN13L9M100CTAS datasheet, PDF

Datasheet> All Categories > Passive components> inductor> LMXN13L9M100CTAS

LMXN13L9M100CTAS: DescriptionGeneral Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD, 5137, CHIP, 5137, ROHS COMPLIANT; CategoryPassive components inductor; File Size112KB，4 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

LMXN13L9M100CTAS Overview

General Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD, 5137, CHIP, 5137, ROHS COMPLIANT

LMXN13L9M100CTAS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1217025701
package instruction	5137
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.1
uppercase and lowercase codes	5137
structure	Unshielded
core material	FERRITE
DC Resistance	0.04 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	11.43 mm
Package length	12.95 mm
Package form	SMT
Package width	9.4 mm
method of packing	TR, 13 Inch
Maximum rated current	8 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

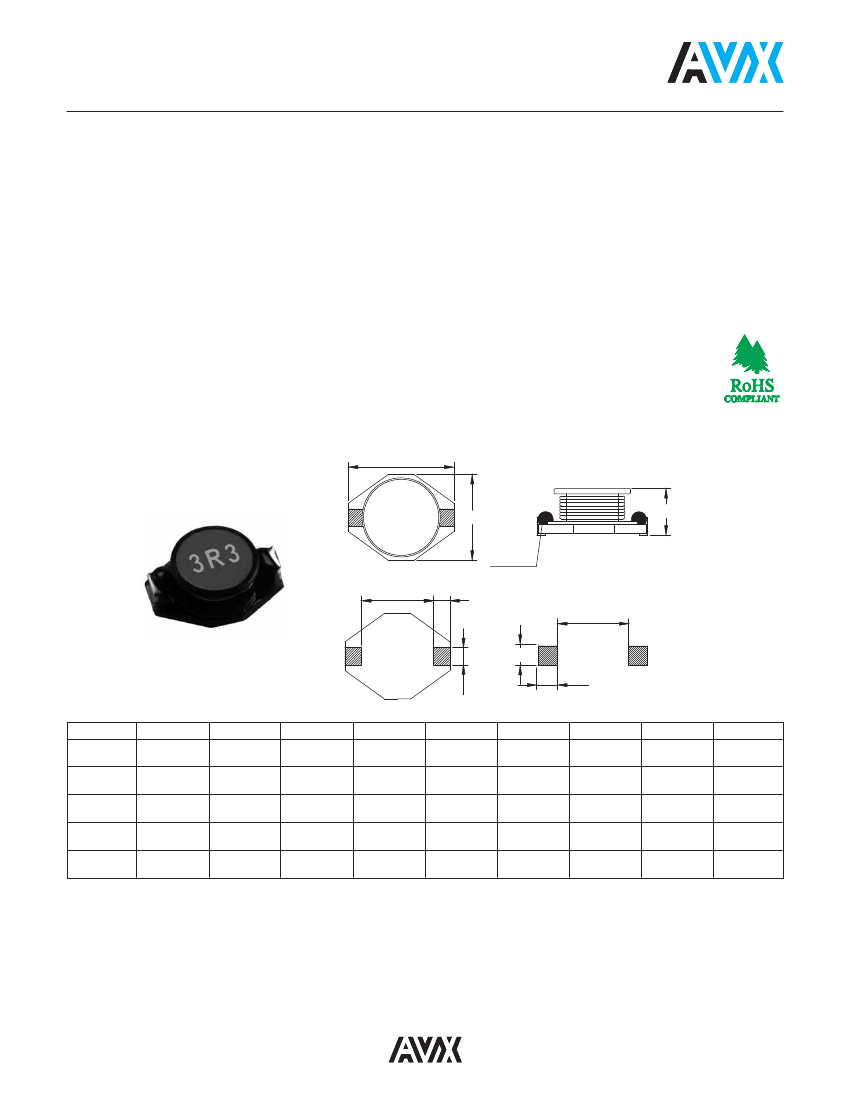

LMax SMD Power Inductor

LMXN Series – Non-Shielded Style C

FEATURES

• High power, High saturation inductors

• Ideal inductors for DC-DC converters in notebook computers,

PDAs, Step-up or step-down converters, flash memory

programmers, etc.

• 0705 has ceramic base with gold-plating

• Others have LCP plastic base

CHARACTERISTICS

• Saturation Rated Current: The current when the inductance

becomes 10% lower than its initial value. (Ta=25°C)

• Operating temperature range: -40

125°C

INDUCTANCE AND RATED

CURRENT RANGES

• 0705

1.0μH

1000μH

2.9

0.10A

• 1309

4.7μH

1000μH

4.2

0.29A

• 13E9

1.0μH

1000μH

9.0

0.30A

• 13L9

0.47μH

1000μH 40

0.8A

• 1915

1.0μH

1000μH

1.0A

• Electrical specifications at 25°C

APPLICATIONS

• Portable Telephones

• Personal Computers

• DC/DC Converters

• Various Electronic Appliances

DIMENSIONS

4R7

EPOXY

mm (inches)

Type

0705

1309

13E9

13L9

1915

A max.

6.60

(0.260)

12.95

(0.510)

12.95

(0.510)

12.95

(0.510)

18.54

(0.730)

B max.

4.45

(0.175)

9.40

(0.370)

9.40

(0.370)

9.40

(0.370)

15.24

(0.600)

C max.

2.92

(0.115)

3.00

(0.118)

5.21

(0.205)

11.43

(0.450)

7.11

(0.280)

4.32

(0.170)

7.62

(0.300)

7.62

(0.300)

7.62

(0.300)

12.7

(0.500)

1.27

(0.050)

2.54

(0.100)

2.54

(0.100)

2.54

(0.100)

2.54

(0.100)

1.02

(0.040)

2.54

(0.100)

2.54

(0.100)

2.54

(0.100)

2.54

(0.100)

3.56

(0.140)

2.79

(0.110)

2.79

(0.110)

2.79

(0.110)

2.79

(0.110)

1.40

(0.055)

2.92

(0.115)

2.92

(0.115)

2.92

(0.115)

2.92

(0.115)

4.06

(0.160)

7.37

(0.290)

7.37

(0.290)

7.37

(0.290)

12.45

(0.490)
