BA08CC0WFP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BA08CC0WFP

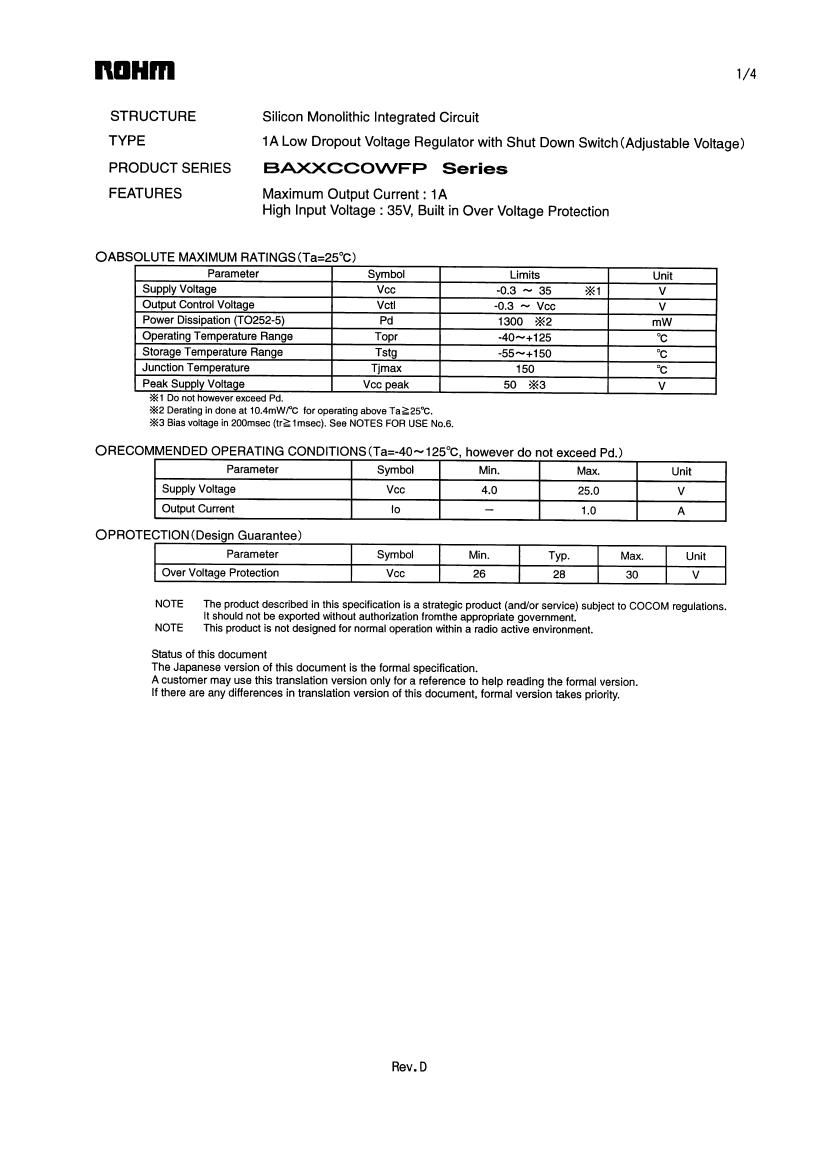

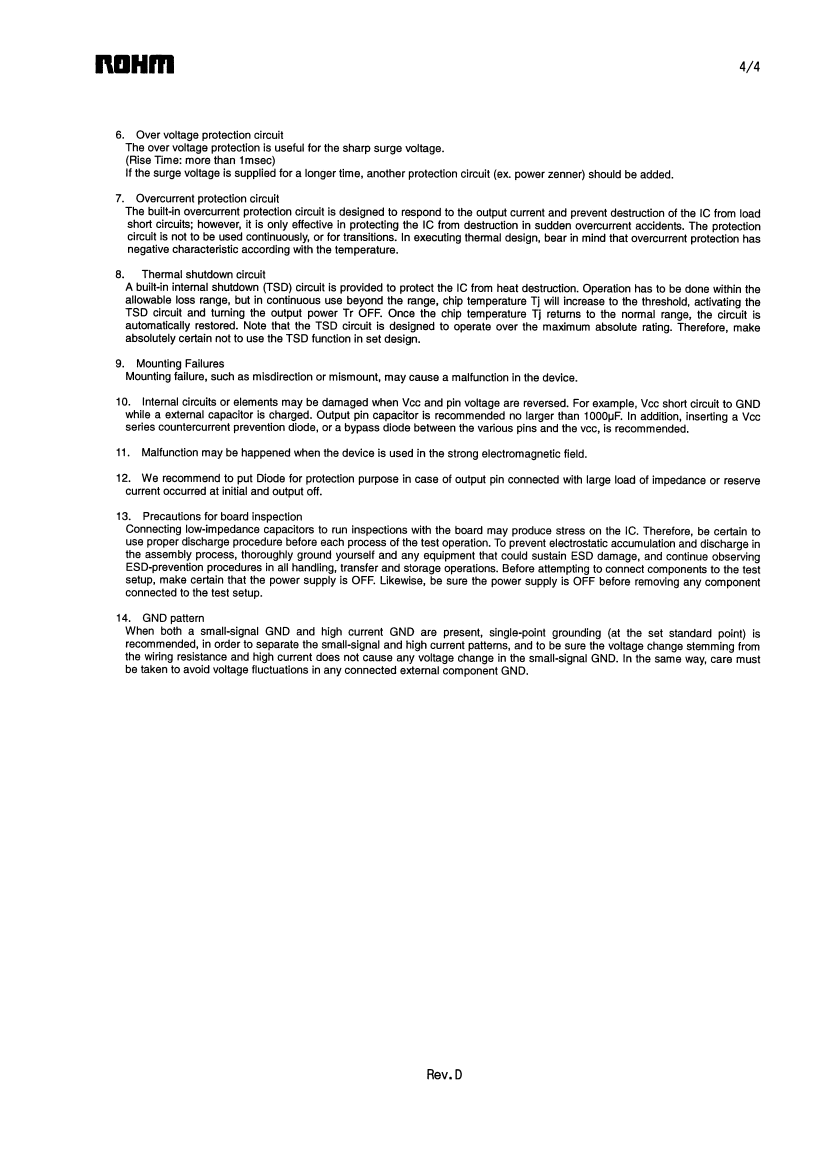

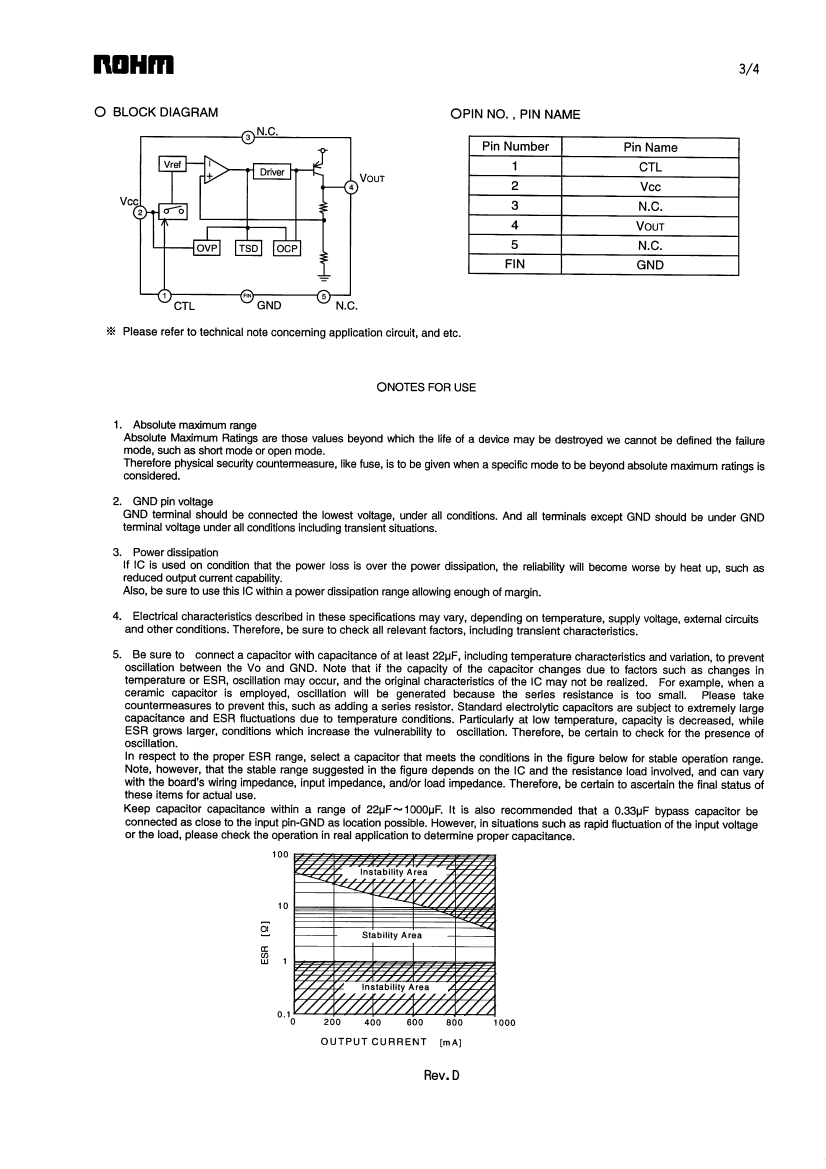

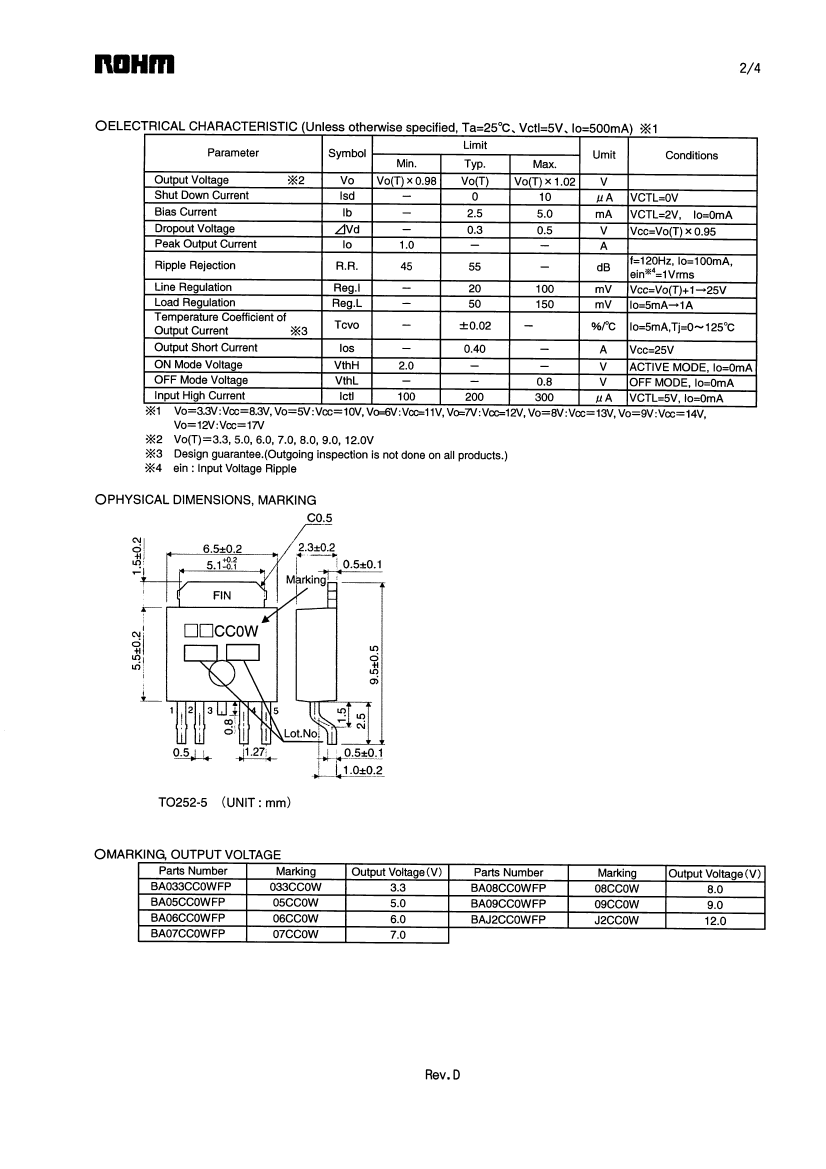

BA08CC0WFP: Description1A Low Dropout Voltage Regulator with Shut Down Switch (Adjustable Voltage); CategoryPower/power management The power supply circuit; File Size368KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA08CC0WFP Overview

1A Low Dropout Voltage Regulator with Shut Down Switch (Adjustable Voltage)

BA08CC0WFP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	TO-252
package instruction	TO-252, SMSIP5H,.37,50TB
Contacts	4
Reach Compliance Code	compli
ECCN code	EAR99
Adjustability	FIXED
Maximum drop-back voltage 1	0.5 V
Nominal dropback voltage 1	0.3 V
Maximum absolute input voltage	35 V
Maximum input voltage	25 V
Minimum input voltage	4 V
JESD-30 code	R-PSSO-G4
JESD-609 code	e2
length	6.5 mm
Maximum grid adjustment rate	0.1%
Maximum load regulation	0.15%
Number of functions	1
Output times	1
Number of terminals	4
Working temperatureTJ-Max	125 °C
Operating temperatureTJ-Mi
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current 1	1 A
Maximum output voltage 1	8.16 V
Minimum output voltage 1	7.84 V
Nominal output voltage 1	8 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-252
Encapsulate equivalent code	SMSIP5H,.37,50TB
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	2.5 mm
surface mount	YES
technology	BIPOLAR
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	2%
width	5.5 mm
Base Number Matches	1
