7741 North Business Park Drive
Tucson, Arizona 85743
Ph: (520) 744-0400 Fax:(520) 744-6155
Web Site: www.tusonix.com
E-mail: sales@tusonix.com

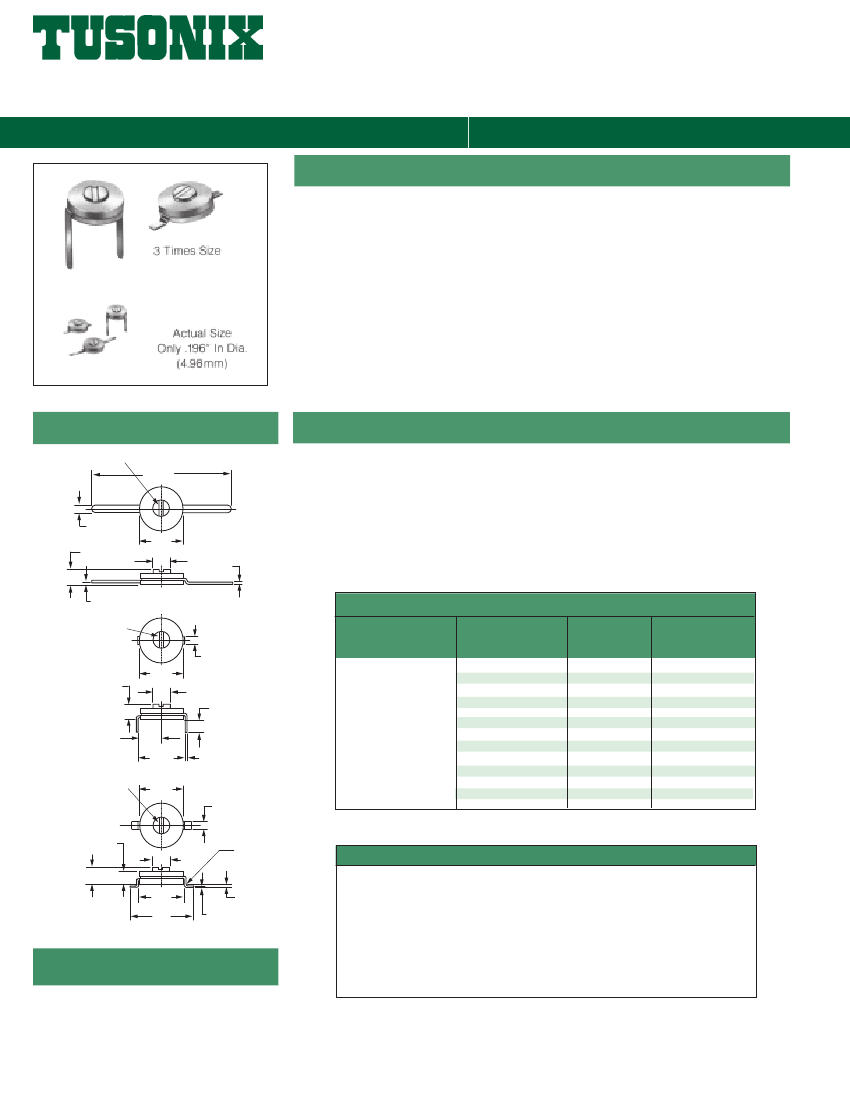

513 Series Trimmer Capacitor
Trimmer
Outstanding Features
♦
♦
♦
♦
♦
♦
Only .196”/4.98mm diameter x .080”/2.03 mm high.
Ideal for wide range of products requiring real miniaturized capacitance
trimming.
Operates efficiently at -55°C to +85°C.
Available in your choice of three basic terminal arrangements.
No metal or mechanical attachments protruding beneath the base plane.
Monolithic Rotor design offers optimum stability for higher capacitance
ranges. Eliminates need to use unstable higher K dielectric materials.
Monolithic construction offers greater ruggedness which cannot be achieved
when using single plate construction, particularly with fragile Hi-K Dielectric
materials.
Terminal Variations
.016 WIDE x .012 DEEP
SCREWDRIVER SLOT
513-000
-020
.600
[15.24]
Applications
The 513 VARI-Thin Ceramic Trimmer
Capacitor is another miniaturized offer-
ing. Only .196” in diameter and 080” high
the TUSONIX 513 is perfect for avionics
apparatus, communications equipment,
oscilloscopes, crystal oscillators,
and crystal filters
—
an almost endless
variety of applications requiring minia-
turized capacitance trimming. The tiny
513
VARI-Thin
is available with three
basic terminal arrangements as shown
at left.
.042
[1.07]
.080
[2.03]
.196
[4.98]
.090 .005
[2.29] [0.13]
.013 [0.33]
.016 WIDE x .012 DEEP
SCREWDRIVER SLOT
.042
[1.07]
.090
[2.29]
.150 MIN.
[3.81 MIN.]
.100
[2.54]
.200
[5.08]
.016 WIDE x .012 DEEP
SCREWDRIVER SLOT
.196
[4.98]
.042
[1.07]
.064
[1.63]
.100 MAX.
[2.54 MAX.]
.200
[5.08]
.275
[6.98]
BEND ANGLES
TO BE
90˚ ± 5˚
(2) PLCS.
.012
[0.31]
.007 ±.001
[0.17 ±0.03]
.005 [0.13]
513-019*
-022*
513- 001
-021
Ordering Data
-000, -001, -019
Cap. (pF)
Begin with ‘0’, specify
series 513 followed by
the three digit variation
you select from the
chart at the left. Then
list the Dielectric type
code from the table at
the right and the corre-
sponding Capacitance
Range. Example:
0513-000A1-5
Dielectric
Type
Code
A
A
A
A
A
A
A
A
A
A
F
A
-020, -021, --022
Cap. (pF)
1.0-2.5
1.5-3.0
2.0-5.0
2.5-9.0
4.5-14.0
.196
[4.98]
.080
[2.03]
1.0-5.0
2.0-10.0
3.5-20.0
5.0-30.0
6.0-35.0
7.0-40.0
6.0-20.0
Minimum to maximum capacitance achieved through 180° rotation.
.090
[2.29]
Specifications
Working Voltage . . . . . . . . . . . . . . . . . . . . . . . . . 100Vdc to 85°C
Dielectric Strength . . . . . . . . Two Times WVdc for 1 to 5 seconds
Operating Temperature Range . . . . . . . . . . . . . . . -55°C to +85°C
Q Factor @ 1 MHz . . . . . . . . . . .500 Min. ( Dielectric Code A & F)
Insulation Resistance. . . . . . 10 gigaohms minimum at 25°C ±5°C
Torque . . . . . . . . . . . . . . . . . . . . . . . 0.3 to 2.0 oz.in.[0.2-1.4 Ncm]
Qualification Specification. . . . . . . . . . . . . . . . . . . . . . . . Page 6
For other capacitance ranges and terminal arrangements, call the
nearest TUSONIX Sales office or call Tusonix Headquarters at
(520) 744-0400.
*Variation 513-019, -022 is supplied on tape
and reel, for auto placement
For dimensions
≤
.125”/3.18mm, tolerance is
±.005/0.13
For dimensions
≥
.126”/3.20mm, tolerance is
±.015/0.38
