DFVS2-KHZFREQ100XB50: DescriptionHCMOS Output Clock Oscillator, 2MHz Min, 60MHz Max, MINIATURE PACKAGE-6; CategoryPassive components oscillator; File Size257KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric Compare View All

DFVS2-KHZFREQ100XB50 Overview

HCMOS Output Clock Oscillator, 2MHz Min, 60MHz Max, MINIATURE PACKAGE-6

DFVS2-KHZFREQ100XB50 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	compli
Maximum control voltage	5 V
Minimum control voltage
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	50%
Manufacturer's serial number	DFV S2-KHZ
Installation features	SURFACE MOUNT
Maximum operating frequency	60 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7.2mm x 5.3mm x 3.2mm
longest rise time	5 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

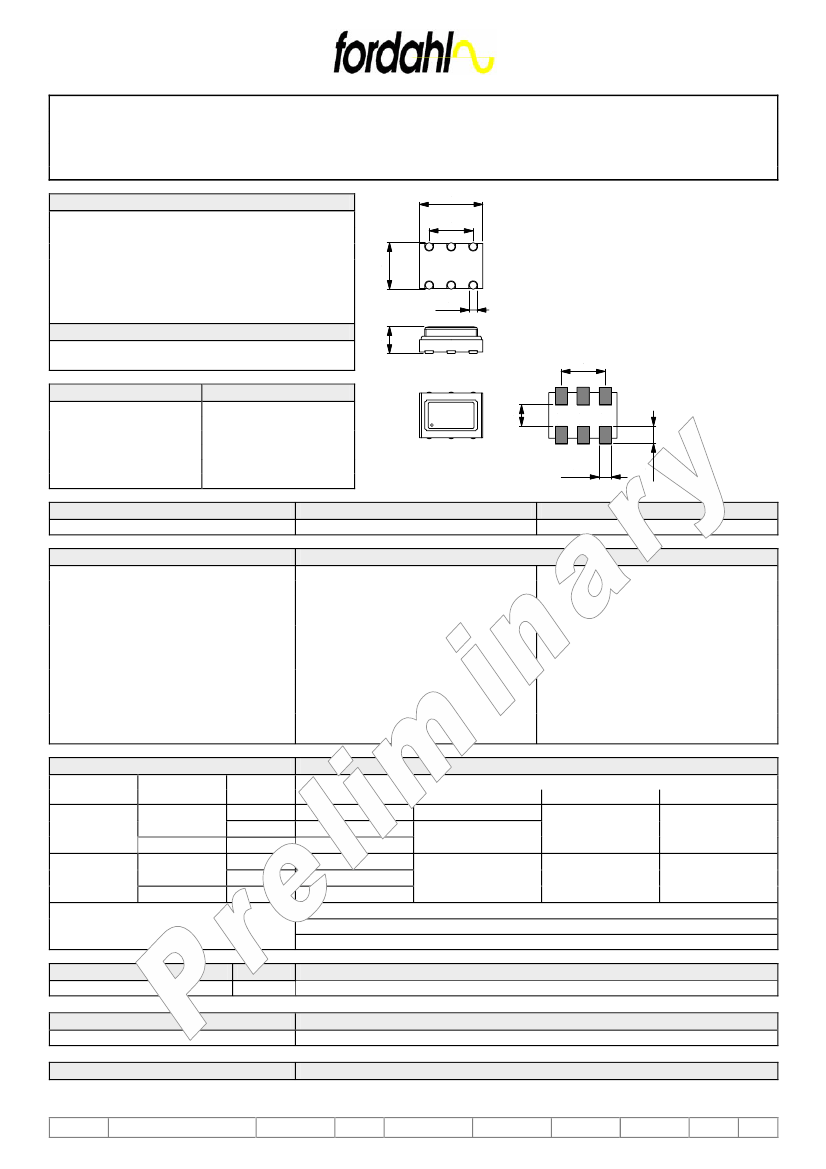

FREQUENCY CONTROL PRODUCTS

MINIATURE SURFACE MOUNT VCXO

DFV S2-KHZ (5 V) & DFV S2-LHZ (3.3 V)

KEY FEATURES

2 to 60 MHz

± 20 ppm overall stability available

Encapsulated crystal

APPLICATIONS

Sonet/SDH/Switching

Function

V control

N/C or Enable/Disable

GND

Output

N/C or Enable/Disable

Vcc

3.2±0.2

5.3±0.1

7.2±0.2

5.08

0.9

5.08

DFV S2

1

2

3

4

5

6

1

5

2

4

3

2.4

PC board footprint

1.4

TYPE

Frequency Range

DFV S2-KHZ

2 to 60 MHz

DFV S2-LHZ

2 to 60 MHz

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

output load (HCMOS)

duty cycle

rise/fall times (@ 15 pF load)

high/low levels

tri-state control (pin 2) (pin 5 N/C)

start up

≤

25 MHz

> 25 MHz

5V±5%

≤

15 mA

≤

35 mA

25 pF up to 25 MHz, 15 pF above

45/55...55/45 % @ 50% level

10 to 90 % :

≤

5 ns

≥

4.5 V/

≤

0.5 V

high or open = enable, low = high Z

≤

10 ms @ 4.75 V

3.3 V ± 5 %

≤

10 mA

≤

25 mA

15 pF

45/55...55/45 % @ 50% level

10 to 90 % :

≤

5 ns

≥

2.8 V/

≤

0.3 V

high or open = enable, low = high Z

≤

10 ms @ 3.15 V

FREQUENCY STABILITY

type

DFV S2-KHZ

temperature

range

0 to 70°C

-40 to 85°C

DFV S2-LHZ

0 to 70°C

-40 to 85°C

remarks

model

code

100XB20

100XB25

100XE50

90XB20

90XB25

90XE50

overall stability

≤

± 20

≤

± 25

≤

± 50

≤

± 20

≤

± 25

≤

± 50

tolerances [ ppm ]

pulling range

≥

± 100

≥

± 100

≥

± 90

function

positive

control voltage

2.5 V ± 2.5 V

positive

2.0

1.65 V ± 1.65 V

input impedance

≥

10 kΩ

includes calibration @ 25°C, temperature, ageing, Vcc and load changes

ageing is 1

st

year at 25°C

CODE

Z5

OPTIONS

tri-state control on pin 5

high or open = enable, low = high Z (pin 2 N/C)

ORDERING CODE

Example

type + option code + frequency + model code

DFV S2-LHZ 34.368 MHz 90XB20

REMARK

Preliminary data sheet subject to change without notice

TYPE

DFV S2-KHZ & LHZ

REVISION

PL00

CHECKED

NE

DATE

10.10.2004

PAGE

39
