Parallel - Fundamental Quartz Crystal, 31.25MHz Nom,
SA204312F17MGR Parametric
Parameter Name
Attribute value
Is it Rohs certified?
conform to
Maker
CTS
Reach Compliance Code
compli
Other features
AT CUT; AEC-Q200
Ageing
3 PPM/YEAR
Crystal/Resonator Type
PARALLEL - FUNDAMENTAL
Drive level
10 µW
frequency stability
0.015%
frequency tolerance
10 ppm
JESD-609 code
e4
load capacitance
30 pF
Installation features
SURFACE MOUNT
Nominal operating frequency
31.25 MHz
Maximum operating temperature
125 °C
Minimum operating temperature
-55 °C
physical size
2mm x 1.6mm x 0.5mm
Series resistance
100 Ω
surface mount
YES
Terminal surface
Gold (Au) - with Nickel (Ni) barrie
SA204312F17MGR Preview
SA204 Series
Features
Automotive Grade Quartz Crystal
AEC-Q200 Compliant
Hermetic Ceramic Surface Mount Package
Fundamental Crystal Design
Frequency Range 16 – 96MHz
Frequency Tolerance, ±30ppm Standard
Frequency Stability, ±50ppm Standard
Operating Temperature Range to -55°C to +125°C

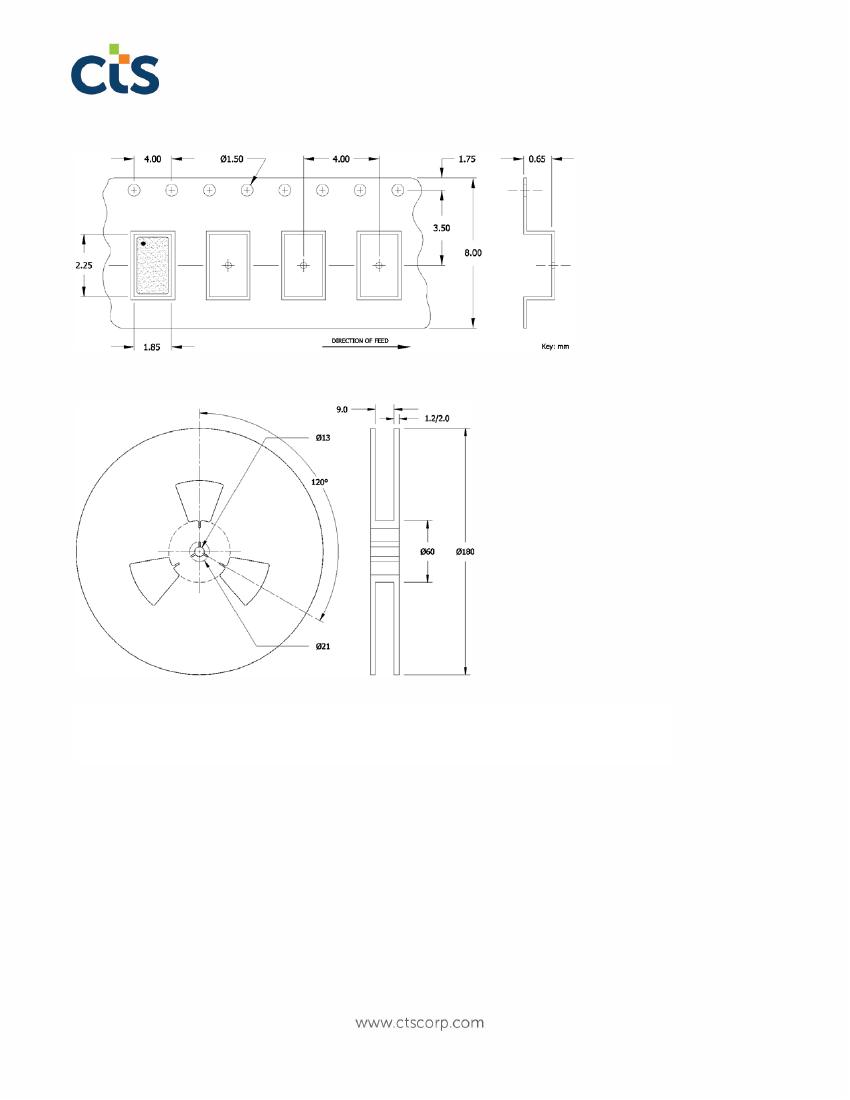

Tape and Reel Packaging, EIA-418

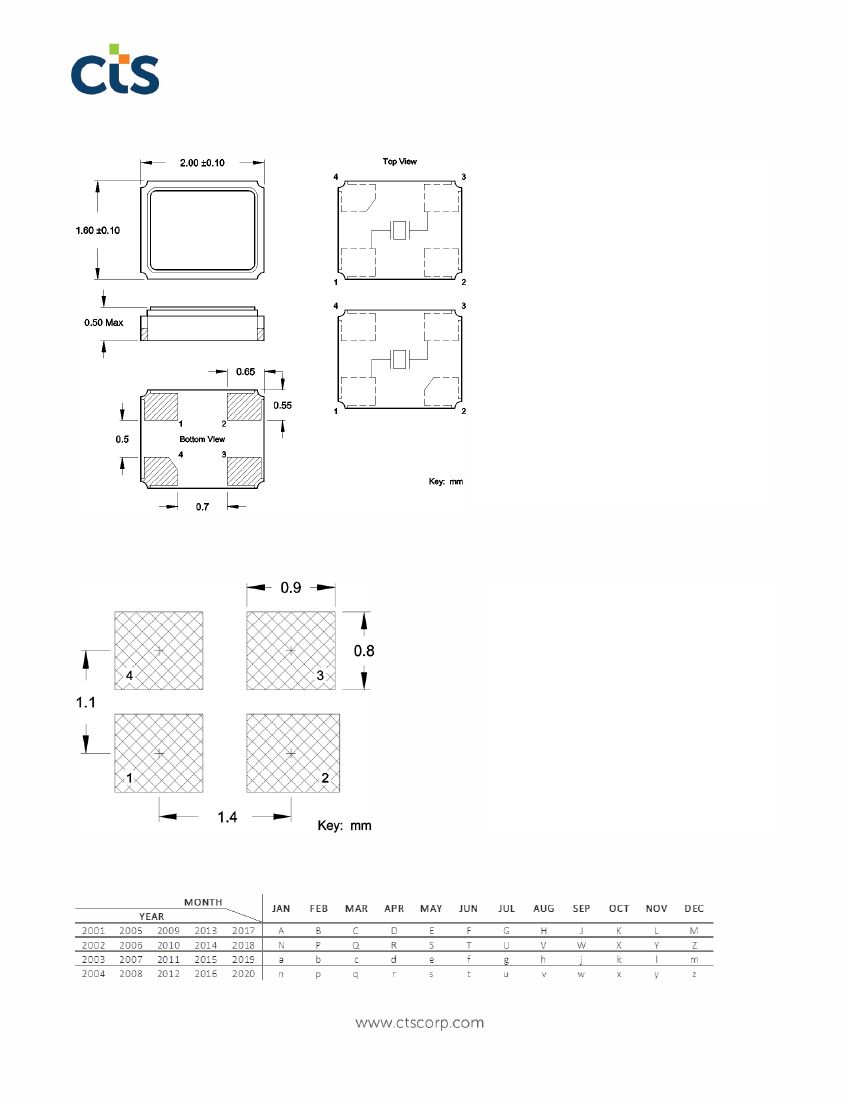

Part Dimensions:
2.0 × 1.6 × 0.5mm
•
5.70mg
Standard Frequencies – see Page 5 for developed frequencies.
* Check with factory for availability of frequencies not listed.
Applications
Automotive Electronics
Mobile Multimedia/Infotainment
Car Navigation Systems
Internet of Things [IoT, IIot]
Microcontrollers and FPGAs
Wireless Communication
Ethernet/GbE/SyncE
Medical Electronics
Commercial Military & Aerospace
Description
CTS Model SA204 incorporates a low cost, high Q, small size quartz resonator specifically developed to operate
over extended temperature ranges for use in automotive electronics.
Ordering Information
Model
SA204
Frequency Code
[MHz]
XXX
Mode of
Oscillation
F
Tolerance
@ +25°C
3
Temperature
Stability
5
Temperature
Range
G
Load
Capacitance
A
Packaging
R
Code
Frequency
Product Frequency Code
1
Code
1
X
2
3
5
Tolerance
±10ppm
±15ppm
±20ppm
±30ppm
±50ppm
Code
I
G
H
N
P
M
Code
X
2
3
5
6
7
Stability
±15ppm
±20ppm
±30ppm
±50ppm
±100ppm
±150ppm
Temp. Range
-40°C to +85°C
2
-40°C to +105°C
3
-40°C to +125°C
4
-40°C to +150°C
5
-55°C to +105°C
5
-55°C to +125°C
5
Packing
Code
3k pcs./reel
R
Code
F
Mode
Fundamental
Code Capacitance Code Capacitance
7pF
16pF
C
V
8pF
18pF
K
D
9pF
20pF
J
E
10pF
24pF
A
F
12pF
30pF
L
G
13pF
Series
S
B
Notes:
1]
2]
3]
4]
5]
Refer to document 016-1454-0, Frequency Code Tables. 3-digits for frequencies <100MHz, 4-digits for frequencies 100MHz or greater.
Available with all stability codes.
Available with stability codes 3, 5, 6 and 7.
Available with stability codes 5, 6 and 7.
Stability codes 6 and 7. Contact factory for code 5 availability.
Not all performance combinations and frequencies may be available.
Contact your local CTS Representative or CTS Customer Service for availability.
This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this
product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.
