VFOV100-UBEDH-10

Description
HCMOS/TTL Output Clock Oscillator, 5MHz Min, 50MHz Max, ROHS COMPLIANT, HERMETIC SEALED PACKAGE-5
CategoryPassive components    oscillator
File Size408KB,4 Pages
ManufacturerCTS
Environmental Compliance
Download Datasheet Parametric View All

VFOV100-UBEDH-10 Overview

HCMOS/TTL Output Clock Oscillator, 5MHz Min, 50MHz Max, ROHS COMPLIANT, HERMETIC SEALED PACKAGE-5

VFOV100-UBEDH-10 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerCTS
Reach Compliance Codeunknow
Other features0.0005 PPM/DAY AGING AVAILABLE
Ageing0.06 PPM/FIRST YEAR
Maximum control voltage2.8 V
Minimum control voltage
Frequency Adjustment - MechanicalNO
frequency stability0.02%
Frequency Stability - Voltage0.005 ppm
input power1.2 W
Manufacturer's serial numberVFOV100
Installation featuresSURFACE MOUNT
Maximum operating frequency50 MHz
Minimum operating frequency5 MHz
Maximum operating temperature70 °C
Minimum operating temperature
Oscillator typeHCMOS/TTL
Output load10 KOHM, 15 pF
Oven power supply voltage3.3V

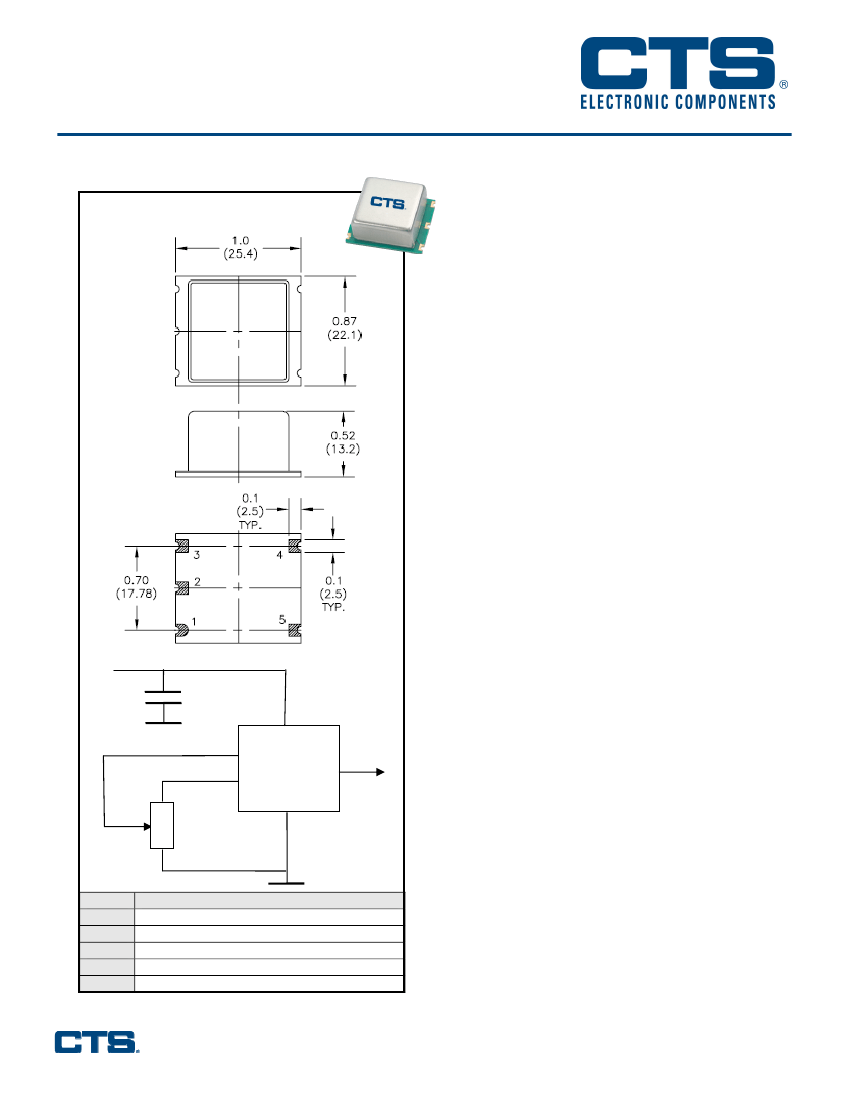

physical size25.4mm x 22.1mm x 13.2mm
Maximum supply voltage3.47 V
Minimum supply voltage3.14 V
Nominal supply voltage3.3 V
surface mountYES
Preheating power3.5 W
Maximum warm-up time3 Minute
VFOV100

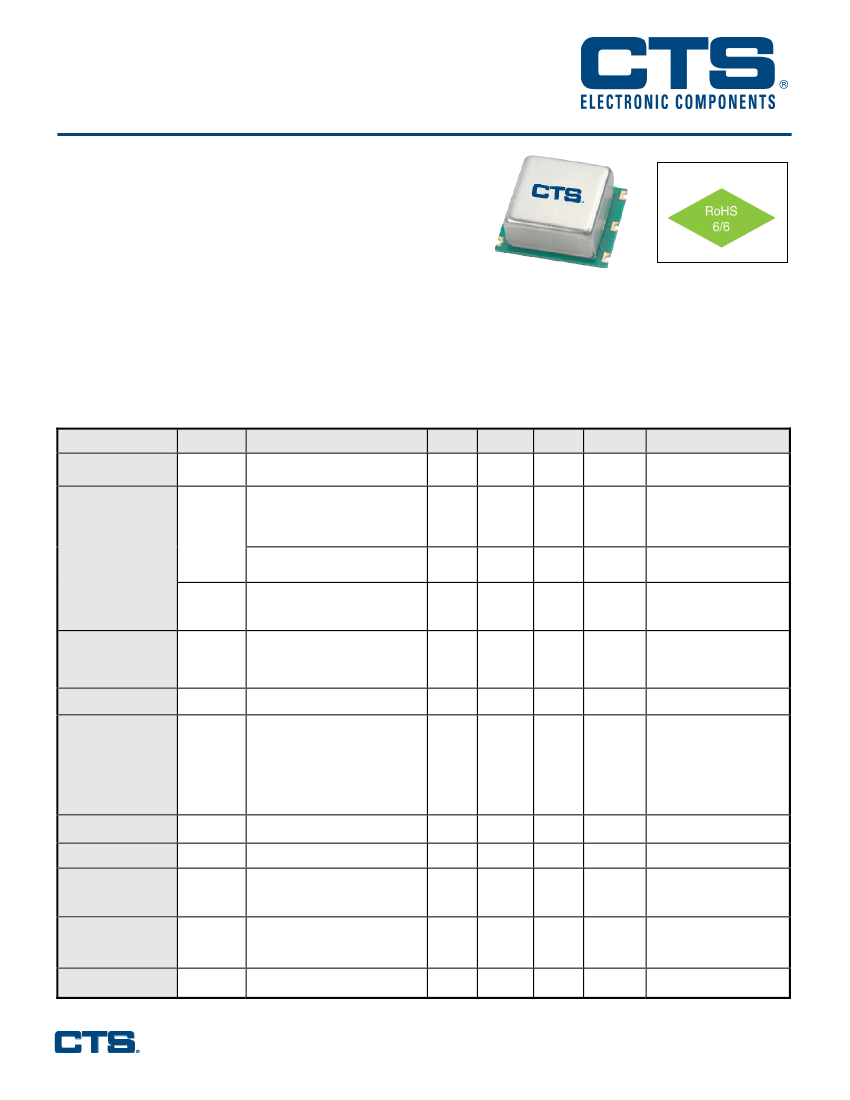

OCXO – Ultra Low Noise, Ultra Stable
HCMOS / SINE WAVE
Features
5MHz to 120MHz frequency range
Ultra low phase noise: (fundamental crystal)
o
-155 dBc/Hz @ 1kHz offset
o
-168 dBc/Hz floor
Sine wave or HCMOS output
RoHS Status
Applications
PLL Reference for Telecommunication Systems
Microwave Communications / RADAR Signal Source
GPS Holdover
Instrumentation / Test and Measurement
Electrical Specifications
Parameter
Frequency
Range
Symbol
F
Vs. Operating temperature
E: -30C to +70C
Vs. Supply voltage
Vs. Aging / Day
Vs. Aging / Year
Operating
Temperature
Range
Allan Variance
T
1s
1Hz
10Hz
100Hz
1kHz
10kHz
100kHz
After 30 min.
worst direction
V
CC
P
τ
steady state, 25C
steady state, -30C
start-up
+25C
11.4
4.75
3.14
12.0
5.0
3.3
1.0
2.0
3.2
2
-30
10E
-12
-95
-125
-145
-155
-165
-168
20
1
12.6
5.25
3.47
1.2
2.2
3.5
3
For 10MHz
Oscillator
dBc/Hz
( For 100MHz see
plot on next page)
ppb
ppb/g
V
W
min
to 0.1ppm accuracy
Condition
Min
5
10
±3
3
0.3
+70
±5
Typ
Max
120
Unit
MHz
ppb
ppb
ppb
ppm
C
STD option shown.
See “How to Order”
Chart below
Ref. V
CC
typ.
after 30 days
0.2ppb available
STD option shown.
See “How to Order”
Chart below
Note
∆F/F
Frequency
Stability

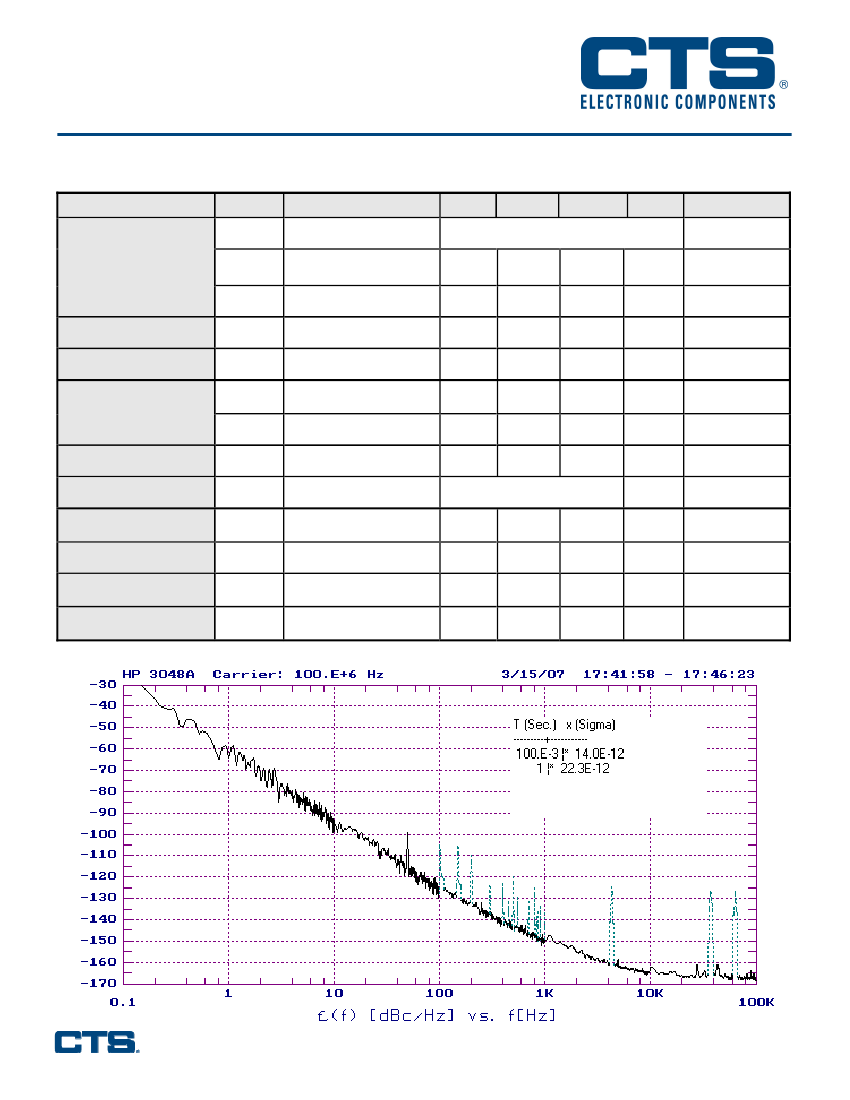

SSB Phase
Noise
Retrace
G-sensitivity
Supply Voltage
Power
Consumption
Warm Up Time
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-497-6377 • www.ctsvalpey.com • RevI1212
Specifications are subject to change without notice
1
