CY7C1263XV18
CY7C1265XV18
36-Mbit QDR
®
II+ Xtreme SRAM Four-Word
Burst Architecture (2.5 Cycle Read Latency)
36-Mbit QDR
®
II+ Xtreme SRAM Four-Word Burst Architecture (2.5 Cycle Read Latency)
Features
■
Configurations
With Read Cycle Latency of 2.5 cycles:
CY7C1263XV18 – 2 M × 18
CY7C1265XV18 – 1 M × 36
Separate Independent Read and Write Data Ports
❐
Supports concurrent transactions
633 MHz Clock for High Bandwidth
Four-word Burst for Reducing Address Bus Frequency
Double Data Rate (DDR) Interfaces on both Read and Write
Ports (data transferred at 1266 MHz) at 633 MHz
Available in 2.5 Clock Cycle Latency
Two Input Clocks (K and K) for precise DDR Timing
❐
SRAM uses rising edges only
Echo Clocks (CQ and CQ) simplify Data Capture in High Speed
Systems
Data Valid Pin (QVLD) to indicate Valid Data on the Output
Single Multiplexed Address Input Bus latches Address Inputs
for Read and Write Ports
Separate Port selects for Depth Expansion
Synchronous Internally Self-timed Writes
QDR
®
II+ Xtreme operates with 2.5 cycle read latency when
DOFF is asserted HIGH
Operates similar to QDR I Device with one Cycle Read Latency
when DOFF is asserted LOW
Available in × 18 and × 36 Configurations
Full Data Coherency, providing Most Current Data
Core V
DD
= 1.8 V ± 0.1 V; I/O V
DDQ
= 1.4 V to 1.6 V
❐
Supports 1.5 V I/O supply
HSTL Inputs and Variable Drive HSTL Output Buffers
Available in 165-ball FBGA Package (13 × 15 × 1.4 mm)
Offered in Pb-free Packages
JTAG 1149.1 compatible Test Access Port
Phase-Locked Loop (PLL) for Accurate Data Placement
■
■
■
■
■
Functional Description
The CY7C1263XV18, and CY7C1265XV18 are 1.8 V
Synchronous Pipelined SRAMs, equipped with QDR II+
architecture. Similar to QDR II architecture, QDR II+ architecture
consists of two separate ports: the read port and the write port to
access the memory array. The read port has dedicated data
outputs to support read operations and the write port has
dedicated data inputs to support write operations. QDR II+
architecture has separate data inputs and data outputs to
completely eliminate the need to “turnaround” the data bus that
exists with common I/O devices. Each port is accessed through
a common address bus. Addresses for read and write addresses
are latched on alternate rising edges of the input (K) clock.
Accesses to the QDR II+ Xtreme read and write ports are
completely independent of one another. To maximize data
throughput, both read and write ports are equipped with DDR
interfaces. Each address location is associated with four 18-bit
words (CY7C1263XV18), or 36-bit words (CY7C1265XV18) that
burst sequentially into or out of the device. Because data is
transferred into and out of the device on every rising edge of both
input clocks (K and K), memory bandwidth is maximized while
simplifying system design by eliminating bus “turnarounds”.
Depth expansion is accomplished with port selects, which
enables each port to operate independently.
All synchronous inputs pass through input registers controlled by
the K or K input clocks. All data outputs pass through output
registers controlled by the K or K input clocks. Writes are
conducted with on-chip synchronous self-timed write circuitry.
For a complete list of related documentation, click
here.
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
Selection Guide
Description
Maximum Operating Frequency
Maximum Operating Current
× 18
× 36
633 MHz
633
1165
1660
600 MHz
600
1100
1570
Unit
MHz
mA
Cypress Semiconductor Corporation
Document Number: 001-70328 Rev. *F
•
198 Champion Court
•
San Jose
,
CA 95134-1709
•
408-943-2600
Revised January 3, 2018
CY7C1263XV18
CY7C1265XV18

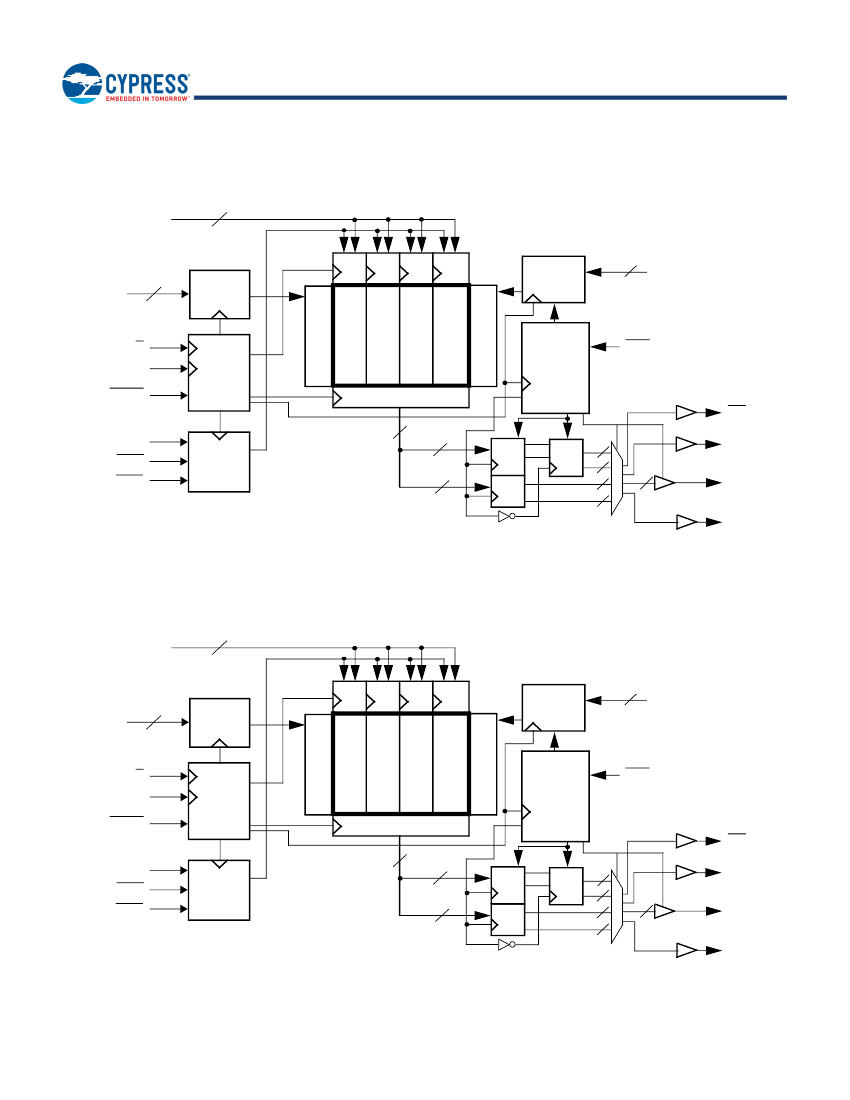

Logic Block Diagram – CY7C1263XV18
D
[17:0]
18
Read Add. Decode
Write Add. Decode
A
(18:0)
19
Write
Reg
Address
Register
Write
Reg
Write
Reg
Write
Reg
Address
Register
19
A
(18:0)
512K x 18 Array
512K x 18 Array
512K x 18 Array
512K x 18 Array
K
K
CLK
Gen.
Control
Logic
RPS
DOFF
Read Data Reg.
CQ
72
V
REF
WPS
BWS
[1:0]
36
Control
Logic
36
Reg.
Reg.
Reg. 18
18
18
18
CQ
18
Q
[17:0]
QVLD
Logic Block Diagram – CY7C1265XV18
D
[35:0]
36
Read Add. Decode
Write Add. Decode
A
(17:0)
18
Write
Reg
Address
Register
Write
Reg
Write
Reg
Write
Reg
Address
Register
18
A
(17:0)
256K x 36 Array
256K x 36 Array
256K x 36 Array
256K x 36 Array
K
K
CLK
Gen.
Control
Logic
RPS
DOFF
Read Data Reg.
CQ
144
V
REF
WPS
BWS
[3:0]
72
Control
Logic
72
Reg.
Reg.
Reg. 36
36
36
36
CQ
36
Q
[35:0]
QVLD
Document Number: 001-70328 Rev. *F
Page 2 of 30
CY7C1263XV18
CY7C1265XV18
Contents
Pin Configurations ........................................................... 4
Pin Definitions .................................................................. 5
Functional Overview ........................................................ 6
Read Operations ......................................................... 6
Write Operations ......................................................... 6
Byte Write Operations ................................................. 7
Concurrent Transactions ............................................. 7
Depth Expansion ......................................................... 7
Programmable Impedance .......................................... 7
Echo Clocks ................................................................ 7
Valid Data Indicator (QVLD) ........................................ 7
PLL .............................................................................. 7
Application Example ........................................................ 8
Truth Table ........................................................................ 9
Write Cycle Descriptions ............................................... 10
Write Cycle Descriptions ............................................... 11
IEEE 1149.1 Serial Boundary Scan (JTAG) .................. 12
Disabling the JTAG Feature ...................................... 12
Test Access Port ....................................................... 12
Performing a TAP Reset ........................................... 12
TAP Registers ........................................................... 12
TAP Instruction Set ................................................... 12
TAP Controller State Diagram ....................................... 14
TAP Controller Block Diagram ...................................... 15
TAP Electrical Characteristics ...................................... 15
TAP AC Switching Characteristics ............................... 16
TAP Timing and Test Conditions .................................. 17
Identification Register Definitions ................................ 18
Scan Register Sizes ....................................................... 18
Instruction Codes ........................................................... 18
Boundary Scan Order .................................................... 19
Power Up Sequence in QDR II+ Xtreme SRAM ............ 20
Power Up Sequence ................................................. 20
PLL Constraints ......................................................... 20
Maximum Ratings ........................................................... 21
Neutron Soft Error Immunity ......................................... 21
Operating Range ............................................................. 21
Electrical Characteristics ............................................... 21
DC Electrical Characteristics ..................................... 21
AC Electrical Characteristics ..................................... 22
Capacitance .................................................................... 22
Thermal Resistance ........................................................ 22
AC Test Loads and Waveforms ..................................... 23
Switching Characteristics .............................................. 24
Switching Waveforms .................................................... 25
Read/Write/Deselect Sequence ................................ 25
Ordering Information ...................................................... 26
Ordering Code Definitions ......................................... 26
Package Diagram ............................................................ 27
Acronyms ........................................................................ 28
Document Conventions ................................................. 28
Units of Measures ..................................................... 28
Document History Page ................................................. 29
Sales, Solutions, and Legal Information ...................... 30
Worldwide Sales and Design Support ....................... 30
Products .................................................................... 30
PSoC® Solutions ...................................................... 30
Cypress Developer Community ................................. 30
Technical Support ..................................................... 30
