ZRA245
PRECISION 2.45 VOLT VOLTAGE REFERENCE
DEVICE DESCRIPTION
The ZRA245 uses a bandgap circuit design to achieve
a precision voltage reference of 2.45 volts. The
device is available in small outline surface mount
packages, ideal for applications where space saving
is important.
The ZRA245 design provides a stable voltage
without an external capacitor and is stable with
capacitive loads. The ZRA245 is recommended for
operation between 2mA and 120mA.
FEATURES
APPLICATIONS
•
Small outline SOT23, SO8 and TO92
style package
•
Battery powered and portable equipment.
•
Metering and measurement systems.
•
Instrumentation.
•
Test equipment.
•
Data acquisition systems.
•
Precision power supplies.
•
No stabilising capacitor required
•
Typical T
C
15ppm/°C
•
Typical slope resistance 0.26Ω
•
±
3% , 2% and 1% tolerance
•
Industrial temperature range
•
Operating current 2mA to 120mA
SCHEMATIC DIAGRAM
V
R
1.25V
REF
GND
ISSUE 4 — JANUARY 2006
1
SEMICONDUCTORS
ZRA245
ABSOLUTE MAXIMUM RATING
Reverse Current
Forward Current
Operating Temperature
Storage Temperature
200mA
25mA
-40 to 85°C
-55 to 125°C
Power Dissipation (T
amb
=25°C)
SOT23
E-Line, 3 pin (TO92)
E-Line, 2 pin (TO92)
SO8
330mW
500mW
500mW
625mW
ELECTRICAL CHARACTERISTICS TEST CONDITIONS
(Unless otherwise stated) T
amb
=25°C
SYMBOL
PARAMETER
CONDITIONS
LIMITS
MIN. TYP. MAX.
TOL.
%
UNITS
VR
Reverse Breakdown Voltage
I =5mA
R
2.43
2.40
2.38
2.45
2.45
2.45
2.47
2.50
2.52
2
1
2
3
V
I MIN
IR
TC †
RS §
ZR
Minimum Operating Current
Recommended Operating
Current
Average Reverse Breakdown
Voltage Temp. Co.
Slope Resistance
Reverse Dynamic Impedance
I R(min) to
I R(max)
2
15
0.26
0.28
mA
mA
ppm/°C
Ω
Ω
120
50
0.5
1
I
R
=5mA
f =100Hz
I
AC
=0.1 I
R
IR
=
5mA
f = 10Hz to
10kHz
EN
Wideband Noise Voltage
65
µV(rms)
†
T
C
=
(
V
R
(
max
)
−
V
R
(
min
)
)
x
1000000
V
R
x
(
T
(
max
)
−
T
(
min
)
)
Note: V R(max) - V R(min) is the
maximum deviation in reference voltage
measured over the full operating
temperature range.
§
R
S
=
V
R
Change
(
I
R
(
MIN
)
to I
R
(
MAX
)
)
I
R
(
MAX
)
−
I
R
(
MIN
)
ISSUE 4 — JANUARY 2006
SEMICONDUCTORS
2
ZRA245

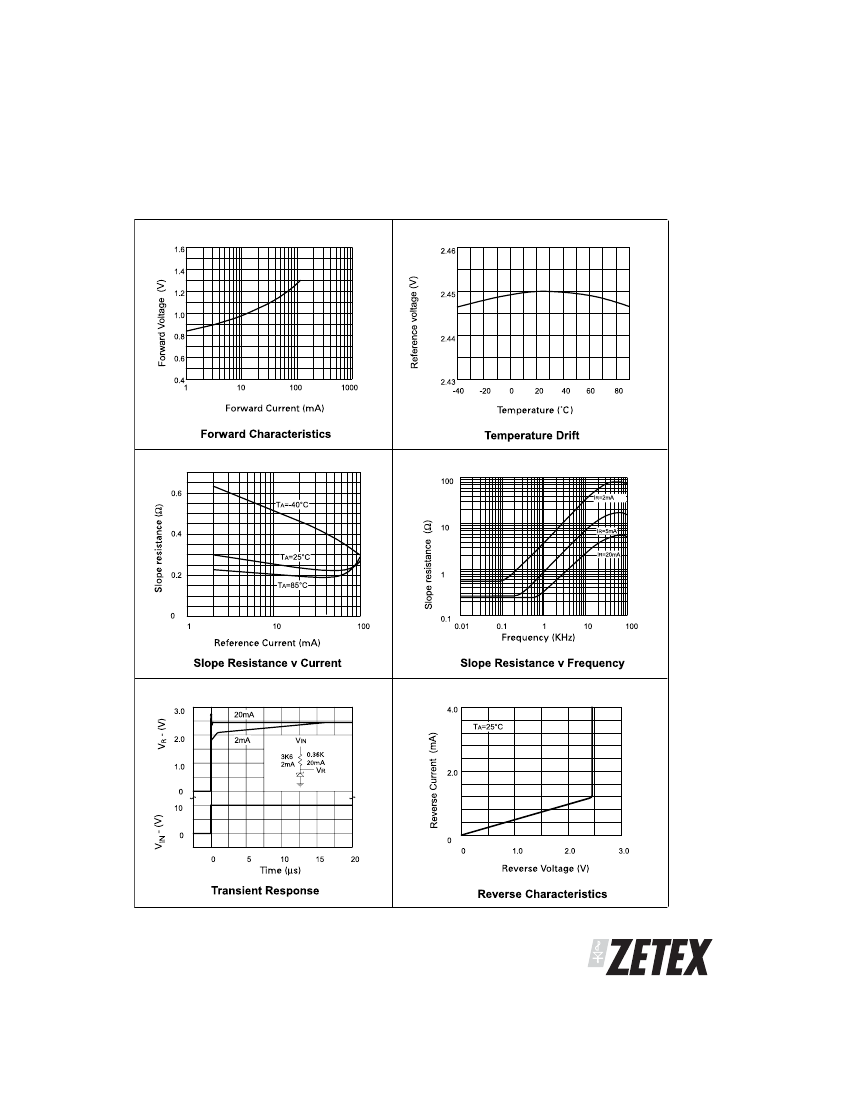

TYPICAL CHARACTERISTICS
ISSUE 4 — JANUARY 2006
3
SEMICONDUCTORS
ZRA245
CONNECTION DIAGRAMS
E-Line, 2 pin
Package Suffix – Y
E-Line, 3 pin,Rev Package Suffix – R
T
AS
L
Bottom View
E
IM
T
Y
BU
E
ET
OL
S
OB
Bottom View –
Pin 3 floating or connected to pin 1
E-Line, 3 pin Package Suffix – A
SO8
Package Suffix – N8
E
ET
L
SO
OB
Bottom View –
Pin 1 floating or connected to pin 3
Top View
E
ET
OL
S
OB
SOT23 Package Suffix – F
D
DE
S
EN
M IGN
M S
CO DE
RE
T NEW
NO R
FO
Top View –
Pin 1 floating or connected to pin 2
ISSUE 4 — JANUARY 2006
SEMICONDUCTORS
4
ZRA245
ORDERING INFORMATION
Part No
ZRA245A03
ZRA245A02
ZRA245A01
ZRA245F03
ZRA245F02
ZRA245F01
ZRA245N803
ZRA245N802
ZRA245N801
Tol. %
3
2
1
3
2
1
3
2
1
Package
E-Line •
E-Line •
E-Line •
SOT23
SOT23
SOT23
SO8
SO8
SO8
Partmark
ZRA24503
ZRA24502
ZRA24501
24A
24B
24C
ZRA24503
ZRA24502
ZRA24501
Part No
ZRA245R03
ZRA245R02
ZRA245R01
ZRA245Y03
ZRA245Y02
ZRA245Y01
Tol. %
3
2
1
3
2
1
Package
E-Line *
E-Line *
E-Line *
E-Line †
E-Line †
E-Line †
Partmark
ZRA245R3
ZRA245R2
ZRA245R1
ZRA24503
ZRA24502
ZRA24501
*
†
•
E-Line 3 pin Reversed
E-Line 2 pin
E-Line 3 pin
